Merlyn Ionic Express Sliding Shower Door And Inline Panel 1080mm-1140mm Wide


MFC CODE: A030016H


RRP: £918.44


3-4 Working Days Approx

Not Yet Rated No Rating

Review this Product

Shipping: £29.95

Available Width Sizes Step 1

Select Side Panel Step 2

Download the Installation Instruction - Sliding-door Pdf File
Download the Installation Instruction - Side Panel Pdf File

Please Note all the measurements are in 'mm'
Warranty/Guarantee 20 Years
Installation Type Recess, Corner
Waste Included Sold Separately
Configuration Door Only
Height 1900
Door Type Sliding
Glass Type Clear
Glass Thickness 6
Number Of Doors 1
Side Panel Included Sold Separately
Tray Included Sold Separately
Easy to Clean Glass Yes
Concealed Fixings Yes
Handle Included Yes
Tray Compatible Yes

Merlyn Ionic A030016H DETAILS

Merlyn Ionic Express Sliding Shower Door And Inline Panel will take your showering experience to a luxuriously satisfying level. The stylish enclosure created  will make your bathroom look like a designer one. It is crafted out of 6mm toughened safety glass for longevity and updated with Mershield Stayclear easy clean glass coating, which facilitates easy cleaning and maintenance. You can give the green signal to this product as it comes with a 20-year manufacturer guarantee.

  • Includes Sliding and Inline Panel
  • Available in variation of width sizes [See Option]
  • Height : 1900mm
  • Comes with Mershield Stayclear easy clean glass coating (See Additional Image For More Information)
  • Ionic patented easy fit system - means less drilling and less screws
  • 6mm toughened safety glass
  • Smooth action extra strong rollers
  • Easy clean quick release rollers
  • Rollers come preassembled on the door
  • Concealed fixings
  • Exclusive Ionic Express tool & fittings kit provided
  • CE Standards qualified product
  • Can be used as recess or with optional side panel [See Option]
  • Side panel, tray and waste not included [See Option Below]
  • Extension profile available [See Option]
  • Shower tray panel kit available [See Option]
  • For installation guide, please download PDF from technical tab
  • 20 years guarantee against any manufacturing defects.

Technical Images

Touchstone Rectangular Shower Tray

Touchstone Rectangular Shower Tray

50mm high, Made using ABS Capped ABS Sheets. Ideal for ‘low level’ installation or with tray panel kits for easy installation. Compatible 90mm fast flow waste must be ordered separately

Panel Kit For Mstone Tray

Panel Kit For Mstone Tray

Shower tray panel sets come complete with Styrene (HIPS – High Impact Polystyrene) panels, legs, and clips so you can remove the panels with ease if you need access for maintenance. They are tough and durable, easy to fit, and remove as needed.

Fast Flow Waste For Touchstone Tray

Fast Flow Waste For Touchstone Tray

This is 90mm Fast Flow Waste with hair trap and chrome cover top. This waste is highly recommended to use with Merlyn Touchstone Tray. Please Note: The image shown is for illustration purpose only

Extension Profile

Extension Profile

Ionic By Merlyn presents the extension Profile for its glass panel. This Extension profile comes in Chrome finish. Please Note: The image shown is for illustration purpose only.


Available Sizes
Pivot Door Details
Size - mm Door Size - mm Inline Panel Size - mm A=Door Opening - mm B=Fixed Panel-mm MFC Code
1080-1140 1000 150 380 433 A030016H

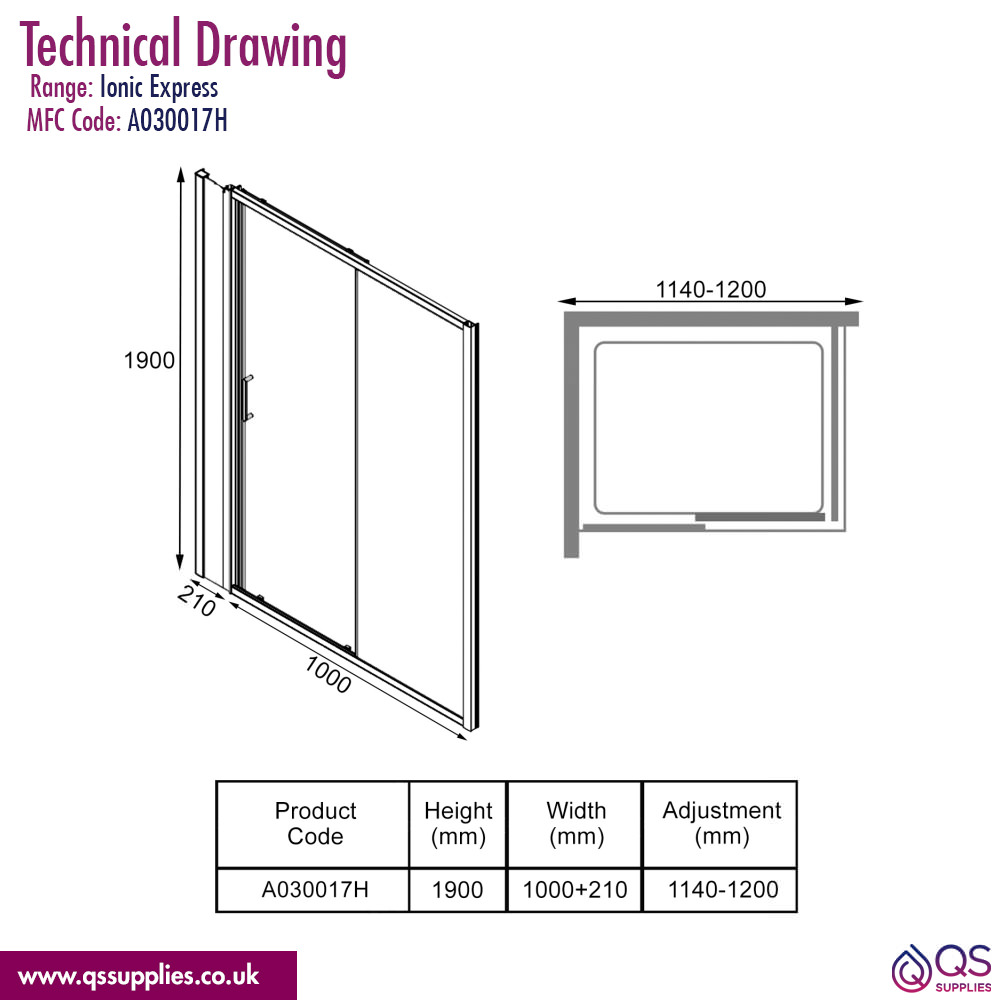

1140-1200 1000 210 380 433 A030017H
1180-1240 1100 150 430 483 A030018H
1240-1300 1100 210 430 483 A030019H
1280-1340 1200 150 480 533 A030020H
1340-1400 1200 210 480 533 A030021H
1370-1450 1100 150+ 210 430 483 A030022H
1480-1540 1400 150 580 633 A030023H
1540-1600 1400 210 580 633 A030024H
1580-1640 1500 150 580 733 A030025H
1640-1700 1500 210 580 733 A030026H

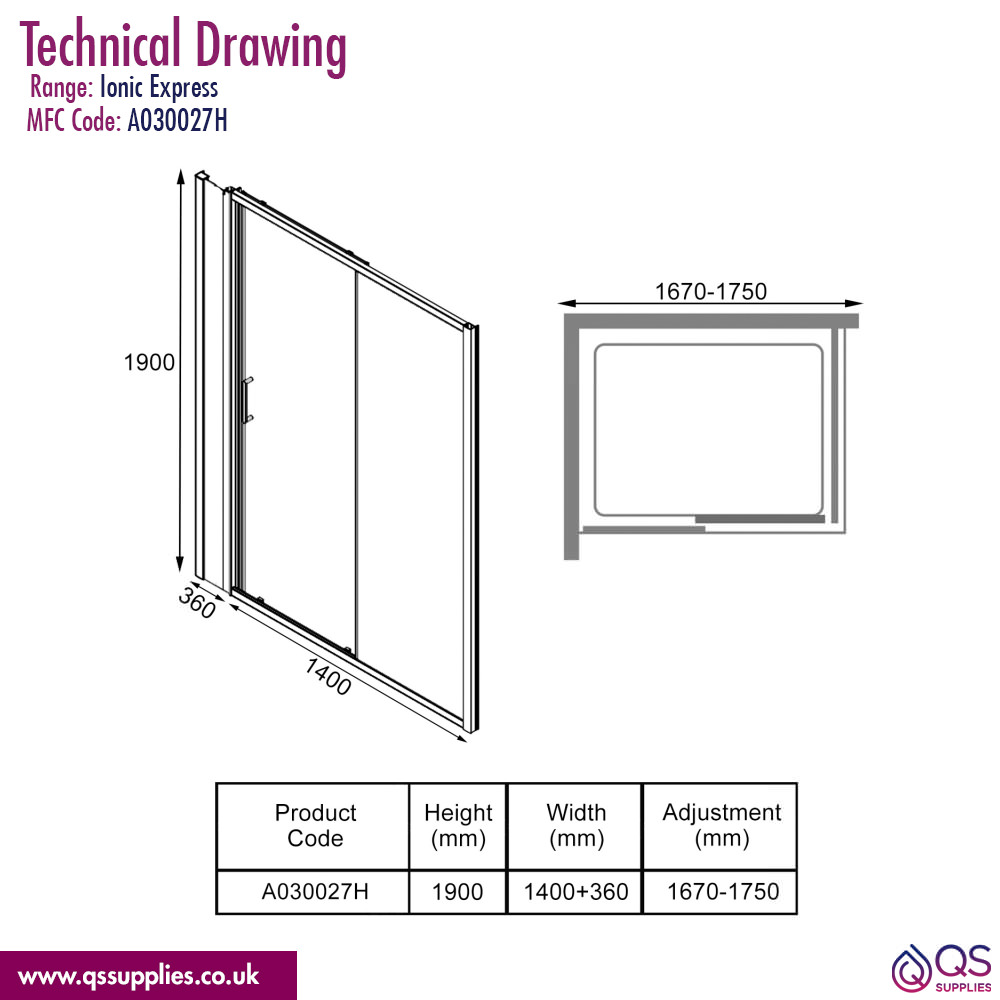

1670-1750 1400 150 + 210 580 633 A030027H

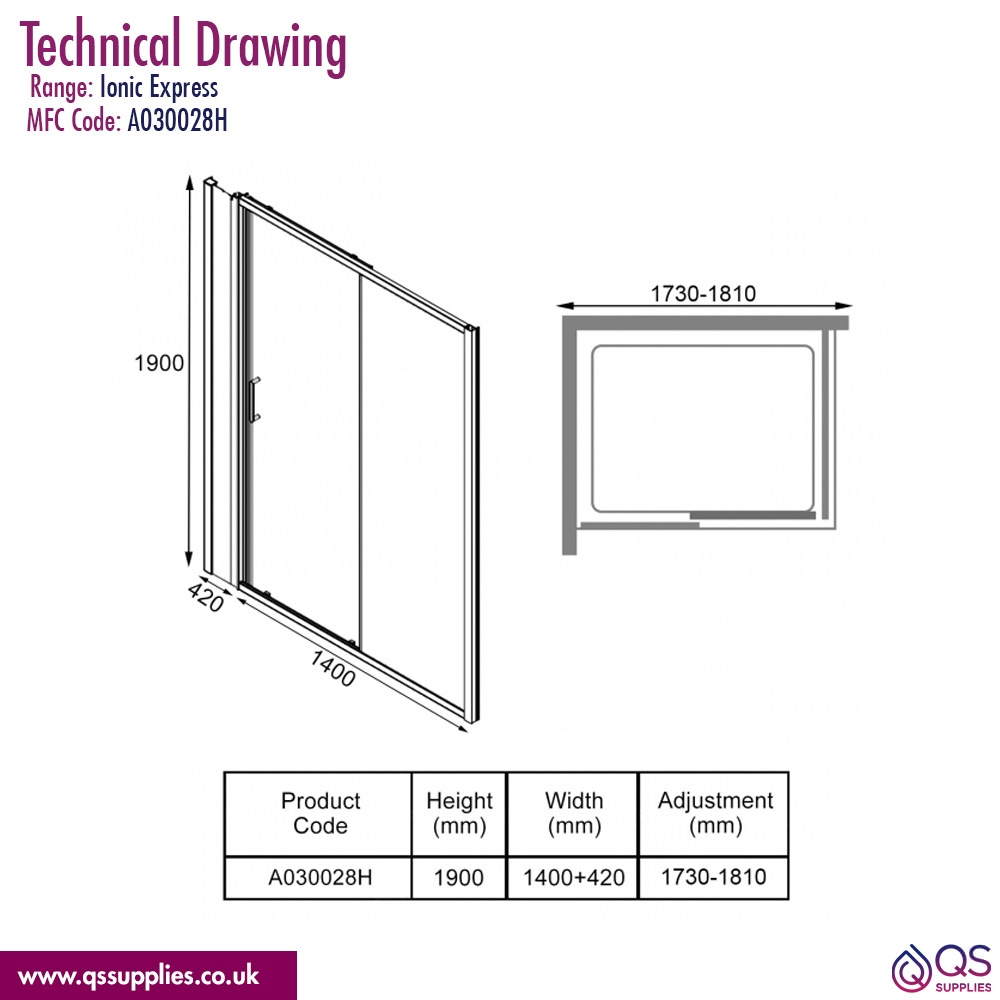

1730-1810 1400 210 x 2 580 633 A030028H

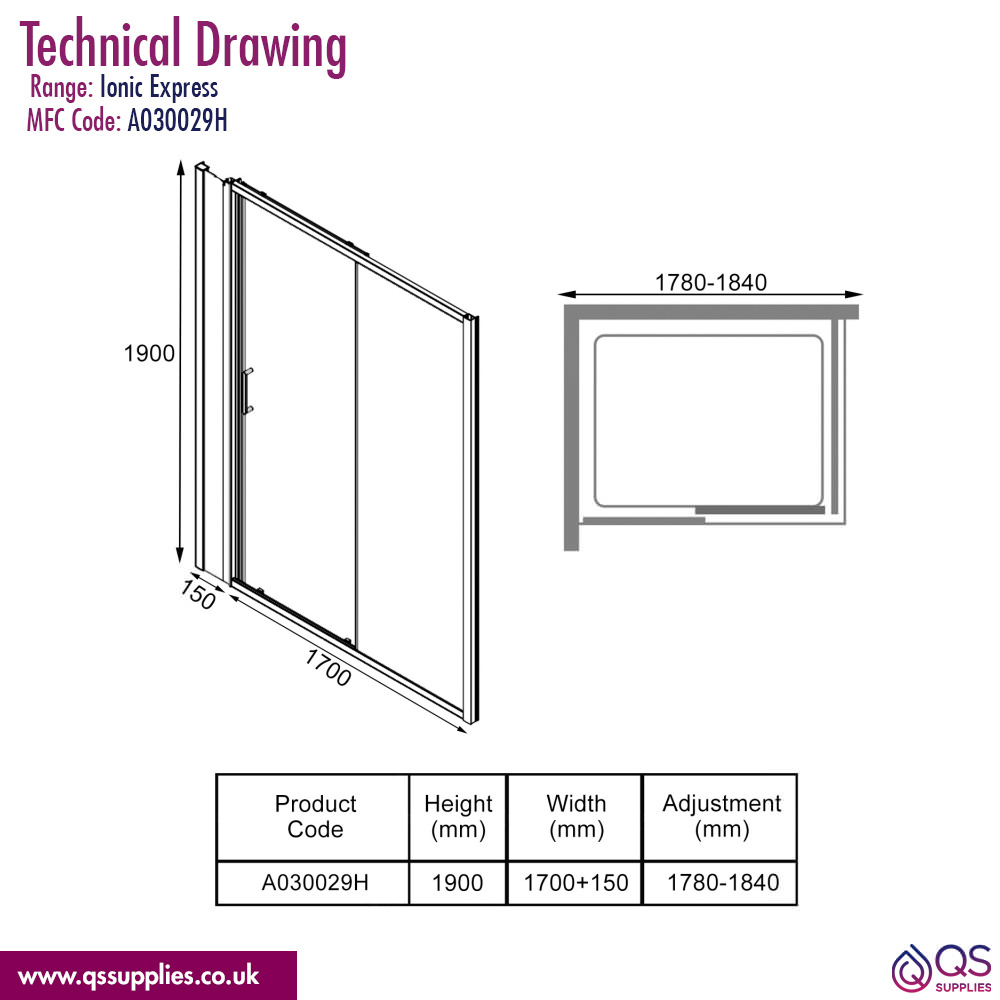

1780-1840 1700 150 580 933 A030029H
1840-1900 1700 210 580 933 A030030H
Side Panel Details
Size - mm Adjustment - mm MFC Code
700 650-670 A0307A0
760 710-730 A0307B0
800 750-770 A0307D0
900 850-870 A0307E0
