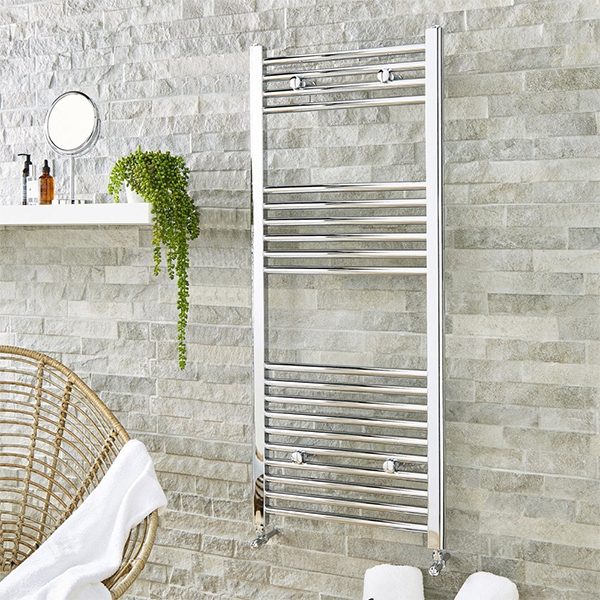

Kartell K-Rail 300mm Wide Straight Towel Rail

K-Rail STR308W Details

The Kartell K-Rail 300mm Wide Straight Towel Rail is designed in several different variations to choose from as well as 2 possible tube diameters to pick from as well. Fueled via central heating and pressure tested to 10 bar, this unit operates best at less than the maximum working pressure of 7 bar for proper functionality with each and every use. Supplied with a complete fixing kit including brackets, plugs and vents along with it; if compatible valves are required, they must be purchased separately as well. This product is available in fashionable white and chrome finish options and ideal for placement within any modern or traditional bathroom layout.

Key Features

✔Available in 2 finishes: White, Chrome
✔Fuel type: central heating
✔Supplied with a complete fixing kit including brackets, plugs and vents
✔Five years guarantee against all manufacturing defects

Available in 5 heights: 800mm,1000mm, 1200mm, 1600mm.
Available in 2 tube diameters: 22mm, 25mm.
Width: 300mm (30cm).
Tapping centres: 255mm (25.5cm).

Pressure tested to 10 bar.
Maximum working pressure 7 bar.
The images shown are for illustration purposes only.
Valves are sold separately (see option below).

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall-Mounted
⤷ Width
: 300
⤷ Height
: 800 / 1000 / 1200 / 1600

⤷ Orientation
: Vertical
⤷ Barcode
: 5057199937087
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Tube Diameter
: 22
⤷ Pressure Tested (bars)
: 10

Technical Images

Kartell K-Rail 300mm Wide Straight Towel Rail

Total: £39.22 3-4 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Finish	Height (mm)	Width (mm)	Tube Diameter (mm)	Tapping Centres (mm)	BTU Output	Product Code
Chrome	800	300	22	255	957	STR308C
Chrome	1000	300	22	255	1140	STR310C
Chrome	1200	300	22	255	1388	STR312C
Chrome	1600	300	22	255	1835	STR316C
-	-	-	-	-	-	-
White	800	300	22	255	1364	STR308W
White	1000	300	22	255	1626	STR310W
White	1200	300	22	255	1978	STR312W
White	1600	300	22	255	2614	STR316W
-	-	-	-	-	-	-
Chrome	800	300	25	255	1106	25STR308C
Chrome	1000	300	25	255	1319	25STR310C
Chrome	1200	300	25	255	1605	25STR312C
Chrome	1600	300	25	255	2122	25STR316C
