Kaldewei Vaio Set 954 Steel Bath 1700 x 750mm

Technical drawing QS-V19358 / 233400010001

Additional image of Kaldewei 233400010001

Kaldewei Vaio Set 954 Steel Bath 1700 x 750mm

Available Bath Variants: No Tap Hole / 2 Tap Holes

QS-V19358

MFC CODE: 233400010001

£434.46

RRP: ~~£843.60~~

STOCK AVAILABILITY

5 Working Days Approx

4.5 out of 5

8 out of 8 customers rated 90%

Review this Product

Shipping: £29.95

VARIATIONS

Technical

Other Variation Available Step 1

No Tap Hole
£434.46
2 Tap Holes
£434.46

OP-153922 - No Tap Hole

Available Bath Variants Step 2

INFO / SIZE (mm)

Bath
Length: 1700 mm
Width: 750 mm

Please Note all the measurements are in 'mm'

External Length	1700
External Width	750
Tub Depth	External - 430
Feets Included	Sold Separately
Height Including Feet or Panel	560-580
Colour	Alpine White
Internal Bottom Length	1300
Internal Bottom Width	450, 525
Internal Top Length	1560
Internal Top Width	505, 630
Height of Rim	32
Distance Tub edge to centre of drain hole	625
Distance Top edge to centre of overflow hole	70
Diameter of overflow hole	52
Diameter of Drain hole	52
Distance foot end of tub edge to center of foot	435
Distance between the feet	725
Rim Width	60, 80
Distance Between Centre Holes	310
Weight in kg	50
Slip Resistant	No
Shape	Rectangular
Capacity in litres	134
Country of Origin	Germany
Warranty/Guarantee	30 Years
Material	Steel
No. of Bathers	1
Waste Included	Sold Separately
Tap Holes	Un-drilled

QTY

ADD TO BASKET

Kaldewei Vaio 233400010001 DETAILS

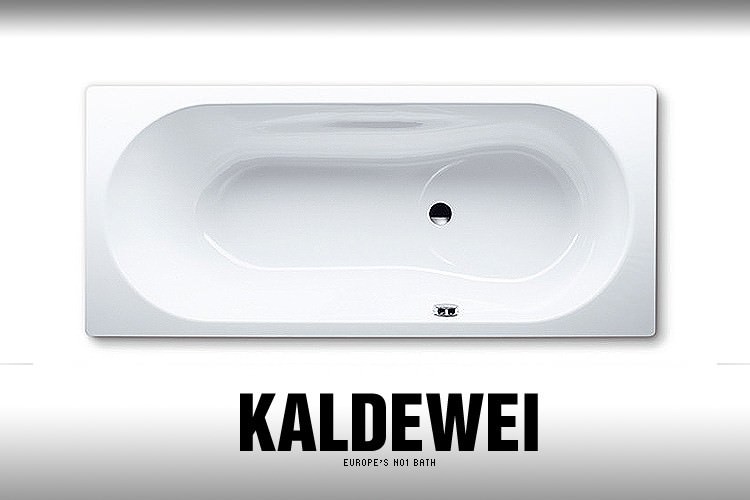

A beautifully crafted single-ended bath from Kaldewei, the Vaio Set Steel Bath measuring 1700mm x 750mm is finished in white and displays simple design lines. This quality tub offers a luxurious bathing experience every time.

Available in No tap hole and 2 tap holes version [Optional]
Baths with Easy clean finish, Anti slip and Full anti slip variants also available [Optional]
Full anti slip with Easy clean finish variant is only available in No tap hole bath
Comes in fabulous Alpine white finish
Size: Length 1700mm x Width 750mm x Depth 430mm
Height with feet: 560-580mm
Made of steel enamel 3.5mm
Compatible for bathing and showering

One-seater bath with side overflow and integrated arm rests
Weight: 50kg
Water Capacity 135 Litres - 70 Litres displacement on average
Bath waste shown in image is not included
Image shown for illustration purpose only
Bath waste [Optional]
Leg Set Required [Optional]
30 year guarantee from Kaldewei against any manufacturing faults.

Please Note: Bath variants may be special order and delivery lead time may vary.

CUSTOMISE YOUR PRODUCT

Leg Set

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

None
OP-29520 - Leg Set 5030 - 581470000000 + £34.84 RECOMMENDED

Waste

High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.

None
OP-250 - High Flow Chrome Pop-Up Waste Dedicated - BW001 + £20.15 RECOMMENDED

PRODUCT VARIATIONS INFO & MFC CODE

Tap Hole	Available Variants	MFC
0	Bath Only	233400010001
0	Bath With Easy-Clean Finish	233400013001
0	Bath With Anti Slip	233430000001
0	Bath With Anti Slip And Easy-Clean Finish	233430003001
0	Bath With Full Anti-Slip	233434010001
0	Bath With Full Anti Slip And Easy-Clean Finish	233434013001

Tap Hole	Available Variants	MFC
2	Bath Only	233420000001
2	Bath With Easy-Clean Finish	233420003001
2	Bath With Anti Slip	233425000001
2	Bath With Anti Slip And Easy-Clean Finish	233425003001
2	Bath With Full Anti-Slip	233426090001

Total: £434.46 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

ADD TO BASKET

You May Also Require

REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Rebecca LONDON Date: October 29, 2020

Really good experience

I use QS supplies a lot for my projects. Really happy with the quality of the products i receive as well as the service.

Helpful?

OVERALL RATING 5 Stars

Quality:
Value For Money:
Style:

Rebecca LONDON Date: October 29, 2020

Positive experience

I use QS supplies a lot for my projects. i am happy with the quality of the products i receive as well as the service.

Helpful?

OVERALL RATING 5 Stars

Quality:
Value For Money:
Style:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Richard Asked :

Does the Kaldewei Vaio come as standard with a small patch of anti-slip?

Answered By QS Team :
Kaldewei Vaio Bath is a plain bath. For Anti-slip, please refer the option OP-1547 and OP-1543.

Was this answer helpful? -

jennifer Asked :

If the bath has a right-hand overflow, is it suitable to place the bath with the LEFT side against the wall? Or should the overflow side be against the wall? Or doesn't it matter?

Answered By QS Team :
It will be your preference where the overflow should be. If you prefer the overflow to be toward the wall side and the showering end on the left of your hand, then you need a bath with a right-hand overflow, but if you prefer showering end on left Side, but overflow on the opposite side of the wall then you need Left-hand overflow bath.

Was this answer helpful? -
