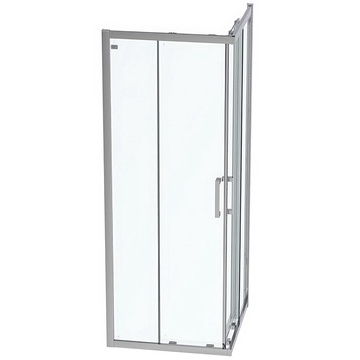

Merlyn Ionic Source 760-800mm Corner Door

Merlyn Ionic A1212V0 Details

Now you can give your showering experience a majestic ambience by bringing home this stylishly appealing Merlyn Ionic Source Corner Door. Constructed to the highest quality standards from a premium quality toughened glass, this door will deliver superb performance over many years. This bathroom accessory comes complete with Easy-Fit frame and is supplied with fixing cover caps. You can install this corner as per your choice of the left or right-hand side as it comes in a reversible design. The five years manufacturer guarantee against any manufacturing defects will seal your buying decision.

The manufacturing code of this product is A1212V0.
Size [mm]: 760-800mm x 1850mm [Width x Height].
Size [cm]: 76-80cm x 185cm [Width x Height].
Adjustment - Minimum 740 - Maximum 790mm.
Door opening size: 350-390mm.
20mm Adjustment per wall profile.
Supplied with fixing cover caps.

Completes with adjustable corner brackets.
Quick-release, easy-clean bottom roller.
Compatible shower tray [Optional].
Shower Tray Waste [Optional].
Panel kit [Optional].
Download the Installation Instruction PDF File from the Additional Info Section.

Info / Size (mm)

Door
Width: 760-800 mm
Height: 1850 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Finish
: Chrome
⤷ Range
: Source
⤷ Shape
: Square
⤷ Warranty/Guarantee
: 5 Years
⤷ Installation Type
: Corner
⤷ Waste Included
: Sold Separately
⤷ Width
: 760-800
⤷ Depth
: 760-800
⤷ Configuration
: Complete Enclosure
⤷ Height
: 1850
⤷ Compliance/Approvals/Standard
: CE Approved
⤷ Barcode
: 5391522381476
⤷ Door Type
: Sliding

⤷ Frame Design
: Framed
⤷ Frame / Profile Finish
: Chrome
⤷ Glass Type
: Clear
⤷ Glass Thickness
: 6
⤷ Number Of Doors
: 2
⤷ Door Adjustment
: 740-790
⤷ Entry Width
: 350-390
⤷ Closing / Opening Mechanism
: Quick-release Bottom Roller
⤷ Tray Included
: Sold Separately
⤷ Handle Included
: Yes
⤷ Profile Cover Caps
: Yes
⤷ Tray Compatible
: Yes

Additional Info & Downloads

Download the Installation Manual Pdf File

Customise Your Product

Shower Tray

Get the exciting shower tray from merlyn and enhance your enclosure with its beauty. This strong and durable shower tray are available in different size. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-103017 - 760 x 760mm Square Tray - D76SQ + £145.16
OP-103018 - 800 x 800mm Square Tray - D80SQ + £160.57
OP-103019 - 760 x 760mm - Up-stand Shower Tray + £107.78
OP-103020 - 800 x 800mm - Up-stand Shower Tray + £120.12

Fast Flow Waste For Touchstone Tray

This is 90mm Fast Flow Waste with hair trap and chrome cover top. This waste is highly recommended to use with Merlyn Touchstone Tray. Please Note: The image shown is for illustration purpose only

No Option Selected
OP-44507 - Shower Tray Waste - DWAS + £33.60

Panel Kit For Mstone Tray

A Shower tray panel set with complete Styrene (HIPS – High Impact Polystyrene) panels, legs, and clips. With the help of this panel set, you can remove the panels with ease if you need access for maintenance. They are tough and durable, easy to fit and remove as required.

No Option Selected
OP-44548 - 1200 x 900mm Panel Kit 4 With Legs - DRK4 + £113.24

Total: £260.90 2-3 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

Adjustable Wall Profile

These refer to the pieces of material that fit the shower door or panel against a wall and can be adjusted to allow for out-of-true walls for a neat and seamless installation. The ability to adjust the side profile gives a perfect fit and makes the installation process easy. Depending on the manufacturer, the profile can be adjusted between 12 to 30mm.

UKCA Great Britain Mark

Merlyn enclosures now carry the UKCA mark, which stands for UK Conformance Assessment. This mark indicates that the product meets or exceeds GB-designated standards. The UKCA mark is now the standard labelling for products sold in Great Britain (England & Wales & Scotland).

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Top Cover Cap

A Ductless element used to conceal and hide fitting's ends or edges for a professionally installed neat look. It is also protective in function.

Quick Release Rollers

Some shower door runners have a quick-release mechanism on the runners for fast release of the doors or panels for easy cleaning of the enclosure.
