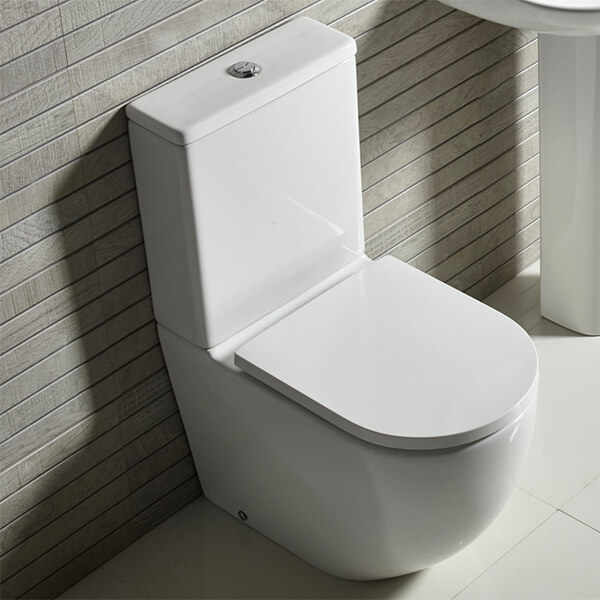

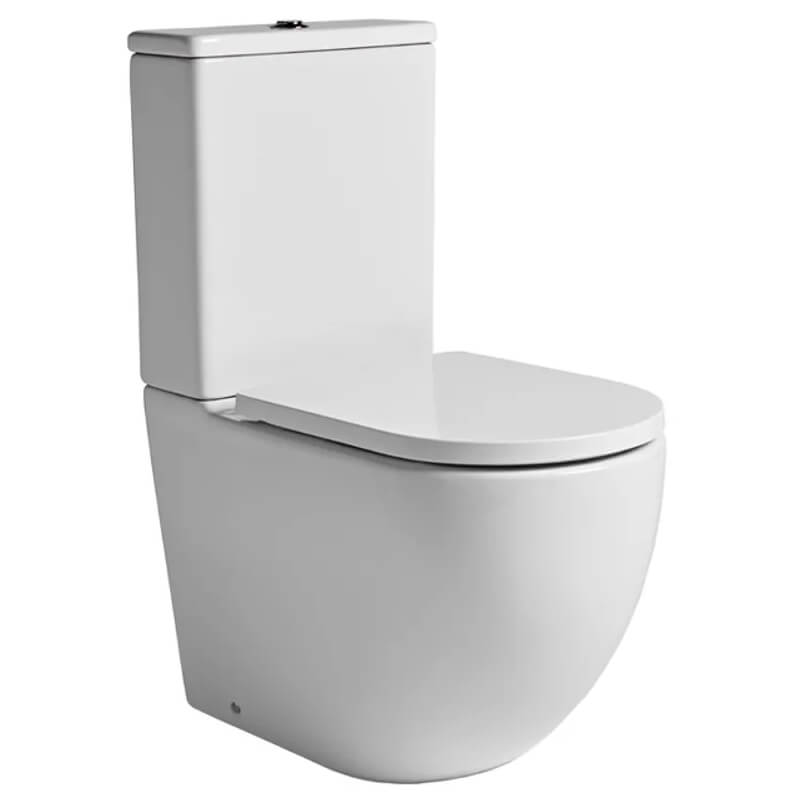

Tavistock Orbit Close Coupled Pan With Cistern And Soft Close Seat

Technical drawing QS-V83915 / P250S|RA453CCC|TS250S

Additional image of Tavistock Orbit Close Coupled Pan With Cistern And Soft Close Seat

Tavistock Orbit Close Coupled Pan With Cistern And Soft Close Seat

QS-V83915

MFC CODE: P250S|RA453CCC|TS250S

£292.32

RRP: ~~£591.00~~

STOCK AVAILABILITY

5 Working Days Approx

3.5 out of 5

2 out of 2 customers rated 70%

Review this Product

Shipping: £29.95

Description

Technical

Tavistock Orbit Close Coupled Pan WC is a white finished unit that combines pan, cistern and soft-close quick release seat for bringing you convenience in the washroom. It is made from top quality materials that afford long-term use and durable performance. The short projection pan is an excellent choice when space is tight while the Easy-clean technology of the WC makes it extremely hygienic. This unit carries a 20 years guarantee from the manufacturer, against manufacturing defects.

+ Read what's included..

Please Note all the measurements are in 'mm'

Colour	White
Warranty/Guarantee	20 Years
Theme	Modern
Installation Type	Floor Mounted
Pan Width	365
Pan Height	410
Toilet Overall Height	835
Projection (Depth)	620
Rimless Bowl	Yes
Cistern Included	Yes
Cistern Width	380
Cistern Type	Close Coupled
Cistern Height	425
Full Flush Volume in litres	4.5
Half Flush Volume in litres	3
Flush Mechanism	Push Button
Cistern Lever Or Button Placement	Top
Seat Included	Yes
Seat Type	Soft Close
Seat Finish	White
Fixings included	Yes
Cistern Depth (projection)	135
Front Of Bowl To Centre Of Seat Holes	420
Base width	265
Cistern Fixing Centres	295
Outlet Diameter	102
Base to centre of outlet	185

Tavistock Orbit P250S|RA453CCC|TS250S DETAILS

Fully Enclosed Close Coupled WC
Comes in white finish
Includes : pan, cistern and soft close quick release seat
Pan dimension : 365(w) x 620(d) x 410(h)mm
Cistern dimension : 380(w) x 135(d) x 425(h)mm
Overall height (including cistern) : 835mm
Fixings included

Cistern Settings: Full Flush Volume: 4.5L, Reduced Flush Volume: 3L
Inlet is located at the right hand side
Short projection pan - good for when space is tight
Hygienic rimless WC design with Easi-clean technology
Easi-Clean - Blow the lid on germs with our new rimless technology. The rimless design makes it exceptionally hygienic and easy to clean, a simple wipe of the rim means there is nowhere germs can hide. Water is projected around the bowl to reach every part and ensure it is completely clean.
Carry 20 years guarantee from the manufacturer.

ADDITIONAL INFO

Download the Technical Data Sheet Pdf File

Total: £292.32 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

REVIEWS & RATINGS

Rate this Item.:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Mr Asked :

Hi, I have a client who is ordering one of these for me to fit on their behalf. I am right in thinking that if the existing waste is coming in from the side then the whole unit would have to sit forward to allow the waste pipework to be fitted? kind regards, Nigel.

Answered By QS Team :
Yes, the Orbit it fully enclosed and so is not compatible with a side connection pipe. We have attached the technical data sheet for this range so that you can see the dimensions clearly.
