Merlyn 8-Series Aluminium Frame Hinged Shower Door with Inline Panel

Merlyn 8 Series Details

MFC: M81210P1H

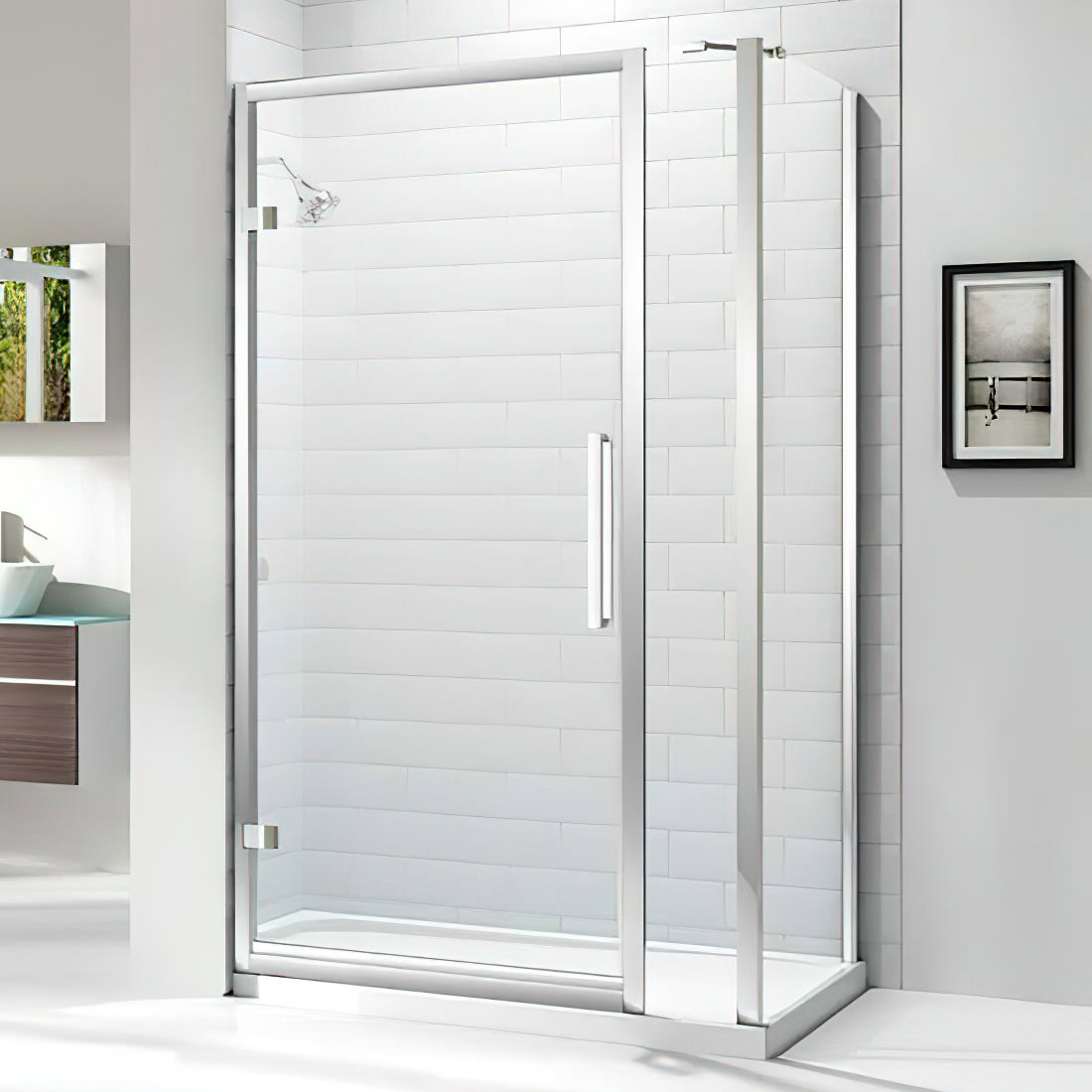

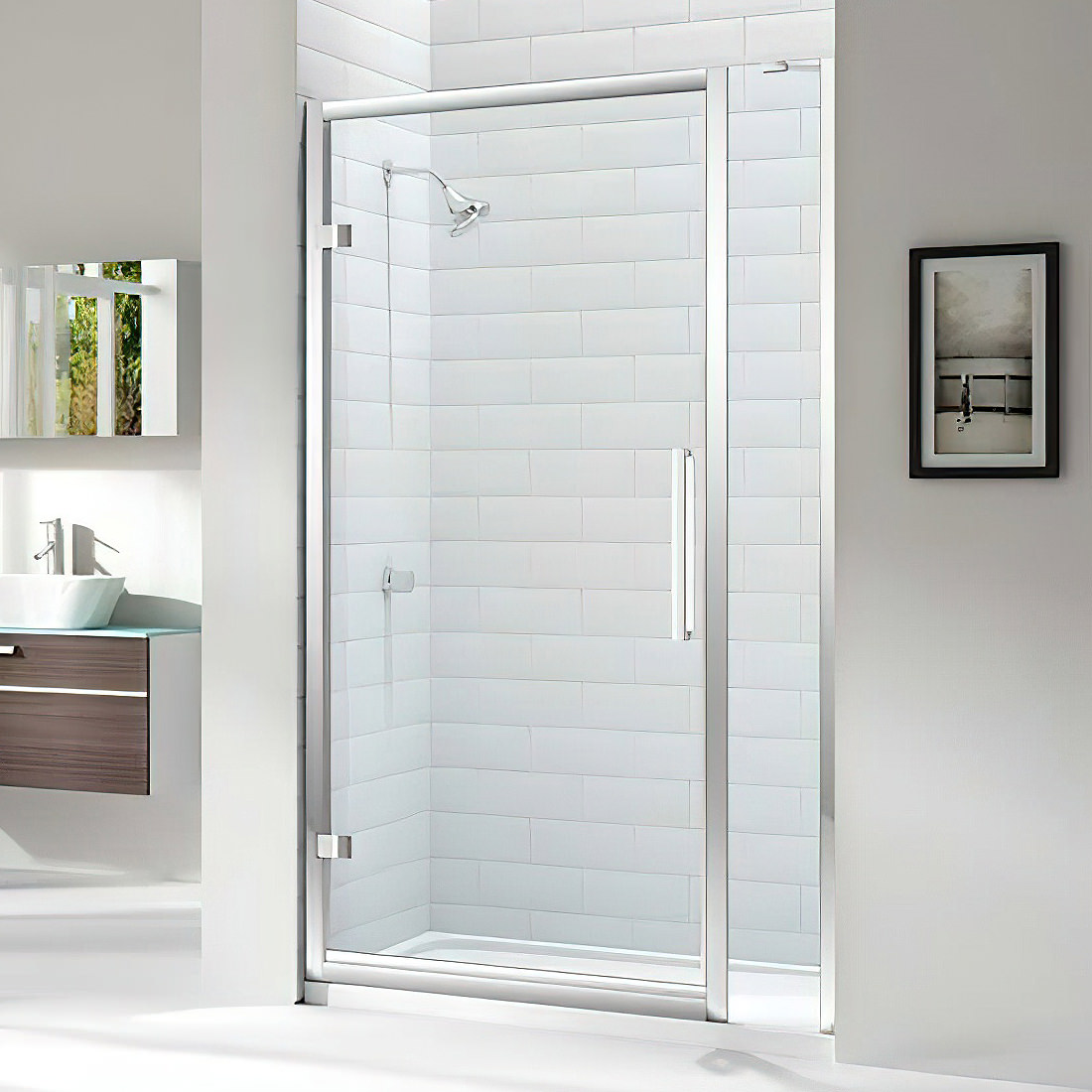

The Merlyn 8 Series Hinged Door is as elegant as it is functional and is sure to make a style statement in your bathroom. It is perfect for a recessed situation, but alternatively, you can also create a corner enclosure with the addition of an optional side panel. This door with an Inline panel pivots on elegant, signature hinges with internal flush fixings. It is fully reversible allowing the door to be opened from the right or left-hand side and is fitted with an extended length chrome handle with double bales catch for a clunk close-fitting. Stepping into the shower space created by this fixture is always a pleasurable experience, rendered so with subtle blends of light, space, air and water.

Key Features

✔Product Includes: Hinged Door and Inline Panel
✔Made from 8mm Toughened Safety Glass
✔Mershield Stayclear Easy Clean Protected Glass
✔Power Shower Compatible
✔UKCA & CE Certified Product
✔Lifetime Guarantee against any Manufacturing Defects

Choice of Widths: 910mm, 970mm, 850mm, 1010mm, 1050mm, 1150mm, 1110mm, and 1210mm
Height: 1950mm [195cm]
Suitable for Recess Installation or can be use with Side Panels
Side Panel Available Separately [See Option]
Translucent Seals
Hand-Polished Bright Chrome Profile
Reversible Door - can be Fitted for a Right or Left-Hand Opening
Definitive “Clunk” Close
Signature Hinges with Internal Flush Fixings
Minimalist Exposed-Edge Glass
Chrome Designer Symmetry Handle
Fully Concealed Internal Fittings
Wetroom Compatible
Adjustable Wall Profiles
Please Note: Moving Panel Door must Close onto the Side Panel
Please Add 20mm to the Tray Finish Adjustment when Using a Side Panel
For Wetroom Installation, Please Reduce the Side Panel Tray Finish Adjustment by 20mm
Download the Installation Instruction PDF File from the Additional Info Section
Tray, Waste, and Tray Panel Kit are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner, Recess
⤷ Width
: 840-900
⤷ Configuration
: Door And Inline Panel
⤷ Height
: 1950
⤷ Fixings included
: Yes
⤷ Door Type
: Hinged
⤷ Frame Design
: Framed
⤷ Glass Type
: Clear

⤷ Glass Thickness
: 8
⤷ Number Of Doors
: 1
⤷ Side Panel Included
: Sold Separately
⤷ Closing / Opening Mechanism
: Double Bales Catch Closing With Definitive "Clunk" Close
⤷ Easy to Clean Glass
: Yes
⤷ Power Shower Proof
: Yes
⤷ Handle Included
: Yes
⤷ Wetroom Compatible
: Yes
⤷ Tray Compatible
: Yes

Additional Info & Downloads

Download the Hinged Door Installation Instruction Pdf File Download the Inline Panel Installation Instruction Pdf File

Technical Images

Merlyn 8-Series Aluminium Frame Reversible Hinged Shower Door with Inline Panel - 1950mm Height

£1101.34

RRP: ~~£1376.67~~

Stock Availablity: 4 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

SIZE	INLINE PANEL SUPPLIED	ADJUSTMENT	A: Door Opening	B: Door Swing	MFC Code

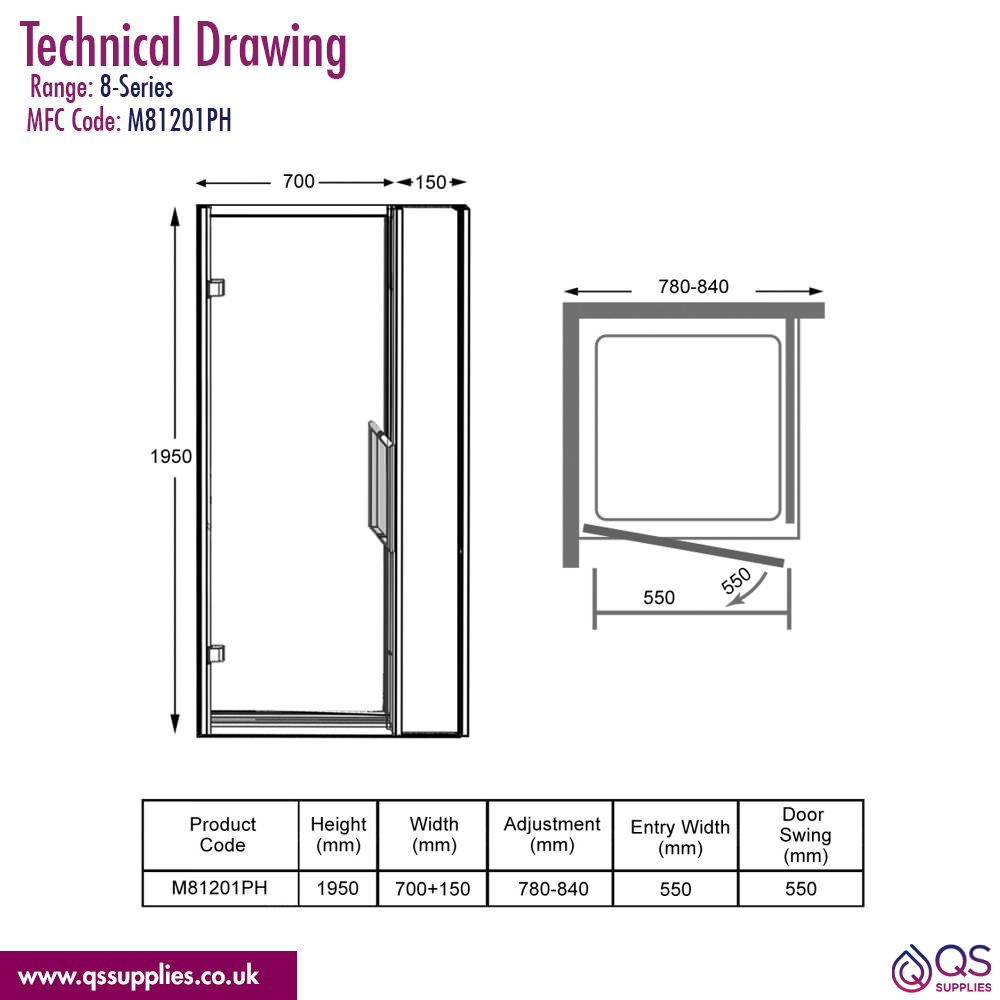

700	150	780-840	550	550	M81201PH
700	210	840-900	550	550	M81210P1H

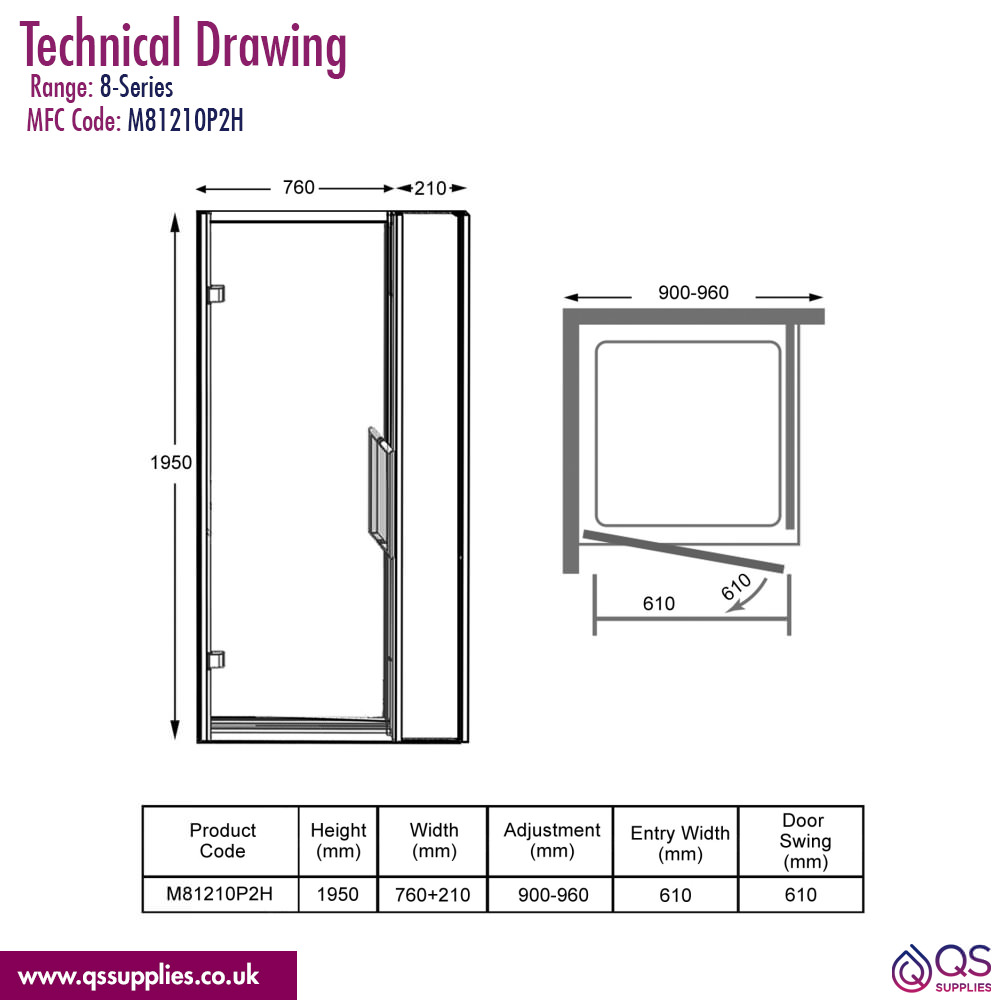

760	210	900-960	610	610	M81210P2H
800	210	940-1000	650	650	M81211PH

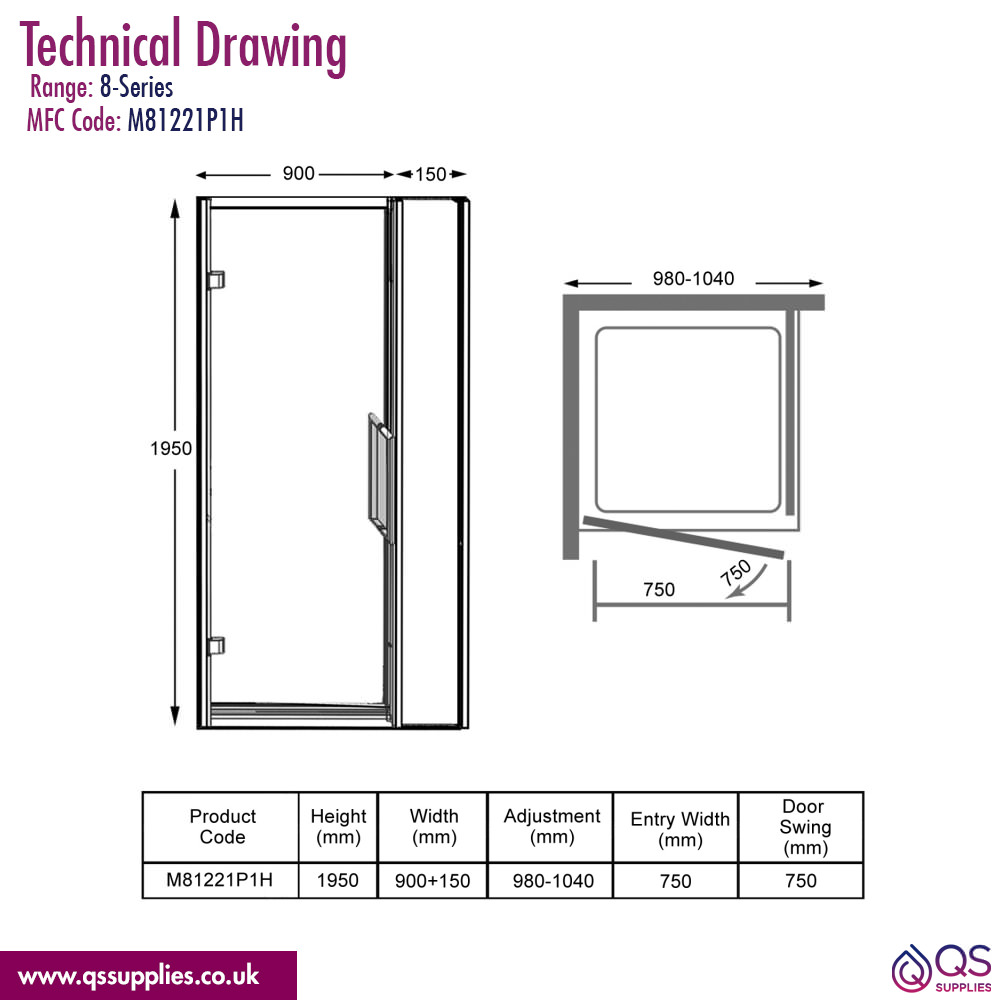

900	150	980-1040	750	750	M81221P1H
900	210	1040-1100	750	750	M81221P2H
1000	150	1080-1140	850	850	M81231P1H
1000	210	1140-1200	850	850	M81231P2H

SIDE PANEL SIZE		SIDE PANEL MFC
700mm - Adjustment 670 - 690mm		M82201
760mm - Adjustment 730 - 750mm		M82210
800mm - Adjustment 770 - 790mm		M82211
900mm - Adjustment 870 - 890mm		M82221
1000mm - Adjustment 970 - 990mm		M82231
