Merlyn 6-Series Aluminium Frame Sliding Shower Door with 140mm Inline Panel

Merlyn 6 Series Details

MFC: M68251P1H

The Merlyn 6 Series Sliding Door and Inline Panel will give your bathroom a stylish feel and updated look at an affordable cost. By opting for a sliding mechanism, this unit does not require any surrounding space as a pivoting door would require, allowing the user to make the best possible use of the available dimensions. The Mershield Stayclear coating provides extra durability and prevents the build-up of soap scum and limescale. It is reversible and ready to use with a right or left-handed opening. It incorporates quick release double easy clean rollers which make it simple to clean and maintain. It is supplied with double handles fitted inside and outside due to its sliding aspect, affording ease of operation.

Key Features

✔Includes: Sliding Door and 140mm Inline Panel
✔Constructed using 6mm Toughened Safety Glass
✔Mershield Stayclear, Easy-Clean, Protected Glass
✔Lifetime Guarantee against any Manufacturing Defects
✔UKCA & CE Certified Product

Choice of Widths: 1140mm, 1240mm, 1340mm, 1540mm, 1640mm, 1740mm and 1840mm
Suitable for Recess Installation or can be used with Two Optional Minimalist Side Panels
Power Shower Suitable
Reversible design - Can be Fit to Right or Left-Hand Side
Height: 1900mm
Adjustable Wall Profile
75mm Adjustment
Profile Colour: Chrome
Feature Quick-Release Double Rollers for Easy Access to Cleaning
Glass Type: Standard Clear
Translucent Seals
Aluminium Frame
It comes Fitted with a Full-Length Chrome Magnetic Strip

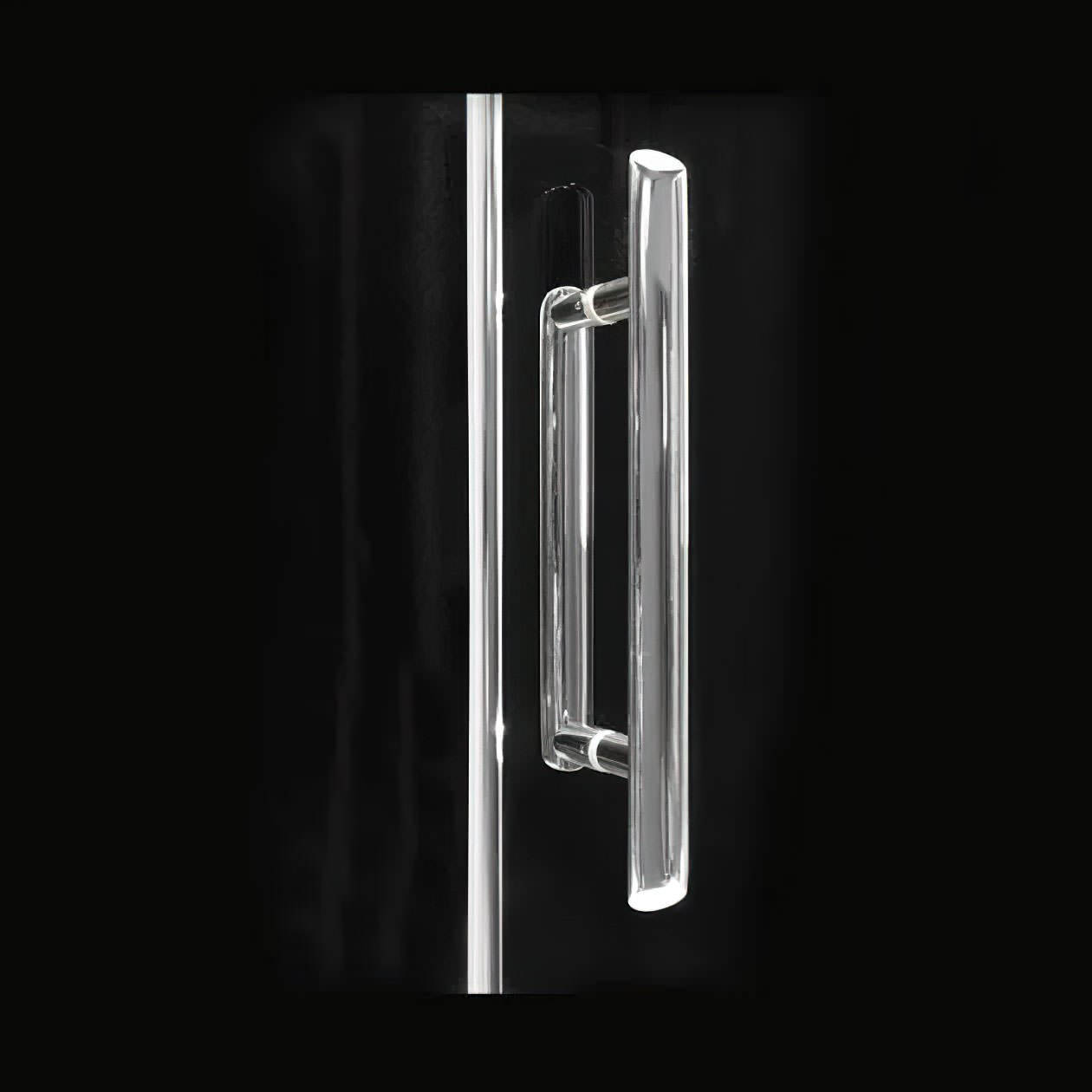

Includes Double Handle - a Discreet Inside Handle and a More Oversized External Handle for Easy Closing
Top Cover Caps
Wetroom Compatible
Side Panel Available Separately [See Option Below]
Please add 20mm to Size when Using with a Side Panel
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Image for Size Details
Tray, Waste and Shower Set Shown in the Image is Not Included

Info / Size (mm)

Door
Width: 1000 mm
Height: 1900 mm

Panel
Width: 140 mm
Height: 1900 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner, Recess
⤷ Width
: 1000, 1100, 1200, 1400, 1500, 1600, 1700
⤷ Configuration
: Door And Inline Panel
⤷ Height
: 1900
⤷ Fixings included
: Yes
⤷ Door Type
: Sliding
⤷ Frame Design
: Framed
⤷ Glass Type
: Clear

⤷ Glass Thickness
: 6
⤷ Number Of Doors
: 1
⤷ Side Panel Included
: Sold Separately
⤷ Closing / Opening Mechanism
: Quick Release Double Roller
⤷ Easy to Clean Glass
: Yes
⤷ Power Shower Proof
: Yes
⤷ Handle Included
: Yes
⤷ Wetroom Compatible
: Yes
⤷ Tray Compatible
: Yes

Additional Info & Downloads

Download the Sliding Door Installation Instruction Pdf File

Add-Ons

Side Panel

Made of 6mm Toughened glass. Suitable for use with Merlyn Series 6 Shower Doors. Select your desired option from below. The image shown is for illustration purposes only.

No Option Selected
OP-44568 - 700mm + £341.20
OP-44569 - 760/800mm + £299.48
OP-44570 - 900mm + £318.34
OP-44571 - 1000mm + £341.28

Series 6 Extension Profile

Extension profile for extra 20mm adjustment. Please note: The image is for illustration purpose only.

No Option Selected
OP-44572 - Extension Profile Chrome - M6EXT + £65.81

Merlyn 6-Series Aluminium Frame Reversible Sliding Shower Door with 140mm Inline Panel - 1900mm High

£952.00

RRP: ~~£1190.00~~

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

12 Features Included In This Product Explained

Mershield Stayclear Coating

All Merlyn Series range products are subjected to the Mershield Stayclear glass protection that keeps the glass looking clear. It decelerates the build-up of lime scale and soap deposits, making cleaning an absolute breeze. The coatings' smooth surface does not allow any grime, dirt or water to stick easily, keeping it pristine.

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

Adjustable Wall Profile

These refer to the pieces of material that fit the shower door or panel against a wall and can be adjusted to allow for out-of-true walls for a neat and seamless installation. The ability to adjust the side profile gives a perfect fit and makes the installation process easy. Depending on the manufacturer, the profile can be adjusted between 12 to 30mm.

UKCA Great Britain Mark

Merlyn enclosures now carry the UKCA mark, which stands for UK Conformance Assessment. This mark indicates that the product meets or exceeds GB-designated standards. The UKCA mark is now the standard labelling for products sold in Great Britain (England & Wales & Scotland).

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Magnetic Closing

Universal magnetic seals equipped with powerful magnets, used in shower doors and drawers, allow the door to be closed with a watertight and airtight seal and are easy to open. This feature is available in furniture, shower enclosures and more. Typically made with magnets and strong metal, these come with adhesive backing or can be applied with glue, contact adhesive, silicone glue or double-stick tape, depending on your selected product.

Top Cover Cap

A Ductless element used to conceal and hide fitting's ends or edges for a professionally installed neat look. It is also protective in function.

Framed Glass

When the door comes with framing around itself and each panel, it is called a Framed model. It provides structure and stability to the glass of the enclosure and can be selected to complement it or other fixtures. The most significant advantage of these models is the price and an easy installation method.

Power Shower Proof

Power Shower Proof shower enclosures are built with stronger materials and reinforced construction to withstand increased water pressure without leaking or sustaining damage.

Wetroom Compatible

Since wetrooms often have an open-plan design, these enclosures fit right into this style.

Tray Compatible

Tray-compatible enclosures are designed to fit into the dimensions of a shower tray, ensuring watertight and seamless integration.
