Burlington Hampton 1500 x 750mm Left Hand Freestanding Bath
Technical drawing QS-V13462 / E20
Additional image of Burlington Hampton 1500 x 750mm Left Hand Freestanding Bath
Additional image for QS-V13462 Burlington - E20
Burlington image
QS-V13462 small Image 1
QS-V13462 small Image 2
QS-V13462 small Image 3
Burlington Hampton 1500 x 750mm Left Hand Freestanding Bath small Image 4
E20 small Image 5
QS-V13462 small Image 6

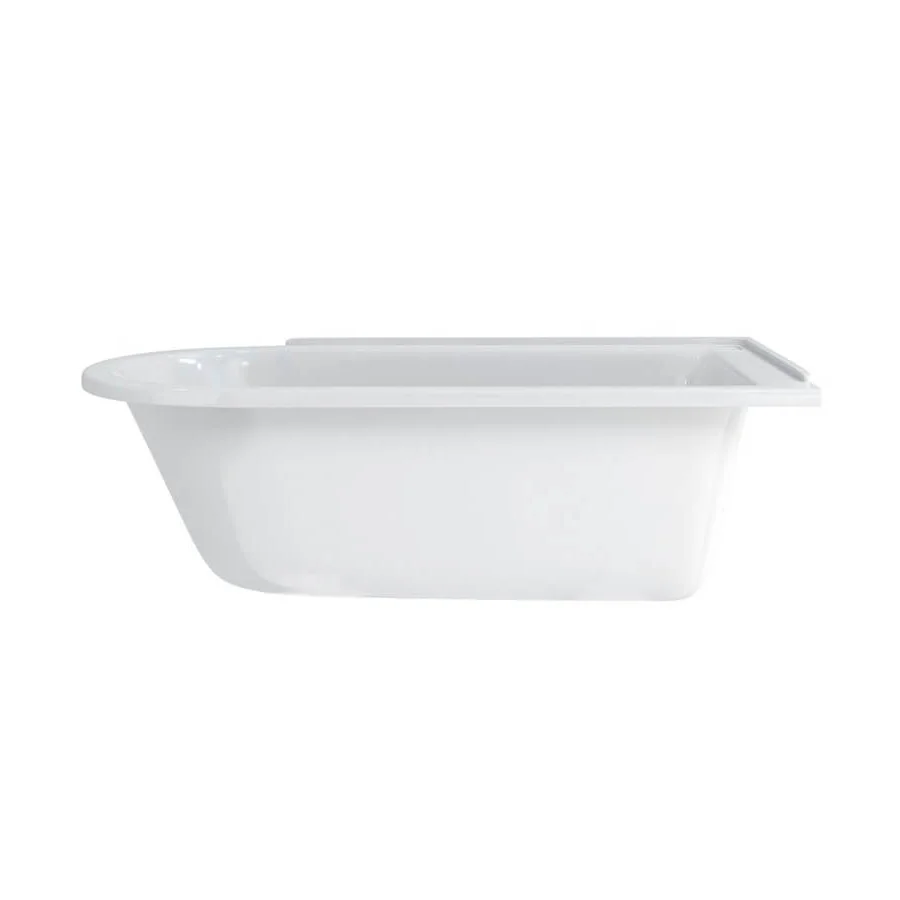

Burlington Hampton 1500 x 750mm Left Hand Freestanding Bath

QS-V13462

MFC CODE: E20

£329.45

RRP: £599.00 You Save £269.55 on RRP

No Rating

Review this Product

STOCK AVAILABILITY

5 Working Days Approx

Shipping: £29.95

Description
Technical

The Burlington Hampton Freestanding Bath will add a touch of classical charm to the bathroom. It is exquisitely crafted to create a stunning centerpiece that speaks volumes of luxury and comfort. Its interior curves slope at a right gradient for comfortable back support, with the exterior reflecting beautiful contours for a full, visual effect. Its composite material of stone resin and reinforced acrylic provide strength and a pleasing, tactile surface, making this the ultimate luxury bathtub in which to unwind and relax. The pure white finish helps it to project a clean and hygienic appearance. It includes fixings and a template kit for drilling tap or overflow holes which makes installation much easier.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
External Length 1500
External Width 750
Tub Depth 490
Feets Included No
Height Including Feet or Panel 650
Colour White
Internal Bottom Length 1010
Internal Bottom Width 380
Height of Rim 50
Distance Tub edge to centre of drain hole 280.31
Distance Top edge to centre of overflow hole 75
Diameter of overflow hole 51
Diameter of Drain hole 51
Rim Width 115, 72
Weight in kg 37
Slip Resistant No
Capacity in litres 105
Warranty/Guarantee 10 Years
Material Twin Skin Fused Reinforced Acrylic Layered With Stone Resin Core
No. of Bathers 1
Tap Holes Un-drilled

INFO / SIZE (mm)

+ Other Sizes & Variations Available
  • Bath
  • Length: 1500 mm
  • Width: 750 mm
  • Depth: 490 mm

QTY

Burlington Hampton E20 DETAILS

  • Comes in white finish
  • Manufactured from Twin Skin Fused Reinforced acrylic layered with stone resin core
  • Traditional design
  • Size: Length 1500mm x Width 750mm
  • Displaced capacity: 105 litres [bath capacity less 70 litres]
  • Supplied un-drilled for tap and overflow holes [Template is provided for tap and overflow holes to be drilled on site]
  • Includes fixings for installation
  • Weight: 37 kg
  • Compliance / Approvals: BS EN14516:2006
  • Legs shown in the image are not included
  • Feet Optional [See Option]
  • Manufacturing code of this product is E20
  • 10 years of guarantee from the manufacturer
  • Refer technical diagram for more technical details
  • Download installation instruction, PDF from technical tab

CUSTOMISE YOUR PRODUCT
Bath Feet

Bath Feet

Bath legs available with a choice of 3 colours. Select the desired from the options given below. Please Note: Image shown in for illustration purpose only.

Burlington Bath Waste

Burlington Bath Waste

This chrome plated bath waste is construction for high quality brass. This should be used with baths where the overflow is exposed. Please Note: Image shown is just for illustration purpose only.

Shower Screen

Shower Screen

This 850mm wide and 1450mm high bath screen is made from aluminum alloy profile with 8mm safety glass. The glass is treated with 3M™ Easy Clean Coating, so is easier to clean. It opens outward only.

OTHER SIZES / FINISHES
Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V13463 - Right Hand E21
Back to QS-V13462 / MFC CODE: E20


ADDITIONAL INFO

Download the Installation Instruction Pdf File



Total: £329.45 5 Working Days Approx QS Supplies

You've Selected which adds to a total of


You May Also Require

View
×


REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Milton Keynes Date: September 20, 2017

Beautiful bath
I redesigned our tatty old bathroom in order to have more floor space, as there are often 3 of us racing to clean our teeth in the before school rush! Our son also needs help with self care as he has a disability so floor space was a priority. I was really pleased to find this bath as it is smaller than most roll top baths and it means we can have a shower at one end. A separate shower wasn't an option in our small bathroom. Although shorter, the bath is lovely & deep & I can soak quite comfortably & I am about 5'8". It olds the water temperature well to. The only point to consider is that it is quite high for smaller children to step out of independently, our 10 year old manages ok though. This bath is great and compliments the bathroom in our Victorian terrace beautifully. The bathroom is so small it's hard to get a picture of the bath!??
4 Star

Helpful? Hands Up Hands Down
3 of 3 People have found this Review useful

Images Uploaded by the users:

OVERALL RATING 4 Stars

  • Quality: 5 Stars
  • Value For Money: 4 Stars
  • Style: 5 Stars


WRITE A REVIEW




Questions & Answers

  Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Rachel Asked :
Please could you let me know whether this bath is compatible with any of the following bath wastes/plugs: 1) Pura Exposed Bath Waste And Chrome Overflow With Parking Plug (QS-V72180) 2) Flova Exposed Bath Waste And Overflow With Parking Plug (QS-V27290) Failing that - which Bath Wastes is it compatible with? Or is the waste even going to be very visible? I.e. Could I get away with a standard plastic waste pipe? The bath will be in the corner behind a door. Thanks Rachel

Answered By QS Team :
We recommend the optional OP-102525 Exposed Bath Overflow With Plug And Chain for the Hampton bath as we know it's compatible.

Was this answer helpful? Yes - No

1   0
