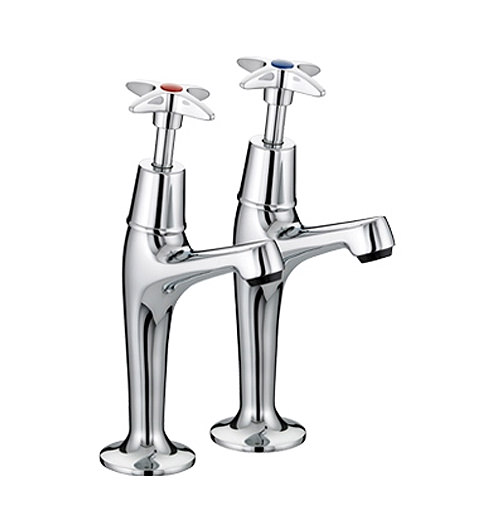

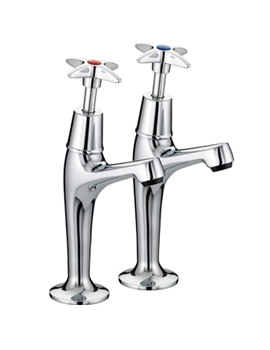

Bristan X Head High Neck Chrome Pillar Taps

Bristan X Head VAX HNK C Details

Provide a marvellous charm to your sink with the addition of the X Head High Neck Pillar Taps that are manufactured by the leading company, Bristan. The pair of high-neck faucets, with their eye-catching appeal, enhance the beauty of the sink. The contemporary styled creation is strongly constructed from brass, for matchless durability. To make it more interesting, it is lavishly finished in chrome. Convenient to operate and highly functional, the pair of taps are covered with a 5 year guarantee from the manufacturer.

Manufacturing code of this product: VAX HNK C.
It comes in a chrome finish.
Manufactured using brass material.
Deck mounted installation.
Supplied in pair.
Contemporary and stylish design.
Maximum hot water temperature: 65.
Maximum dynamic pressure: 7 bar.
Maximum static pressure: 10 bar.
Height: 182mm - (18.2cm).
Centre of the inlet to centre of outlet: 77mm - (7.7cm).
Base to spout: 95mm - (9.5cm).

Inlet connection: 1/2 inch BSP.
Supplied with metalheads.
Supplied with metal back nuts.
Chrome plated to BS EN 248.
Suitable for all plumbing systems.
Suitable for low water pressure system.
Require a minimum of 0.2 bar to a maximum of 0.7 bar water pressure system.
WRAS approved.
Download the Installation Instruction PDF File From The Additional Info Section.

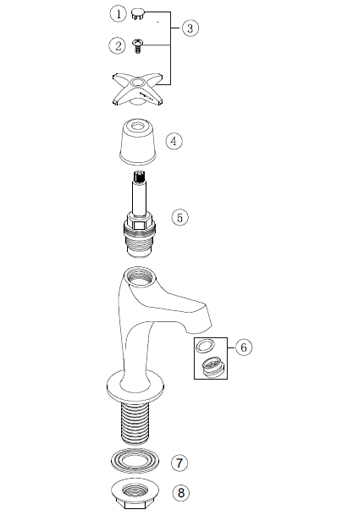

Refer to the technical diagram for the complete technical dimensions.
5 years guarantee against any manufacturing defects.

Info / Size (mm)

Tap
Pipe Centre: 77 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Range
: X Head
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Handle Material
: Metal

⤷ Base To Spout
: 95
⤷ Spout Reach
: 77
⤷ Overall Height
: 182
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar
⤷ Water Saving
: Yes
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868002095
⤷ Product Type
: Kitchen Pillar Taps

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £25.58 2 Working Days Approx QS Supplies

2 Features Included In This Product Explained

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
