Nuie Mayford 2-Door Floor-Standing Gloss White Vanity And Basin

Nuie Mayford VTY550 Details

This Cabinet With Basin from the popular Mayford range of Nuie is the perfect combination of minimalist style and excellent performance. The spacious floor standing unit is manufactured from good quality cam and wood dowel and comes with two soft-close doors for quieter closing action. The gloss white finish will impart a majestic appeal to your bathroom. Expertly engineered to create a lasting impact, this unit is the ultimate in a contemporary, rectangular design. Styled with a gorgeous basin, this will transform your bathroom into something extraordinary. The sleek basin is produced from vitreous china and comes with one tap hole. It is available in both round and square shapes and comes with a five-year manufacturer guarantee.

Available in different widths: 550mm, 560mm, 650mm and 665mm - [Optional].
Available in different variants: Round and Square Basin - [Optional].
It comes in a gloss-white finish.
Ample storage space.
Suitable for floor-standing installation.
Download the Customer Datasheet and Installation PDF file from the Additional Info Section.

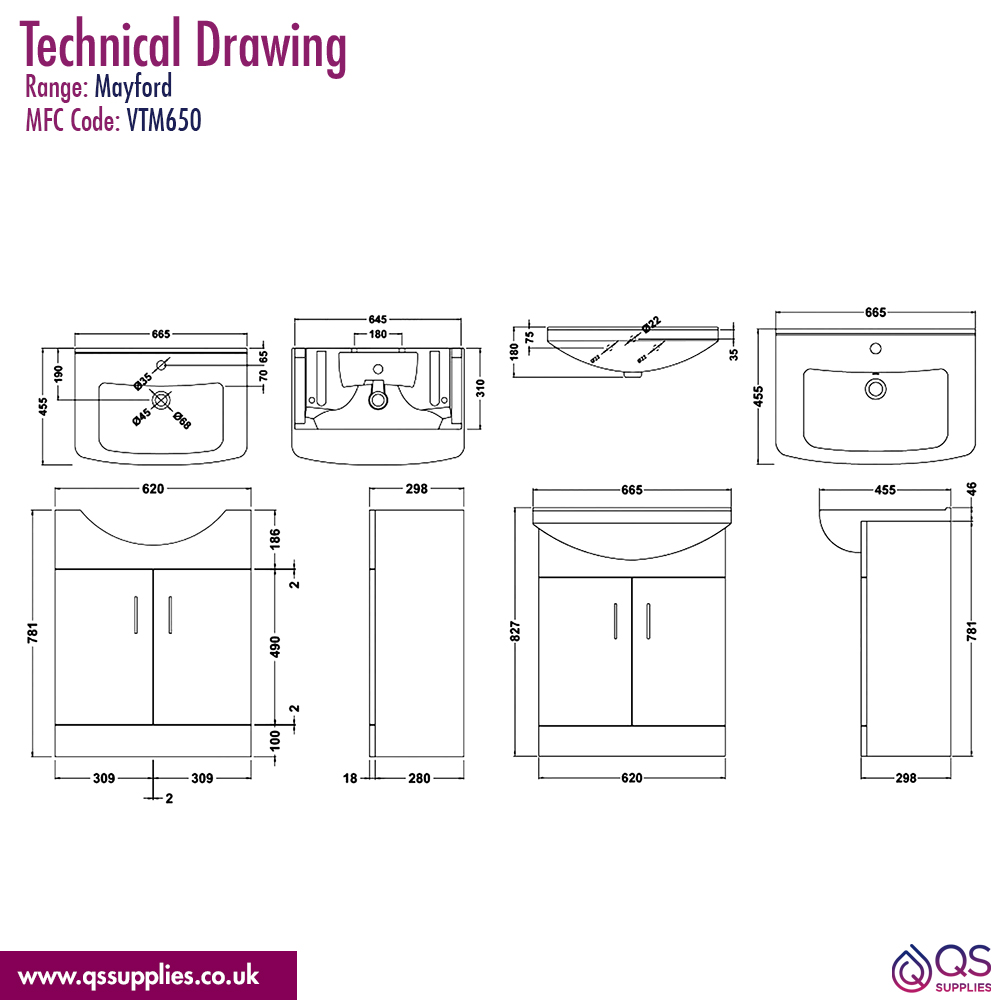

Refer technical drawing for more details.
Five-year guarantee from Nuie against manufacturing defects.
Details For Vanity Unit:.
Single shelf two doors unit.
Cabinet Thickness: 16mm.
Fascia thickness: 18mm.

D-shape handle in chrome finish included.
95-degree clip-on soft close hinge type.
Rigid construction type.
Details For Basin:.
Manufactured using vitreous china material.
Single tap hole.
Overflow and cover included.
Inner bowl depth: 125mm - 550mm basin.
Inner bowl depth: 115mm - 650mm basin.
Inner bowl depth: 115mm - 660mm basin.
The tap shown in the image is not included.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 180
⤷ Sink Projection
: 430
⤷ Sink Width
: 550
⤷ Handle Finish
: Chrome
⤷ Finish Front
: Gloss
⤷ Range
: Mayford
⤷ Colour
: Gloss White
⤷ Weight in kg
: 28.8
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Waste Included
: Sold Separately
⤷ Width
: 550
⤷ Depth
: 430
⤷ Height
: 836
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes

⤷ Compliance/Approvals/Standard
: FSC Certification
⤷ Barcode
: 5055146168614
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: MDF | MFC
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Door Opening
: Left | Right
⤷ Sink Material
: Vitreous China
⤷ Number Of Sinks
: 1
⤷ Sink Shape
: Rounded Rectangular
⤷ Sink Type
: Semi Recessed

Additional Info & Downloads

Download the Customer Data Sheet For 550mm Round Basin Pdf File Download the Customer Data Sheet For 560mm Square Basin Pdf File Download the Customer Data Sheet For 650mm Round Basin Pdf File Download the Customer Data Sheet For 665mm Square Basin Pdf File Download the Installation Instruction Pdf File

Total: £117.94 3-4 Working Days Approx QS Supplies

6 Features Included In This Product Explained

Soft-Close Opening

This product has a mechanism for doors and drawers to open or close slowly, silently and without loud slamming.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.
