Airflow iCONstant T dMEV Timer Fan - White

Airflow iCONstant T dMEV Timer Fan - White.

• Manufacturing Code of this Item is 72687117
• Size in [mm]: Ø197 x 120mm [Width x Depth x Height]
• Size in [cm]: Ø19.7 x 12cm [Width x Depth x Height]
• Helps Eliminate the Problems of Condensation and Mould Growth by Continuously Extracting the Damp, Moist Air That is the Source of the Problem
• Application:
• Suitable for Any of the Wet Rooms in the Home
• The Required Trickle Rate is Selected by the Installer When the Fan is Fitted - This is Dependent on the Application - for Toilets Select 6 l/s, En-Suites, Bathrooms and Utility Rooms Select 8 l/s and Kitchens it is 13 l/s
• The Boost will be the Next Speed Level Up With a Maximum of 22 l/s
• Main Features:

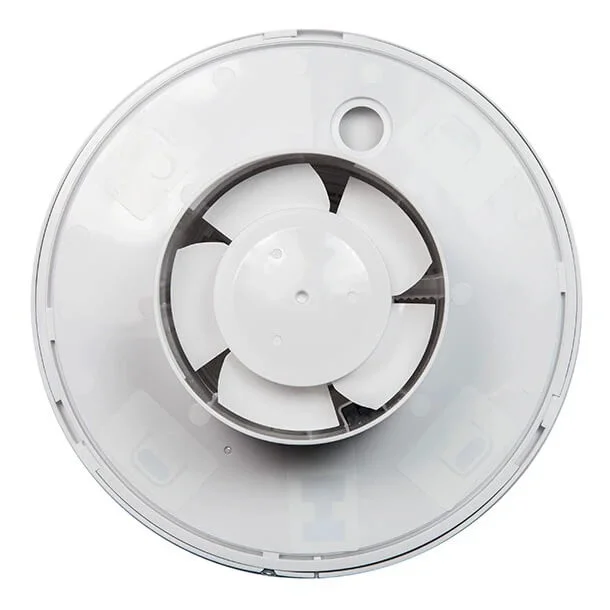

• Continuous Running Axial Fan
• Selectable Trickle Speeds 6/ 8/ 13 l/s
• Boost Speed 8/ 13 l/s with Maximum of 22 l/s
• Boost Speed Activated by Momentary Pull Cord or Remote Switch
• Unique Setup Diagnostic LED Light
• Power Interruption, Settings Maintained
• Very Quiet Running Fan - From 10 dB(A)
• 24V DC Motor - Economical to Operate - From 1.21 Watts on Trickle Speed of 6 l/s
• Costs Less Than a Low Energy Light Bulb to Run
• The Timer Overrun on Boost Speed Can Be Set to Run On for 2,15, 30 or 45 Minutes
• Optional Two Minute Delay Start On Timer Version
• Flow Sensor Ensures the Fan Maintains a Constant Extraction Rate Under All Conditions
• IPX5 Rating - Install in Zone 1 and 2
• Ideal for Refurbishments
• Complies with Building Regulations
• Stylish Circular Design Suitable for Wall and Ceiling Mounting
• Specifications:
• Air Flow m³/h (Trickle/Boost): 22 / 29, 29 / 47, 47 / 79
• Air Flow l/s (Trickle/Boost): 6 / 8, 8 / 13, 13 / 22
• Fan Type: Axial
• Sound Pressure dB(A)@3 m: 12.2 / 17.3, 17.3 / 28.4, 28.4 / 37.8
• Power Watts: 1.21 / 1.61, 1.61 / 1.81, 1.81 / 3.31
• Amps: 3
• Calculated Specific Fan Power (SFP): 0.18 / 0.15, 0.15 / 0.13, 0.13 / 0.14
• Building Regulations ADF: Yes
• Duct diameter: Ø100mm [10cm]
• Voltage: 100/240 V - 50/60 Hz
• Rating (Wall and Ceiling): IPX5
• Weight: 0.55kg

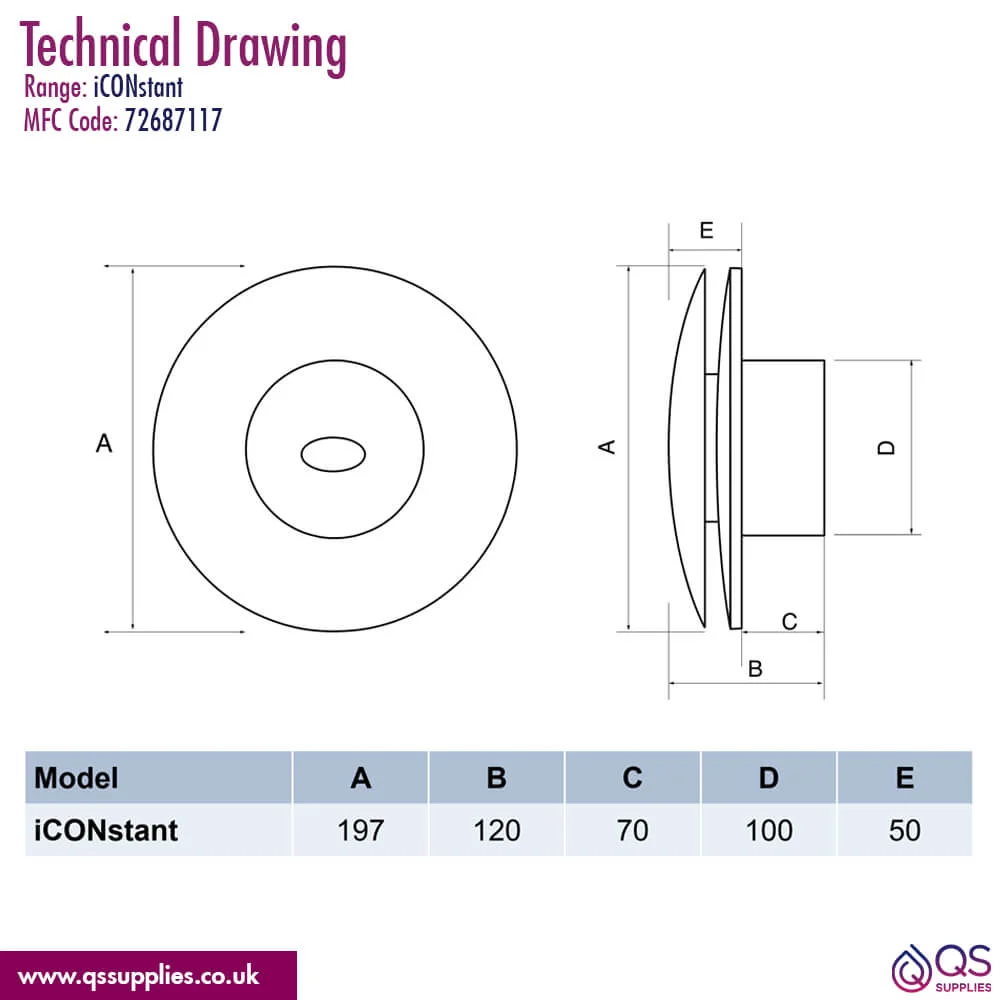

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download Product Data Sheet and Installation Instructions PDF from the Additional Info Section
