Rangemaster Cosmo Stainless Steel Inset Sink with Drainer, 1.5 Bowl, CSM9602L/

Rangemaster Cosmo Details

MFC: CSM9602L/

Rangemaster Cosmo Stainless Steel Inset Kitchen Sink with Drainer - 1.5 Bowl - 960 x 500mm

Key Features

✔Comes in Micro-Sheen Brushed Polished Finish
✔Low Profile Edge with Seamless Finish
✔Waste Kit and Cover Included
✔Deep Bowls Feature a Dramatic 10mm Radii Corner
✔25-Years Warranty from the Manufacturer

Choice of Variations - Left-Hand and Right-Hand Drainer
Hygienic Rectangular Overflow Design
Pre-fitted Seals
Design to fit 600mm Cabinets
Material: 18/10 Stainless Steel
The Material Gauge of 1.0mm
Min. Base Unit: 600mm
Overall Size: 960 x 500mm [Length x Width]
Big Bowl Size: 350 x 400 x 200mm [Length x Width x Depth]
Small Bowl Size: 180 x 400 x 140mm [Length x Width x Depth]
Tap hole Size: Ø35 Diameter
Waste Size: Ø90 Diameter
Cutout Size: 940 x 480mm [Length x Width]
90mm BSW, Overflow Kit and Waste Cover
Contemporary Design

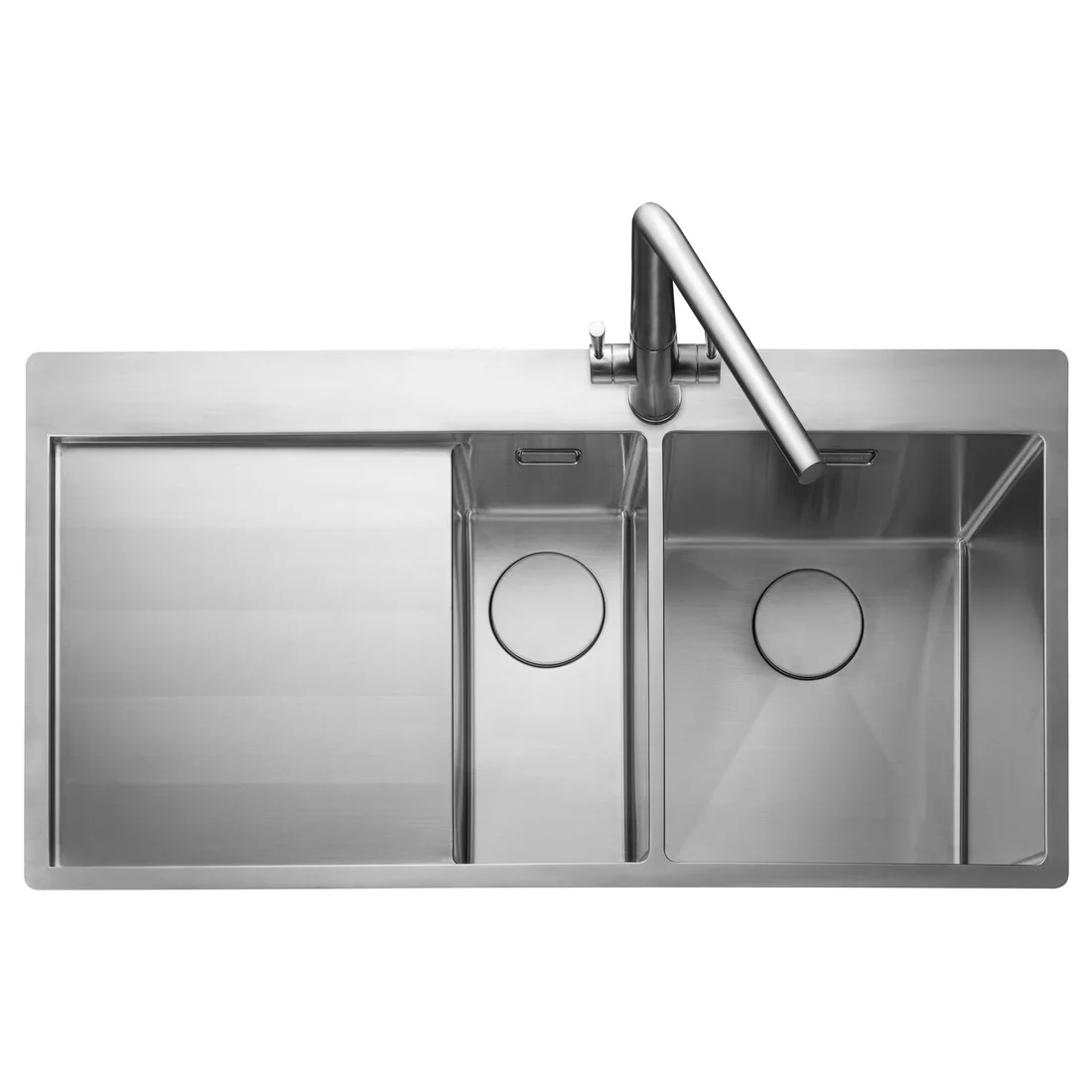

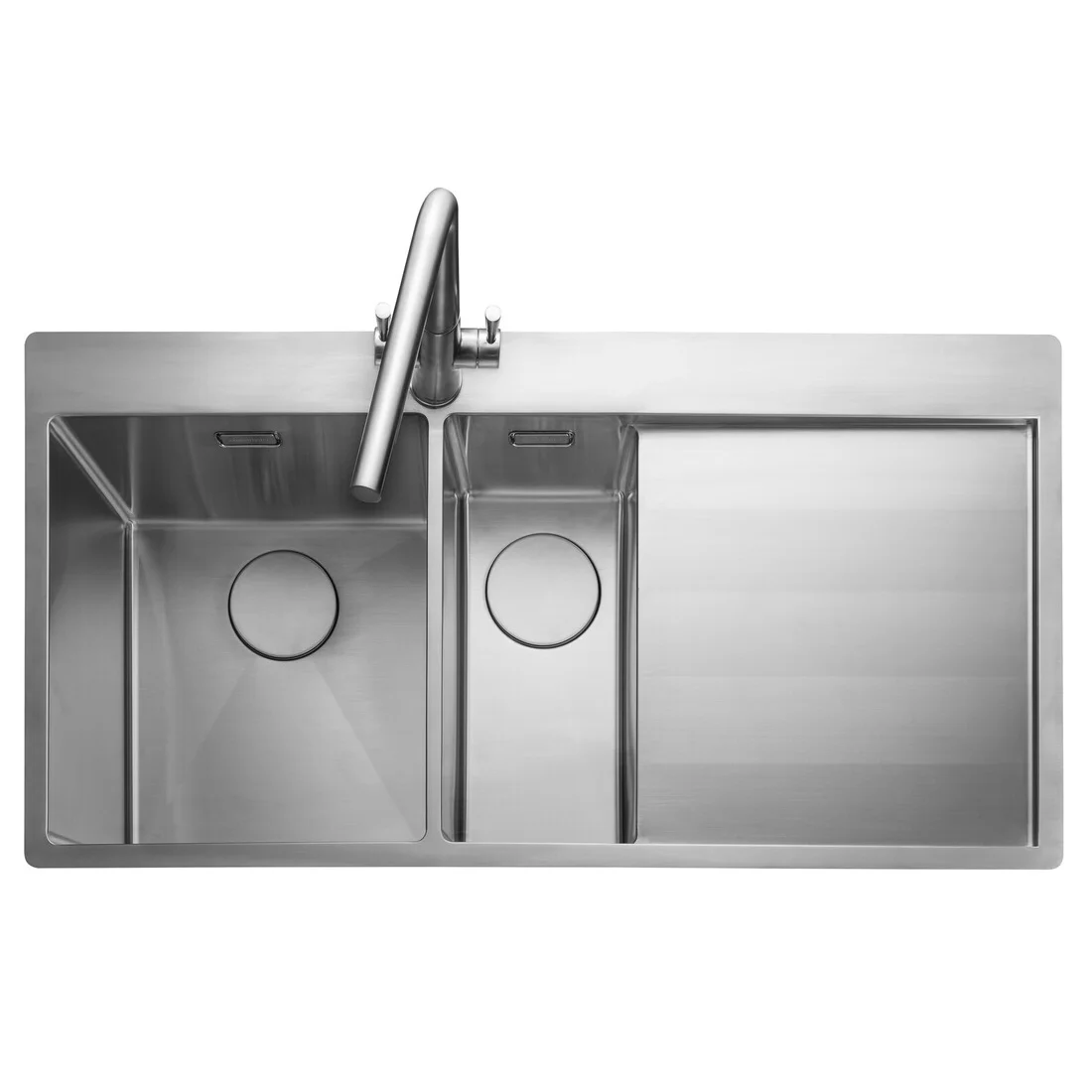

The Tap Shown in the Image is Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Brushed Polished
⤷ Installation Type
: Inset
⤷ Number of bowls
: 1.5
⤷ No. of Tap Holes
: 1
⤷ Minimum Base Unit Size Required
: 600
⤷ Drainer Position
: Left Hand
⤷ Overall Length
: 960
⤷ Overall Width
: 500
⤷ Length of Main Bowl
: 350
⤷ Width of Main Bowl
: 400
⤷ Depth of Main Bowl
: 200

⤷ Length of Small Bowl
: 180
⤷ Width of Small Bowl
: 400
⤷ Depth of Small Bowl
: 140
⤷ Cut-Out Length
: 940
⤷ Cut-Out Width
: 480
⤷ Material
: Stainless Steel
⤷ Gauge / Thickness
: 1.0
⤷ Waste Included
: Yes
⤷ Waste Hole Size
: 90
⤷ Tap Hole Size
: 32
⤷ Warranty/Guarantee
: 25 Years

Additional Info & Downloads

Download the Technical Data Sheet For Left Hand Drainer Sink Pdf File Download the Technical Data Sheet For Right Hand Drainer Sink Pdf File

This item can also be found in:

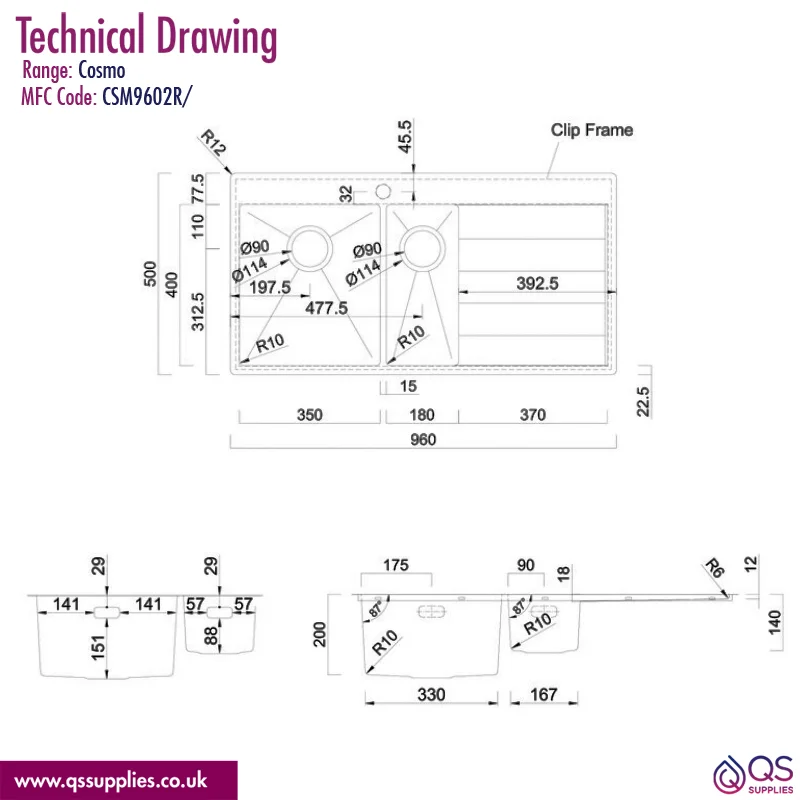

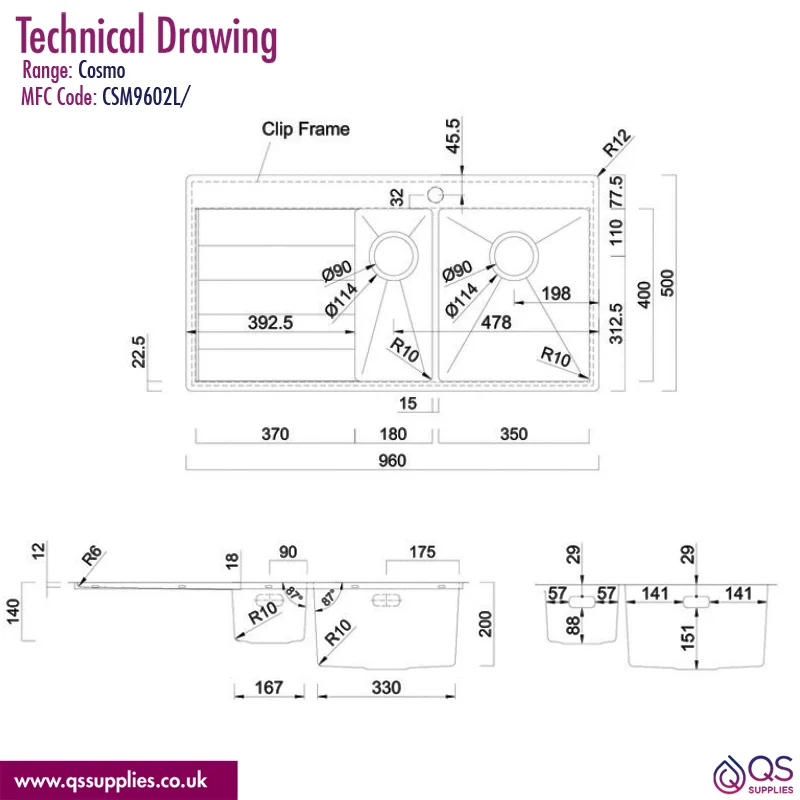

Technical Images

Rangemaster Cosmo Stainless Steel Inset Kitchen Sink with Drainer - 1.5 Bowl - 960 x 500mm

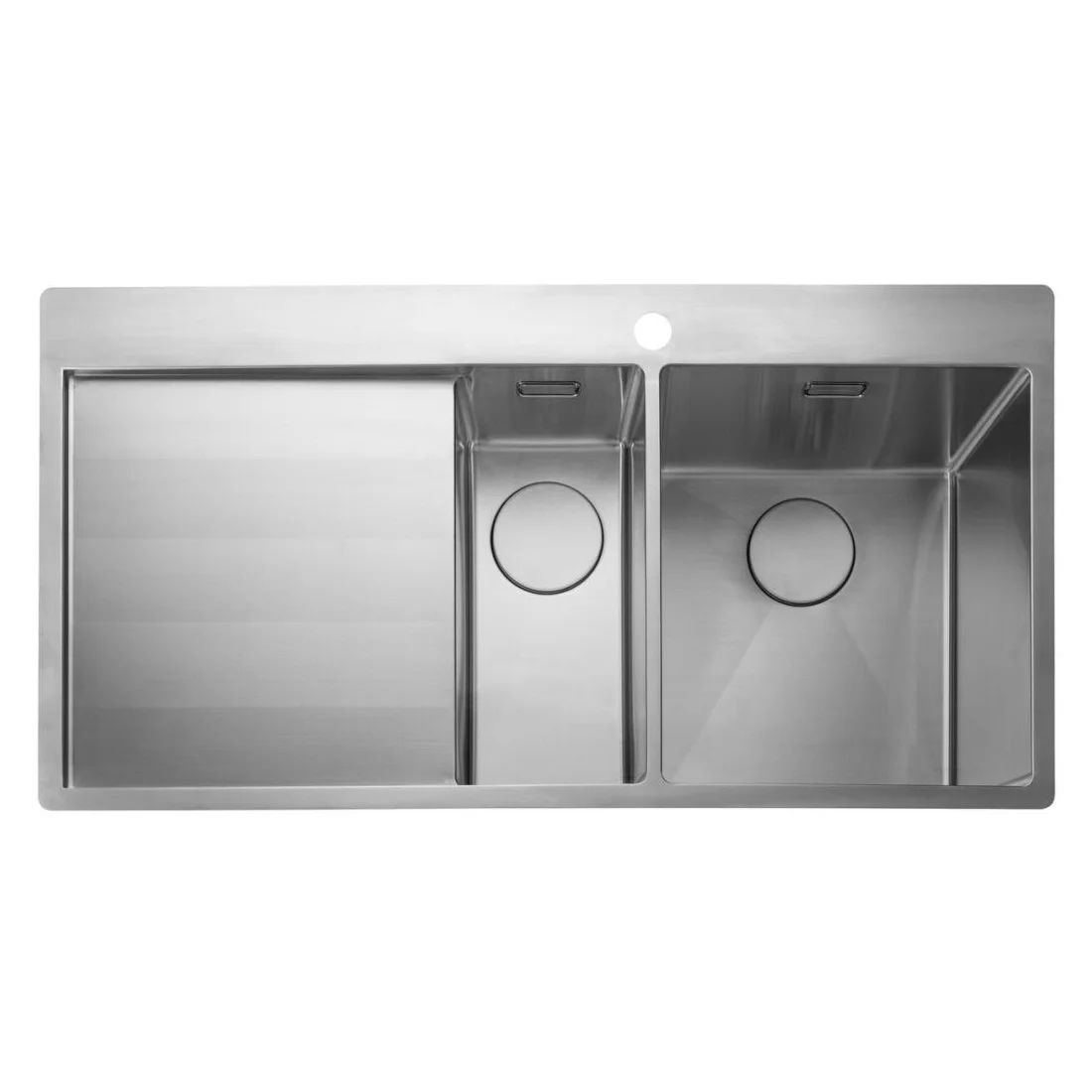

Left Hand Drainer

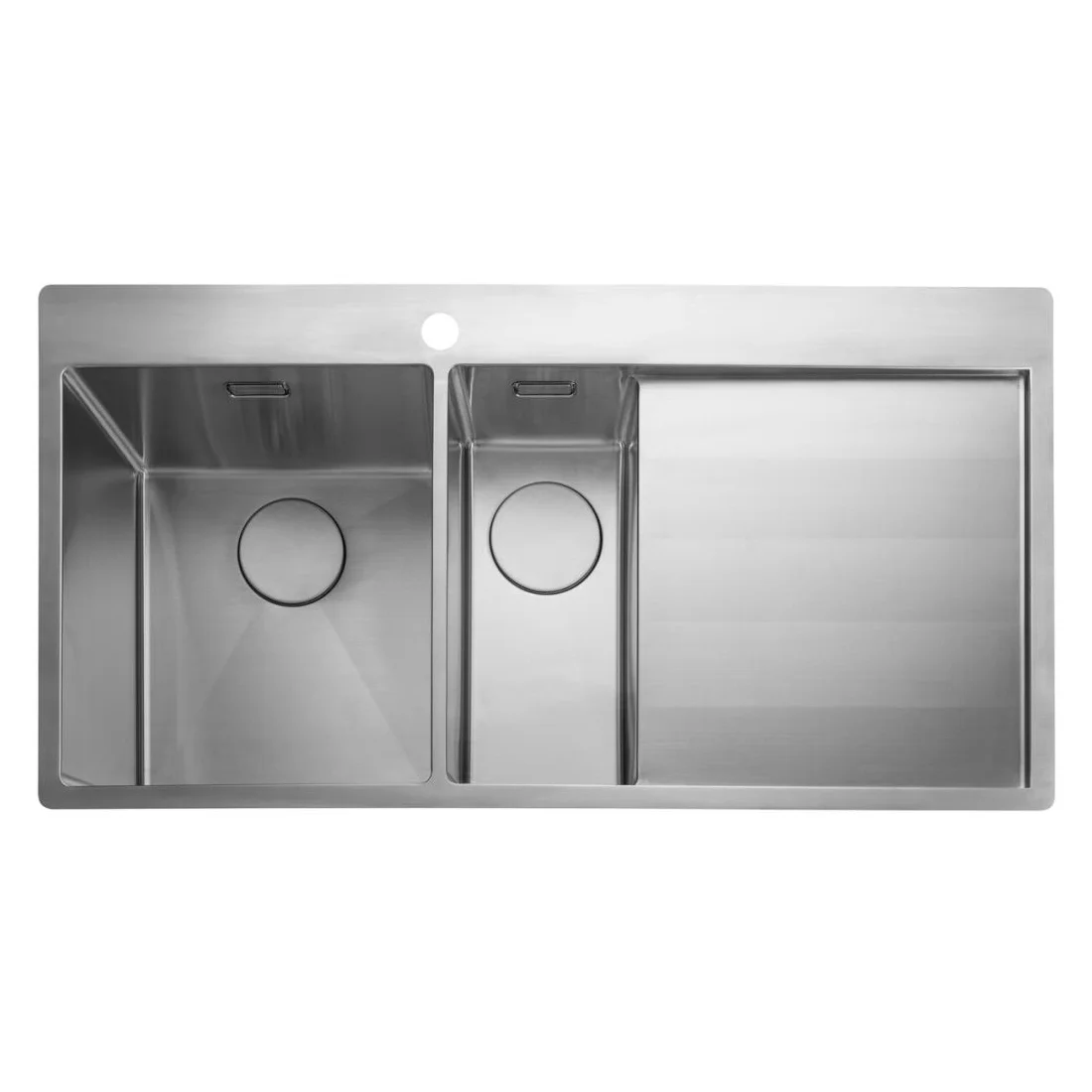

Right Hand Drainer

£789.55

RRP: ~~£986.95~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.
