Deva Vitality Lever Chrome Kitchen Dual-Flow Mixer Tap, Swivel Spout, VL104

Deva Vitality Lever Details

MFC: VL104

Deva Vitality Lever Contemporary Chrome Kitchen Dual-Flow Mixer Tap - Swivel Spout.

Key Features

✔WRAS Approved
✔Manufactured using Brass Material
✔Features Swivel Spout
✔Valve/Cartridge Type: Ceramic Disc
✔12-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Without Flow Regulator with Flexi Tails, With 5lpm Flow Regulator with Flexi Tails, Without Flow Regulator with Copper Tails
It Comes in a Chrome Finish
Dual-Lever Handle Type
Quarter-Turn Handle Control
Dual Flow Tap
Easy to Used and Install
Ceramic Disc Handles Ensure a Smooth Operation and Longer Life
Features Easy Identifiable Hot And Cold Water Selection
Size [mm]: 261 x 216 x 188mm [Width x Depth x Height]
Size [mm]: 26.1 x 21.6 x 18.8cm [Width x Depth x Height]
Base to Spout: 159mm [15.9cm]
Centre of the Inlet to Centre of the Outlet: 181mm [18.1m]
Suitable for All Plumbing Systems
Suitable for Low and High Water Pressure Systems

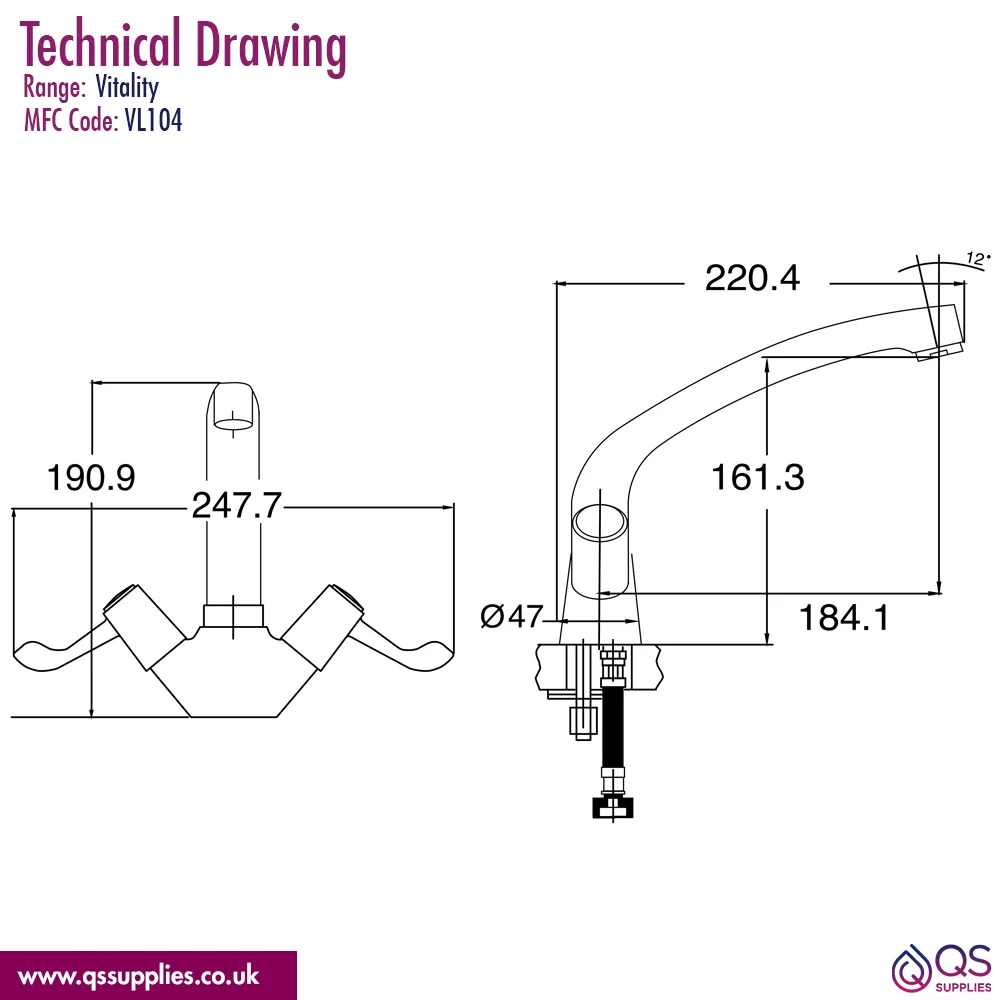

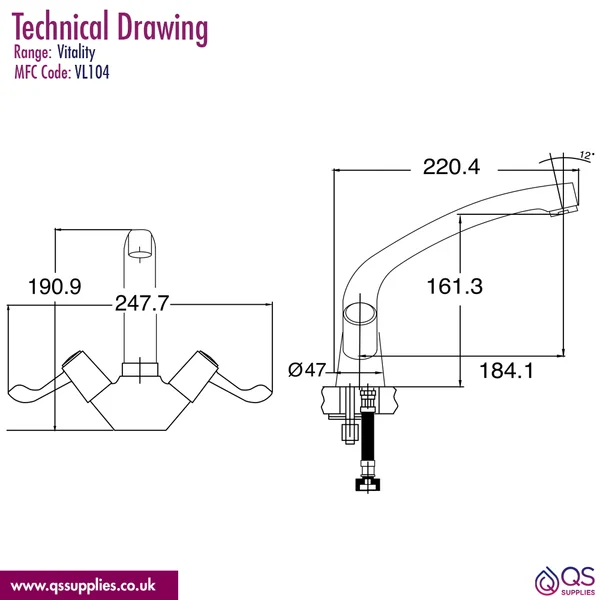

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section
Details of Without Flow Regulator with Flexi Tails:
Inlet Connection: 1/2 Inch BSP
Comes with Flexi Tails - M10 - 400mm
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure
Details of With 5lpm Flow Regulator with Flexi Tails:
Inlet Connection: 1/2 Inch BSP
Supplied with Flexi Tails - M10 - 400mm
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure
Details of Without Flow Regulator with Copper Tails:
Inlet Connection: 15mm Copper
Supplied with Copper Tails - M10
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Range
: Vitality
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Spout Swivel
: Yes

⤷ Base To Spout
: 159
⤷ Spout Reach
: 181
⤷ Overall Height
: 188
⤷ Width
: 261
⤷ Depth
: 216
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Spout Flow
: Dual
⤷ Barcode
: 5057199881687
⤷ Product Type
: Kitchen Taps
⤷ Tails
: Flexi Tails, Copper Tails

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Deva Vitality Lever Contemporary Chrome Kitchen Dual-Flow Mixer Tap - Swivel Spout

£133.62

RRP: ~~£167.02~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Dual Flow

A dual-flow tap dispenses water in a single stream like any other tap; however, the inner working of the tap is different. Inside the tap body, hot and cold water flows separately and is mixed only once it leaves the tap body, preventing the spout from becoming scalding hot. Plus, there are minimal chances of backflow due to the separate hot and cold feeds.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.
