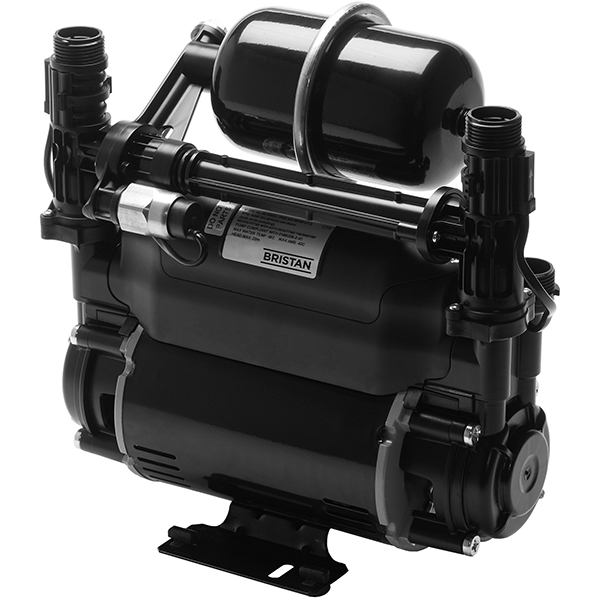

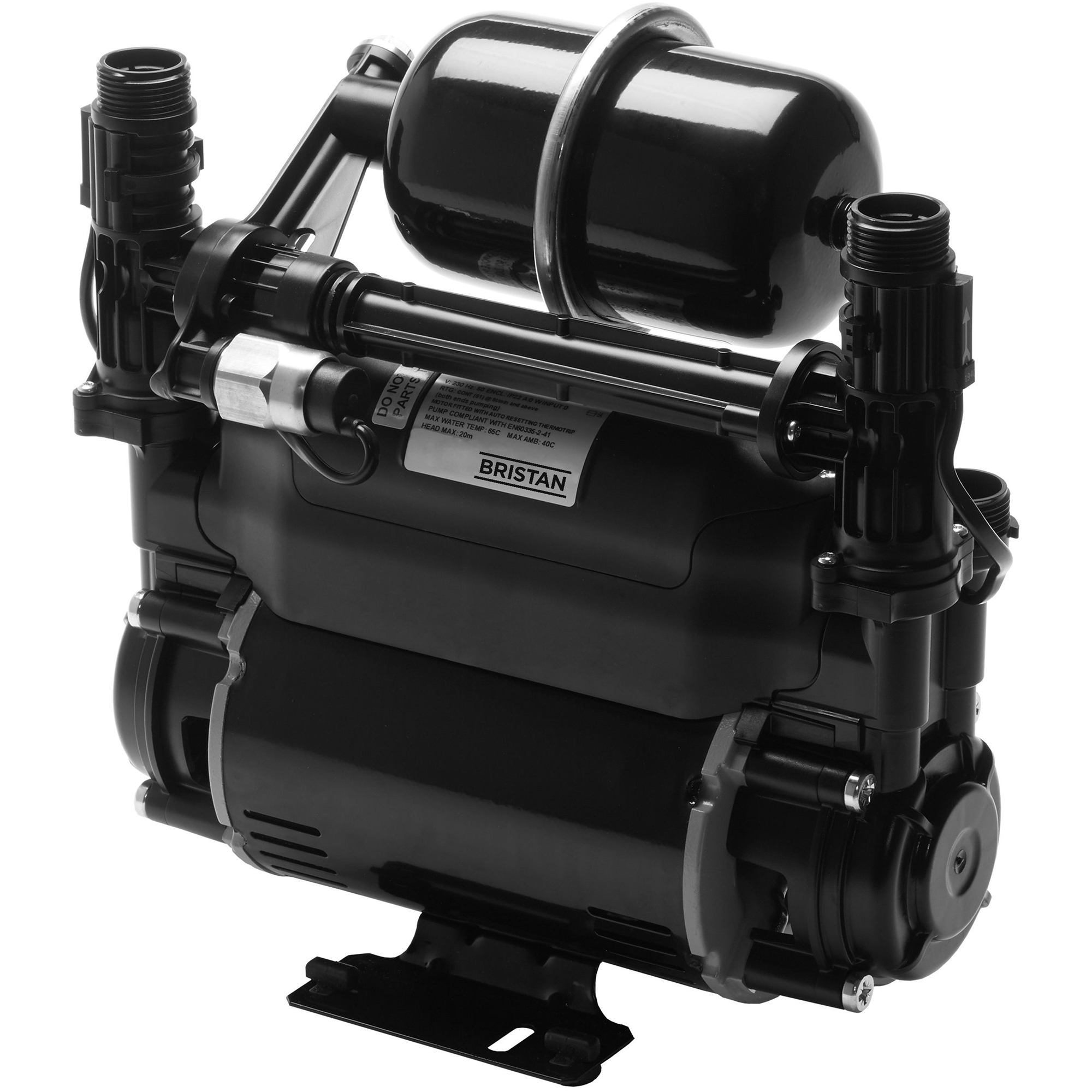

Bristan 2.0 Bar Twin Impellar Negative Head Shower Pump, ST NHPUMP 20TN

Bristan Details

MFC: ST NHPUMP 20TN

Bristan 2.0 Bar Twin Impellar Negative Head Shower Pump.

Manufacturing Code of this Product: ST NHPUMP 20TN
Inlet and Outlet Connection: G 3/4 Inch
Power Supply: 230 Volts AC
Power Consumption: 430 WATTS
Motor Rating: Continuous [S1] at 9l/min and Above
Suitable for Hot and Cold Open Vented Water Systems
Size [mm]: 280 x 155 x 280mm [Length x Width x Height]
Size [cm]: 28 x 15.5 x 28cm [Length x Width x Height]
Performance: Maximum Flow Rate 40l/min
Max Head [Closed Valve]: 2.0 Bar
Minimum Dynamic Pressure [Bar]: 0.1
Maximum Dynamic Pressure [Bar]: 4
Twin Impellar for Boosting Two Water Supplies
Suitable for Domestic Positive and Negative Head Applications
Suitable for Negative Head Installations Without a Gravity Flow of Water to Start
Boost Both Hot and Cold Supplies with an Efficient Twin-Impeller Design
Reduce Noise Disruption Tanks to Anti-Vibration Feet for Quiet Operation
Count On Reliable Performance Even in Cold Conditions, with a Minimum Inlet Temperature of 4°C
Protect Pump Longevity by Operating Within the Safe Maximum Inlet Temperature of 65°C
Maintain Reliable Performance with Up to 60 Starts Per Hour
Ensure Safe Operation Up to a 40°C Ambient Air Temperature
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Shape
: Round
⤷ Warranty/Guarantee
: 3 Years
⤷ Inlet Connections
: G 1/2"
⤷ Width
: 280
⤷ Depth
: 155
⤷ Height
: 280
⤷ Outlet Connection
: G 1/2"
⤷ Compliance/Approvals/Standard
: WRAS, CE & UKCA
⤷ Product Type
: Shower Pump

⤷ Bar Rating
: 2
⤷ Pump Type
: Peripheral
⤷ Impeller
: Twin
⤷ Head
: Negative
⤷ Motor Rating
: Continuous
⤷ Fuse rating
: 5 Amps
⤷ Power Supply
: 230 Volts AC
⤷ Power Consumption
: 430 Watts
⤷ Mechanical seal
: PDM / PTFE / Al. Oxide

Additional Info & Downloads

Download the Installation Instruction Pdf File

Bristan 2.0 Bar Twin Impellar Negative Head Shower Pump

£554.67

RRP: ~~£997.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

BSP Male Connector

British Standard Pipe (BSP) are a group of internationally accepted standards for threads for interconnecting hoses and fittings by mating an external (male) thread with an internal (female) thread. A BSP male connector also called Plug is a kind of threaded fitting used in plumbing and piping systems. It comes attached to a wire or hardware, has an exposed electrical terminal which fits into a receptacle (called female connector to complete the electrical connection.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.
