Nuie Square Wall Hung Pan And Soft-Close Seat

Details

MFC: CEZAR001

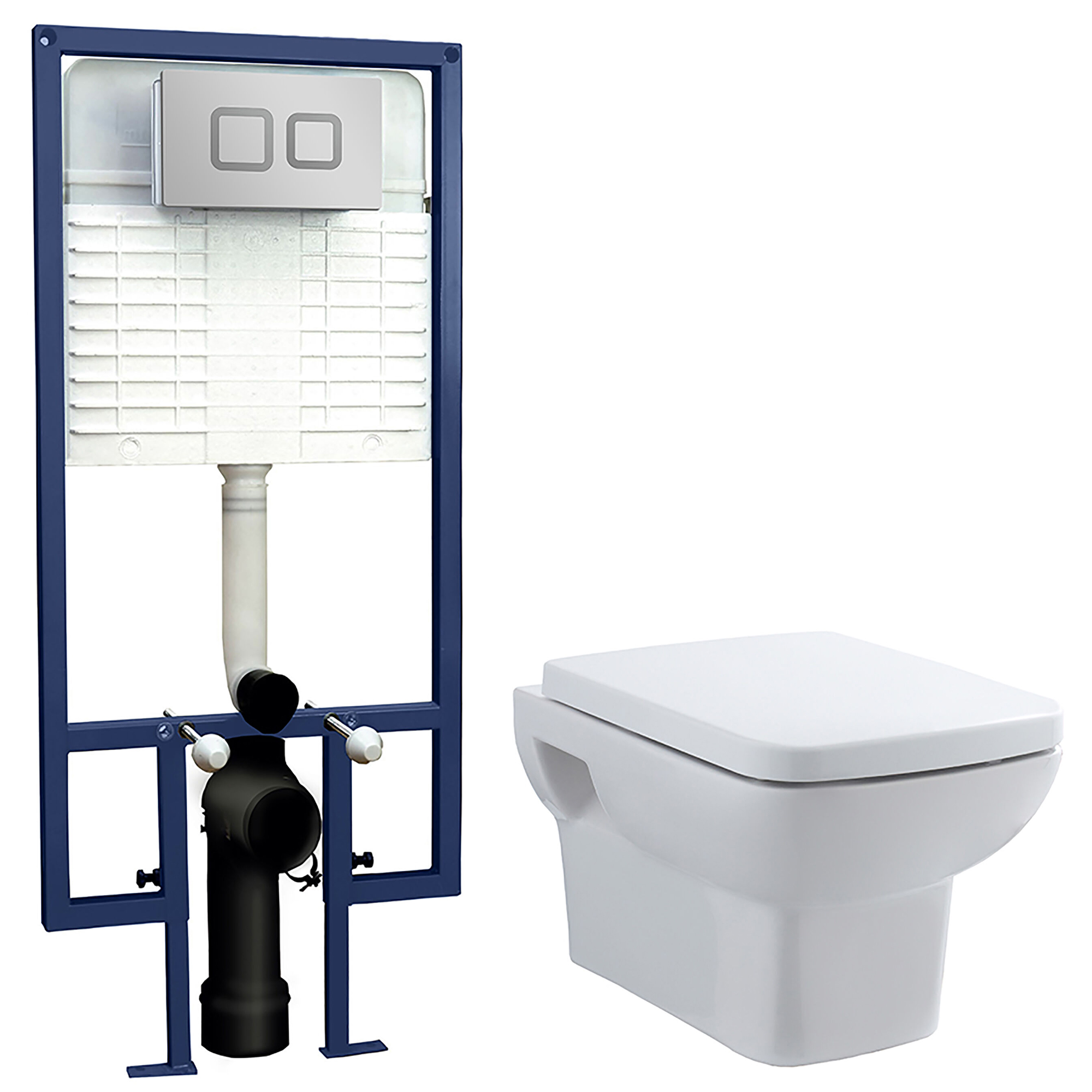

Nuie Square Wall Hung Pan And Soft-Close Seat - Toilet Frame with Concealed Cistern.

Overall Weight: 35.9 Kg
Overall Size: Width 360 x Projection 525 x Height 360mm
Refer to the Technical Drawing for more Technical Specifications
Download the Customer Datasheet PDF from the Additional Info & Download section

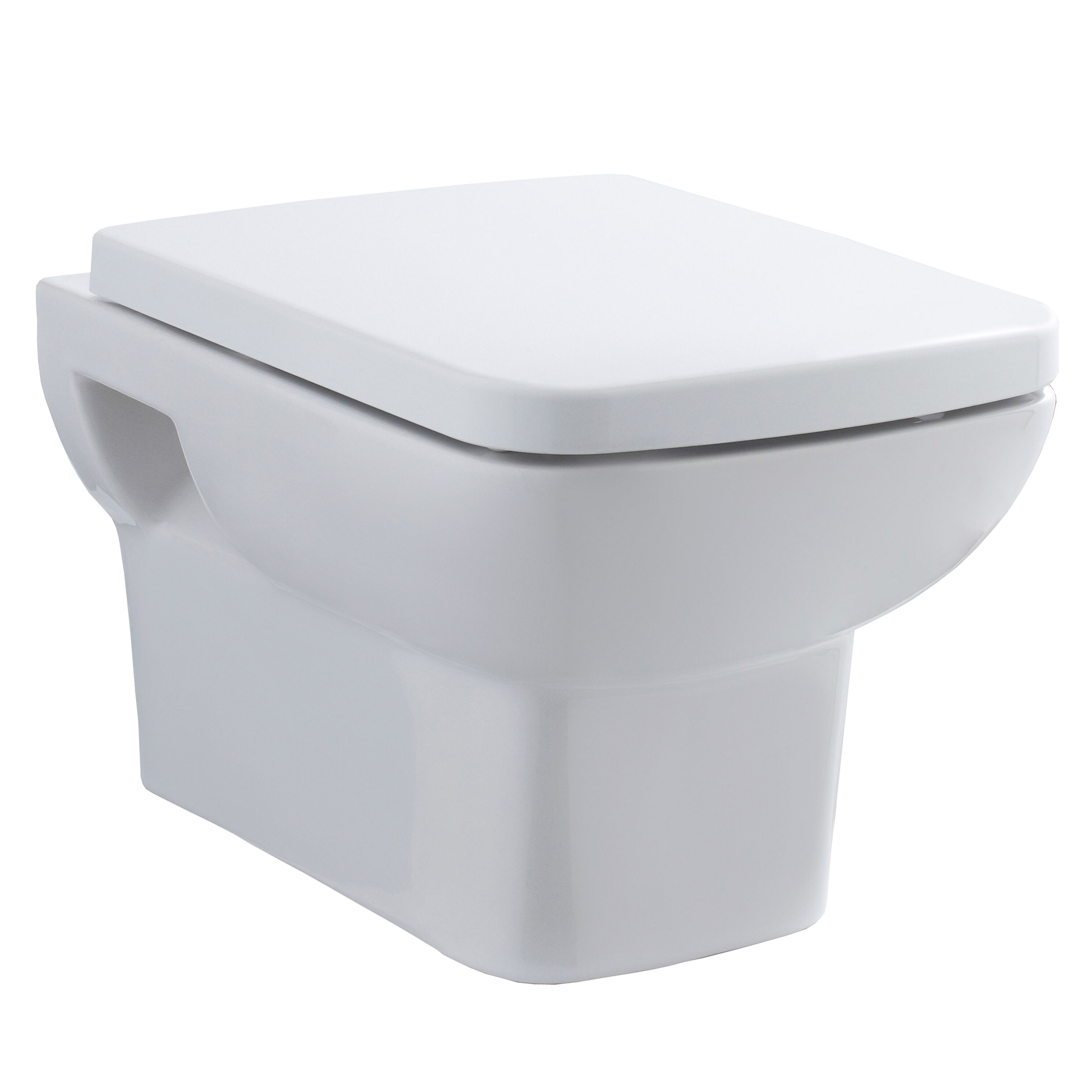

Details Of Pan
Shape: Square
Type: Wall Hung
Size (mm): Width 350 x Projection 525 x Height: 360mm
Size (cm): Width 35 x Projection 52.5 x Height: 36cm
Material: Vitreous China
Weight: 20.5 Kg
Style: Contemporary
Finish" White

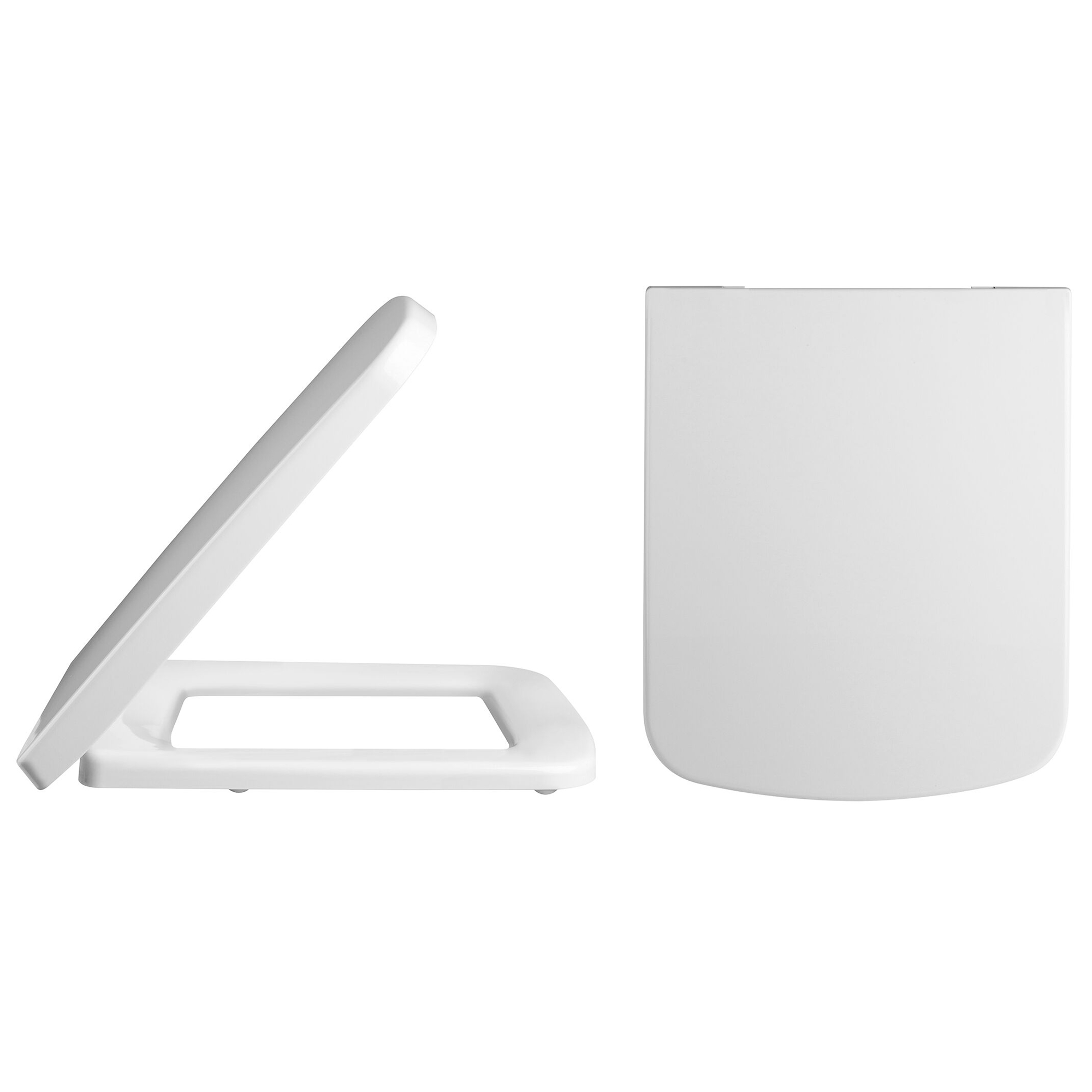

Details of the Toilet Seat
Soft-Close Seat
Size (mm): Width 355 x Projection 430 x Height 56mm
Size (cm): Width 35.5 x Projection 43 x Height 5.6cm
Material: Polypropylene
Top-Fix Hinge
Hinge Centres: Minimum 150 and Maximum 186mm
Supplied with Fixing
Shape: Square
Weight: 2.5 Kg
Details Of Frame
Stainless-Steel Construction
Size (mm): Width 520 x Depth 120-200mm
Height: Minimum 1136 and Maximum 1336mm
Required Wall Cavity: Minimum 169.88mm
1-Year Guarantee from the Manufacturer
Details Of Cistern
Ideal for Concealed Installation
Suitable to use with the Toilet Frame
Dual Flush Operation
1-Year Guarantee from the Manufacturer

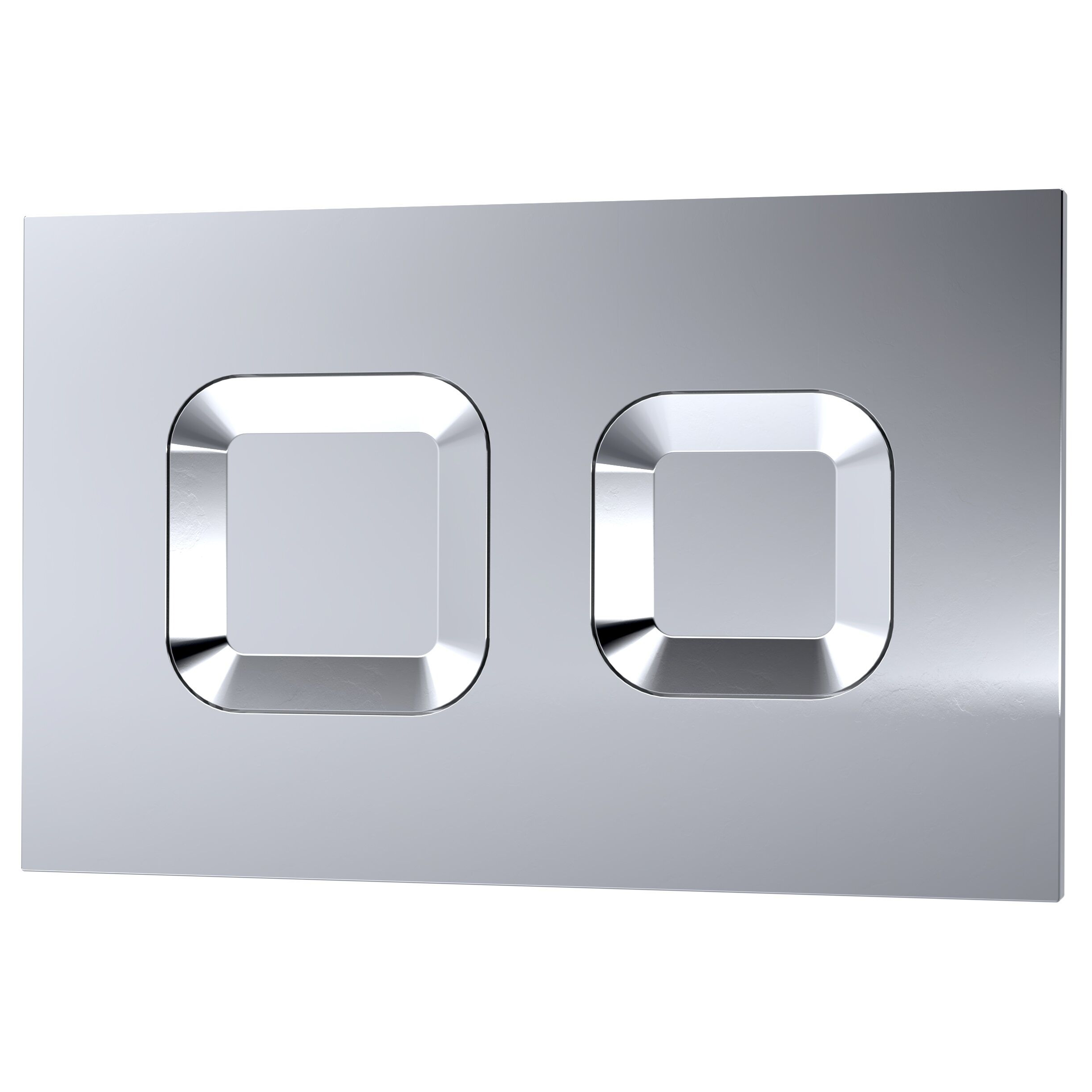

Details Of Flush Plate:
Material: Stainless-Steel
Square Shape Button
Size (mm): Width 267 x Depth 11 x Height 170mm
Weight: 0.5 Kg
Style: Contemporary

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Coating
: Standard
⤷ Colour
: White
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Vitreous China | Stainless Steel | Polypropylene
⤷ Theme
: Modern
⤷ Installation Type
: Wall Hung
⤷ Pan Width
: 350
⤷ Pan Height
: 360
⤷ Projection (Depth)
: Minimum 120 | Maximum 200
⤷ Cistern Included
: Yes
⤷ Flush Type
: Dual Flush
⤷ Width
: 500
⤷ Outlet
: Horizontal
⤷ Configuration
: Toilet Frame | WC Pan | Cistern | Flush Plate
⤷ Height
: 1136 - 1336

⤷ Seat Included
: Yes
⤷ Seat Type
: Soft-Close
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: CE Approved
⤷ Barcode
: 5056678431542
⤷ Distance from floor to centre of fixing hole
: 320 - 520
⤷ Bowl Shape
: Square
⤷ Product Type
: Wall Hung Toilet and Frame
⤷ Seat Post Hole Centers
: 155
⤷ Base width
: 230
⤷ Base Depth (projection)
: 405
⤷ Pan fixing centres
: 150
⤷ Outlet Diameter
: 100

Additional Info & Downloads

Download the Customer DataSheet Pdf File

This item can also be found in:

Back to Wall Toilets

Technical Images

£612.00

RRP: ~~£765.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
