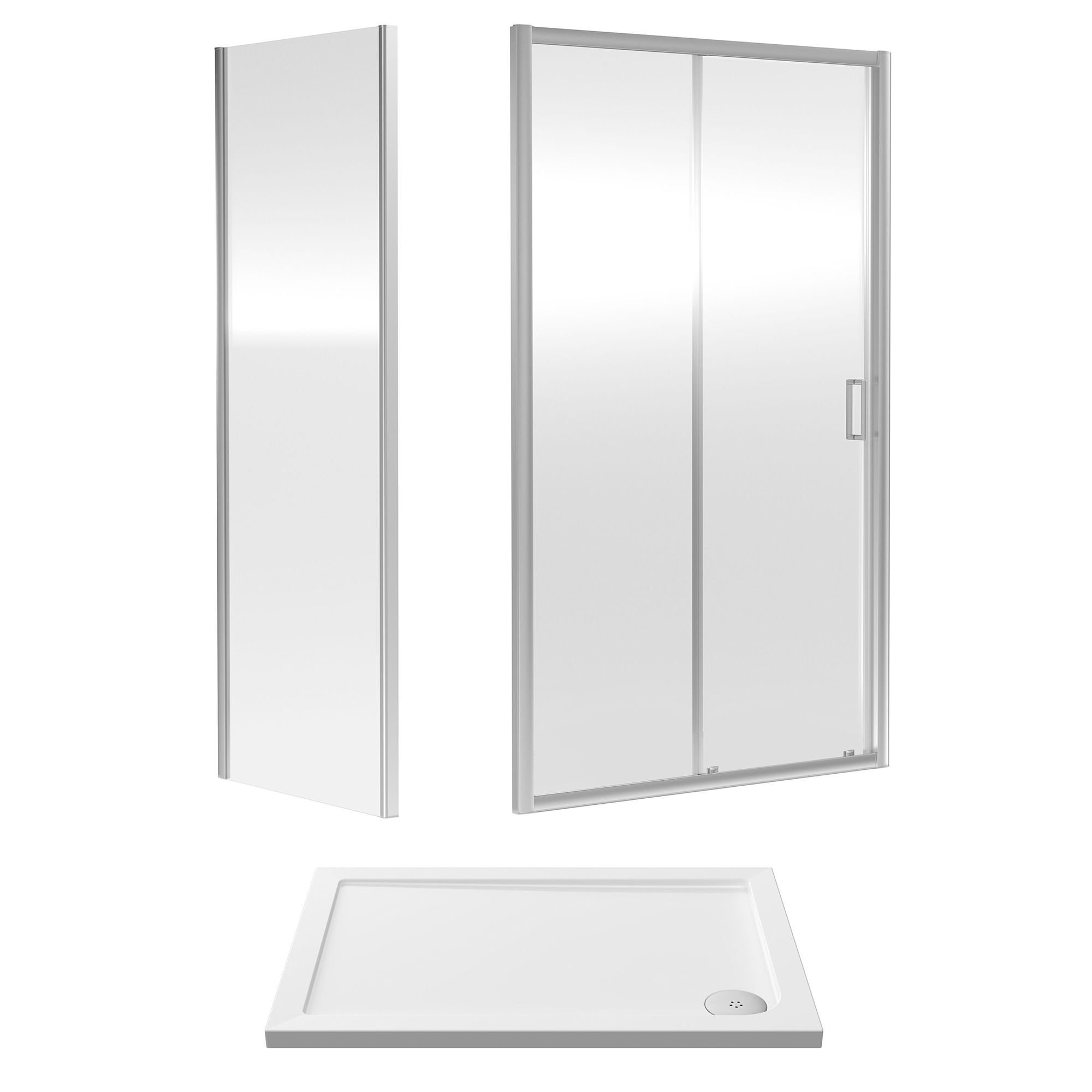

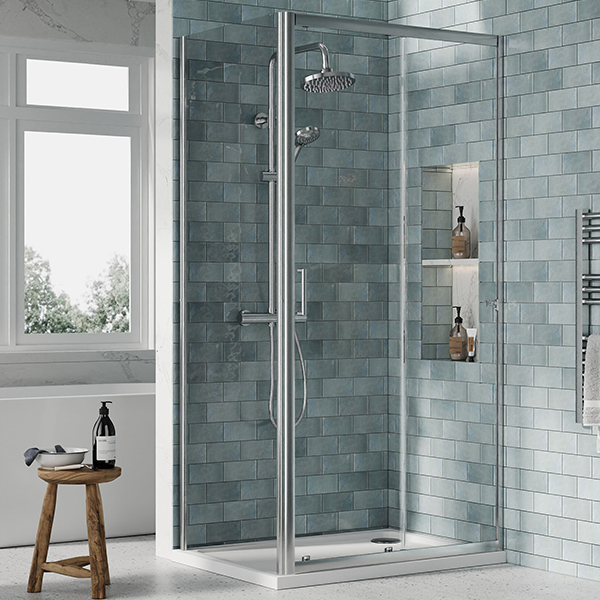

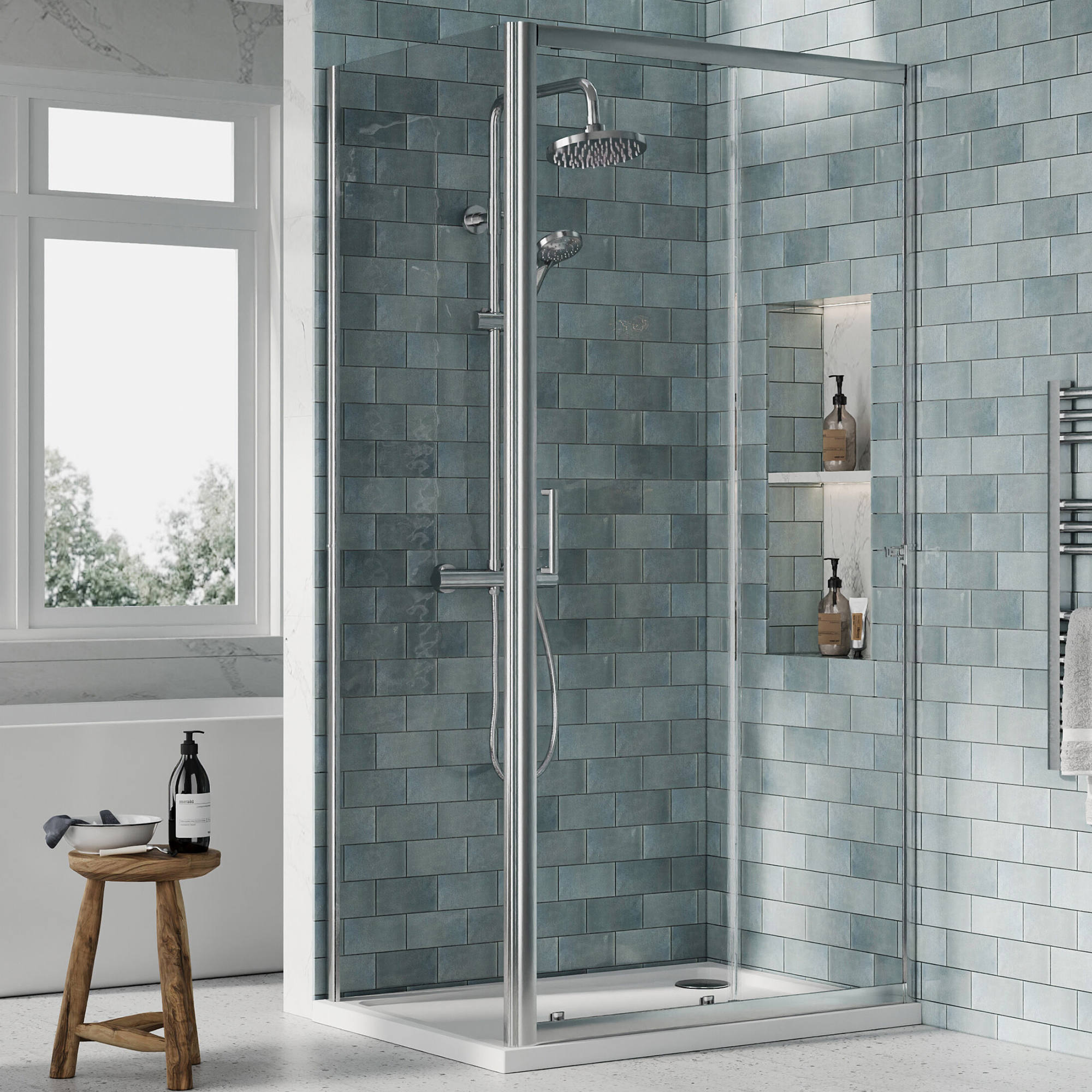

Nuie Rene Sliding Shower Door with Side Panel, Tray, Aluminium Frame, ENZET001

Nuie Rene Details

MFC: ENZET001

Nuie Rene Sliding Shower Door with Side Panel and Tray - Clear Glass - Aluminium Frame.

Key Features

✔CE-Certified
✔Includes Sliding Shower Door, Side Panel and Shower Tray
✔Lifetime Guarantee from Nuie Against Manufacturing Defects

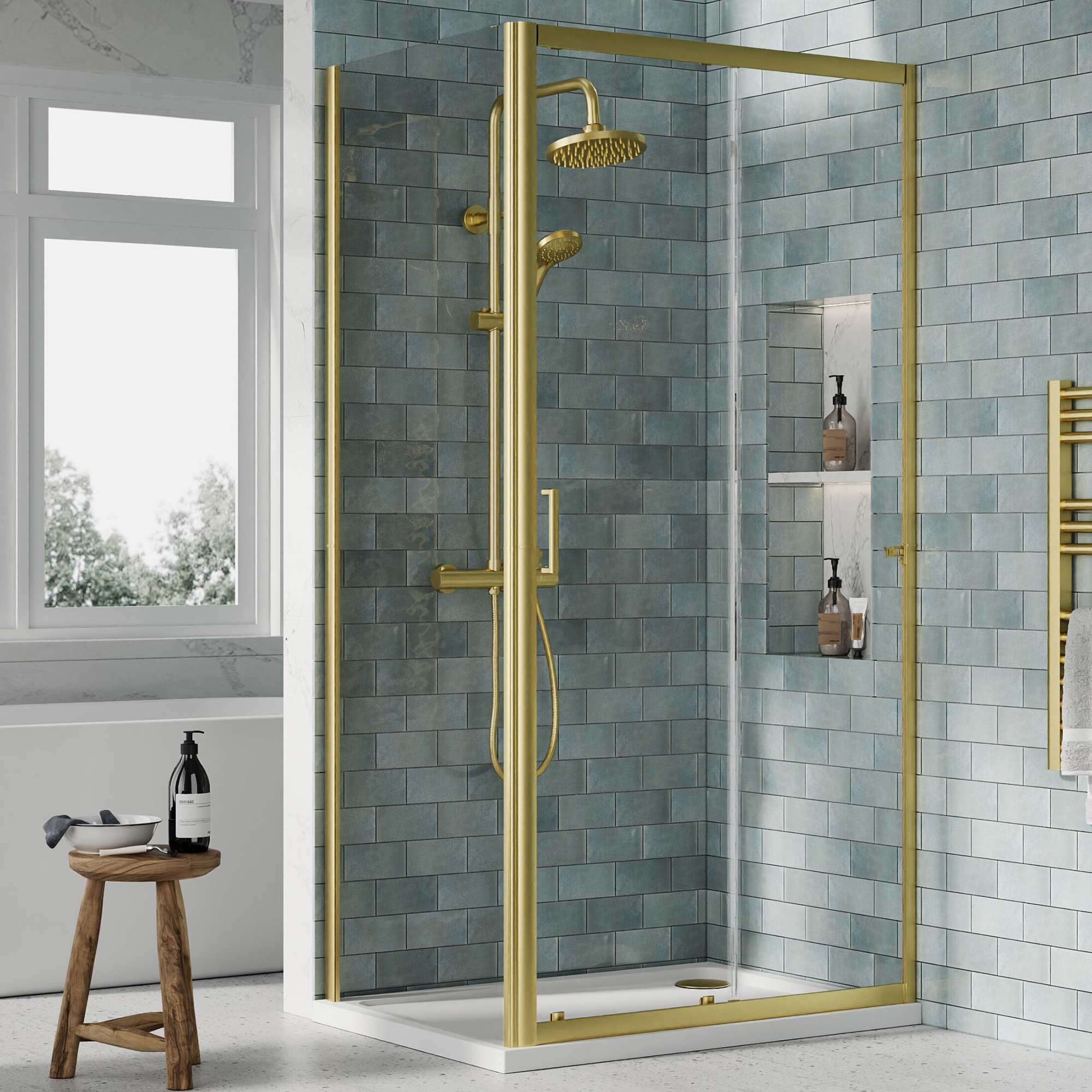

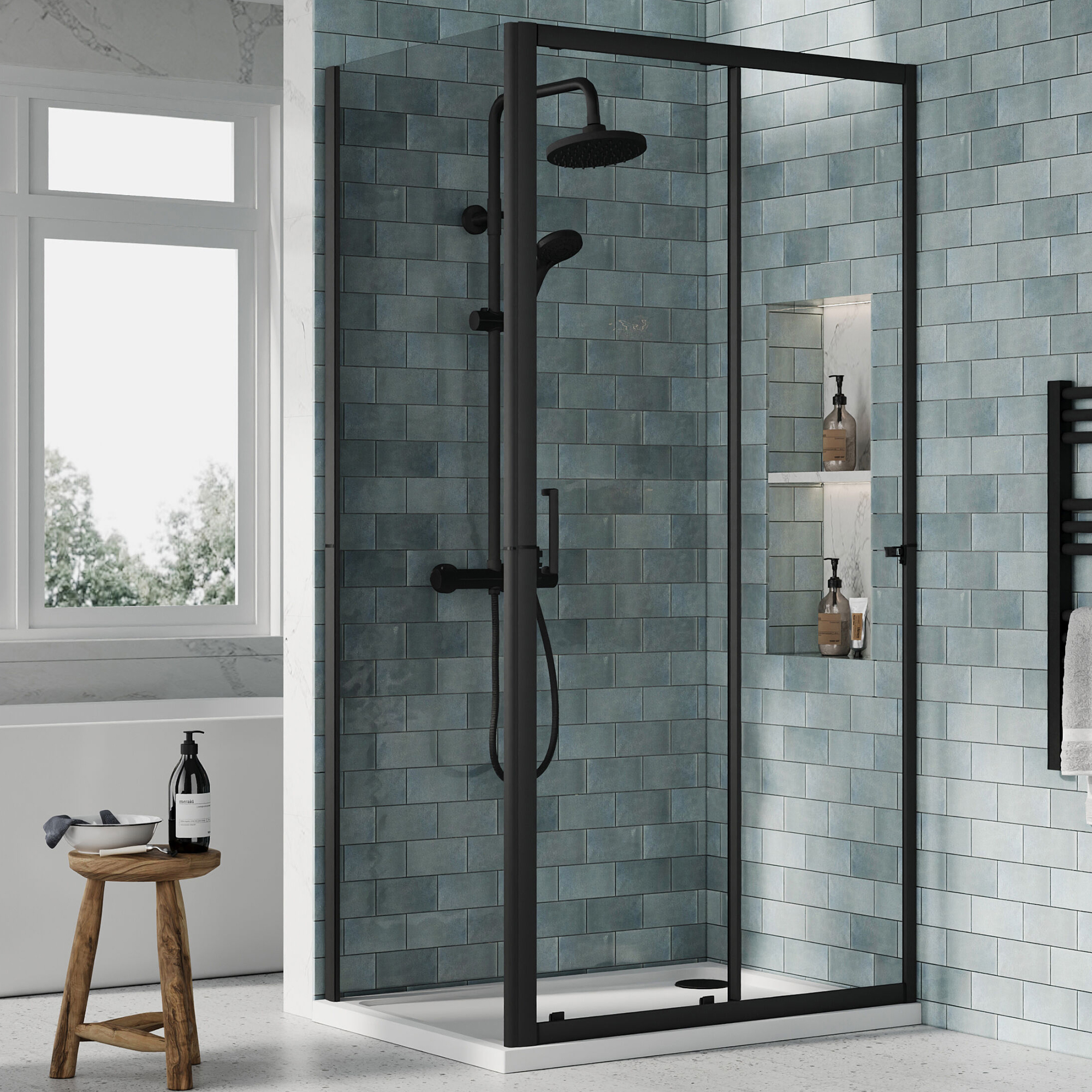

Choice of Profile Finish: Chrome, Matt Black and Brushed Brass
Choice of Size: 1000 x 700mm, 1000 x 760mm, 1000 x 800mm, 1000 x 900mm, 1200 x 700mm, 1200 x 760mm, 1200 x 800mm, 1200 x 900mm, 1400 x 700mm, 1400 x 760mm, 1400 x 800mm and 1400 x 900mm
Choice of Waste: Without or With Waste
Supplied with Handle
Suitable Shower Tray Included
Profile Material: Aluminium
Height: 1900mm (190cm)
Quick-Release Wheels for Easy Clean
Patented Easy fit Profile Assembly System
Manufactured using 6mm Toughened Clear Safety Glass
Reversible Sliding Door for Easy Access
Fixings Included
Handle Material: ABS
Enclosure Design: Framed
Wheel Type: Plastic Dual, Quick Release
Shower Tray Material: Acrylic Capped ABS Caco3 And Pu
+20mm Profile Extension Kit Available as an Option
Download the Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details
Detail of 1000 x 700mm:
Sliding Door Width: 955-995mm (95.5-99.5cm)
Side Panel Width: 672-690mm (67.2-69cm)
Shower Tray Size: 1000 x 700mm [Width x Depth]
Weight: 70.2 Kg
Detail of 1000 x 760mm:
Sliding Door Width: 955-995mm (95.5-99.5cm)
Side Panel Width: 732-750mm (73.2-75cm)
Shower Tray Size: 1000 x 760mm [Width x Depth]
Weight: 73 Kg
Detail of 1000 x 800mm:
Sliding Door Width: 955-995mm (95.5-99.5cm)
Side Panel Width: 772-790mm (77.2-79cm)
Shower Tray Size: 1000 x 800mm [Width x Depth]
Weight: 75.9 Kg
Detail of 1000 x 900mm:
Sliding Door Width: 955-995mm (95.5-99.5cm)
Side Panel Width: 872-890mm (87.2-89cm)
Shower Tray Size: 1000 x 900mm [Width x Depth]
Weight: 81.6 Kg
Detail of 1200 x 700mm:
Sliding Door Width: 1155-1195mm (115.5-119.5cm)
Side Panel Width: 672-690mm (67.2-69cm)
Shower Tray Size: 1200 x 700mm [Width x Depth]
Weight: 80.8 Kg
Detail of 1200 x 760mm:
Sliding Door Width: 1155-1195mm (115.5-119.5cm)
Side Panel Width: 732-750mm (73.2-75cm)
Shower Tray Size: 1200 x 760mm [Width x Depth]
Weight: 85.7 Kg
Detail of 1200 x 800mm:
Sliding Door Width: 1155-1195mm (115.5-119.5cm)
Side Panel Width: 772-790mm (77.2-79cm)
Shower Tray Size: 1200 x 800mm [Width x Depth]
Weight: 87 Kg
Detail of 1200 x 900mm:
Sliding Door Width: 1155-1195mm (115.5-119.5cm)
Side Panel Width: 872-890mm (87.2-89cm)
Shower Tray Size: 1200 x 900mm [Width x Depth]
Weight: 91.7 Kg
Detail of 1400 x 700mm:
Sliding Door Width: 1355-1395mm (135.5-139.5cm)
Side Panel Width: 672-690mm (67.2-69cm)
Shower Tray Size: 1400 x 700mm [Width x Depth]
Weight: 92 Kg
Detail of 1400 x 760mm:
Sliding Door Width: 1355-1395mm (135.5-139.5cm)
Side Panel Width: 732-750mm (73.2-75cm)
Shower Tray Size: 1400 x 760mm [Width x Depth]
Weight: 98.4 Kg
Detail of 1400 x 800mm:
Sliding Door Width: 1355-1395mm (135.5-139.5cm)
Side Panel Width: 772-790mm (77.2-79cm)
Shower Tray Size: 1400 x 800mm [Width x Depth]
Weight: 100.6 Kg
Detail of 1400 x 900mm:
Sliding Door Width: 1355-1395mm (135.5-139.5cm)
Side Panel Width: 872-890mm (87.2-89cm)
Shower Tray Size: 1400 x 900mm [Width x Depth]
Weight: 103.6 Kg
The Brassware and Waste Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Finish
: Chrome
⤷ Range
: Rene
⤷ Coating
: Without Coating
⤷ Weight in kg
: 70.2
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Alcove | Corner
⤷ Handle Style
: Square D-Handle
⤷ Width
: 1000
⤷ Configuration
: Door | Side Panel | Shower Tray
⤷ Height
: 1900
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: CE
⤷ Barcode
: 5056678466803
⤷ Door Type
: Sliding

⤷ Frame Design
: Framed
⤷ Frame / Profile Finish
: Polished Chrome
⤷ Frame Material
: Aluminium
⤷ Glass Type
: Toughened safety glass
⤷ Glass Thickness
: 6
⤷ Number Of Doors
: 1
⤷ Side Panel Included
: Yes
⤷ Door Adjustment
: 960 - 995
⤷ Side Panel Adjustment
: 672 - 690
⤷ Entry Width
: 955 - 995
⤷ Tray Included
: Yes
⤷ Handle Included
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

This item can also be found in:

Technical Images

Nuie Rene Sliding Shower Door with Side Panel and Tray - Clear Glass - Aluminium Frame

Sliding Door

Side Panel

1000-1200mm Tray Size

1400mm Tray Size

Waste

Add-Ons

Profile Extension Kit

20mm Profile Extension Kit for Shower Doors and Side Panels. Please Note : Image Shown is for Illustration Purpose Only.

No Option Selected
OP-251827 - Chrome Profile Extension Kit + £55.90
OP-251828 - Matt Black Profile Extension Kit + £55.90
OP-251829 - Brushed Brass Profile Extension Kit + £55.90
OP-249479 - Brushed Pewter Profile Extension Kit + £55.90

£332.40

RRP: ~~£904.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Aluminium Frame

Aluminium frames are durable and naturally form a protective oxide coating, making them highly resistant to corrosion and a perfect fit for a bathroom.

Framed Glass

When the door comes with framing around itself and each panel, it is called a Framed model. It provides structure and stability to the glass of the enclosure and can be selected to complement it or other fixtures. The most significant advantage of these models is the price and an easy installation method.

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Quick Release Rollers

Some shower door runners have a quick-release mechanism on the runners for fast release of the doors or panels for easy cleaning of the enclosure.
