Ideal Standard I-Life B Quadra Vessel Rectangular White Countertop Basin

Ideal Standard I-Life B Details

MFC: T573801

Ideal Standard I-Life B Quadra Vessel Rectangular White Countertop Basin.

Key Features

✔Designed by Palomba Serafini Associati
✔Manufactured Using Fine Fireclay Material
✔Standards: Washbasin to BS EN 14688 and BS EN 31
✔Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Width: 500mm and 605mm
Choice of No Taphole and 1 Taphole
Choice of Variations: With or Without Overflow
Timeless Design
Internal Depth: 120mm (12cm)
Frequently Used in Hotels, Offices and Residential Applications
Waste [Optional]
Trap [Optional]
Washbasin Mounted on Countertop
Joint Sealed with Waterproof Sealant (not Supplied)
Refer to the Technical Drawing for More Technical Details

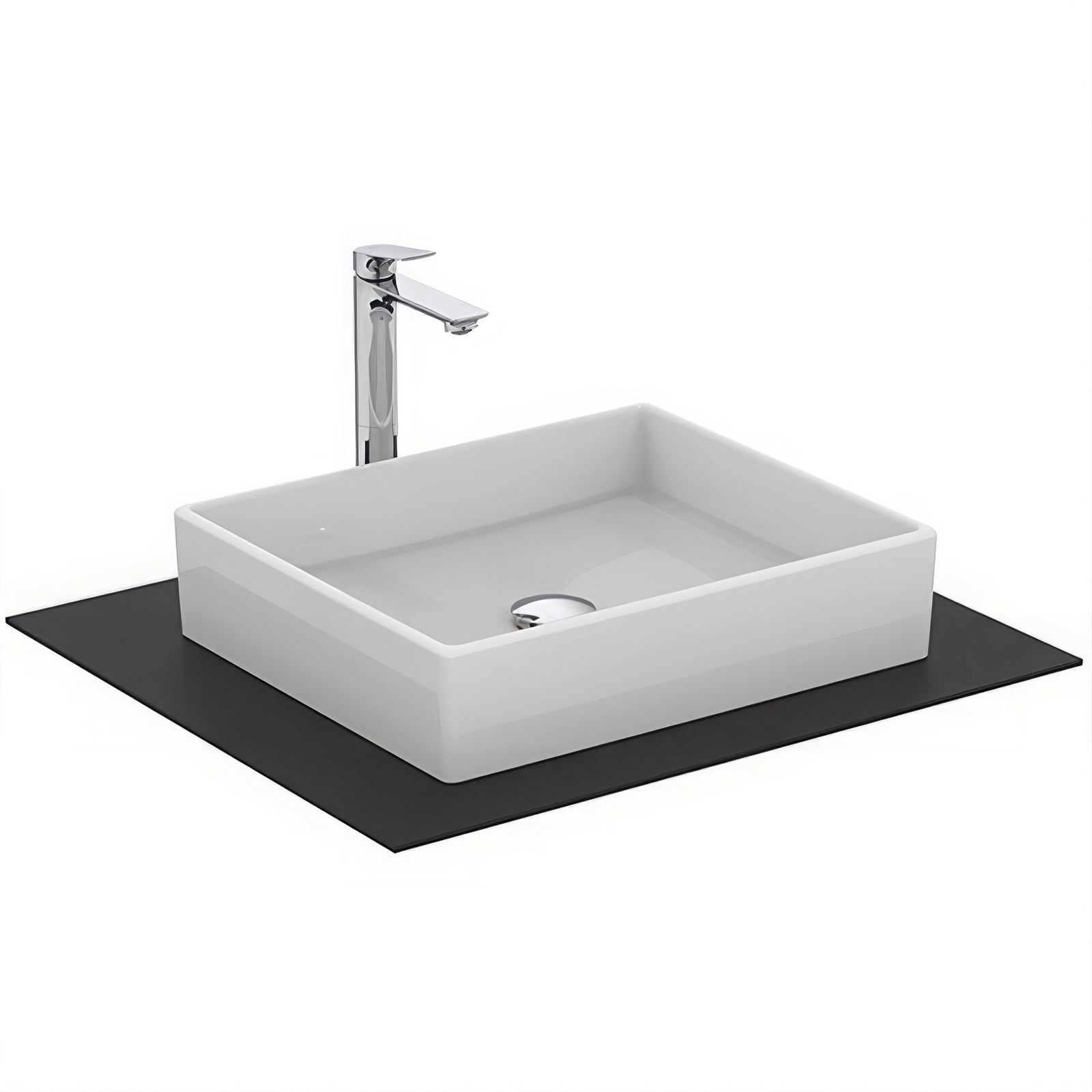

Details For 500mm No Taphole Basin:
Size [mm]: 500 x 420 x 140mm [Width x Depth x Height]
Size [cm]: 50 x 42 x 14cm [Width x Depth x Height]
Weight: 13.00 Kg

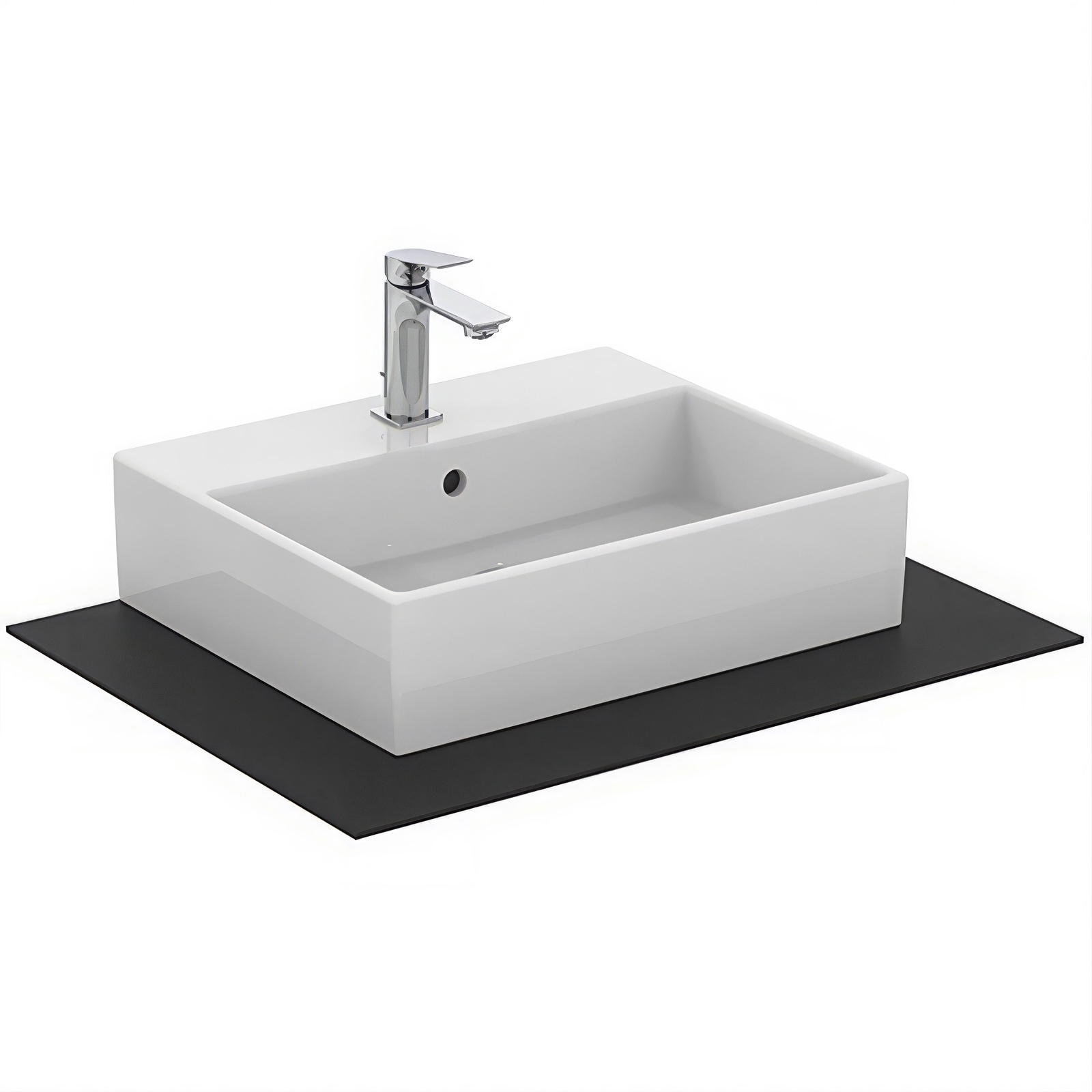

Detail Of 500mm 1 Taphole Basin:
Size [mm]: 500 x 420 x 145mm[Width x Depth x Height]
Size [cm]: 50 x 42 x 14.5cm [Width x Depth x Height]
Weight: 13.00 Kg
Tap and Waste Shown in the Image are not Included

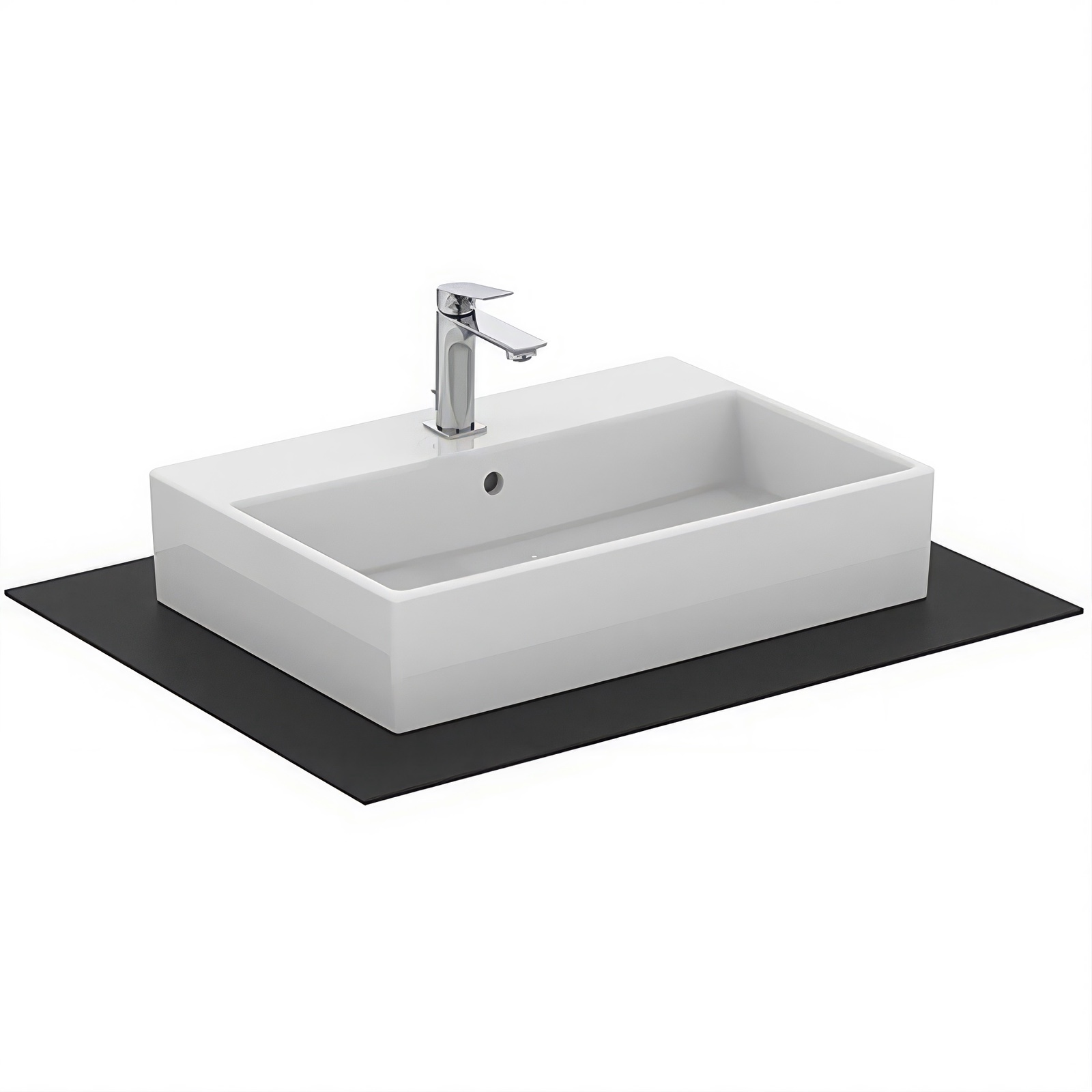

Detail Of 605mm 1 Taphole Basin:
Size [mm]: 605 x 420 x 150mm [Width x Depth x Height]
Size [cm]: 60.5 x 42 x 15cm [Width x Depth x Height]
Weight: 15.00Kg
Tap and Waste Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: I-Life B
⤷ Basin Underside
: Unglazed
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Weight in kg
: 13.00
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Fine Fireclay
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Projection (Depth)
: 420
⤷ Width
: 500

⤷ Height
: 140
⤷ Inner Bowl Width
: 470
⤷ Inner Bowl Depth
: 390
⤷ Distance rear edge to centre of waste hole
: 210
⤷ Distance rear edge to centre of tap hole
: 65
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 0
⤷ Tap Hole Position
: Centre
⤷ Compliance/Approvals/Standard
: BS EN 14688 | BS EN 31
⤷ Tap Hole Size
: Ø 35
⤷ Barcode
: 8014140521976
⤷ Product Type
: Counter Top Washbasin

Add-Ons

Basin Waste

Standard Basin Waste, Strong and Durable. Please Note: Image for Illustration Purpose Only

No Option Selected
OP-194773 - 1 1/4 Inch Basin Clicker Waste Unslotted Chrome + £54.66
OP-231883 - 1 1/4 Inch Basin Clicker Waste Slotted Chrome + £57.94

Bottle Trap

Contemporary style standard and resealing bottle trap! Please note: The image shown is for illustration purpose only.

No Option Selected
OP-42820 - 1.25 Inch Multi-Purpose Outlet Plastic - S891067 + £21.17
OP-2405 - 1.25 Inch Chrome Contemporary Bottle Trap - E0079AA + £139.99

Ideal Standard I-Life B Quadra Vessel Rectangular White Countertop Basin

£130.80

RRP: ~~£216.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Fireclay

It is incredibly hard-wearing and has an everlasting shiny surface. They have a high heat resistance (1600°C) and are chemical resistant, non-porous, and hygienic.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.
