Ideal Standard I-Life 1700 x 700mm White Idealform Bath

Ideal Standard I-Life Details

MFC: T477201

Ideal Standard I-Life 1700 x 700mm White Idealform Bath.

Key Features

✔Detergent and Light-Resistant
✔Constructed using Acrylic material
✔Standards: EN 198:2008. EN 14516
✔25-Year Guarantee from the Manufacturer against any manufacturing defects

Choice of Tap Hole: 0 and 2

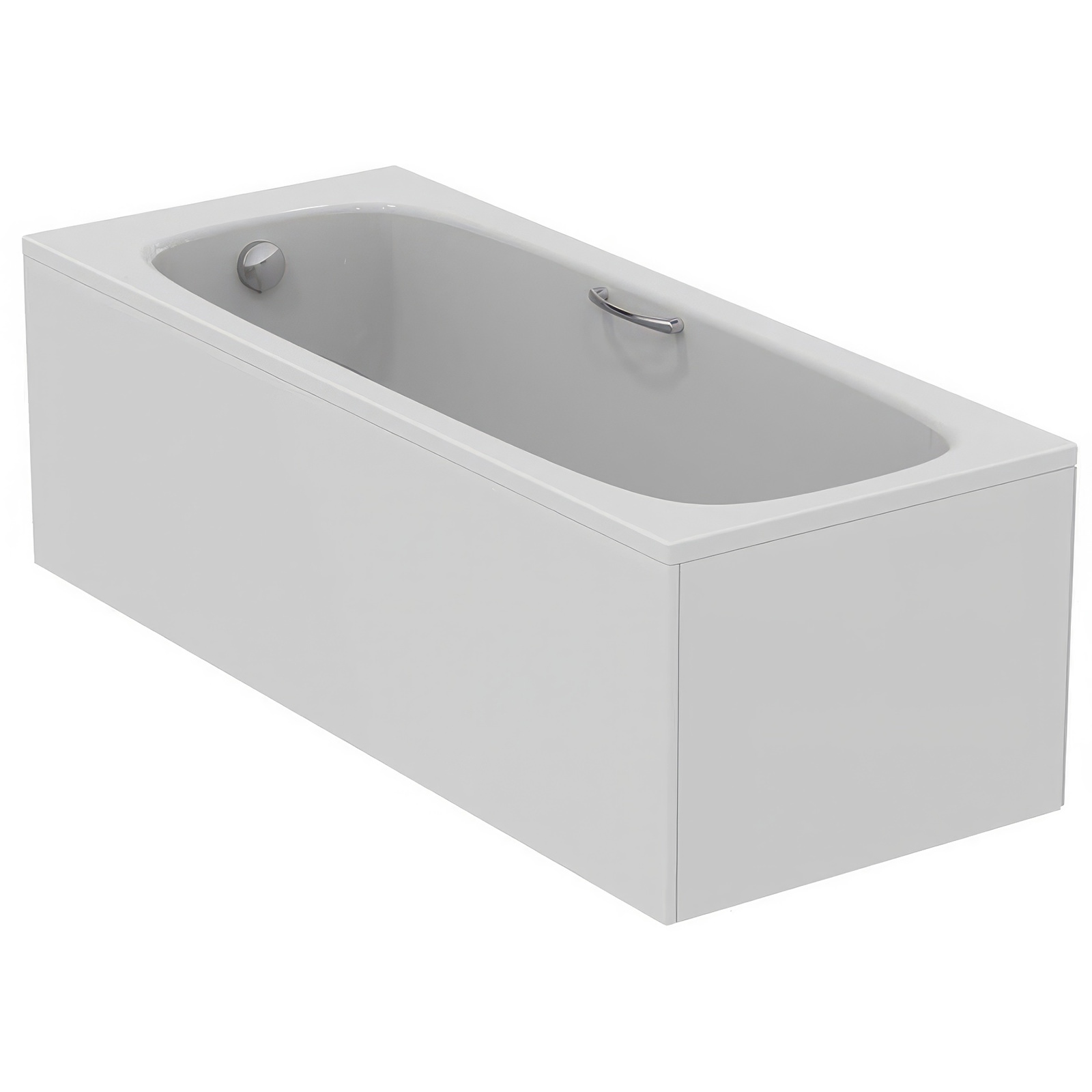

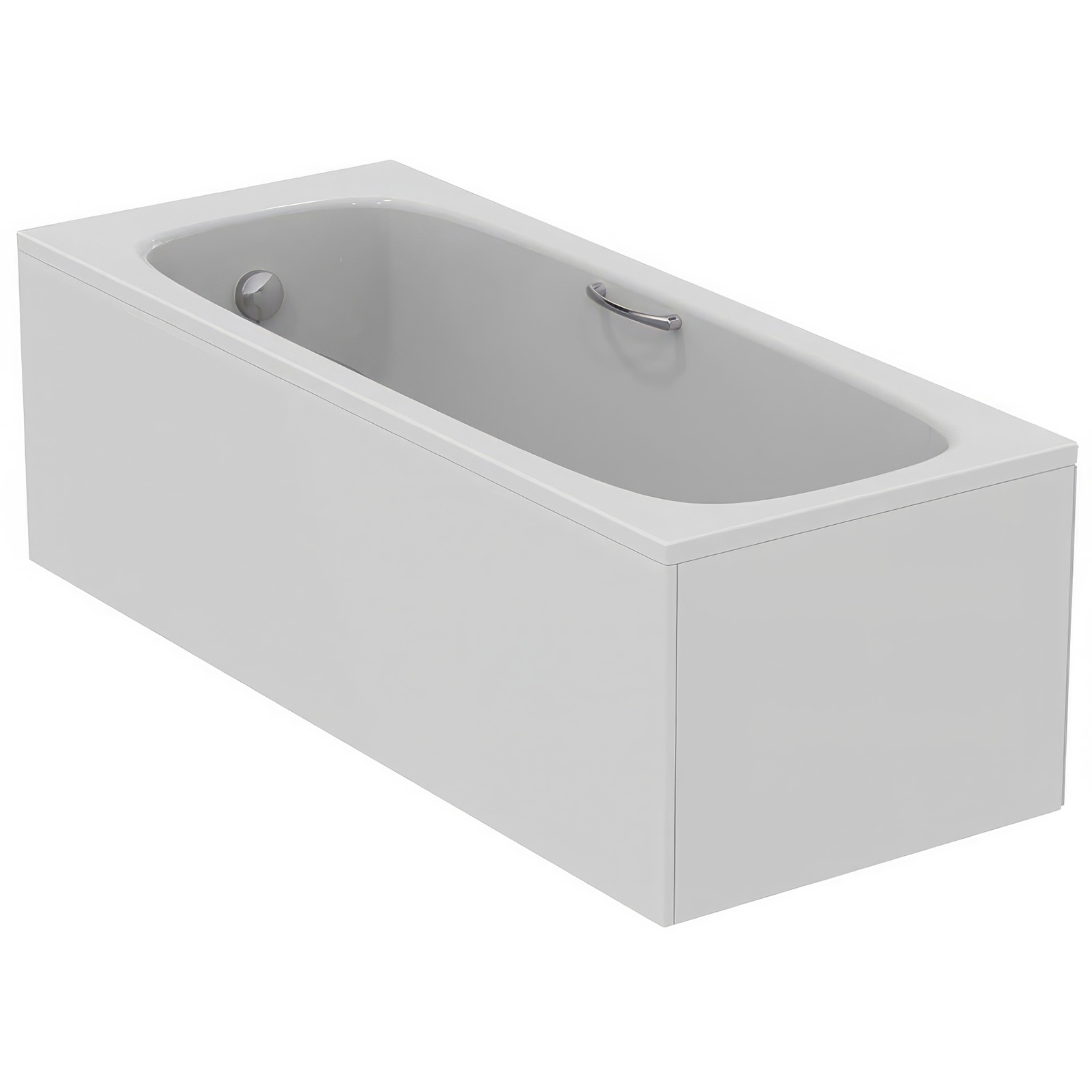

Available without or with Grips
Choice of Variant: Without or With Water Saving
Single-Ended Straight Bath
It Comes in a White Finish
Domestic and hotel use
Part of an extensive range
Overall Height is 540mm [54cm] [Floor to Rim]
IdealForm: Made from High-Quality, Reinforced Cell, Cast Acrylic Sheet, which is Robust, Scratch-Resistant and Lightweight
Size [mm]: 1700 x 700 x 390mm [Length x Width x Depth]
Size [cm]: 170 x 70 x 39cm [Length x Width x Depth]
Capacity: 176 Litres
Bath Thickness: 5mm
Water Saving Bath Capacity: 139 Litres
Weight: 20Kg
Bath Front and End Panel [Optional]
Waste and Trap [Optional]
Panel Fixing Kit [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Waste and Overflow Shown in the Image are not Included - Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: I-Life
⤷ Bath Type
: Single Ended
⤷ Position of Drain
: Waste at Foot End
⤷ External Length
: 1695
⤷ External Width
: 695
⤷ Tub Depth
: 390 | 410
⤷ Feets Included
: Yes
⤷ Height Including Feet or Panel
: 540
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Grips Included
: Sold Separately
⤷ Internal Bottom Length
: 1070
⤷ Internal Bottom Width
: 450
⤷ Height of Rim
: 30

⤷ Distance Tub edge to centre of drain hole
: 355
⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52
⤷ Rim Width
: 70 | 130
⤷ Weight in kg
: 20
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 176
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-Drilled
⤷ Barcode
: 8014140488484

Add-Ons

Unilux And Unilux Plus Bath Panel

This acrylic bath front and end panel is suitable for Idealform and idealform plus bath only, Please Note: image shown is for illustration purpose only.

OP-233817 - 70cm Unilux End Panel - E316901 + £49.74
OP-233816 - 170cm Unilux Front Panel - E319401 + £97.58

Compatible Bath Waste

Bath waste with overflow made using high quality material. Please note image is for illustration purpose only

No Option Selected
OP-171695 - Luxury Bath Pop-up Waste And Overflow - E1486AA + £83.70

Optional Trap

Space saving trap and waste pipe assembly for use with furniture basin units. Please Note: Image shown is for illustration purpose only.

OP-204193 - Trap 1A½ Plastic P With 75mm Seal + £28.12

Unilux Concealed Panel Fixing Kit

Concealed fixing kit for Ideal Standard Unilux bath panels. Durable, easy to install, and built for long-term use in modern bathrooms. Please note image is for illustration purpose only.

No Option Selected
OP-244935 - Concealed Panel Fixing Kit + £23.10

Ideal Standard I-Life 1700 x 700mm White Idealform Bath

£251.70

RRP: ~~£315.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Idealform

All Idealform baths are moulded from a high-quality reinforced cell-cast acrylic sheet that is warm to the touch and provides exceptional insulation. The sheet is heated and then vacuum formed into the desired bath shape. It is then fully reinforced with Glass Reinforced Polymer (GRP). A medium-density 15mm base board is positioned and encapsulated with extra Glass Reinforced Polymer (GRP). The bath is then cured, trimmed and drilled for tapholes or bath grips if required.

Optional: Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.

Detergent Resistant

Shower trays are subjected to strict inspections of resistance to chemicals and pass these tests according to standard EN 14527.

Resistant To Light

Shower trays do not discolour and wear through long-term changes in lighting. They are tested with xenon lamps, which accelerate the environmental effects to which the shower floors are exposed in daily use (EN ISO 4892).
