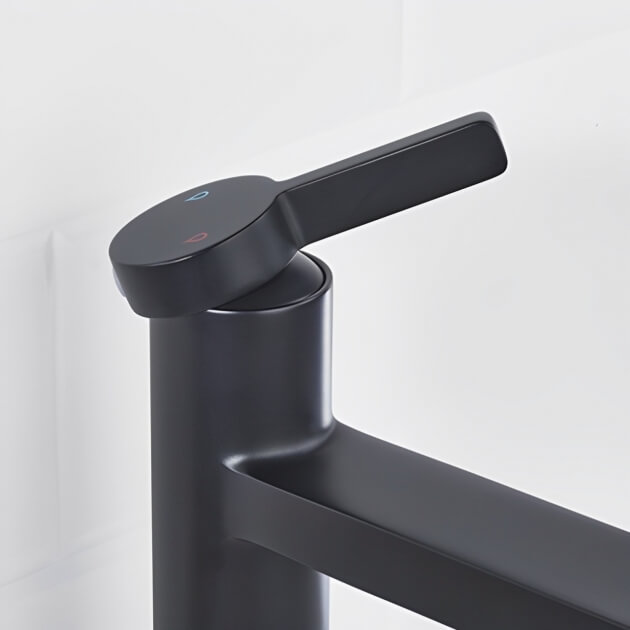

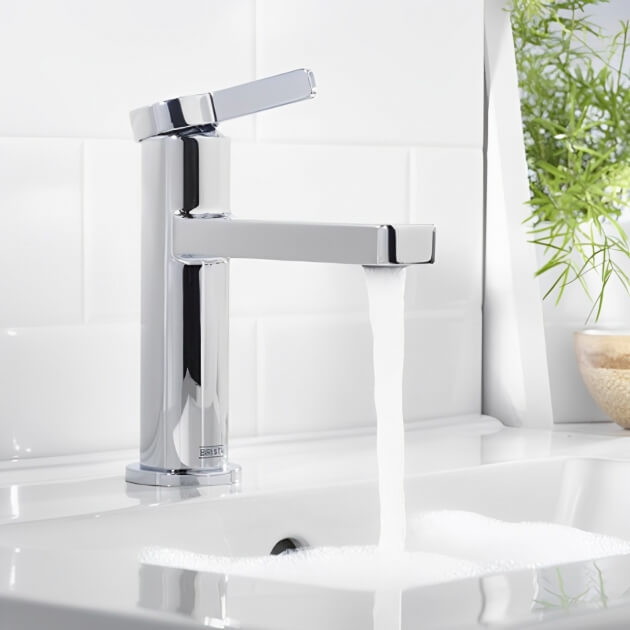

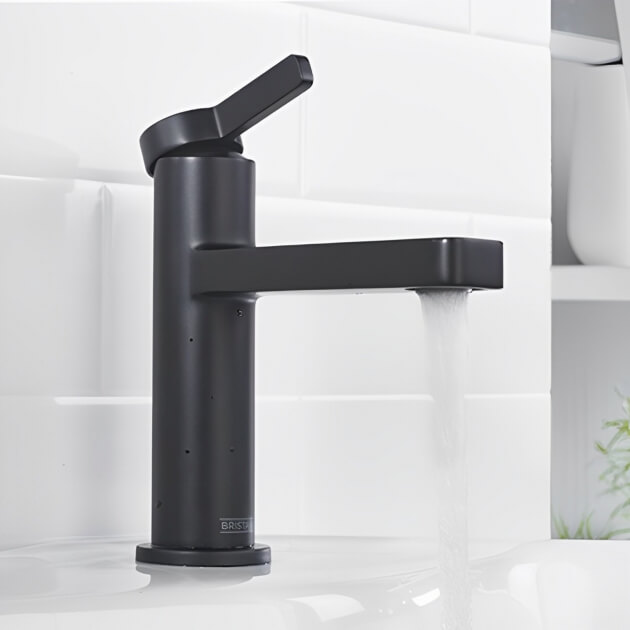

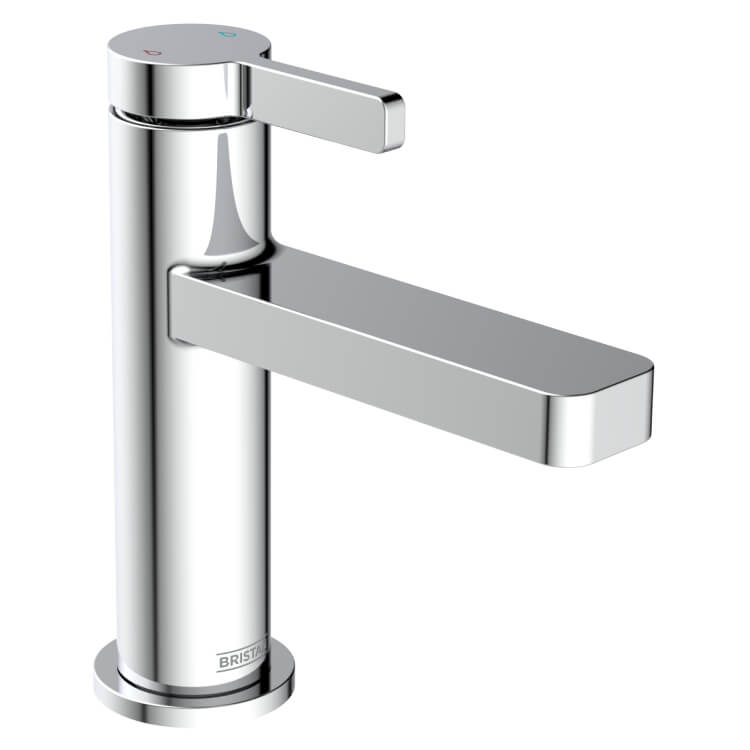

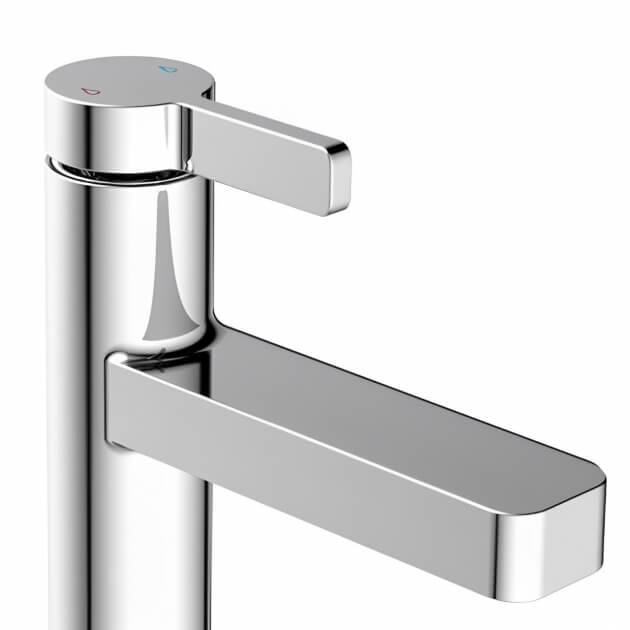

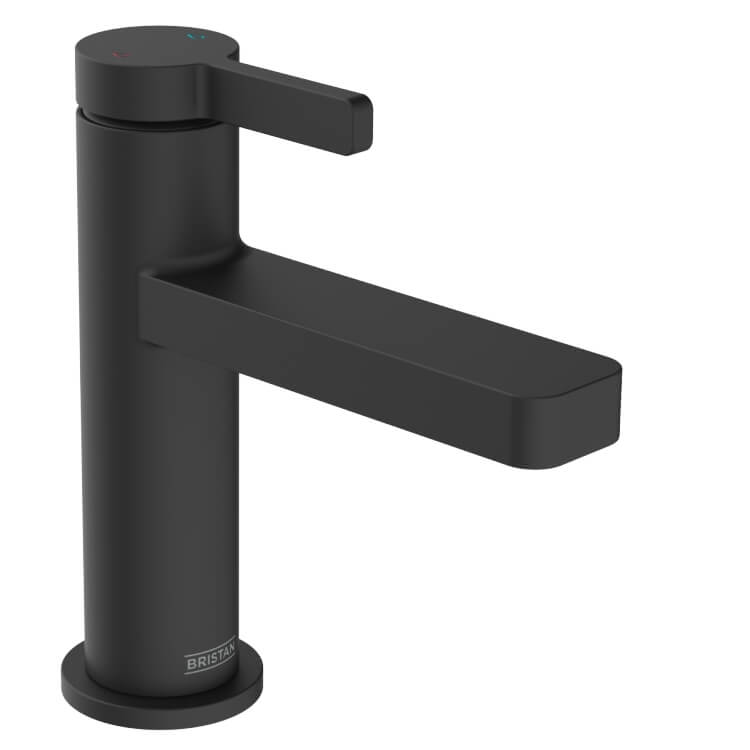

Bristan Elevar Contemporary Deck Mounted Basin Mixer Tap

Details

MFC: ELE BAS C

Bristan Elevar Contemporary Deck Mounted Basin Mixer Tap - Lever Handle and Clicker Waste

Key Features

✔WRAS Approved
✔Manufactured Using Brass Material
✔Supplied with Flexible Tails and Clicker Waste
✔10 Years Parts and 1 Year Labour Guarantee for Peace of Mind from Bristan

Available in 2 Finishes: Chrome and Black
Size [mm]: 46 x 143 x 149mm [Width x Depth x Height]
Size [cm]: 4.6 x 14.3 x 14.9cm [Width x Depth x Height]
Base to Spout: 85mm [8.5cm]
Centre of Inlet to Centre of Outlet: 105mm [10.5cm]
Salt Spray Tested to Ensure Added Durability
Long-Life Ceramic Cartridge for Added Durability and Smooth Control
Flow Type: Single
Mount Type: Deck Mounted
Handle Type: Paddle Lever
Connection Inlet: 1/2 Inch BSP Flexible Tails
Connection Outlet: M24 5lpm Flow Limited Aerator
Number of Tap Holes: 1
Valve/Cartridge Type: 26mm Standard Cartridge
Plumbing System Requirements: Suitable for All Plumbing Systems
Maximum Hot Water Temperature: 60°C
Maximum Static Pressure: 10 Bar
Features Flow Regulator, Which Limits the Flow of Water to 5 Litres Per Minute, Reducing the amount of Water You Use
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish that Lasts for Years
Suitable for Medium and High Water Pressure Systems
Required Minimum 0.5 Bar to Maximum 5.0 Bar Water Pressure
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Elevar
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome, Black
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 26mm Standard Cartridge

⤷ Base To Spout
: 85
⤷ Spout Reach
: 105
⤷ Overall Height
: 149
⤷ Width
: 46
⤷ Inlet Connections
: 1/2 Inch BSP Flexible Tails
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Waste Type
: Clicker Waste
⤷ Handle Style
: Paddle Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5014868086590
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Elevar Contemporary Deck Mounted Basin Mixer Tap - Lever Handle and Clicker Waste

£76.00

RRP: ~~£125.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.
