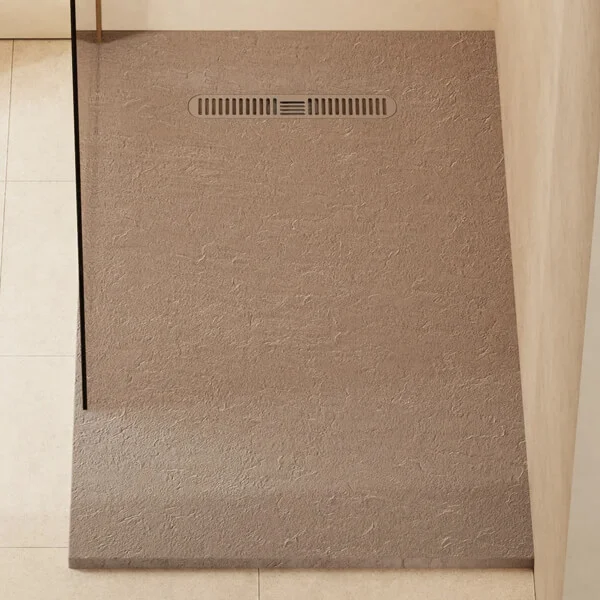

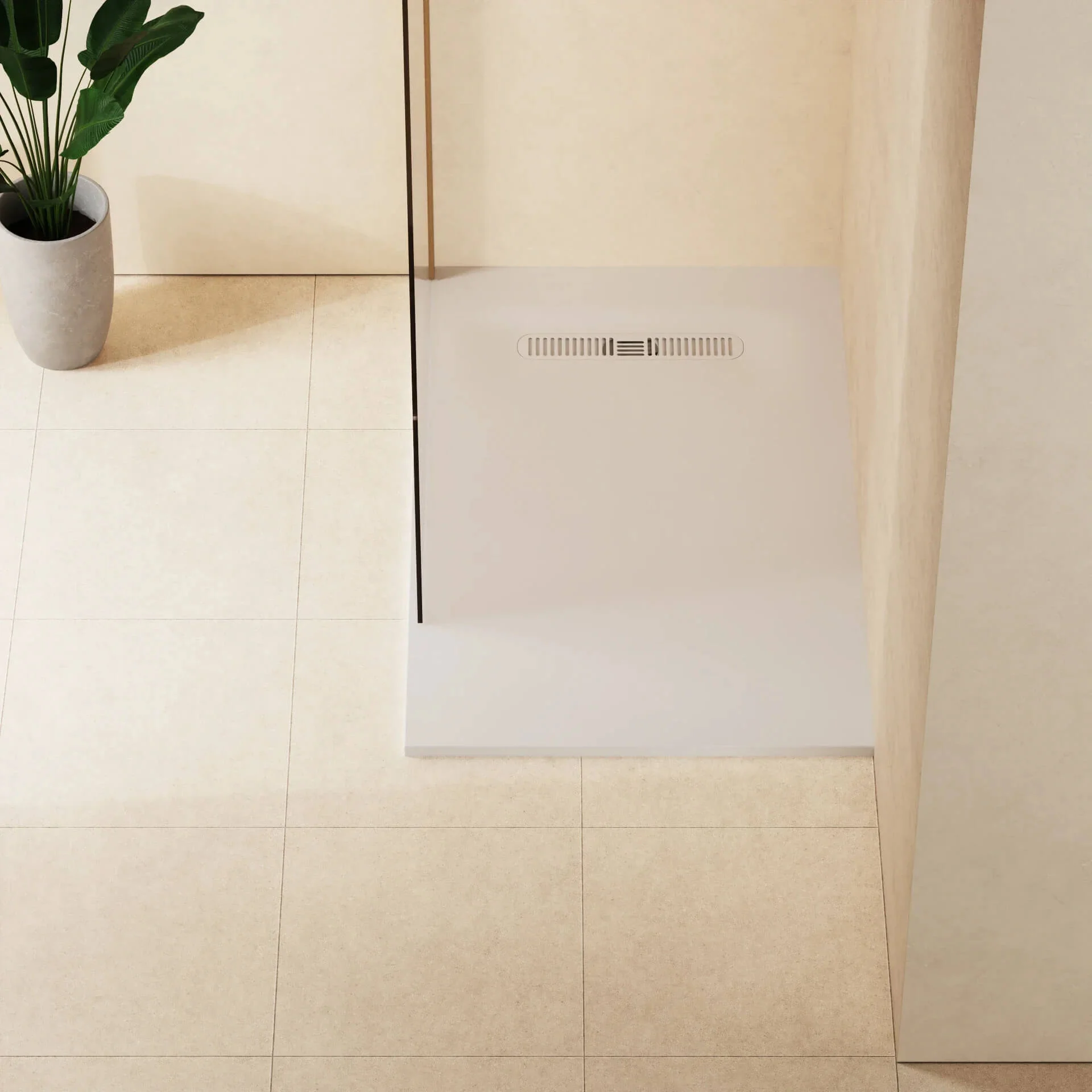

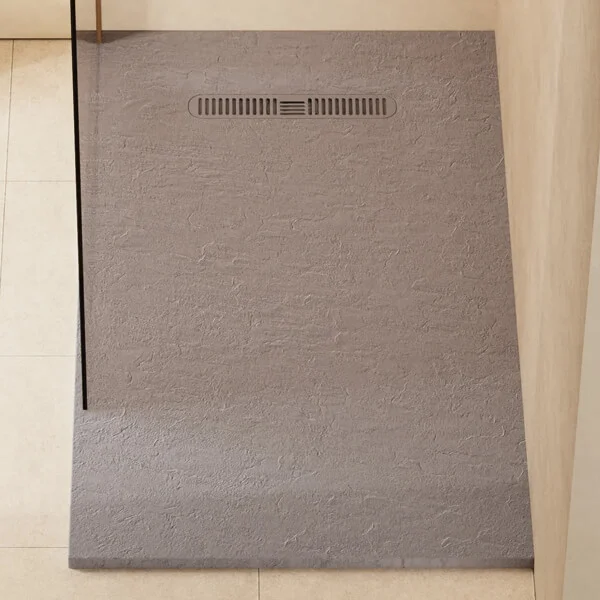

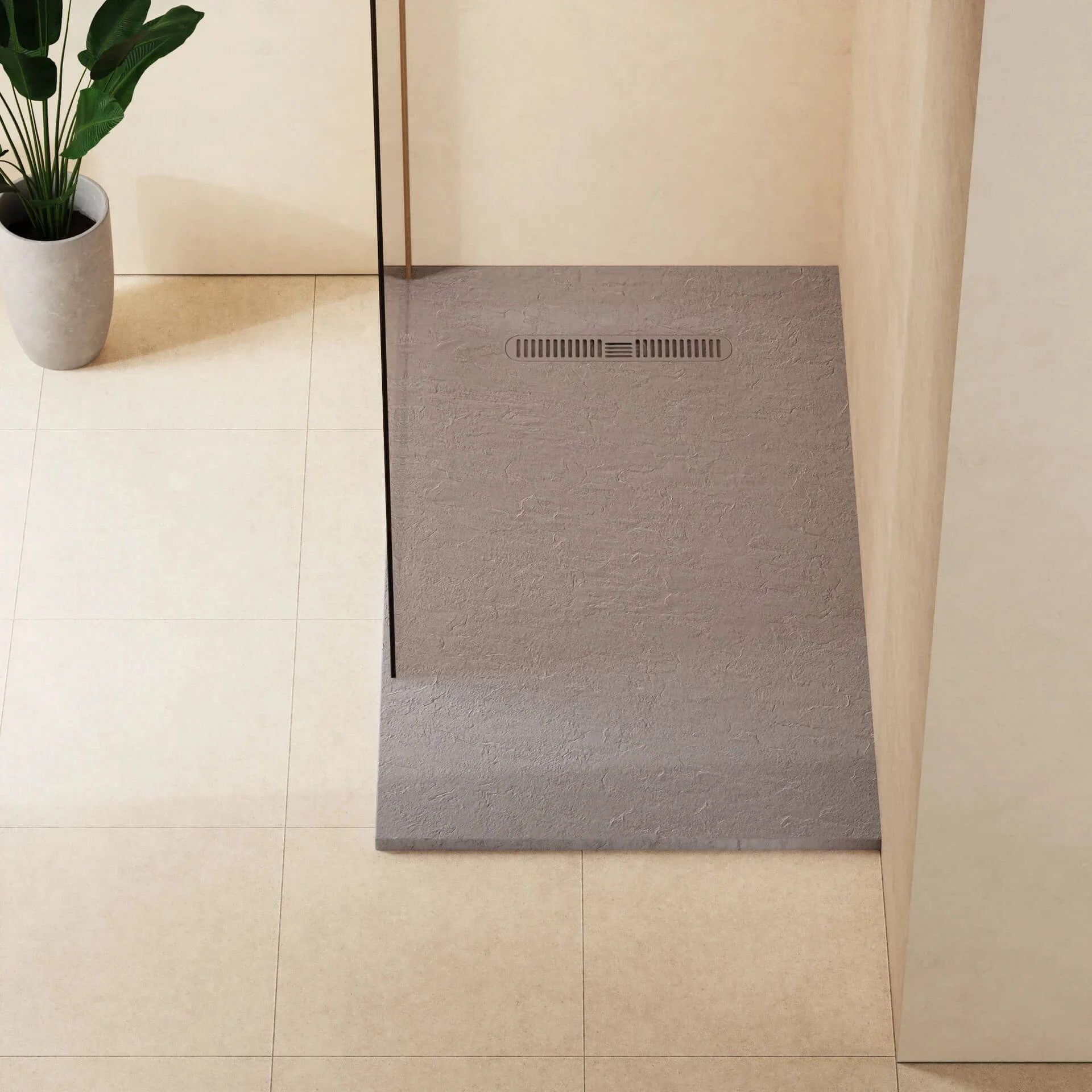

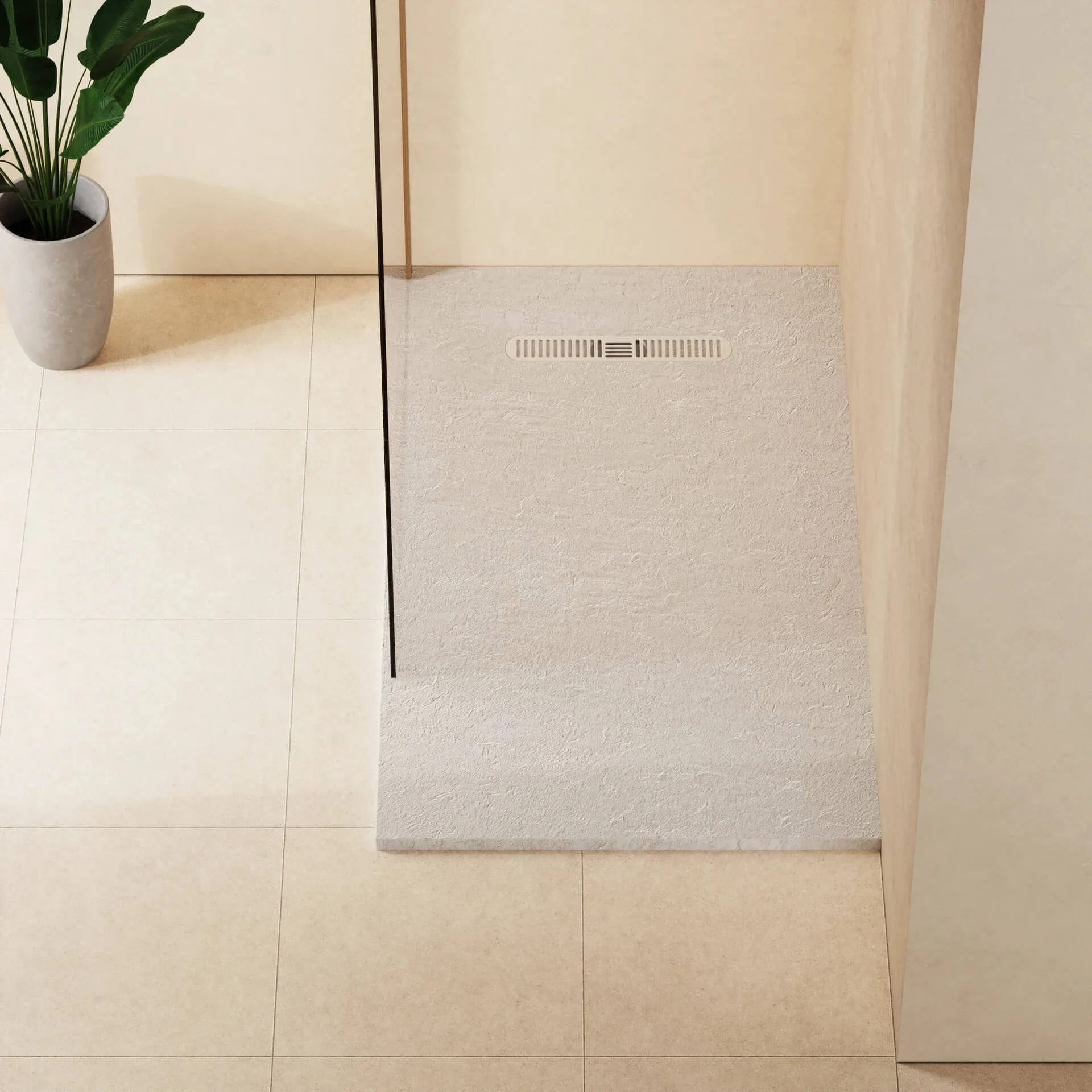

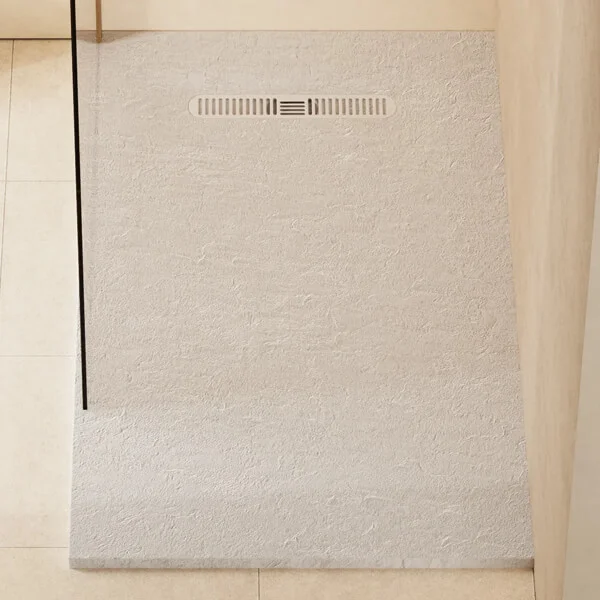

Crosswater Vito 25mm Rectangular Shower Tray

£235.66

STOCK AVAILABILITY

10-14 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Product Variants
Available Length Step 1
Available Width Step 2
Compatible Waste Step 3
Compatible 8 Leg Riser Kit Step 4
SKU Code: QS-V111197

MFC Code: VTR800X1000W

Vito VTR800X1000W Details

Crosswater Vito 25mm Rectangular Shower Tray is moulded from dolomite and stone resin and finished in a white gel coat. It is light in weight and easy to move around for installation and enables you to construct a generous showering area. Dolomite gives this tray high durability, exceptional impact resistance and outstanding thermal shock properties.

It also offers natural sound insulation, and the anti-bacterial coating assures germ-free, safe showering. If you have only heard about the Standard tray, its time to experience this product, which gives you many installation options- on the floor, level to the floor, and on riser legs. Suitable to use with bi-fold, sliding, walk-in or pivot shower doors.

Key Features
  • Available in more sizes
  • Gloss white gel coat finish
  • Material: Dolomite 75%, Stone Resin 25%
  • Lifetime guarantee from the manufacturer
  • Nanocoat antibacterial.
  • 100% recyclable.
  • 3 install options on the floor, level to the floor on riser legs.
  • Trays conform to Class A Anti-slip under DIN 51097 and are tested at a 12-18° angle.
  • Supplied with circular white stainless steel waste cover.
  • Waste not included sold separately.
  • Compatible Ø90mm End Drain with Waste flow rate 30 lpm - VTHFWS90 [Optional].
  • 8 Leg Riser Kit - TRAY25MMLEGSET8 [Optional].
  • Height: 25mm.
  • Outer edge dimension: 60mm.
  • Waste hole diameter: 90mm.
  • Anti-Slip Class: Class A DIN 51097.
  • Tray plane tolerance: +2/-2mm.
  • Tray width tolerance: +5/0mm.
  • Tray height tolerance: +5/0mm.
  • Tray waste hole tolerance: +1/-1mm.
  • Standard: EN 14527:2016+A1:2018.
  • Low Profile 25mm tray.
  • Load bearing up to 300kgs.
  • Maximum water temperature 75°C.
  • 60mm outer flat edge and drain gully are almost invisible to the eye.
  • Dedicated waste instantly removes water (32 lpm),ensuring no pooling.
  • Flush fitting,colour match white stainless steel linear waste cover for ultimate comfort.
  • Smooth and warm to the touch, with excellent thermal and sound insulation to give you the most relaxing shower possible.
  • Can be fitted using mortar bed or PU adhesive/structural adhesive on marine ply or tiles.
  • Integral Sound insulation properties DIN 4109 and VDI 4100.
  • Trays 1500mm and upwards are 27-29mm in height.
  • Download installation instructions PDF from additional info section.
  • Refer to the technical diagram for complete technical dimensions.
  • Expect Excellence From Vito Shower Tray:.
  • Made from 100% recyclable Dolomite engineered stone in a factory with over 40 years of experience working with this material.
  • Dolomite is a highly durable material, giving the shower tray exceptional impact resistance and outstanding thermal shock properties.
  • Natural sound insulation.
  • Class A anti-slip performance tested to industry standards.
  • Coated with a permanent Nanocoat, ensuring the surface is non-porous and antibacterial.
  • Colourfast and stain resistant to day-to-day chemicals.
  • A shower tray made from Dolomite requires considerably less energy to produce than alternative materials.
  • Produced in a factory that uses 100% solar energy.
  • Every shower tray is hand finished to ensure high-quality perfection.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Vito
  • ⤷ Coating
  • : Nanocoat Antibacterial
  • ⤷ Colour
  • : Gloss White Gel Coat
  • ⤷ Slip Resistant
  • : Yes
  • ⤷ Shape
  • : Rectangular
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Dolomite 75%, Stone Resin 25%
  • ⤷ Depth
  • : 760
  • ⤷ Height
  • : 25
  • ⤷ Barcode
  • : 5056553419313
  • ⤷ Drain Placement
  • : End Drain

Additional Info & Downloads

Download PDF Download the Installation Instructions Pdf File


Technical Images


Total: £235.66 10-14 Working Days Approx QS Supplies

1 Features Included In This Product Explained

Anti-slip Tray

Anti-slip Tray

The shower tray is made of special anti-slip, which makes showering extremely safe as you do not need to worry about falling or slipping accidentally and can enjoy your shower in peace.
