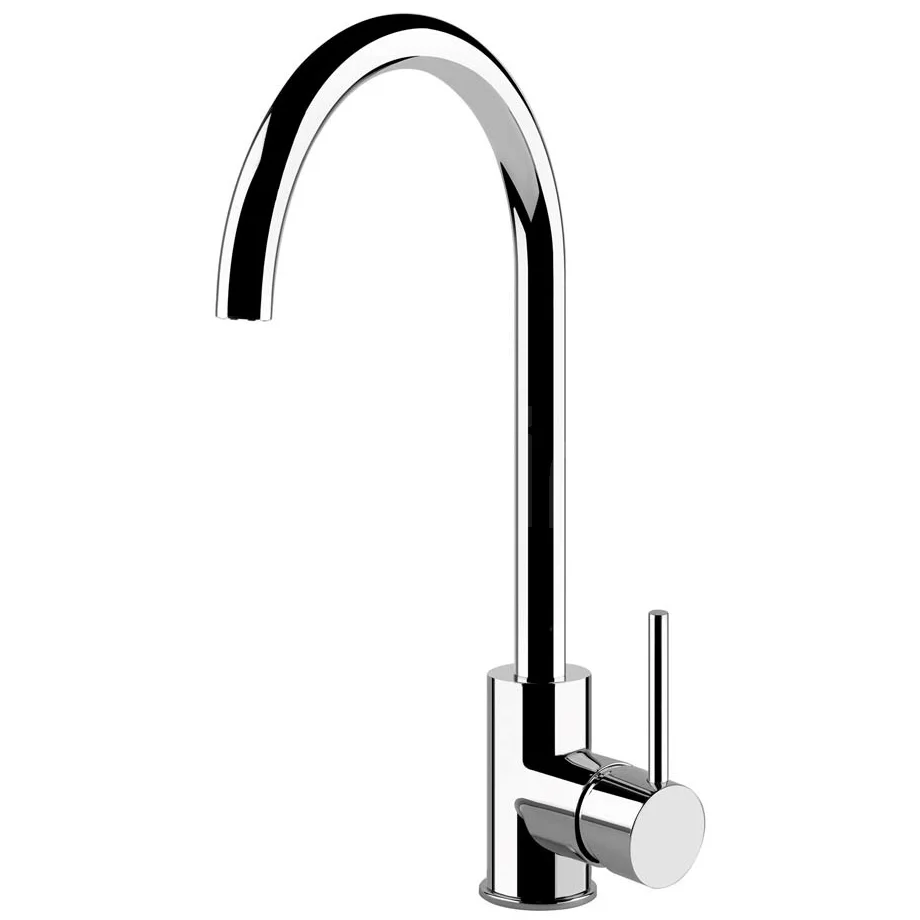

Clearwater Elara Monobloc Kitchen Mixer Tap, Swan Neck Spout, CW02590CP

Clearwater Elara Details

MFC: CW02590CP

Change up the look of your kitchen in a beautiful yet simple manner with the Clearwater Elara Monobloc Kitchen Sink Mixer Tap. This mixer tap is tall and hooks at the top to form a U-shape that gives it a professional kitchen feel. The tap has a 360-degree swivel mechanism that will allow you to easily spread water across the sink with ease. The vertical single lever handle is simple to grasp onto to effectively and more precisely change the temperature of the water. The product measures 334 mm in height with a base to spout measurement of 234 mm.

Key Features

✔WRAS Approved
✔360-Degree Swivel Spout
✔3 Metal Finishes and 5 Quarsil Colours
✔5-Year Guarantee from Manufacturer Against Manufacturing Defects

Choice of Finishes: Chrome, Chrome-Polar, Chrome-Croma, Chrome-Moonstone, Chrome-Nero, Chrome-Onyx, Brushed Nickel, Brushed Copper
Simple and Intuitive to Use
Delivers a Soft, Aerated Stream That Resists Splashing
Its Single Lever Allows Seamless Control Over Water Flow and Temperature
Size [mm]: 215 x 334mm [Depth x Height]
Size [cm]: 21.5 x 33.4cm [Depth x Height]
Base to Spout: 234mm [23.4cm]
Centre of the Inlet to Centre of the Outlet: 181mm [18.1cm]
Suitable for Medium Water Pressure System
Requires a Minimum 0.5 Bar Pressure or Above Water Pressure
Mounting Hole Size: Ø35mm [3.5cm]

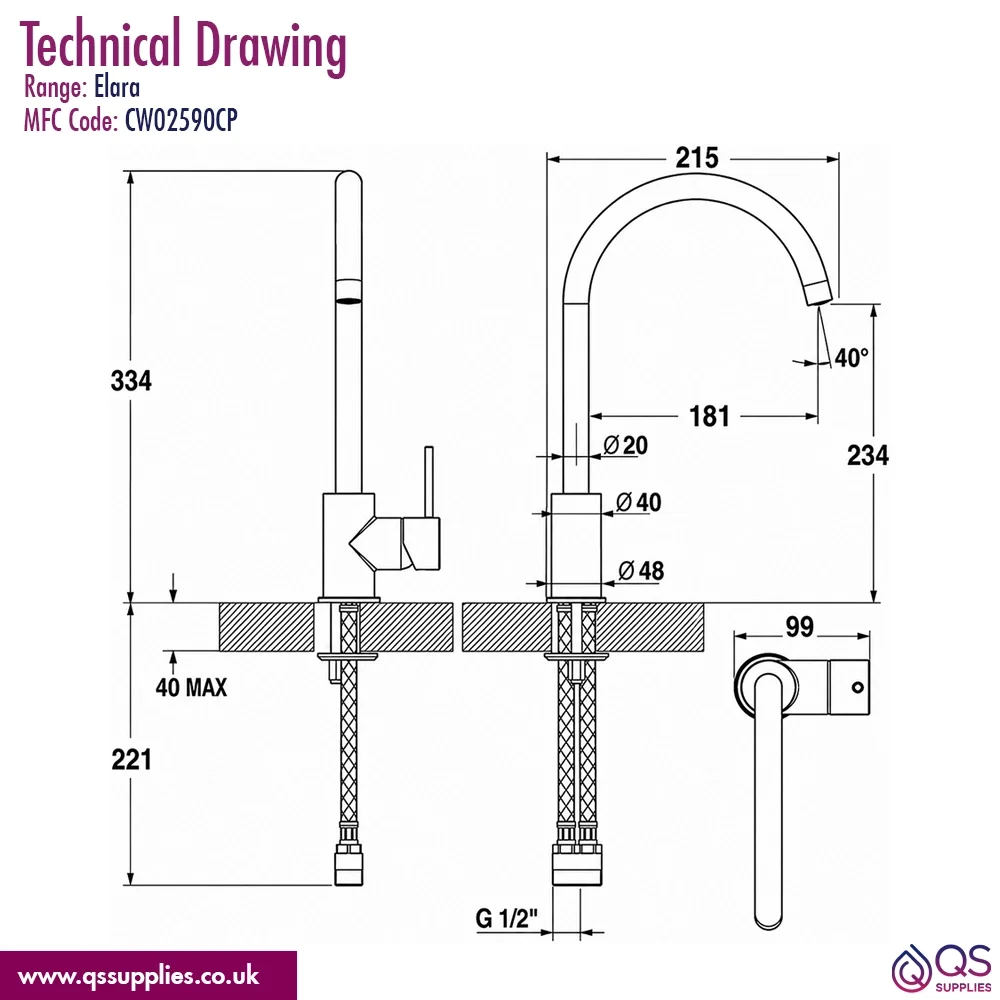

Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Elara
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Spout Swivel
: 360°
⤷ Base To Spout
: 234

⤷ Spout Reach
: 181
⤷ Overall Height
: 334
⤷ Depth
: 215
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: G 1/2
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199935533
⤷ Product Type
: Sink Mixer Tap
⤷ Tails
: Flexible

Additional Info & Downloads

This item can also be found in:

Clearwater Elara Contemporary Monobloc Kitchen Sink Mixer Tap with Swan Neck Spout - Stick Handle

£99.94

RRP: ~~£139.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Cold Start

Tap flow always begins with cold water, and water mixing systems become active only when hot water is needed. The cold start prevents unnecessary energy expenditure.

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Reviews & Ratings

By: Yana From : Tralee Overall Rating: Date: November 24, 2020 Could be better

The tap is sleek and the colour is wonderful (I have it in copper). HOWEVER, mine is already showing signs of wear after just 3 months. There are visible scratches all around the handle. I anticipate it will need replace very soon...
