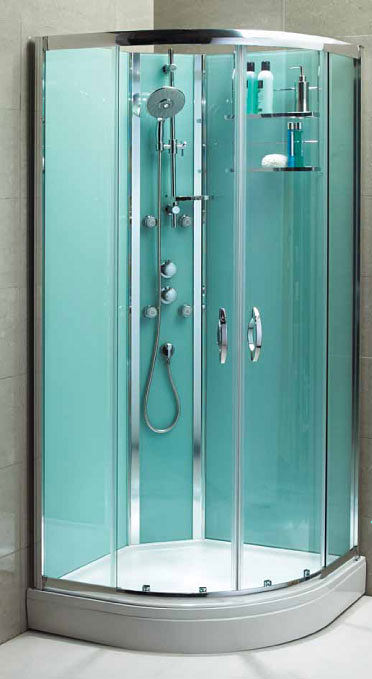

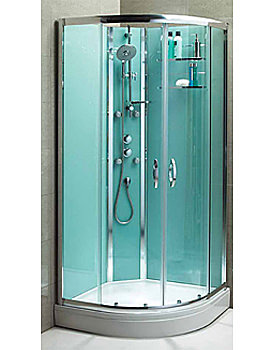

Aqualux Slot And Lock Quadrant Enclosure 900mm With Green Glass Panels



RRP: £1551.00 You Save £465.30 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product


5 Working Days Approx

Shipping: FREE


This elegant Slot and Lock Shower Enclosure from Aqualux is a clever design that allows for quick installation and enjoyable showering every day. The 5mm toughened glass is made complete with the polished silver finished frame. Body jets, multi-function shower head and riser and chrome storage rack are just a few of the many features and extras included with this enclosure. Update with this most stunning enclosure, today, for a fraction of the normal price at QS Supplies.

+  Read what's included..

Download the Installation Guide Pdf File

Please Note all the measurements are in 'mm'
Shape Curved
Warranty/Guarantee 2 Years
Installation Type Corner
Waste Included Yes
Width 900
Depth 900
Configuration Complete Enclosure
Height 1900
Door Type Sliding
Frame Design Framed
Frame / Profile Finish Silver
Glass Type Green
Glass Thickness 5
Number Of Doors 2
Profile Adjustment 20
Entry Width 470
Tray Included Yes
  • Quadrant
  • Width: 900
  • Depth: 900
  • Height: 2025



  • Size : 900 x 900mm
  • Comes with aqua green glass panels
  • Using the innovative Slot & Lock system, it is screw less enclosures, which take as little as 5 minutes to assemble
  • Supplied with an easy plumb tray and column for easy access
  • Made from 5mm toughen clear glass
  • Height : 1900mm
  • Height with skirt: 2025mm
  • Entry height: 1800mm
  • Entry width: 470mm
  • Polished silver finish frame
  • Suitable for corner fit only
  • Removable doors for easy cleaning
  • Comes included with easy plumb shower tray
  • Chrome multi function head with riser rail included
  • Integral soap dish
  • Stylish chrome handles included
  • 2 year guarantee from manufacturer
  • Quick and simple installation
  • Technical Specification:
  • Valve conforms to EN1111
  • Flow rate: 12L/min at 1.5 bar; 16L/min at 3 bar, with the temperature at 38°C.
  • Connection: It is recommended that a suitable Isolating Valve is used on the hot and cold inputs. The Isolating Valve is not included. It is also recommended that suitable 1/2" flexible hoses are used. The hoses must be long enough so that the unit can be moved away from the wall for connection and maintenance
  • Compatible with combi boilers that can deliver 1.5 bar minimum - a pump must not be used on a combi boiler
  • Supply pressure 1.5 - 3 bar. Hot and cold pressures must be balanced
  • Easy clean flexible nozzles on shower head
  • 20mm of tray adjustment for uneven floors. Feet screw 10mm into the skirt and 10mm below the skirt
  • Waste flow rate: 17 litres/min
  • Installation manual and Technical details provided in technical tab
This Item is also available in:
  • Black Finish - FEN1151AQU
  • White Finish - FEN1152AQU
Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V34053 Black - FEN1151AQU
QS-V34055 White - FEN1152AQU
