IMEX Arco White 665mm Open-Back Close Coupled WC Pan With Cistern


RRP: £460.00


3 Working Days Approx.

3.8 out of 5 3.8 out of 5

Based on 13 Ratings.

Shipping: £20.00

Optional WC Seat
Key Features
  • CE Approved
  • Open-back design pan for easy plumbing access
  • WRAS-approved internal fittings [suitable for low and high-pressure water supplies]
  • 25 years of guarantee from the manufacturer against any manufacturing defects
SKU Code: QS-V15280

MFC Code: C1088C|T1088C

IMEX Arco C1088C Details

Redefine the luxury quotient of your bathroom by installing this Arco Open-Back Close Coupled WC Pan With Cistern from the renowned manufacturer of bathroom products-Imex. The Imex sanitary ware, crafted from the finest quality material is extremely durable. The white colour pan is attractively hand-finished and complements any style settings. It is backed with 25-years of guarantee from the company, for manufacturing defects.

  • Complete with dual flush cistern.
  • Size [mm]: 360mm x 660mm x 790mm [Width x Projection x Height].
  • Size [cm]: 36cm x 66cm x 79cm [Width x Projection x Height].
  • Designed with flowing and graceful lines for staggering beauty and luxury.
  • The manufacturing code of this product is C1088C, T1088C.
  • White colour.
  • IMEX sanitary-ware superb quality and attractive design.
  • High-quality hand finished.
  • WC Bowl: C1088C.
  • Size [mm]: 360mm x 665mm x 390mm [Width x Projection x Height].
  • Size [cm]: 36cm x 66.5cm x 39cm [Width x Projection x Height].
  • Water-saving design [4 and 2.6-litre economy flush capability].
  • Supplied with fixings.
  • Crafted from the finest quality materials.
  • Close Coupled Cistern: T1088C.
  • Supplied with six and 4-litre dual flush fittings as standard [preset flush will work on any UK pressure system].
  • Comes with four and 2.6-litre water-saving economy flush capability [environmentally friendly Eco Flush technology for water saving].
  • Size [mm]: 360mm x 170mm x 400mm [Width x Projection x Height].
  • Size [cm]: 36cm x 17cm x 40cm [Width x Projection x Height].
  • Chrome push button.
  • The fully compatible system with UK water Regulations and Bye-laws.
  • Complete with quick-release hinges for easy cleaning.

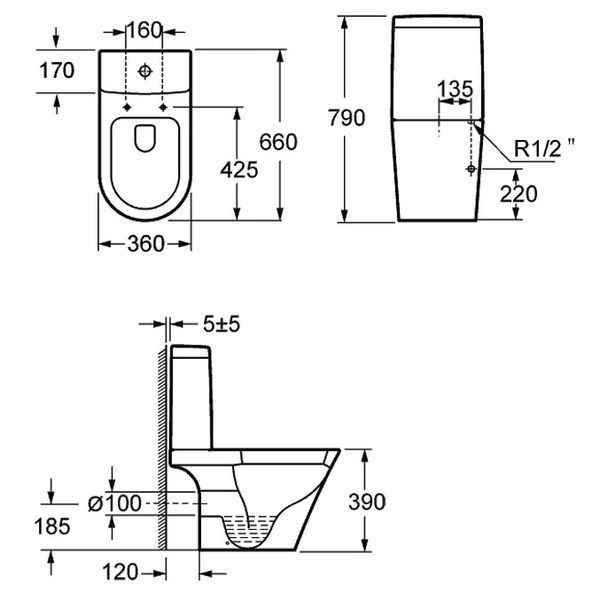

  • For full-size details, please refer to technical drawing.
  • Optional Product:.
  • Slim Seat.

Info / Size (mm)

  • Toilet
  • Width: 360 mm
  • Projection: 660 mm
  • Height: 790 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : White
  • ⤷ Warranty/Guarantee
  • : 25 Years
  • ⤷ Theme
  • : Contemporary
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Pan Width
  • : 360
  • ⤷ Pan Height
  • : 390
  • ⤷ Toilet Overall Height
  • : 790
  • ⤷ Projection (Depth)
  • : 660
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Type
  • : Close Coupled
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Configuration
  • : Two Piece
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Bowl Shape
  • : Elongated
  • ⤷ Cistern Depth (projection)
  • : 170
  • ⤷ Seat Post Hole Centers
  • : 160
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 425
  • ⤷ Outlet Diameter
  • : 100
  • ⤷ Base to centre of outlet
  • : 185

Additional Info & Downloads

Total: £250.90 3 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Quick Release Toilet Seat

Quick Release Toilet Seat

The hinge on a regular toilet seat makes it challenging to clean in some areas. As a result, some areas build up with hairs, grime, and dirt over time. Fortunately, the invention of a quick-release toilet seat means you can keep your entire toilet clean. The hinge mechanism of these toilets allows you to remove the seat entirely, making it easier to wash the areas it covers on the toilet itself.



A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Push-Button Flush Valve Cistern

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Optional: Soft-Close Seat

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.

CE Certified Product

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Open-Back Toilet

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : NORWICH Overall Rating: Date: November 20, 2020 Classy WC
We were after something a little bit different for our bathroom make-over and this WC really has helped lift the room. As a competent DIY’er I installed the WC and it was easy the quality finish meant that the cistern and bowl sealed first and were leak free. The seat we chose also fitted very easily. Couple of issues with the hinge cover caps but these were very graciously sorted by customer service at QS. I would recommend QS and the well chosen products they sell.

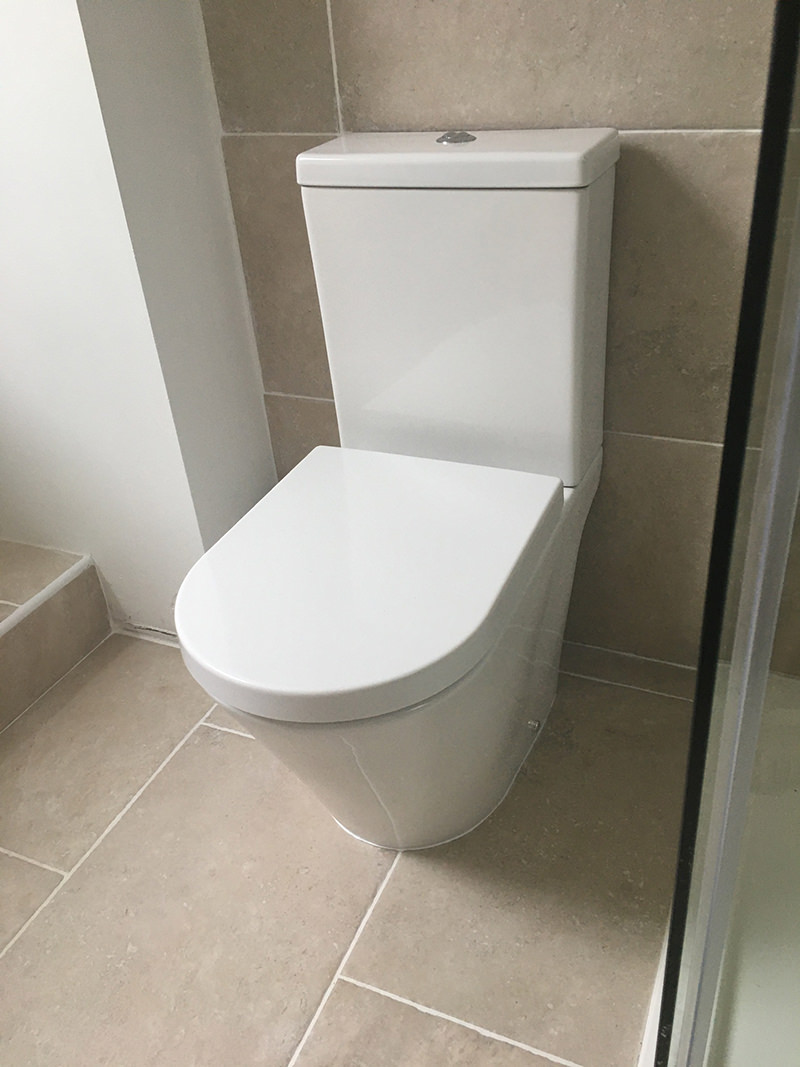

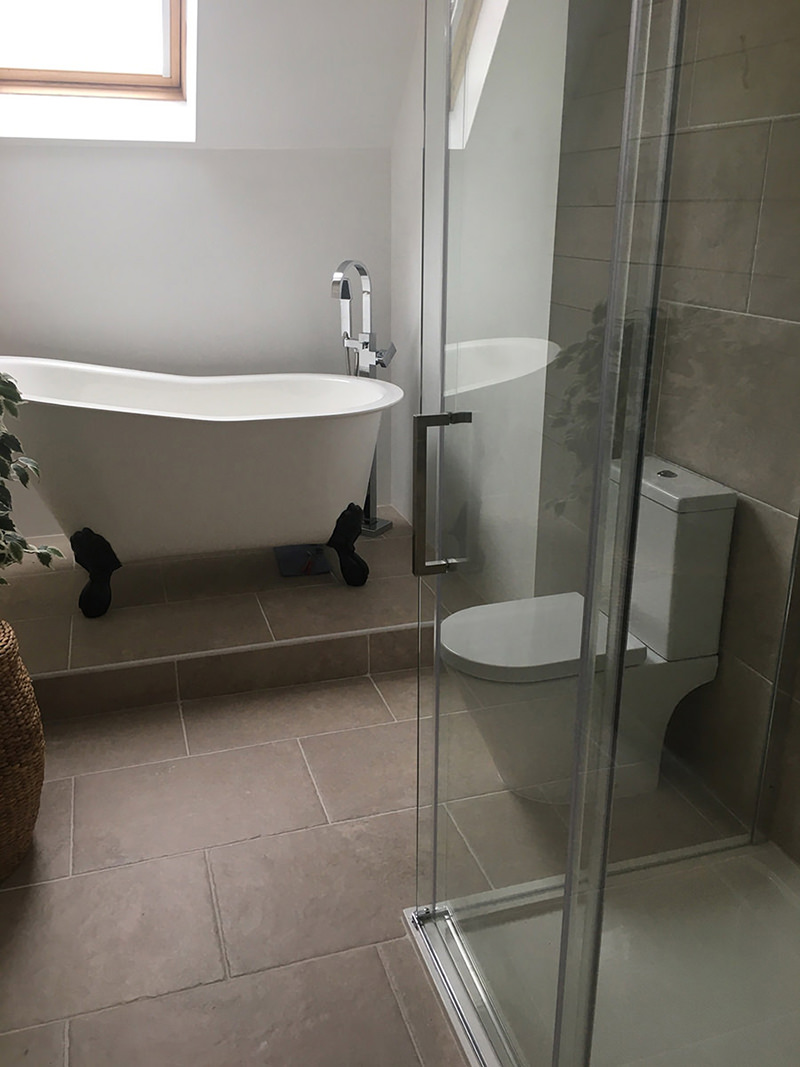

Images Uploaded by the users: Images Uploaded by Peter Images Uploaded by Peter

Helpful? Thumbs Up Thumbs Down 2 of 2 People have found this Review useful
Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jo Asked :

Hi, we are trying to replace a very old toilet with soil pipe coming from the floor rather than the wall. The distance from the middle of the soil pipe to the wall is 23cm. Will this toilet fit?

Answered By QS Team Answered by the QS Technical Team

Unfortunately, no, this will not fit. The gap on this pan is roughly 120mm, so it will not be big enough to fit.
