Carron Apex Single Ended 5mm Acrylic Bath 1700 x 800mm


MFC CODE: Q4-02011


RRP: £497.00


5 Working Days Approx

4.1 out of 5 4.1 out of 5

12 out of 12 customers rated 82%

Review this Product

Shipping: £43.42

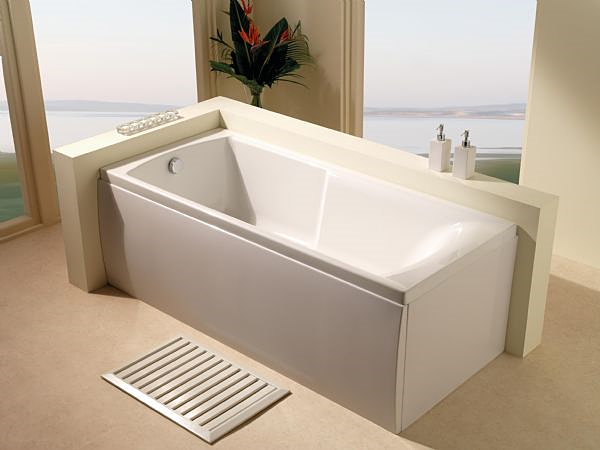

Style, comfort and glamour come loaded in the Apex Shower Bath which is meticulously designed by Carron.  Made using durable 5mm thick acrylic material, it is sure to stand the incessant wear and tear of everyday use. You can now buy this mesmerising amalgam of beauty and luxury at an inexpensive price, from QS Supplies.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
External Length 1695
External Width 795
Tub Depth 430
Height Including Feet or Panel 540
Front Panel Included Sold Separately
End Panel Included Sold Separately
Colour White
Internal Bottom Length 1280
Internal Top Length 1530
Internal Top Width 685, 635
Height of Rim 75
Rim Width 55, 80
Shape Rectangular
Capacity in litres 210
Country of Origin UK
Material Acrylic
No. of Bathers 1
Tap Holes No

INFO / SIZE (mm)

  • Bath
  • Length: 1700 mm
  • Width: 800 mm
  • Depth: 430 mm

Carron Apex Q4-02011 DETAILS

  • White finish
  • Single ended
  • Made from 5mm acrylic sheet
  • 20 years guarantee against manufacturing faults
  • Also available in Carronite finish with 30 years guarantee [See Option]
  • Capacity: 210 litres
  • Size : Length 1700mm x Width 800mm x Depth 430mm
  • Height : 540mm
  • Manufacturing code of this product is Q4-02011

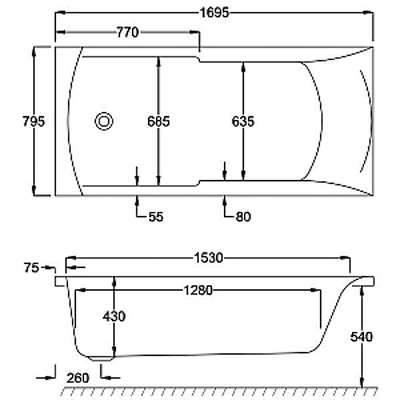

  • Refer technical diagram for more details
  • Waste and overflow shown in the image is not included
  • Front and end panel sold separately [See Option]
  • Download cleaning instruction PDF from technical tab.

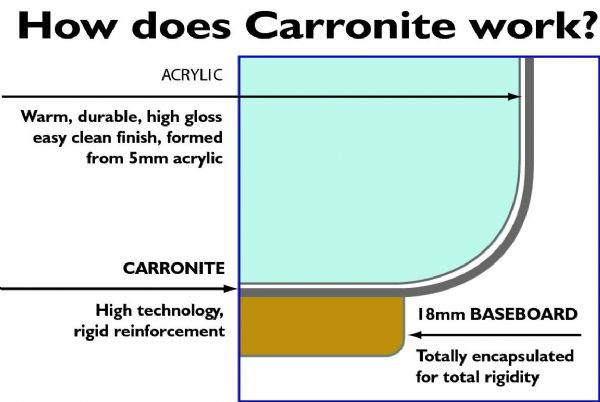

Carronite Finish

Carronite Finish

Carronite are twice as strong as standard acrylic baths and ensure water retains heat for far longer than in a cast iron or steel bath. Please note : Image is for illustration purpose only.

Front Panel

Front Panel

Choose your desire front panel from the option given below. Please Note image shown is for illustration purpose only

End Panel

End Panel

Optional End panel. Please note image shown is for illustration purpose only


Total: £303.17 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require



Rate this Item.:

Questions & Answers

Submit Your Questions 4 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Glynis Asked :
what legs do I need for this bath Apex 1700 x 800

Answered By QS Team :
The bath is supplied with a full installation kit.

Was this answer helpful? -

1   0

Keith Asked :
Hi, I wish to buy a Carron Apex Shower Bath 1700 x 800mm - CABAP17080PA (Carronite strengthened) but looking at the photograph there appears to be a drainage channel running around the top outer surface of the bath. I was wondering what shower screen would be required at the shower end of the bath because I am unsure how the screen would seal against the channel. Thank you, Keith.

Answered By QS Team :
There is no drainage channel on the top ledge of this model – I think the shadows in the photograph make it look like there is, but we can confirm that the bath has a normal top ledge. Any standard straight shower screen will be suitable for fitting on to the Apex model.

Was this answer helpful? -

1   0

Alison Asked :
Do the taps have to be put at the short shower end? Or can they be put in the middle of the long back edge, where the edge gets wider at the bathing end?

Answered By QS Team :
Unfortunately, you are only able to place taps on the designated ledge at the short end of the bath. The shape and width of the side ledges are not flat or wide enough to accommodate drilled tap holes.

Was this answer helpful? -

Ian Asked :
Very interested in the Carron Apex shower bath, but looking for the version with handgrips. Can you supply, and at what price?

Answered By QS Team :
Carron does offer the Apex bath with handgrips.

Was this answer helpful? -
