Carron Status Acrylic White Double Ended Bath - 5mm - 1700 x 800mm

Variation Available : Left Handed / Right Handed


MFC CODE: 23.4371R


RRP: £676.80


5 Working Days Approx

4.3 out of 54.3 out of 5

4 out of 4 customers rated 85%

Review this Product

Shipping: £43.42

OP-187398 - 5mm Acrylic Bath - Right Hand
+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
External Length 1690
External Width 795
Tub Depth Internal - 450
Height Including Feet or Panel 540
Colour White
Internal Bottom Length 1300
Internal Bottom Width 545
Internal Top Length 1550
Internal Top Width 645
Height of Rim 50
Rim Width 65, 85
Capacity in litres 250
Handed Type Right hand
Country of Origin UK
Warranty/Guarantee 20 Years
Material Acrylic
No. of Bathers 2
  • Bath
  • Length: 1690 mm
  • Width: 795 mm
  • Depth: 450 mm

Carron Status 23.4371R DETAILS

Carron Status bath for luxurious bathing with modern silhouettes. This is a double-ended bath, measuring 1700 long x 800 wide and available with right or left-hand option. It is an excellent option for your small bathroom and a marvellous way to maximise your bathroom space while providing an attractive focal point as it is designed to fit in a corner. This bath is big in size but designed to fit in small spaces. Pair this bath with a floor-standing tap to give your bathroom a luxurious feel.

  • White finish
  • Right hand bath
  • Left handed optional [See Option]
  • Made from 5mm acrylic sheet
  • 20 years guarantee against manufacturing faults
  • Capacity : 250 litres
  • Size : Length 1700mm x Width 800mm x Depth 450mm
  • Height : 540mm

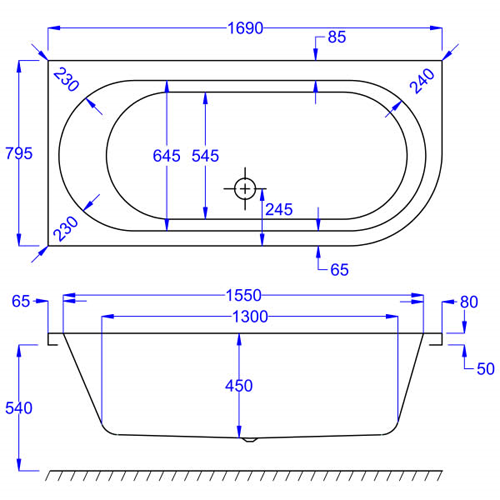

  • Refer technical diagram for more details
  • Waste and overflow shown in the image is not included
  • Also available in Carronite finish with 30 years guarantee [See Option]
  • Curved panel sold separately [See Option Below]
  • Download cleaning instruction PDF from technical tab.

Curved Panel

Curved Panel

Curved panel for Corner baths. Please Note: The image is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V34563 - [L] 1700 x [W] 725mm 23.4491R


  • Available Variations :
  • 5mm Acrylic Bath - Right Hand - Q4-02219
  • 5mm Acrylic Bath - Left Hand - Q4-02217
  • Carronite Bath - Left Hand - Q4-02218
  • Carronite Bath - Right Hand - Q4-02220

Total: £406.08 5 Working Days Approx QS Supplies

You've Selected which adds to a total of



Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Washington Date: March 10, 2016

Excellent choice of Bath ..... Excellent service from QSSupplies
We chose this bath as a great combination between a corner bath and a straight bath. It looks stunning in our bathroom! We chose the 800 mm wide version and it's so spacious. Everyone who has seen the bathroom is asking what make of Bath it is and where did we get it from. The speedy and brilliant service from QSSUPPLIES men's that they are now our preferred supplier of our plumbing needs. Thank you QSSUPPLIES :)

2 of 2 People have found this Review useful

Images Uploaded by the users:


  • Quality:
  • Value For Money:
  • Style:

York Date: April 11, 2017

Excellent curved bath
This is a fantastic bath. Our bathroom is small and has a tight corner by the toilet where the bath was going to go. The curve on the corner is a wonderful way to make the flow of the room better and it makes the room feel so much bigger. The bath itself is also huge; when inside it feels really spacious even for a six footer like me. Would highly recommend.



  • Quality:
  • Value For Money:
  • Style:

SANDY Date: October 27, 2020

we bought the 1800 long version, which means you can bathe 2 sub-6-year-old's at the same, with 2 adults having easy access to the bath mayhem



  • Quality:
  • Value For Money:
  • Style:

Wallsend Date: August 31, 2015

From the telephone conversation to the online check out and next day delivery as promised.. Well done!! Will use again.

1 of 1 People have found this Review useful


  • Quality:
  • Value For Money:
  • Style:

Questions & Answers

Submit Your Questions 3 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Andy Asked :
If I order a Carronite bath, do I also need to have the Carronite front panel? What's the difference between this and the standard acrylic panel?

Answered By QS Team :
It depends on you, whether you choose standard acrylic or Carronite panel. Carronite are twice as strong as standard acrylic and ensure water retains heat for far longer than in a cast iron or steel bath

Was this answer helpful? -

Paul Asked :
Hi, could you please let me know the size of the waste aperture on a Carronite Status offset 1700x800 bath, please? Thanks, Paul

Answered By QS Team :
Thank you for your interest in Carron Bathrooms. Both the overflow and waste have a 52mm diameter hole to accommodate your fittings. Do not hesitate to contact us should you need further help.

Was this answer helpful? -

Wendy Asked :
I am interested in the Carron Status to offset bath. The taps' specifications are drilled as required, is there a specific place for the taps to go?

Answered By QS Team :
When purchasing a Carron bath, your bathtub will arrive with no tap holes drilled. Unfortunately, Carron is unable to drill taps on your bathtub at the factory. There is a space approximately 600mm in the centre on the wall ledge to accommodate your taps. Please refer to the technical guide above, on the best way to drill your tap holes.

Was this answer helpful? -
