Apollo Ferrara Stainless Steel Vertical Radiator 500 x 1800mm

QS-V35495 MFC CODE: F18SS9S

£798.00

RRP: £1140.00 You Save £342.00 on RRP

4.0 out of 5

1 out of 1 customers rated 80%

Review this Product

STOCK AVAILABILITY

3 Working Days Approx

Shipping: FREE


Description
Technical

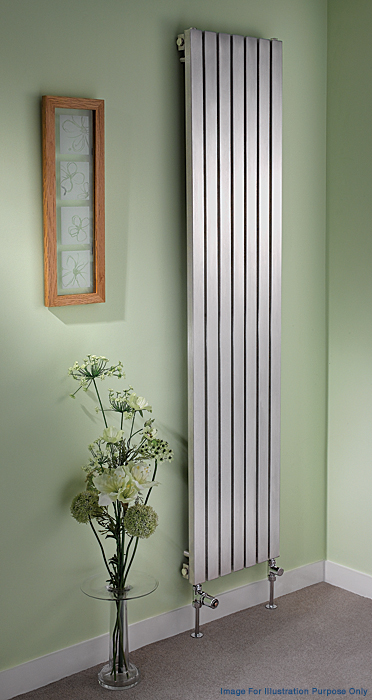

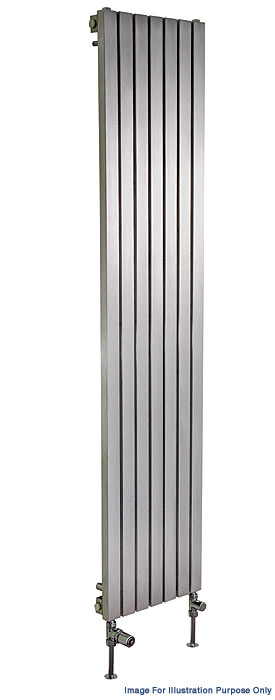

The tall and slender the Ferrara Vertical Radiator from Apollo comes with contemporary styling featuring smooth, flat panels in a pleasing brushed stainless steel finish. Perfectly proportioned, the back to wall radiator can be mounted vertically or horizontally according to your requirement and features a side entry for the vertical mounting or bottom entry for horizontal mounting. Ideal for modern settings, it requires a load bearing wall for installation. Manufactured in Turkey from the finest material and advanced techniques it carries a guarantee of 10 years against any defect in manufacturing and is available in several sizes to suit varying requirements.

+  Read what's included.. & options available

Download the Technical Specification Pdf File

Please Note all the measurements are in 'mm'
Colour Brushed Stainless Steel
Country of Origin EU
Warranty/Guarantee 10 Years
Theme Modern
Projection (Depth) 70
Width 500
Height 1800
Orientation Vertical
BTU Output 6692
Watts 1961
Tapping / Pipe Centres 530
Valves Included Sold Separately
Wall to Centre of Inlet 25
No. of Sections 9
  • Radiator
  • Width: 500
  • Height: 1800

QTY

HIGHLIGHTS

  • Dimension : Width: 500mm x Height: 1800mm
  • Manufacturing code of this Product is F18SS9S
  • Heat Output: 1961 Watts
  • BTU: 6692
  • Sections: 9
  • Brushed finished
  • Image is for illustration purpose only
  • Suitable for vertical and horizontal installation
  • Side entry for vertical radiator
  • Bottom entry for horizontal radiator
  • Load bearing wall is required
  • Perfect modern setting
  • Manufactured in Turkey
  • Vertical:
  • Back wall to front - 70mm (Bottom Entry)
  • Back wall to front - 70mm (Side Entry)
  • Back wall to pipe centres - 55mm (Bottom Entry)
  • Back wall to pipe centres - 25mm (Side Entry)
  • Distance between tappings - 480mm (Bottom Entry)
  • Distance between tappings - 530mm (Side Entry)
  • Bracket position - Top : 110mm, Bottom : 110mm
  • Horizontal:
  • Back wall to front - 70mm
  • Back wall to pipe centres - 25mm
  • Distance between tappings - Width  less 70mm
  • Bracket position - Top : 25mm, Bottom : 25mm.
  • EN442 Outputs ?T50C
  • Correction factor to ?T60C = 1.2675
  • Valves available separately  [See option below]
  • Tails And Floor Plate Kit  [See option below]
  • Guaranteed for 10 years the manufacturer
  • Refer technical PDF for more technical specification.
This Item is also available in:
Please Note all the measurements are in mm
  • [W] 1800 x [H]300 F18SS5S
  • [W] 1800 x [H] 400 F18SS7S
  • [W] 2000 x [H] 400 F20SS7S
  • [W] 2000 x [H] 500 F20SS9S
  • [W] 1400 x [H] 400 F14SS7S
  • [W] 1000 x [H] 400 F10SS7S
  • [W] 1400 x [H] 500 F14SS9S
  • [W] 1200 x [H] 300 F12SS5S
  • [W] 1000 x [H] 300 F10SS5S
  • [W] 1200 x [H] 500 F12SS9S
  • [W] 1400 x [H] 300 F14SS5S
  • [W] 2000 x [H] 300 F20SS5S
  • [W] 1000 x [H] 500 F10SS9S
  • [W] 1200 x [H] 400 F12SS7S

CUSTOMISE YOUR PRODUCT

Valves Optional

Valves Optional

Choose from a range of chrome finish 15mm valves to compliment your space and design. All valves sold as sets. Please Note: Image shown is for illustration purpose only.

Tails and Floor Plate Kit

Tails and Floor Plate Kit

For a luxurious and stylish appearance add this chrome tails and floor plate kit. Please Note: Image shown is for illustration purpose only.
