VitrA S50 White 540mm Back-To-Wall WC Pan

Vitra S50 5323L003-0075 Details

Take the comfort quotient of your bathroom to a new level with the Back to Wall WC Pan, introduced by VitrA. Made from high-grade vitreous china material, it will give you many years of unhindered usage. The spectacular white finish of this WC pan is sure to impart bright aesthetics to your modern or traditional bathroom setting. This highly functional WC pan can be fitted with a toilet seat available as on option, for maximum convenience. VitrA provides a 10-year guarantee with this back to wall WC pan.

The manufacturing code of this product is 5323L003-0075.
Size of pan: 360 x 400mm [Width x Height].
Projection from the wall: 540mm.
Horizontal connection outlet.

Compatible toilet close seat [Optional].
Weight: 23.4kg.
The seat shown in the image is not included.

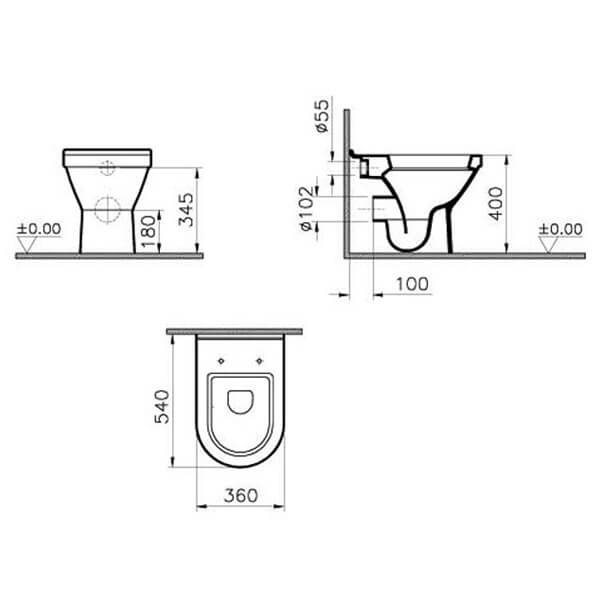

Refer to the technical drawing for more details.

Info / Size (mm)

Toilet
Width: 355 mm
Projection: 540 mm
Height: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: S50
⤷ Colour
: White
⤷ Weight in kg
: 23.4
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Projection (Depth)
: 540

⤷ Width
: 360
⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Height
: 400
⤷ Seat Included
: Sold Separately
⤷ Barcode
: 8693405042847
⤷ Bowl Shape
: D-Shape
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Installation Details Pdf File

Total: £129.67 2 Working Days Approx QS Supplies

2 Features Included In This Product Explained

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.
