Franke Elba Propack ELK 611 Ceramic White Kitchen Inset Sink And Tap

QS-V22320 MFC CODE: 1240184408 BOM

£470.99

RRP: £554.11 You Save £83.12 on RRP

STOCK AVAILABILITY

2 to 3 Weeks

Shipping: £29.95


Description
Technical

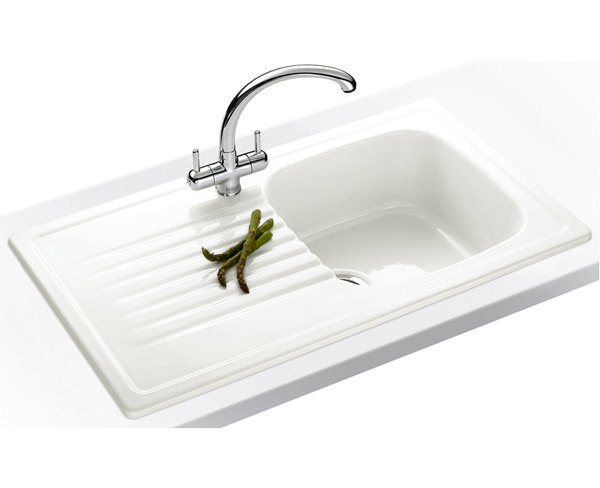

Contemporary design, smooth surface and impressively efficient-this Pro-pack White Ceramic Kitchen Sink from Franke Villeroy & Boch Elba range is all this and much more. This sink, with a single spacious bowl, comes with a chrome-finish Zurich tap. And, to reduce your workload, its very easy to clean this sink-all you need to do is, wipe it with a damp cloth. This sink is now available online at a whopping discount. Hurry!

+  Read what's included.. & options available

Download the Installation Instructions Pdf File

Please Note all the measurements are in 'mm'
Colour Gloss White
Installation/Style Inset
Number of Bowls 1
Drainer Position Reversible
Overall Length 920
Overall Width 510
Minimum Base Unit Size Required 500
Length of Main Bowl 395
Width of Main Bowl 380
Depth of Main Bowl 185
Cut-Out Length 880
Cut-Out Width 460
Material Ceramic
Profile Standard
Tap Included Yes
Plumbing Kit Sold Separately
Compatible With Optional Waste Disposal Unit Yes
Waste Included Yes
Waste Type Basket Strainer
Waste Hole Size 90
No. of Tap Holes 2
Scratch/Impact/Heat Resistance Yes
Warranty/Guarantee 50 Years

INFO / SIZE (mm)

  • Tap
  • Pipe Centre: 210
  • Sink
  • Length: 920
  • Width: 510

HIGHLIGHTS

  • Manufacturing code of this Villeroy & Boch Pro-Value Pack are 124.0184.408, 115.0051.172
  • Guarantee from Manufacturer: 50 years on sink, 5 years on taps moving parts, 1 year on coating and finish against any manufacturing defects

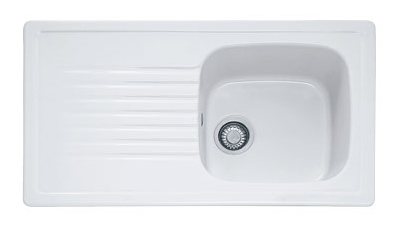

  • 1.0 Bowl Sink Details:
  • Gloss white finish
  • Inset installation [frame sits on top of the worksurface, compatible with any worksurface, including laminate worktops]
  • Sizes Denotes: Length [Left to Right] x Width [Front to Back] x Depth [Top to Bottom]

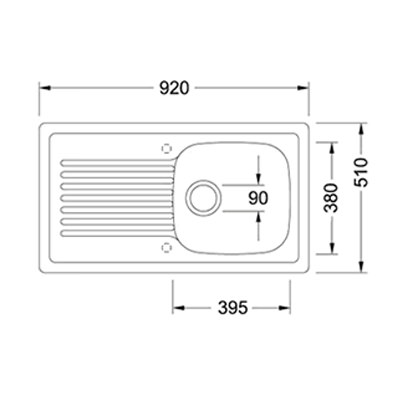

  • Overall size is - Length 920mm x Width 510mm
  • Size of bowl is - Length 395mm x Width 380mm x Internal Depth 185mm
  • External Bowl Depth: 210mm
  • Cabinet size is 500mm [denotes the measurement which the bowl need to fit into]
  • Cabinet wall may require modification to accommodate overflow
  • Cut-out size is - Length 880mm x Width 460mm x Corner Radius 20mm
  • Features and Specification:
  • Reversible drainer position
  • Standard profile [edge is rolled over to meet the worktop]
  • Equipped with stainless steel basket strainer waste [prevent foodstuffs from entering the waste system]
  • Crafted using ceramic and have a smooth, impervious surface [resistant to all standard household chemicals, very hardwearing choice - stands up to heat, staining and impacts with ease]
  • Compatible for use with optional waste disposal unit

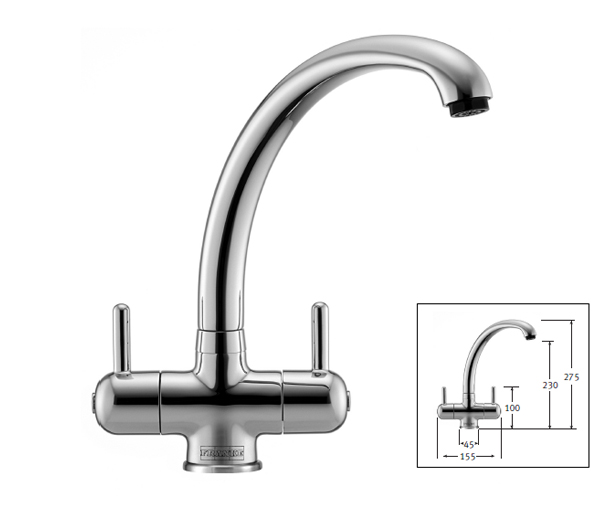

  • Zurich Mixer Tap Details:
  • Chrome finish [also available in SilkSteel finish optional]
  • Bi-flow swivel spout and twin lever handles

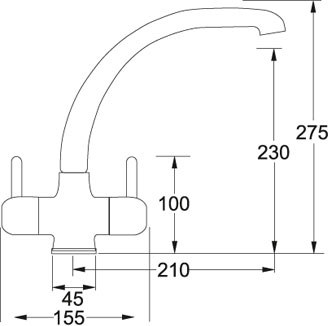

  • Size: Height 275mm x [Handle Width] 155mm
  • Spout Reach: 210mm
  • Base Size: 45mm
  • Cut-Out Diameter: 35mm
  • Fitted with ceramic disc valve
  • Minimum hot water flow rate is 5.1 litres per minute at 0.3 bar water pressure
  • Works smoothly in low water pressure systems
  • For installation manual, please download PDF from technical tab
  • Please watch or download video from technical tab showing the knocking the tap hole
  • Optional Products: Plumbing Kit, Turbo Plus TP-50 Waste Disposal Unit and Accessory.

Cleaning process - For day-to-day care and glossy look, clean with water and damp cloth. Abrasive cleaners should not be used as they will dull the gloss finish and to keep sparkling glazed surface apply a dilute solution of bleach every 2 to 3 days.
Note: Ceramic product measurements may vary +/-1% due to the firing process.It is recommended by the manufacturer that the sink should be used as a template in all cases.


CUSTOMISE YOUR PRODUCT

Kitchen-Mixer-Tap

Kitchen-Mixer-Tap

Kitchen mixer taps. Please note image shown is for illustration purpose only.

Siphon Plumbing Kit

Siphon Plumbing Kit

It is the perfect plumbing solution and have a manifold with an incline and an air vent for faster water disposal. Made of rigid grey polypropylene, these kit is the hygienic solution to a Franke waste system.

Waste Disposal Unit

Waste Disposal Unit

Free kitchen from unsightly and unhygienic organic household waste. Magnet motor of this unit reach high speed in a split second, whilst running water through the unit, food waste is liquefied into fine particles and easily flushed through the pipework.

Accessories-For-Sinks

Accessories-For-Sinks

Accessories for kitchen sinks. Please note image shown is for illustration purpose only.

Total: £470.99 2 to 3 WeeksQS Supplies

You've Selected which adds to a total of



REVIEWS & RATINGS

Rate this Item.:






Questions & Answers

  Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

WOULD THE FRANKE ELBA ELK 611 CERMIC SINK FIT INTO A 600MM BASE UNIT ?

Answered By QS Team :
This sink requires minimum 500mm base unit
