Currently Out of Stock. Will be available by 01/01/2022. Do you want to Pre-Book?

Hudson Reed Refresh 1064 x 300mm Designer Radiator




RRP: £465.00


5-7 Working Days Approx

4.5 out of 5 4.5 out of 5

2 out of 2 customers rated 90%

Review this Product

Shipping: £12.50

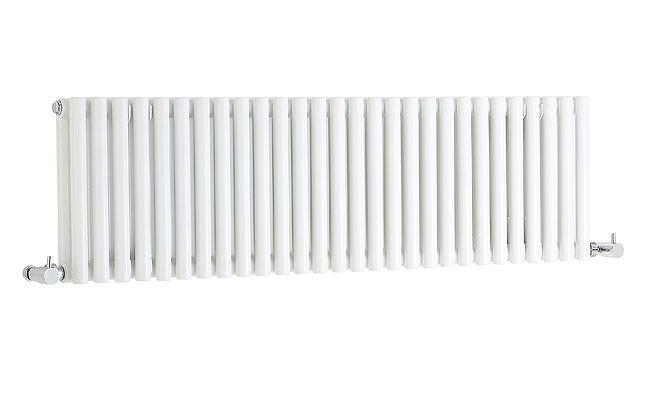

Ever wondered if there would be anything surplus than just the normal radiator? This Double Panel Radiator is manufactured by Hudson Reed Refresh range to keep you cosy during freezing winters. The fully-modern horizontal radiator ensures that your design concept does not end in an ordinary room. It is constructed using top-quality material, ensures unhindered usage for years. This radiator is supplied with a fixing kit and comes with ten years of guarantee from the company.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White
Warranty/Guarantee 20 Years
Material Steel
Theme Modern
Installation Type Wall Mounted
Width 1064
Projection (Depth) 120
Height 300
Orientation Landscape
BTU Output @ 30°C 1280/hr, @ 50°C 2454/hr, @ 60°C 3109/hr
Watts @ 30°C 375, @ 50°C 719, @ 50°C 907
Fuel Type Water
Wall to Centre of Inlet 55
Tube Diameter 24
Panel Configuration Double

Notify me when available

Hudson Reed Valve

Hudson Reed Refresh HLW22 DETAILS
  • Radiator
  • Width: 1064 mm
  • Height: 300 mm

  • Manufacturing code of this product is HLW22
  • Size: Width 1064 x Height 300mm
  • Double Panel radiator
  • Material: Steel
  • Comes in white finish
  • RAL Number : 9016
  • Installation type: Wall Mount/Vertical
  • Heat Output at 30°C: BTU/hr 1280 and Watts 375
  • Heat Output at 50°C: BTU/hr 2454 and Watts 719
  • Heat Output at 60°C: BTU/hr 3109 and Watts 907
  • Tube diameter : 24mm
  • Pipe center : 1155mm
  • Maximum projection from the wall : 120mm
  • Wall to center of Tapping : 55mm
  • Comes with a 1/2 inch BSP
  • Supplied with fixing screws
  • Type of Heat: Water
  • Valves shown in the image are not included
  • Appropriate valve are available separately [Optional]
  • It is recommended that the new installed radiator is refiled with a suitable inhibitor

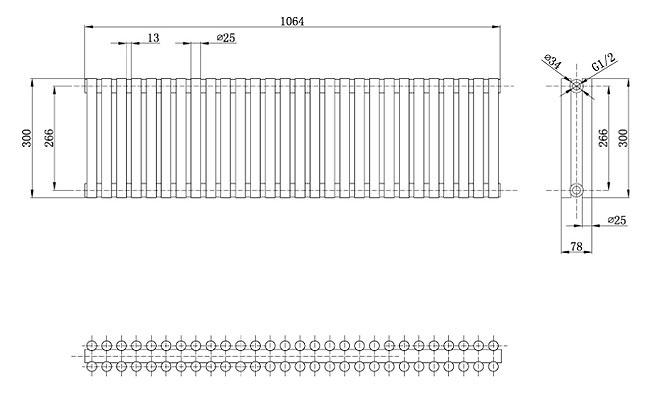

  • Refer technical image for detailed technical dimensions
  • For fitting instruction download PDF from below
  • 20 years of guarantee from Hudson Reed against manufacturing defects.


Total: £116.69 5-7 Working Days Approx QS Supplies
