Hudson Reed Revive White Horizontal Designer Radiator

More Variation And Height Available

QS-V31977

MFC CODE: HL324

£145.20

RRP: £363.00 You Save £217.80 on RRP

STOCK AVAILABILITY

2-3 Working Days Approx

Shipping: £12.50

Variations
Technical
OP-152825 - 826mm x 633mm - Single Panel
+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White
Warranty/Guarantee 20 Years
Material Steel
Theme Modern
Installation Type Wall Mounted
Width 826
Projection (Depth) 59
Height 633
Orientation Horizontal
BTU Output @30°C - 1130, @50°C - 2181, @60°C - 2763
Watts @30°C - 331, @50°C - 639, @60°C - 808
Valves Included Sold Separately
Fuel Type Water
Wall to Centre of Inlet 100
Panel Configuration Single

INFO / SIZE (mm)

  • Radiator
  • Width: 826 mm
  • Height: 633 mm

Hudson Reed Revive HL324 DETAILS

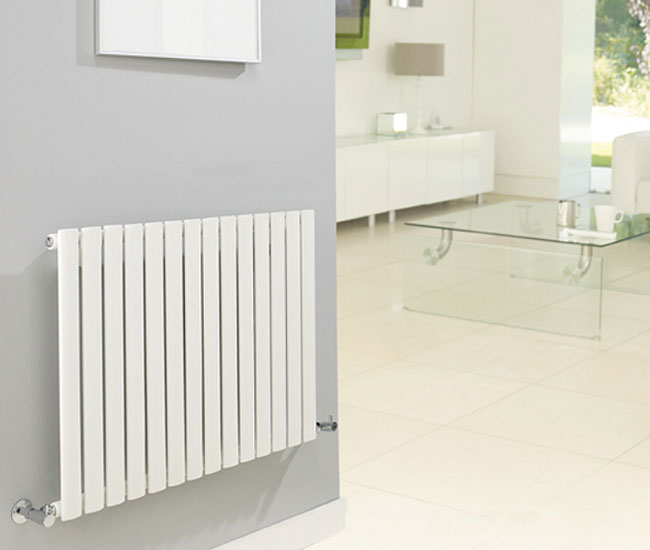

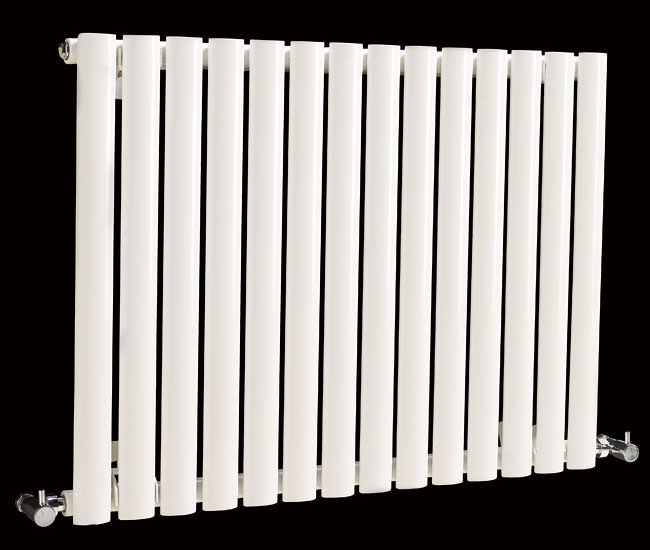

Hudson Reed Revive White Horizontal Designer Radiator.

  • Choice of Single panel or Double Panel available [Optional]
  • Available Width are 886mm and 1180mm [Optional]
  • Comes in White finish
  • Material: Steel
  • RAL No. 9016
  • Type of Heat: Water
  • No. of Heat setting: 1
  • Installation type: Wall Mount
  • Orientation: Horizontal
  • Wall to centre of Tapping: Single Panel 65mm and Double Panel 70mm
  • Rounded edged radiator with classic and simplistic feature
  • Suitable for wall mount installation
  • Supplied with fixing screws
  • After installing any new radiators; when refilling the system, suitable inhibitor to be used
  • All tapping are 1/2" British Standard Pipe
  • Radiator brackets included
  • Fully Certified BS EN 442-1:2014
  • Valves shown in the image are not included - sold separately [Optional]
  • Towel rail and Robe hook [Optional]

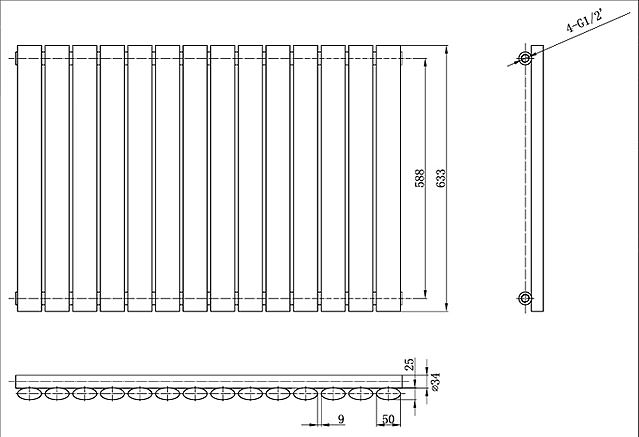

  • Refer technical image for detailed technical dimensions
  • For fitting instruction download PDF from below
  • 20 years of guarantee from Hudson Reed against manufacturing defects.
  • Technical details of 826mm Wide Single Panel Radiator
  • Size: Width 826 x Depth 59 x Height 633mm
  • Btu/hr -   @30°C - 1130      @40°C - 2181      @50°C - 2763
  • Watts -    @30°C - 331        @40°C - 639        @50°C - 808
  • Wall to centre of Tapping: 65mm
  • Pipe Centres: 915mm
  • No of Sections/ Panels: 24
  • Maximum Projections: 240mm
  • Technical details of 1180mm Wide Single Panel Radiator
  • Size: Width 1180 x Depth 59 x Height 635mm
  • Btu/hr -   @30°C - 1611    @40°C - 3116      @50°C - 3947
  • Watts -    @30°C - 472      @40°C - 913       @50°C - 1152
  • Wall to centre of Tapping: 65mm
  • Pipe Centres: 1265mm
  • No of Sections/ Panels: 20
  • Maximum Projections: 80mm
  • Technical details of 826mm Wide Double Panel Radiator
  • Size: Width 826 x Depth 78 x Height 635mm
  • Btu/hr -   @30°C - 1689     @40°C - 3262      @50°C - 4132
  • Watts -    @30°C - 795        @40°C - 956        @50°C - 1209
  • Packaging Volume: 59.2 Litres
  • Wall to centre of Tapping: 70mm
  • Pipe Centres: 1265mm
  • No of Sections/ Panels: 28
  • Maximum Projections: 120mm
  • Technical details of 1180mm Wide Double Panel Radiator
  • Size: Width 1180 x Depth 78 x Height 633mm
  • Btu/hr -   @30°C - 2413    @40°C - 4658      @50°C - 5901
  • Watts -    @30°C - 707      @40°C - 1365      @50°C - 1680
  • Packaging Volume: 85 Litres
  • Wall to centre of Tapping: 70mm
  • Pipe Centres: 1265mm
  • No of Sections/ Panels: 40
  • Maximum Projections: 110mm.

Note: Hudson Reed recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.




CUSTOMISE YOUR PRODUCT
Radiator Valves

Radiator Valves

Here we presents valves that are compatible with the Hudson Reed Radiator. These Valves are available in choice of Angled and Straight Valves. Select the appropriate valve of your choice. Note: Image shown is for illustration purpose only.


Radiator Accessories

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.


ADDITIONAL INFO


PRODUCT VARIATIONS INFO & MFC CODE
Available Variation Along With Manufacturing Code
Width Height Panel MFC
826 633 Single HL324
1180 635 Single HL325
826 635 Double HL328
1180 633 Double HL329
