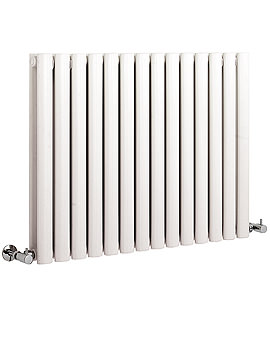

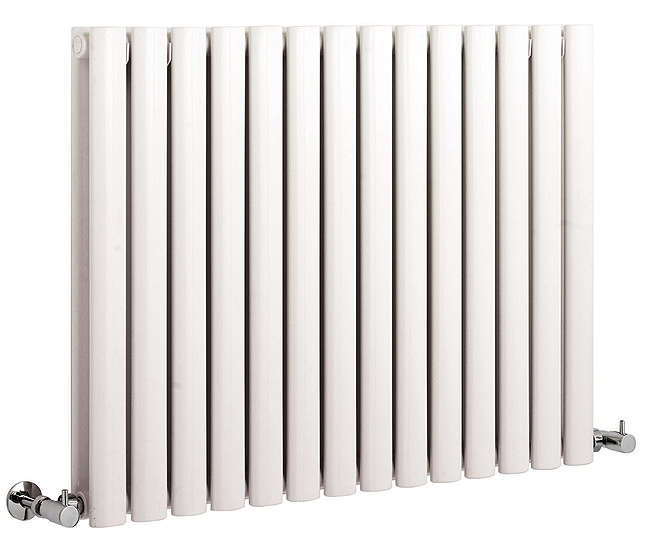

Hudson Reed Revive 826 x 635mm White Double Panel Designer Radiator




RRP: £492.00 You Save £295.20 on RRP

4.5 out of 5

2 out of 2 customers rated 90%

Review this Product


2-3 Working Days Approx

Shipping: £23.95


The Hudson Reed Double Panel Designer Radiator personifies the axiom - “Good things come in small packages”. This angelic white beauty comes with a rather impressive heat output that is sure to surprise you given its petite model. Ideal for new-age compact homes, its simple fashionable appeal makes it go well even with the most basic decor. Covered under a 20-year guarantee, it also offers peace of mind with respect to quality and longevity concerns.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White High Gloss
Warranty/Guarantee 20 Years
Material Steel
Theme Modern
Installation Type Wall Mounted
Width 836
Projection (Depth) 120
Height 635
BTU Output @60°C: 4125, @50°C: 3262, @30°C: 1689
Watts @60°C: 1209, @50°C: 956, @30°C: 495
Valves Included Sold Separately
Panel Configuration Double
Hudson Reed Valve

  • Radiator
  • Width: 826 mm
  • Height: 633 mm

  • Manufacturing code of this product is HL328
  • Suitable for wall mounted installation
  • Comes in white high gloss finish
  • RAL Number : 9016
  • Heat Output at 60°C: BTU/hr 4125 and Watts 1209
  • Heat Output at 50°C: BTU/hr 3262 and Watts 956
  • Heat Output at 30°C: BTU/hr 1689 and Watts 495
  • Sizes : 826 x 635mm [Width x Height]
  • Depth: 78mm
  • Number of sections/panels : 28
  • Constructed from steel material
  • Wall to centre of Tapping: 70mm
  • Pipe centers : 1265mm
  • Projection from wall : 120mm
  • All tappings are 1/2" BSP Connection
  • Supplied with fixing screws
  • It is recommended that the new installed radiator is refiled with a suitable inhibitor
  • Valves shown in the image are not included
  • Appropriate valve are available separately [See Option]

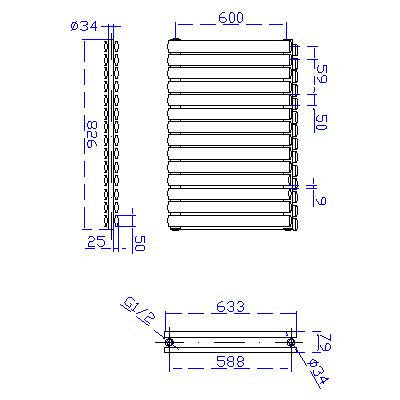

  • Refer technical drawing for complete size details
  • For fitting instruction download PDF from Technical tab
  • 20 years Guarantee from Hudson Reed.

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.
