Burlington Heart Corner Bath 1630 x 1330mm



5 Working Days Approx

Stars Rating4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

£811.42 RRP: £1399.00

You Save £587.58 on RRP SHIPPING: £23.00

Are you looking for a rare and unique bath? Then you find a better option than this Heart Traditional Corner Bath, manufactured by Burlington. This freestanding bath comes in pure white finish, which looks outstanding in any bathroom setting. Made from high quality Lucite acrylic, this sturdy and durable bath is reinforced with cast mix and fiberglass, to achieve highest durability. Ideally designed to fit to any corner of bathroom, the striking bathtub is supplied with white claw feet, for additional ease of use. Burlington offers a 10 year guarantee with this excellent bath, against any manufacturing defects.

Optional Bath Legs

  • Comes in white finish
  • Made from TSFR
  • Size: 1630 x 1330 x 408mm [Length x Width x Depth]
  • Overall height including optional legs: 569mm
  • Water capacity: 225 litres
  • Displaced capacity: 155 litres [bath's capacity less 70 litres]
  • Weight: 45 kg
  • Traditional style
  • Supplied undrilled for tap holes - template is provided for drilling of tap holes
  • Overflow hole is predrilled
  • Compliance/Approvals: BS EN14516:2006
  • Exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process
  • Legs shown in the image are not included
  • Feet Optional [See Option]
  • Manufacturing code of this product is T11F

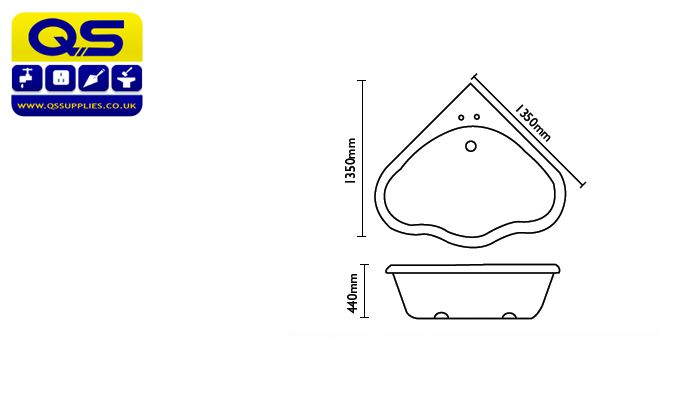

  • For complete size details refer technical drawing
  • Download installation instruction PDF from technical tab
  • 10 years of guarantee from the manufacturer.


Please Note all the measurements are in 'mm'
External Length 1630
External Width 1330
Tub Depth Internal - 408, External - 435
Feets Included Yes
Height Including Feet or Panel 585
Colour White
Internal Bottom Length 1010
Internal Bottom Width 730
Height of Rim 50
Distance Top edge to centre of overflow hole 80
Diameter of overflow hole 51
Diameter of Drain hole 51
Rim Width 60, 110, 112
Weight in kg 45
Slip Resistant No
Capacity in litres 155
Warranty/Guarantee 10 Years
Material Acrylic
No. of Bathers 2
Tap Holes Un-drilled

INFO / SIZE (mm)

  • Bath
  • Length: 1630
  • Width: 1330
  • Depth: 408
