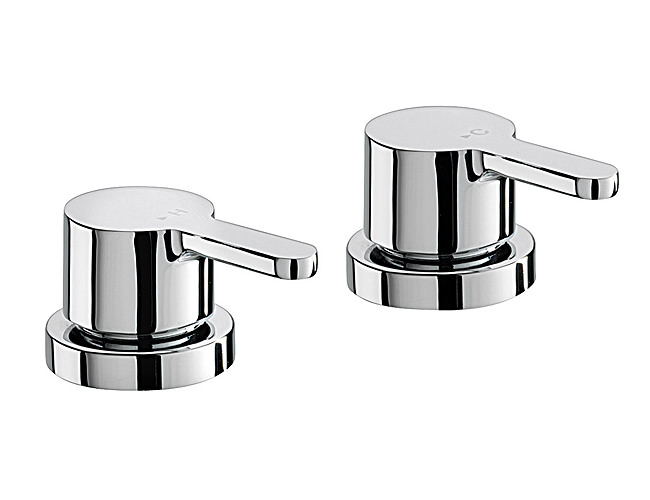

Sagittarius Plaza Pair Of 0.75 Inch Deck Mounted Side Valves

QS-V30190 MFC CODE: PL/187/C


RRP: £126.50 You Save £50.60 on RRP

5.0 out of 5

1 out of 1 customers rated 100%

Review this Product


3 Working Days Approx

Shipping: FREE


Give your bathroom an elegantly refined appearance with this stunning pair of Plaza Side Valve, from Sagittarius. It is made from premium quality material giving immense strength and durability. The modern design tap is chrome plated that makes it easily blend with any bathroom interior. This pair of side valves that is suitable for use with Combi boilers, works smoothly in low and high water pressure systems. The manufacturer offers a 10-year guarantee for this product.

+  Read what's included..

Please Note all the measurements are in 'mm'
Colour Chrome
Shape Round
Warranty/Guarantee 10 Years
Theme Contemporary
Installation Type Deck Mounted
Handle Style Lever
Number of Handles Two
Plumbing System Compatibility Suitable for use with combi boilers


  • Feature lever handles with 'H' and 'C' etched
  • Comes in chrome finish [do not use any household cleaners or harsh abrasives]
  • Contemporary design
  • Suitable for use with combi boilers
  • Works smoothly in low and high water pressure systems
  • Manufactured to the highest standards
  • Manufacturing code of this product is PL/187/C
  • 10 years of guarantee from the manufacturer against any manufacturing defects, such as casting faults or chromium plating issues [excludes moving, serviceable parts, neglects and abuse]

Note: Use only warm water and a soft cloth for cleaning, chromium plating guarantee is void if any household cleaners or harsh abrasives are used.

Total: £75.90 3 Working Days ApproxQS Supplies

You've Selected which adds to a total of


Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

reading Date: June 16, 2015

good inded
have installed these deck valves to the new bath that we purchased these items are ideal, the inlet thread size is 22 mm, and are very good quality
5 Star

Helpful? Hands Up Hands Down


  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Questions & Answers

  Submit Your Questions 6 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

I intend to mount these valves in the wall over the bath. What depth is required to accommodate the valve connections. Thank you.

Answered By QS Team :

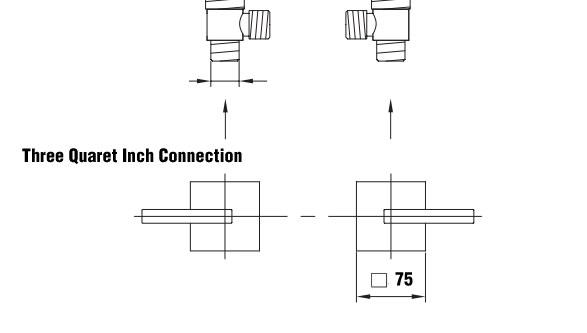

These valves are only for deck mount installation. For wall mount installation, refer product code: QS-V30191 ( https://www.qssupplies.co.uk/bathroom-furniture-shower-taps/2664.htm#questions ) For complete dimensions detail, refer technical image: ( https://assets-large.qssupplies.co.uk/L-2016-12-21--12-18-59-871.jpg )

Was this answer helpful? Yes - No

Hi, do you have the flow rate specification for these at 3 bar please? Thanks

Answered By QS Team :
The flow rate is 21 litre/min at 3.0 bar water pressure

Was this answer helpful? Yes - No

just bought 0.75 filling valves of you and did not realized there size ,the rest of my pipe work is 15mm . do i run 22mm from the valve to the filler or reduce it to 15mm hope you can help cheers regards gary

Answered By Sagittarius :
Hello Gary, If you are on a combination boiler or equal high pressure system these valves will operate fine via 15mm pipework, so you can just reduce done to suit your pipework. The only time you would need 22mm pipework is when on a gravity system. I hope this helps. Kind Regards David

Answered by the verified manufacturer/supplier Was this answer helpful? Yes - No

1 - 0

Can the valve outlet be connected to a 15mm pipe? If so, what fitting is required?

Answered By Sagittarius :
hi these will only accept 3/4 flexi tails

Answered by the verified manufacturer/supplier Was this answer helpful? Yes - No

1 - 0

Can these Sagittarius Plaza 3-4inch Deck mounted chrome side valves be used with a gravity fed low pressure water system ?

Answered By QS Team :
This will work on a Gravity fed system, but the higher the tank in the loft the better pressure or flow of water you will receive. As a rule of thumb you will receive 0.1 bar pressure for the tank being 1 meter high.

Was this answer helpful? Yes - No

1   0

Which overflow filler and valves would be OK for a low pressure system. Lyn

Answered By QS Team :
This valves would work with a Low pressure system. However, you will need to know what pressure you are receiving at your property for both Hot water and Cold water. As a general rule a Low pressure system would work under 0.5 Bar pressure. However some will work as low as 0.2 bar pressure.

Was this answer helpful? Yes - No

1   0
