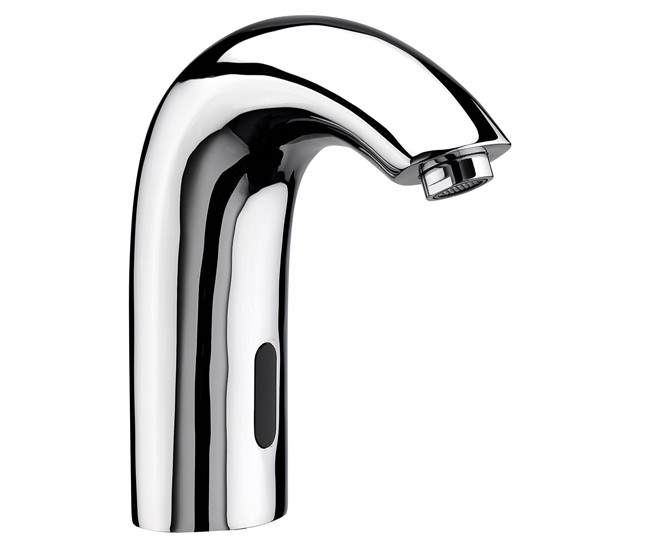

Sagittarius Infra-Red Sensor Deck Mounted Curved Basin Mixer Tap




RRP: £259.00 You Save £142.44 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product


2 Working Days Approx

Shipping: £5.95


Add aesthetic beauty to your refreshing zone with this new range of Infra-Red Basin Mixer Tap, from Sagittarius. This elegant single feed electronic sensor tap is easy to use and hygienic in its own way. The deck-mounted tap is a worthy buy as it is constructed from high-quality material finished in glossy chrome and carries a 3-years guarantee from the manufacturer, against any manufacturing defects. Being water efficient the water supply of the tap is activated by movement, which helps to remove the risk of flooding.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour Chrome
Warranty/Guarantee 3 Years
Installation Type Deck Mounted
Base To Spout 110
Spout Reach 120
Water Saving Yes
Power Source Main
Sensor Type Infra-Red
Blending Valve

Sagittarius Infra-Red IR/306/C DETAILS
  • Tap
  • Pipe Centre: 120 mm

  • Single feed electronic Infra-Red sensor tap
  • Comes in chrome finish [do not use any household cleaners or harsh abrasives]
  • Height of this product is 160mm
  • Centre of inlet to centre of outlet is 120mm
  • Manufacturing code of this product is IR/306/C
  • Suitable for only mains operated installation
  • Ideal for use with thermostatic under counter water blending valve for temperature control [not included]
  • Infra-Red Sensor Features:
  • Reliable, easy to use system
  • Hygienic - Touch free system helps to avoid the spread of germs and bacteria
  • Water efficiency - Water supply is triggered by the detection of movement, which also helps to remove the risk of flooding
  • Contemporary design
  • Suitable for use with combi boilers
  • Works smoothly in low and high water pressure systems
  • Manufactured to the highest standards
  • Thermostatic Blending Valve - AC/406/C Optional [See Option]
  • 3 years of guarantee from the manufacturer against any manufacturing defects, such as casting faults or chromium plating issues [excludes moving, serviceable parts, neglects and abuse]

Note: Use only warm water and a soft cloth for cleaning, chromium plating guarantee is void if any household cleaners or harsh abrasives are used.

Total: £116.56 2 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require


Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Date: June 23, 2010

The only thing i would like to say is TRULY IMPRESSED with the Service.
4 Star

Helpful? Hands Up Hands Down
2 of 5 People have found this Review useful


  • Quality: 4 Stars
  • Value For Money: 4 Stars
  • Style: 4 Stars

Questions & Answers

  Submit Your Questions 5 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Re Sagitarius sensor tap, can it be used with electric instant heater? Current taps have auto stop using Spring but users twist top and break it. What mains supply required. If I use two taps, can mains installation cover both?

Answered By QS Team :
You need to use a blending valve with the infra-red taps. You can operate up to 3 taps on one valve but will have to up the pressure a little.

Was this answer helpful? Yes - No

Could you please advise re replacement sensor units

Answered By QS Team :
Are you asking to buy a sensor? Sagittarius do sell them, but this is not available online, you have to contact the manufacturer directly.

Was this answer helpful? Yes - No

Does the Sagittarius IR306C accept an M22 or M24 flow restrictor so it can be used with an under sink instant water heater? (2l/min)

Answered By QS Team :
The manufacturer has said, “Technically yes it can accept it, but a more efficient and cost effective alternative would be to use a TMV valve”.

Was this answer helpful? Yes - No

Hi , Can you please tell me the manufacturers recommended minimum and maximum inlet pressure for these taps, please? Thanks Simon

Answered By QS Team :
This tap requires minimum 0.5 bar water pressure for smooth working.

Was this answer helpful? Yes - No

Need link to obtain operating manual/instructions required for installer O&M Manual, please.

Answered By QS Team :
Please contact Sagittarius technical team on 0161 620 2029.

Was this answer helpful? Yes - No
