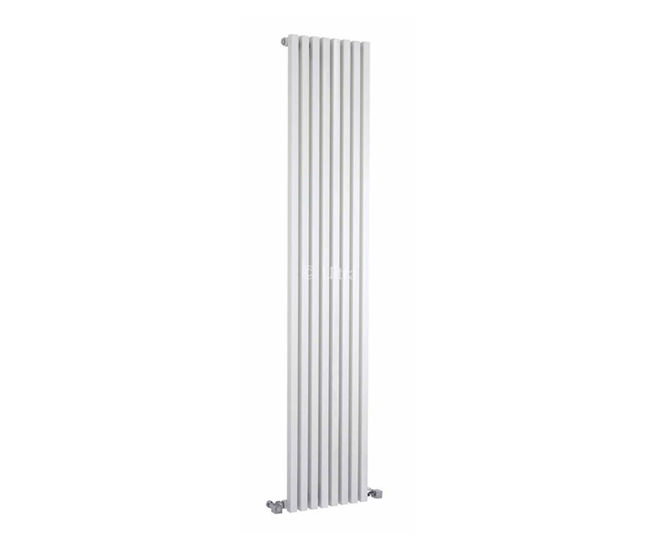

Hudson Reed Kinetic 360 x 1800mm Single Panel Vertical Designer Radiator

Finishes Available: White / Anthracite / Black / Silver




RRP: £379.00 You Save £227.40 on RRP


2-3 Working Days Approx

Shipping: £12.50

Finishes Available
Add-on Selected: OP-135571 - White + £0.00
+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour Black
Warranty/Guarantee 20 Years
Material Steel
Theme Modern
Installation Type Wall Mounted
Width 360
Projection (Depth) 64
Height 1800
Orientation Vertical
BTU Output @ 30°C 1263/hr, @ 50°C 2580/hr, @ 50°C 3327/hr
Watts @ 30°C 370, @ 50°C 756, @ 60°C 975
Valves Included Sold Separately
Fuel Type Water
Wall to Centre of Inlet 60

INFO / SIZE (mm)

  • Radiator
  • Width: 360 mm
  • Height: 1800 mm

Hudson Reed Kinetic HLW96 DETAILS

There is no need to settle for clunky radiators to keep warm thanks to the Home of Hudson Reed's contemporary designs. Take the Hudson Reed Kinetic Designer Radiator for example - the sleek design and soft white finish make it more of a work of art than a heating appliance. This balance between form and function is what makes the Hudson Reed radiator range so appealing. Now available from QS Supplies for a most affordable price.

  • Available in different finishes [Optional]
  • Size: Width 360 x Depth 64 x Height 1800mm
  • Ultra-modern radiator with squared off edges
  • Material: Steel
  • Projection: 120mm
  • Pipe center : 450mm
  • Type of Heat: Water
  • Installation type: Wall mount / Vertical
  • Maximum projection from the wall : Black - 100mm and White - 110mm
  • Number of sections/panels : 8
  • Number of heat setting: 1
  • Come complete with fixing screws
  • After installing any new radiators; when refilling the system, suitable inhibitor to be used
  • All tapping are 1/2" British Standard Pipe
  • Fully Certified BS EN 442-1:2014
  • Valves shown in the image are not included - sold separately [Optional]

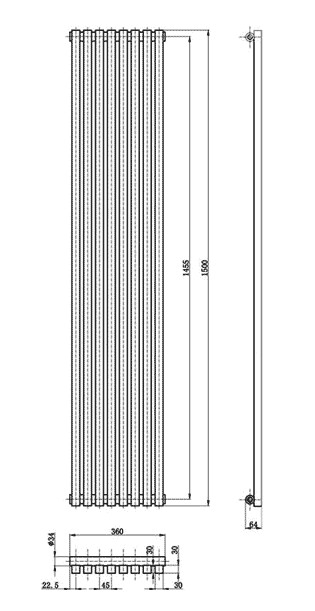

  • Refer technical image for detailed technical dimensions
  • For fitting instruction download PDF from Technical tab
  • 20 years of guarantee from Hudson Reed against manufacturing defects

Radiator Valves

Radiator Valves

Hudson Reed Provides manual and thermostatic valves available for use in central heating system. Please Note: Image shown is just for illustration purpose only.


Available Finish Along With Manufacturing Code
Finish RAL No. BTU /Watts @30�C BTU /Watts @50�C BTU /Watts @60�C Projection from Wall MFC
White 9016 1263 / 370 2580 / 756 3268 / 975 120mm HLW96
Anthracite 7016 1348 / 395 2774 / 813 3514 / 1052 120mm HLA96
Silver 9005 1300 / 381 2269 / 665 2874 / 811 100mm HLS96
Black 9043 1328 / 389 2652 / 777 3360 / 995 120mm HLB96
