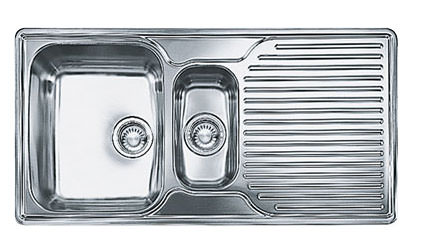

Franke Ariane ARX 651P Stainless Steel 1.5 Bowl Kitchen Inset Sink

QS-V30027 MFC CODE: 1010277098 BOM


RRP: £353.62 You Save £106.09 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product


2 to 3 Weeks

Shipping: £6.99


Sinks from Franke is unique from regular kitchen sinks in both functionality and looks. So, in choosing Franke Ariane Bowl Kitchen Sink you are assured that you are buying the right one. This nickel and steel crafted sink is supplied with basket strainer waste and patented hygienic overflow and a very practical Swiss profile. It has a built-in water-protection seal.

+  Read what's included.. & options available

Please Note all the measurements are in 'mm'
Colour Silk
Installation/Style Inset
Number of Bowls 1.5
Drainer Position Left Hand
Small Bowl Position Left Hand
Overall Length 1000
Overall Width 510
Minimum Base Unit Size Required 600
Length of Main Bowl 350
Width of Main Bowl 435
Depth of Main Bowl 175
Length of Small Bowl 170
Width of Small Bowl 320
Depth of Small Bowl 120
Cut-Out Length 984
Cut-Out Width 494
Material Stainless Steel
Profile Swiss-Edge
Plumbing Kit Sold Separately
Compatible With Optional Waste Disposal Unit Yes
Overflow Type Patented Hygienic
Waste Included Yes
Waste Type Basket Strainer
Waste Hole Size 90
Warranty/Guarantee 50 Years

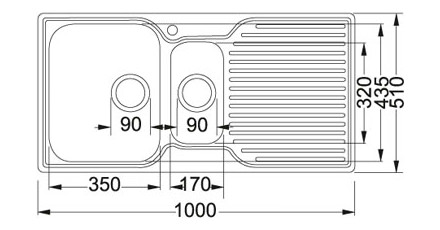

INFO / SIZE (mm)

  • Sink
  • Length: 1000
  • Width: 510


  • Comes in Silk finish
  • Position of Drainer: Left hand side [right hand side optional]
  • Inset installation [frame sits on top of the worksurface, compatible with any worksurface, including laminate worktops]
  • Sizes Denotes: Length [Left to Right] x Width [Front to Back] x Depth [Top to Bottom]
  • Overall size is - Length 1000mm x Width 510mm
  • Size of big bowl is - Length 350mm x Width 435mm x Depth 175mm
  • Size of small bowl is - Length 170mm x Width 320mm x Depth 120mm
  • Cabinet size is 600mm [denotes the measurement which the bowl need to fit into]
  • Cut-out size is - Length 984mm x Depth 494mm x Corner Radius 20mm
  • Features and Specification:
  • Swiss-edge profile [edge has a built-in water protection seal]
  • Equipped with stainless steel basket strainer wastes [prevent foodstuffs from entering the waste system]
  • Patented hygienic overflow [offers versatility for cleaning by simply removing the overflow aperture for easy, hygienic cleaning]
  • Made using best quality nickel steel [highly resistant to staining, rust and corrosion - plus it won’t chip, craze, flake or break]
  • Compatible for use with optional waste disposal unit
  • Manufacturing code is 114.0067.737
  • 50 years of guarantee from the manufacturer against any manufacturing defects
  • Please watch or download video from technical tab showing the installation
  • Optional Products: Plumbing Kit, Turbo Plus TP-50 Waste Disposal Unit and Accessories.

Cleaning Tips: Discolouration and most marks on stainless steel are caused by water-borne deposits clinging to its surface. They are always the result of an outside source rather than coming from the steel itself. Such stains are often seen as a “rainbow-effect” and can be avoided completely by removing wet cleaning aids [cloths, containers etc.] from the sink after use so as to avoid watermarking and rust stains. One of the best ways to care is to clean it with a product called ‘Shiny Sinks’ [available from most major supermarkets] which can be used daily. It is helpful to dry thoroughly after cleaning.
Avoid: The use of plastic bowls for washing up, as these cause heavy localised scratching. Leaving salt, vinegar, citric fruit juices, mustard or pickles on the surface for any length of time as they can cause corrosion. Abrasive cleaners such as bleach, scourers or wire wool pads.


Tap For Sink

Tap For Sink

Matching kitchen sink mixer tap from the house of Franke to suit your sink. Please note: Image shown is for illustration purpose only.

Right Hand Drainer Configuration

Right Hand Drainer Configuration

Sink with Right Hand Side Drainer to choose from option below. Please note: Image shown is for illustration purpose only.

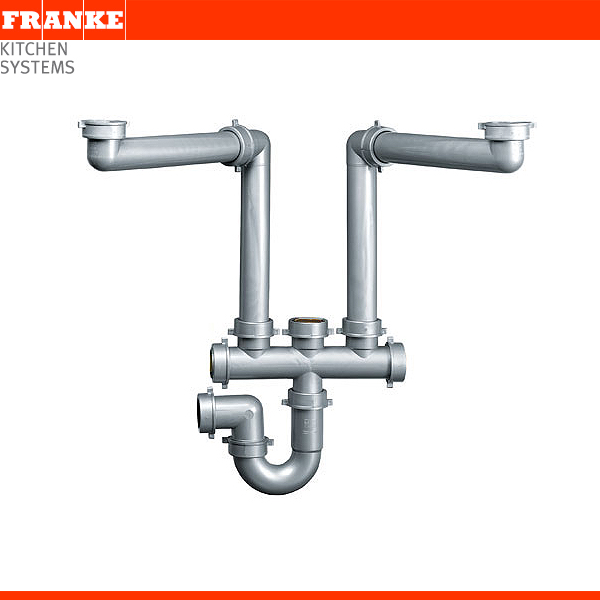

Siphon Plumbing Kit

Siphon Plumbing Kit

It is the perfect plumbing solution and have a manifold with an incline and an air vent for faster water disposal. Made of rigid grey polypropylene, these kit is the hygienic solution to a Franke waste system.

Waste Disposal Unit

Waste Disposal Unit

Free kitchen from unsightly and unhygienic organic household waste. Magnet motor of this unit reach high speed in a split second, whilst running water through the unit, food waste is liquefied into fine particles and easily flushed through the pipework.

Tap Brace

Tap Brace

Franke has developed an innovative patented new tap brace for large or heavy taps, which may require additional support when fitted to a stainless steel sink. A perfect solution to the occasional problem of flexing.



Accessories for kitchen sinks. Please note image shown is for illustration purpose only.

Total: £247.53 2 to 3 WeeksQS Supplies

You've Selected which adds to a total of


Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Corsham Date: June 17, 2015

Franke Kitchen Sink 1½ Bowl
Speed of delivery and packaging was excellent, Thank you QS. The sink is typically a very high quality German product. Came with the necessary fixings to secure to the worktop. Installation was not so easy as it was a replacement for a slightly smaller old sink, so not a bad mark for Franke, just my bad idea. If you MUST replace an old sink, buy one the same size or better still, also replace the worktop. It makes the job much easier.
4 Star

Helpful? Hands Up Hands Down
1 of 1 People have found this Review useful


  • Quality: 4 Stars
  • Value For Money: 4 Stars
  • Style: 4 Stars

Gateshead Date: September 18, 2015

Fabulous Franke
We recently had to change our kitchen worktops and sink due to a kitchen fire. We replaced our previous Franke sink with a trendy built in sink from another manufacturer which was so unsatisfactory we had it replaced with another trusty Franke sink. The quality is in-comparable.
4 Star

Helpful? Hands Up Hands Down


  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 4 Stars

HASTINGS Date: September 15, 2015

good product
good product and good service
5 Star

Helpful? Hands Up Hands Down


  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Questions & Answers

  Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Franke Ariane ARX 651P 1.5 Bowl Stainless Steel Kitchen Inset Sink QS-V30027 MFC CODE: 1010277098 BOM I want the right hand drainer model - it says it is optional - how do I order that? I only seem able to order the left hand drainer.

Answered By QS Team :
Hi Jonathan Thanks for your query. If you want the sink with right hand drainer, first select the option below showing Right Hand Drainer and then proceed to add to basket.
