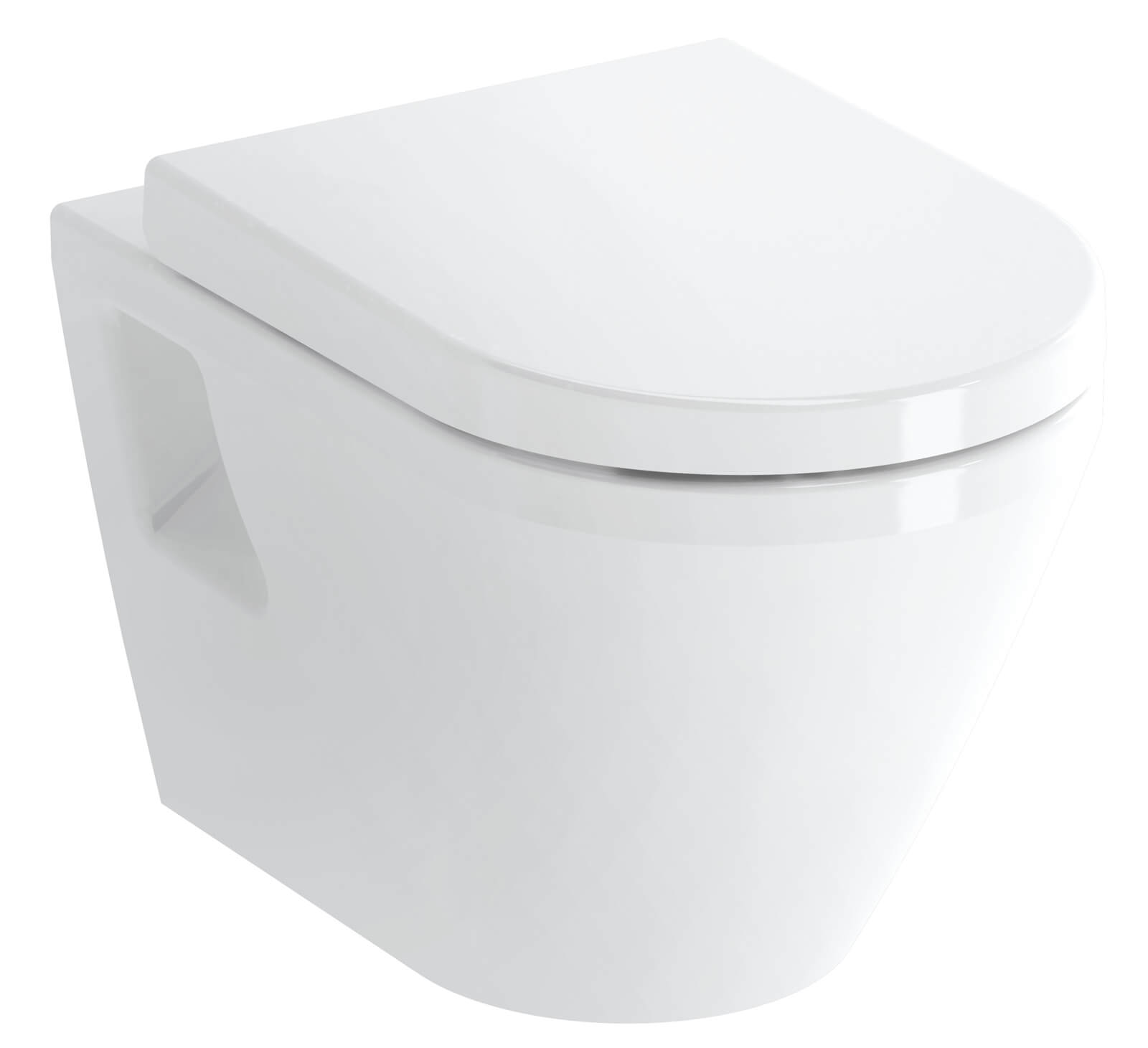

VitrA Integra 540mm Wall-Hung Rim-Ex WC Pan

Vitra Integra 7062B003-0075 Details

The VitrA Integra 540mm Wall-Hung Rim-Ex WC Pan is a simple, compact unit that comes with one of three toilet seat options if needed; a standard seat, a soft-close seat and/or a slim soft-close seat. Made from a durable and striking vitreous china material and created to last through frequent or consistent use, this unit projects out 540mm form the wall its secured to and provides ample space for nearly any user to sit upon it comfortably.

The Manufacturing Code of this product is 7062B003-0075.
Suitable for wall-hung installation.
Horizontal outlet.
Sizes: 355 x 400mm [Width x Height].

The toilet seat shown in the image is not included.
Standard and Soft-Close toilet seat [Optional].

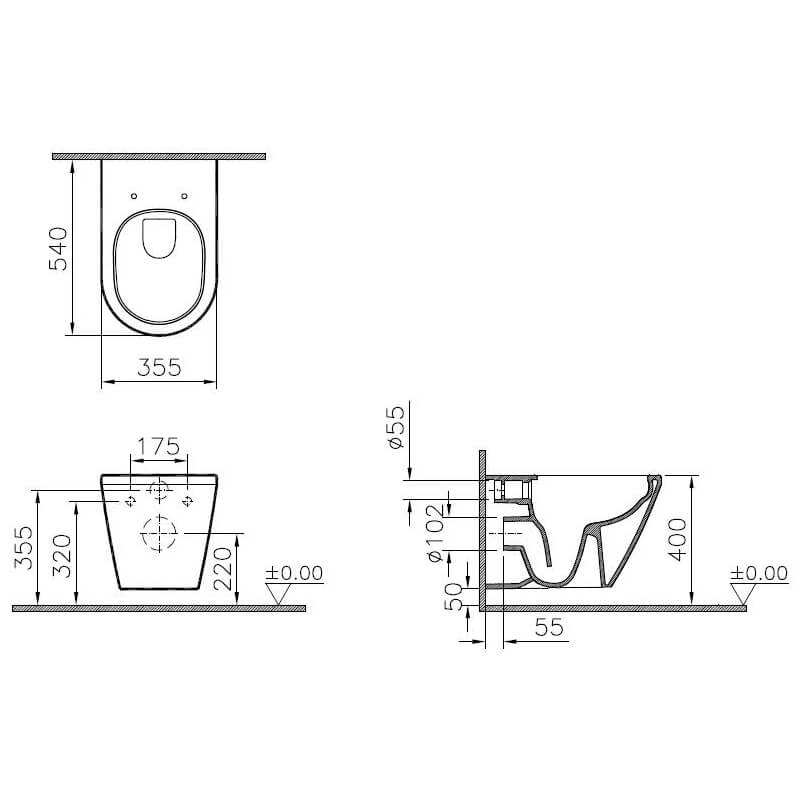

For complete size details, please refer to the technical drawing.

Info / Size (mm)

Toilet
Width: 355 mm
Depth: 540 mm
Height: 350 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Integra
⤷ Colour
: White
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Wall Hung
⤷ Projection (Depth)
: 540
⤷ Rimless Bowl
: Yes
⤷ Width
: 355
⤷ Outlet
: Horizontal

⤷ Configuration
: Bowl Only
⤷ Height
: 400
⤷ Seat Included
: Sold Separately
⤷ Fixing Holes Centre
: 175
⤷ Barcode
: 5057199918529
⤷ Distance from floor to centre of fixing hole
: 320
⤷ Bowl Shape
: Round
⤷ Product Type
: Wall Hung WC
⤷ Pan fixing centres
: 175
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 220

Total: £159.64 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.

VitrA Integra 540mm Wall-Hung Rim-Ex WC Pan - Standard Fixation

MFC Code: 7062B003-0075
