Duravit Architec Diagonal Bowl On Left Side Handrinse Basin - 0764650000


MFC CODE: 0764650000


RRP: £316.80


7 Working Days Approx

5.0 out of 5 5.0 out of 5

1 out of 1 customers rated 100%

Review this Product

Shipping: £29.95

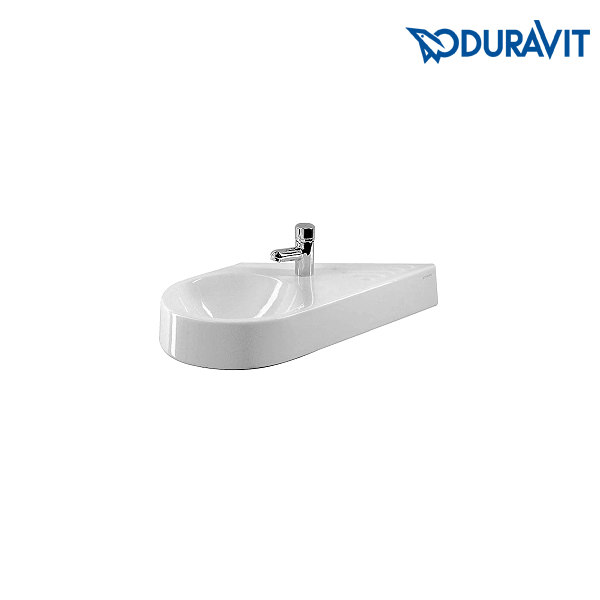

In collaboration with reputed designer Prof. Frank Huster, Duravit presents an artistic masterpiece - The Duravit Architec Handrinse Basin. This diagonal beauty comes formatted with a tap platform and an integrated ceramic shelf for a left side washbowl. A right-side washbowl option is also available in this model to suit your decor requirements. The unique styling and sleek structuring of this sanitaryware, combined with a glossy white finish, is sure to bewitch anyone, who haunts nothing but the best. Grab this ultra-stylish presentation at a deal price only at QS Supplies.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White
Handed Type Left
Country of Origin Germany
Warranty/Guarantee 5 Years
Theme Modern
Waste Included Sold Separately
Projection (Depth) 410
Width 645
Height 150
Distance rear edge to centre of waste hole 240
Fixing Holes Centre 280
Distance top edge to centre of fixing hole 50
Number of bowls 1
No. of Tap Holes 1
Overflow Included Yes
Brassware Included No
Distance from floor to centre of fixing hole 850
Distance finished floor level to top edge 900
Distance finished floor level to bottom edge 750
Distance from floor to centre of water inlet 700
Floor to centre of drain hole wall connection 675
Distance hot/cold water inlet 150

INFO / SIZE (mm)

  • Basin
  • Width: 645 mm
  • Depth: 410 mm
  • Height: 150 mm

Duravit Architec 0764650000 DETAILS

  • Diagonal model handrinse basin
  • Manufacturing part number is 0764650000
  • Dimension: 645 x 410 x 150mm [Width x Depth x Height]
  • Comes with bowl on left side
  • Also available in Bowl on right side [Optional]
  • Comes in white finish
  • Supplied without overflow
  • Complete with integrated ceramic shelf and tap platform
  • Tap and waste shown in the image are not included
  • Image shown is for illustration purpose only
  • Designed by Prof. Frank Huster
  • For continuous flow waste [Optional]

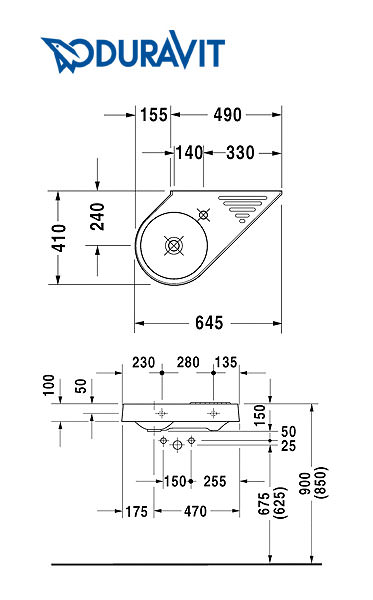

  • Refer technical image for detailed technical dimensions
  • 5 years of warranty against manufacturing defects.

Duravit-Basin Tap Hole

Duravit-Basin Tap Hole

Black finish basin also available with a choice of 0, 1, 2 or 3 tapholes. Select your choice of tap hole from the option given below. Please Note: Image is not available.

Optional Siphon and Waste

Optional Siphon and Waste

Compatible siphon or waste that is highly recommended by Duravit. Please note - The image shown is for illustration purpose only.
