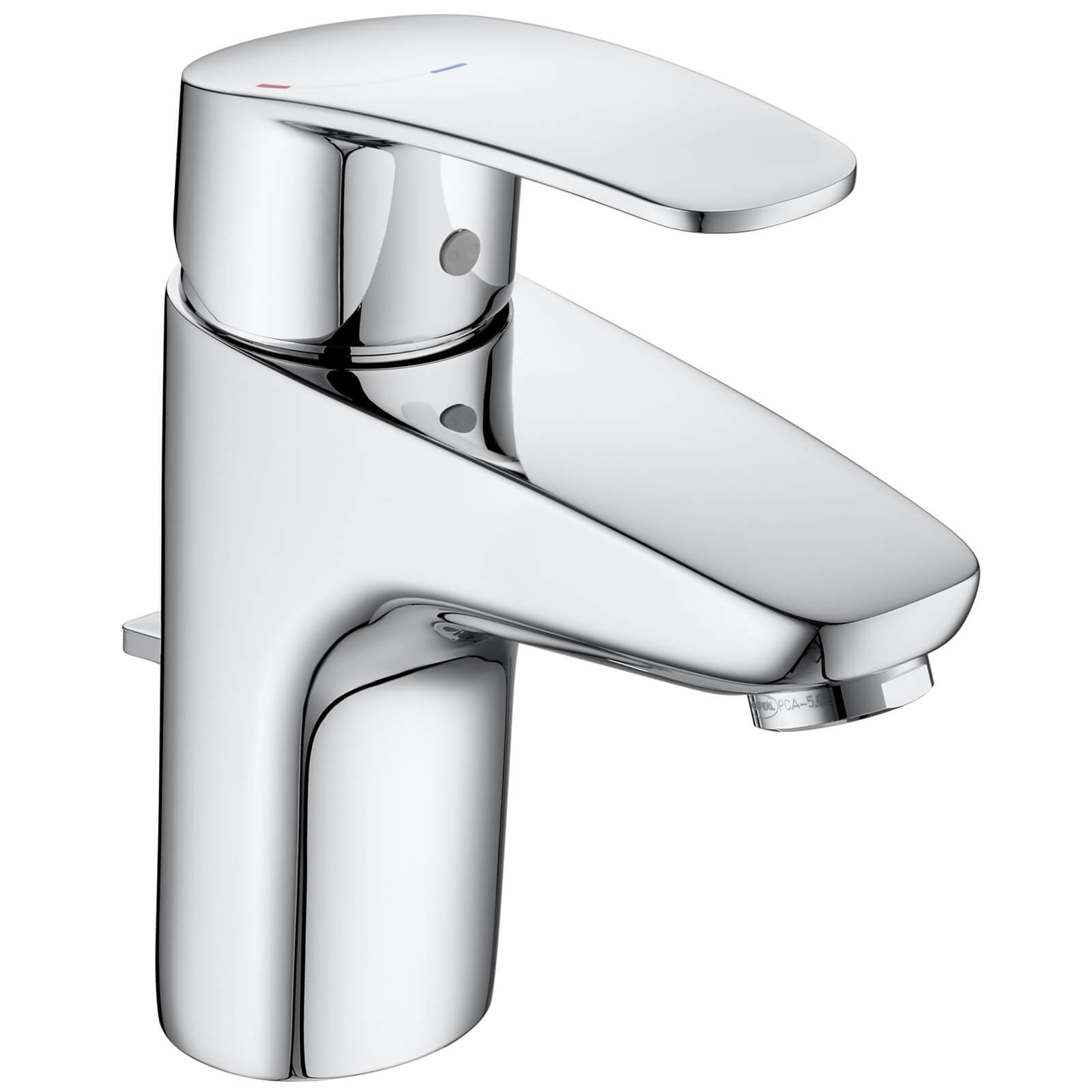

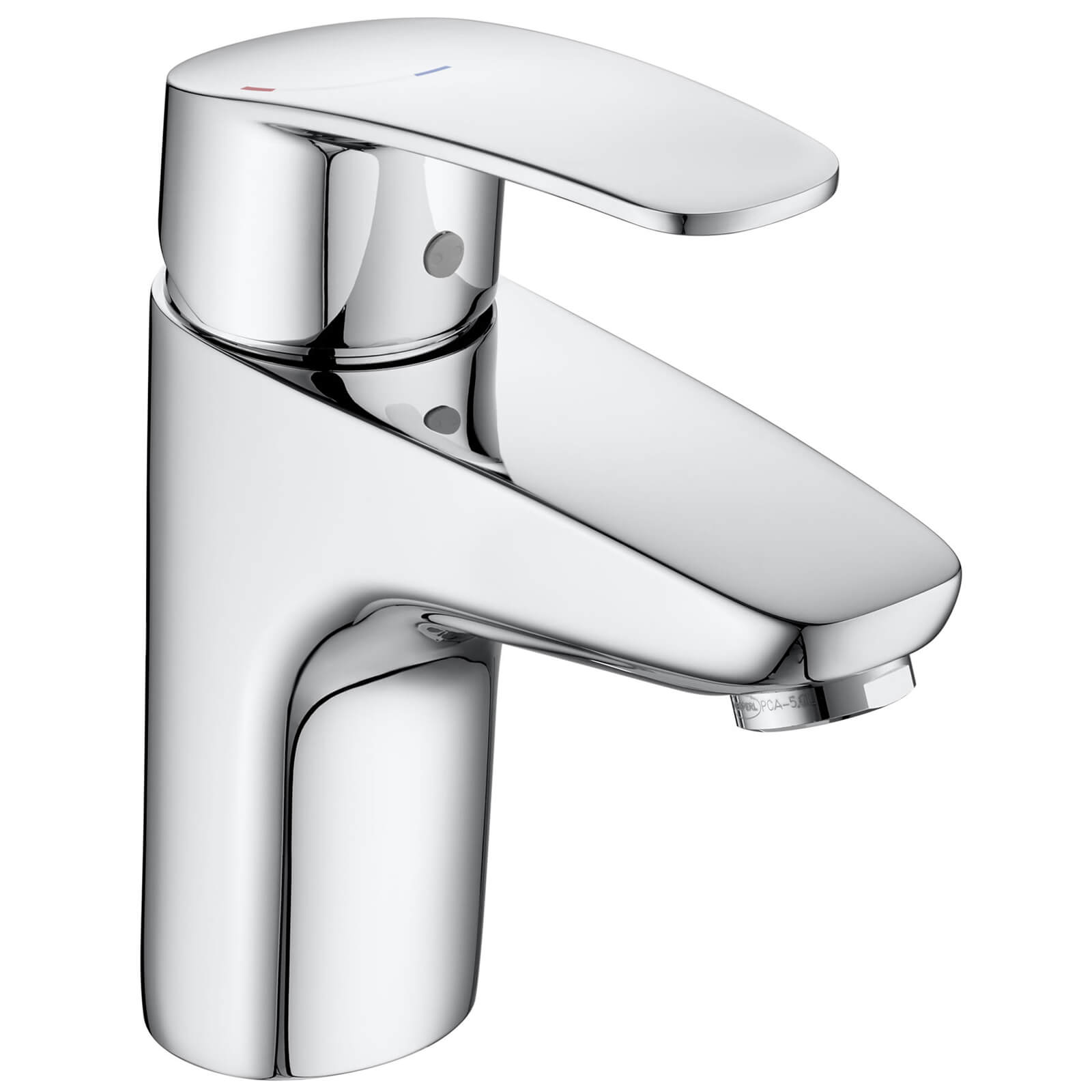

Roca Monodin-N Chrome Basin Mixer Tap With Smooth Body

Roca Monodin-N 5A3298C0R Details

Simple and straightforward, the Roca Monodin-N Basin Mixer Tap With Smooth Body is an easy way to slip modern style into your bathroom. The tap has a height of 153 millimetres and has a centre of the inlet to centre of outlet measurement of 108 millimetres. Made out of durable, corrosion-resistant metals, the product is sure to outlast your need for it. It has been given an EverShine hard-wearing chrome finish with an electrolytic coating, which makes it simple to clean while maintaining its shine for longer. It is deck mounted for simple installation.

Flow rate: 5 (l/min - 3 bar).
Deck-mounted installation.

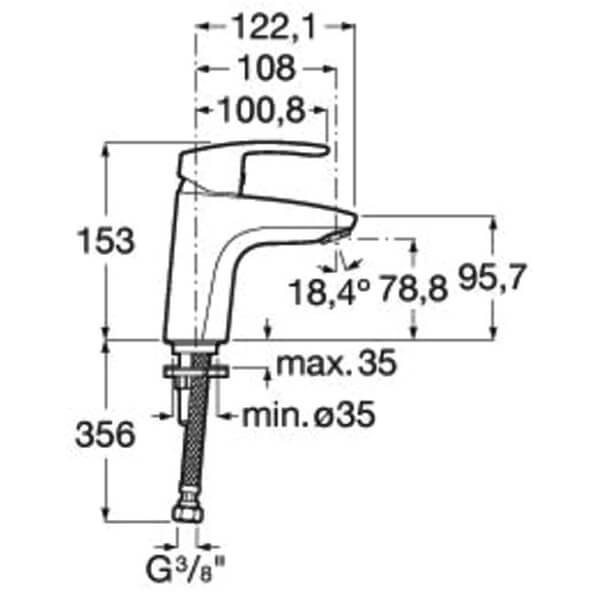

Centre of the inlet to centre of outlet: 108mm.

Height: 153mm.

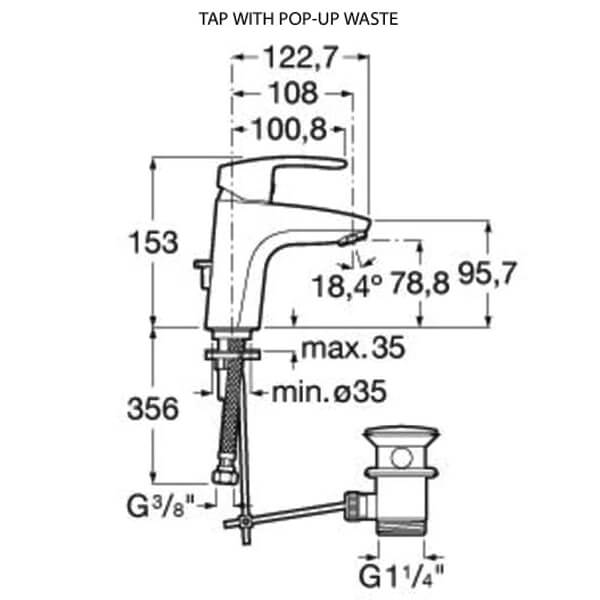

Also available with pop-up waste 5A3098C0R [See Option].
Download the Installation Instruction PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Monodin
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Country of Origin
: Spain
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 78.8
⤷ Spout Reach
: 108
⤷ Overall Height
: 153
⤷ Max. Deck Thickness
: 35
⤷ Inlet Connections
: G 3/8 Inch
⤷ Waste Type
: Pop-Up Waste
⤷ Diameter of Waste Connection
: G 1-1/4 Inch
⤷ Flow Rates (l/min)
: 5 l/min at 3 bar
⤷ Handle Style
: Lever
⤷ Waste Included
: No
⤷ Barcode
: 8433290652796
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Manual Pdf File

Total: £116.18 2-3 Working Days Approx QS Supplies

3 Features Included In This Product Explained

EverShine Finish

It is Roca’s innovative chrome plating which is an electrolytic coating, producing a hard-wearing finish over brassware such as taps and showers while keeping the surface shiny for years and being easy to clean.

Soft-Turn Technology

Soft-Turn cartridge technology has been developed in-house by Roca to control water flow and temperature accurately.

ECO Disc Cartridge

This water- and energy-saving Roca-exclusive technology allows you a full flow of water through the tap only when the handle is raised beyond a slight resistance. The cartridge also incorporates a temperature limiter that can be pre-set during installation to prevent scalding accidents.
