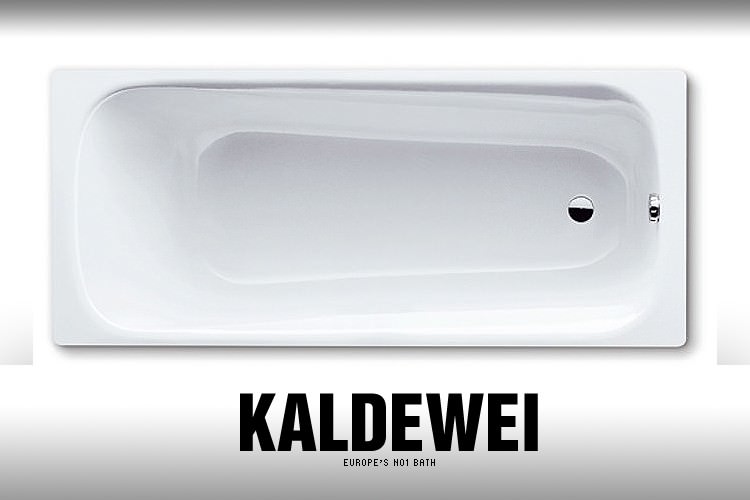

Kaldewei Dyna Set 622 Single Ended Steel Bath 1800 x 800mm

QS-V19352 MFC CODE: 226400000000


RRP: £996.00 You Save £428.28 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product


5 Working Days Approx

Shipping: £23.00


Are you looking for a bath that will suit your large bathroom? Kaldewei has the perfect solution for your needs. The brands Single-Ended Bath, a part of Dyna range, is not only spacious, but also durable. It has been made of excellent quality steel enamel, which is extremely damage-resistant. The one-seater tub comes with waste at the foot-end. And the best part is, it enjoys 30 years guarantee, against all manufacturing defects.

+  Read what's included.. & options available

Download the Pdf File

Please Note all the measurements are in 'mm'
External Length 1800
External Width 800
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 561-586
Colour White
Grips Included No
Internal Bottom Length 1230
Internal Bottom Width 500, 520
Internal Top Length 1565
Internal Top Width 640, 620
Height of Rim 32
Distance Tub edge to centre of drain hole 335
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 415
Distance between the feet 805
Rim Width 125
Distance Between Centre Holes 206
Weight in kg 68
Slip Resistant No
Shape Rectangular
Capacity in litres 169
Country of Origin Germany
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled

INFO / SIZE (mm)

  • Bath
  • Length: 1800
  • Width: 800



  • Size: 1800 [Length] x 800mm [Width]
  • Made from 3.5 Enamel
  • 30 years of guarantee from the manufacturer
  • Leg Set Required, Please order adjustable feet set 5037 [ See Option below ].
  • One Seater Bathtub with the waste at the foot end
  • No Tap Hole
  • Height with feet : 561-586mm
  • Weight: 68kg
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • Water Capacity 169 Ltrs - 70 Litres displacement on average
  • For Two tap hole [See option below]
  • Waste [See option below]
  • Burnt in Antislip available [See option below]
  • Also available in various colour. Please choose colour you desire from the options below
  • For Technical Detail Click on Technical Tab and download PDF.


Bath Leg Set 5037

Bath Leg Set 5037

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

Tap holes

Tap holes

Optional tap holes - Select the desire tap hole that you prefer.



High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.



Anti-slip keeps you on firm ground when you get into the bath. A structured surface made from a permanently burnt-on quartz-sand combination for added safety in the bath. Please Note : Image for illustration purpose only.

Easy clean finish

Easy clean finish

Kaldewei easy-clean finish makes water forms droplets and in the process takes nearly all the particles of dirt and limescale along with it even dried-up water stains and limescale deposits can simply be removed with a soft damp cloth.

Colour Options

Colour Options

Choose finish option which is available for this product from below.
