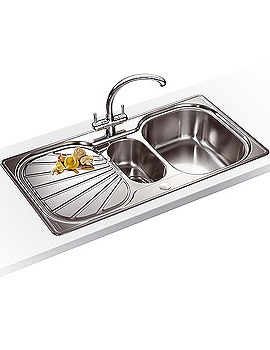

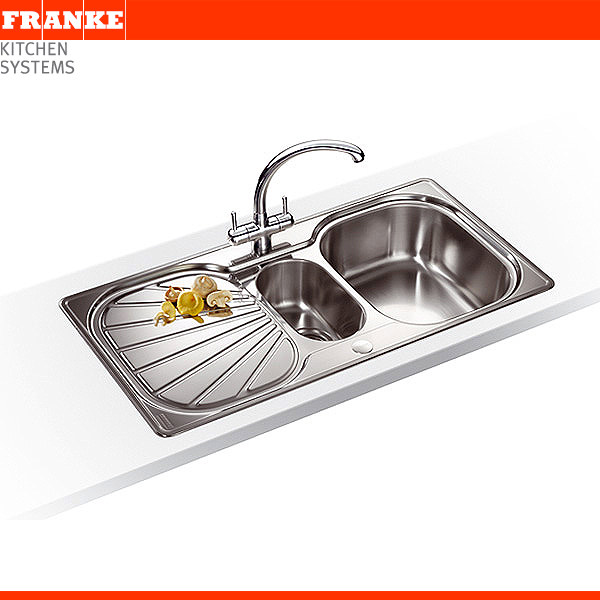

Franke Erica Propack EUX 651 Stainless Steel Kitchen Sink And Tap

QS-V5076 MFC CODE: 1010019158 BOM

£265.20

RRP: £378.86 You Save £113.66 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

STOCK AVAILABILITY

2 to 3 Weeks

Shipping: £6.99


Description
Technical

This fully feature-loaded pro-value pack comprises Erica Sink and Zurich Sink Mixer Tap. The silk finished kitchen sink features a reversible drainer position and comes with built-in water protection seal, to prevent water wastage. This value pack integrates a chrome finished sink mixer with ceramic disc valve, and bi-flow spout, enabling easy operation. Franke offers 50 years guarantee on the sink, whereas the sink mixer tap is guaranteed for 5 years.

+  Read what's included.. & options available

Download the Installation Guide Pdf File

Please Note all the measurements are in 'mm'
Colour Silk
Installation/Style Inset
Number of Bowls 1.5
Drainer Position Reversible
Overall Length 965
Overall Width 500
Minimum Base Unit Size Required 600
Length of Main Bowl 340
Width of Main Bowl 420
Depth of Main Bowl 175
Length of Small Bowl 165
Width of Small Bowl 300
Depth of Small Bowl 130
Cut-Out Length 949
Cut-Out Width 484
Material Stainless Steel
Profile Swiss-Edge
Tap Included Yes
Plumbing Kit Sold Separately
Compatible With Optional Waste Disposal Unit Yes
Waste Included Yes
Waste Type Plug And Chain Basket Strainer
Waste Hole Size 45 90
No. of Tap Holes 2
Warranty/Guarantee 50 Years

INFO / SIZE (mm)

  • Tap
  • Pipe Centre: 210
  • Sink
  • Length: 965
  • Width: 500

QTY

HIGHLIGHTS

  • Manufacturing code of this Pro-Value Pack is 101.0019.158, 115.0051.172
  • Guarantee from Franke: 50 years on sink, 5 years on taps moving parts, 1 year on coating and finish against any manufacturing defects

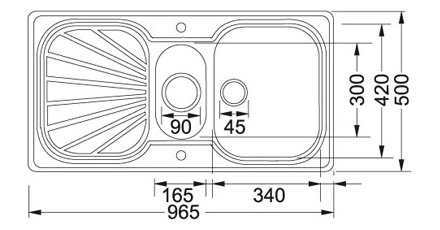

  • 1.5 Bowl Sink Details:
  • Sizes Denotes: Length [Left to Right] x Width [Front to Back] x Depth [Top to Bottom]
  • Overall Size is - Length 965mm x Width 500mm
  • Silk finish
  • Reversible drainer position
  • Cabinet Size: 600mm, denotes the measurement which the bowl need to fit into
  • Cut-Out Size: Length 949mm x Width 484mm
  • Size of big bowl is - Length 340mm x Width 420mm x Depth 175mm
  • Size of small bowl is - Length 165mm x Width 300mm x Depth 130mm
  • Manufactured from nickel steel [stain, rust and corrosion resistant]
  • Includes 1/2 inch plug and chain waste in main bowl and basket strainer waste in small bowl
  • Swiss-edge profile [edge has a built-in water-protection seal]
  • Inset installation [frame sits on top of any work-surface]

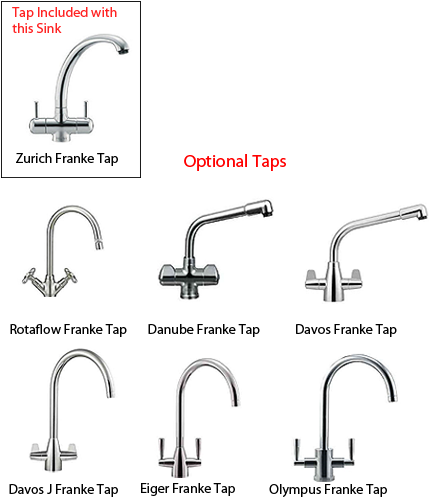

  • Zurich Mixer Tap Details:
  • Chrome finish
  • Requires low water pressure system [delivers at least 4 litres per minute of hot water at 0.3 bar pressure]
  • Fitted with ceramic disc valve
  • Centre of Inlet to Centre of Outlet: 210mm
  • Bi-flow spout
  • Size: Width 155mm x Height 275mm
  • Twin lever operation

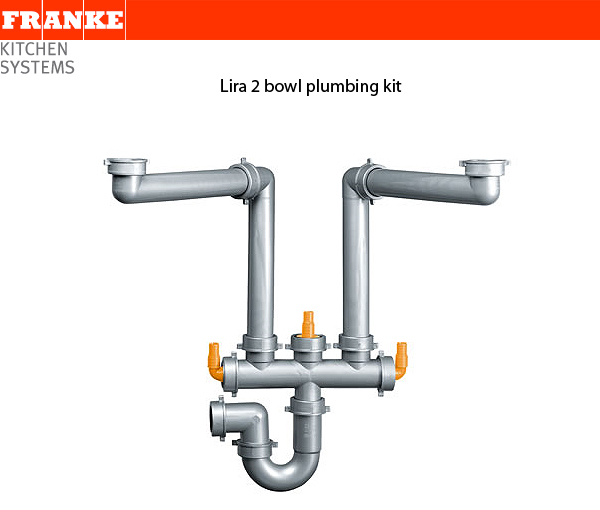

  • Plumbing Kit [See Option]
  • Tap Brace [See Option]
  • Turbo Plus TP-50 Waste Disposal Unit Compatible [See Option]
  • Accessories [See Option]

CUSTOMISE YOUR PRODUCT

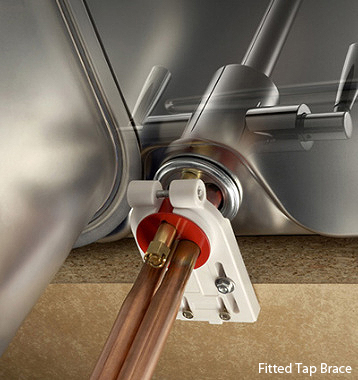

Tap Brace

Tap Brace

Franke has developed an innovative patented new tap brace for large or heavy taps, which may require additional support when fitted to a stainless steel sink. A perfect solution to the occasional problem of flexing.

Waste Disposal Unit

Waste Disposal Unit

Free kitchen from unsightly and unhygienic organic household waste. Magnet motor of this unit reach high speed in a split second, whilst running water through the unit, food waste is liquefied into fine particles and easily flushed through the pipework.
