Hudson Reed Apex Double Door Sliding Quadrant Shower Enclosure

Hudson Reed Apex M800Q-E8 Details

The Apex Double Door Sliding Quadrant Shower Enclosure bears a reversible design conducive to the right or left-sided installation. Envisioned by Hudson Reed for bathrooms dedicated to delineation to achieve boundary-specific functionality, the enclosure is manufactured using an 8 mm toughened safety glass encased in chrome finished aluminium profile.

Apex gliding doors shut with chrome magnetic door closing strips, especially for showerproof sealing. Besides giving a watertight and airtight closure, magnetic closures are strong and wont lose strength over time. Equipped with a drip tray and shower shield surface coated Glass to prevent limescale build-up, the enclosure allows for out-of-true wall adjustment. It carries a lifetime manufacturers guarantee against manufacturing defects.

Key Features

✔Completes double sliding door with minimalist Square T-bar handles
✔Constructed using 8mm (0.8cm) toughened safety glass
✔Quick-release bottom rollers for easy cleaning
✔Chrome magnetic door closing strips, which maintain a shower-proof seal

Choice of different finish: Chrome and Matt Black - [Optional].
Available in various sizes - 800mm, 900mm and 1000mm [Optional].
Select handle variant - Square and Round [Optional].
Height: 1900mm (190cm).
Radius: 538mm (53.8cm).
Framed design enclosure.
Reversible design - can be fitted on the left or right hand.
Handle material: Metal.
Aluminium profile in polished chrome finish.
Patented Easyfit profile assembly technology as standard.
Supplied with Hidden fixings - chrome finish profile covering fixings for a sleek look.
Smooth gliding doors.
Out of true wall adjustment: 40mm (4cm).

Drip tray with chrome water deflectors.
Shower Shield surface coated glass, which repels water and prevents limescale build-up, significantly reduces cleaning time.
Supplied with screw cover strips and fixing.
Suitable for commercial use.
Compatible shower tray [Optional].
Easy Plumb Kit for Tray [Optional].
Shower Tray waste [Optional].
Profile extension kit [Optional].
The support bar, tray and brassware shown in the image are not included.
Download the quadrant shower tray Data Sheet and Installation Instruction PDF File from the Additional Info Section.
Refer to the technical diagram for the complete technical dimensions.
Lifetime guarantee against any manufacturing defects.

Please note: Optional Legset LEGB is Suitable for 800mm and 900mm Tray And LEGE is Suitable for 1000mm Tray.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Apex
⤷ Coating
: Without Coating
⤷ Weight in kg
: 52
⤷ Shape
: Quadrant
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner
⤷ Radius
: 538
⤷ Handle Style
: T-Bar
⤷ Waste Included
: Sold Separately
⤷ Width
: 780
⤷ Depth
: 780
⤷ Configuration
: Door Only
⤷ Height
: 1900
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: CE | UKCA
⤷ Barcode
: 5055369080519

⤷ Door Type
: Sliding
⤷ Frame Design
: Framed
⤷ Frame / Profile Finish
: Polished Chrome
⤷ Frame Material
: Aluminium
⤷ Glass Type
: Clear
⤷ Glass Thickness
: 8
⤷ Number Of Doors
: 2
⤷ Profile Adjustment
: 760-780
⤷ Entry Width
: 380
⤷ Closing / Opening Mechanism
: Quick Release Rollers
⤷ Tray Included
: Sold Separately
⤷ Easy to Clean Glass
: Yes
⤷ Concealed Fixings
: Yes
⤷ Handle Included
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

Download the DataSheet For Quadrant Shower Tray Pdf File Download the Installation Instruction Pdf File

Technical Images

Hudson Reed Apex Double Door Sliding Quadrant Shower Enclosure

Customise Your Product

Trap and Waste Cover

Upgrade the waste trap and cover different finish available for shower tray. Please note that the image shown is for illustration purposes only.

No Option Selected
OP-213714 - White Trap With Chrome Cover + £11.00
OP-213715 - White Trap With White Cover + £16.27
OP-213716 - White Trap With Brass Cover + £16.27

Easy Plumb And Legset

Supplied with plinth, legs, clips and screws, this leg set kit allows raised installation of quadrant and Offset quadrant shower tray. Please Note: Image is for illustration purpose only.

No Option Selected
OP-208467 - Leg Set And Plinth For 700-900mm Trays + £36.97
OP-208468 - Leg Set And Plinth For 1000-1200mm Trays + £48.66

Optional Plinth Kit

This Polished Chrome finish Kit for suitable is Quadrant Enclosuer. Please note: Image shown is for illustration purpose only.

No Option Selected
OP-113342 - 1900mm Profile Extension Kit - Chrome + £47.15

Total: £306.25 3-4 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

UKCA Great Britain Mark

Merlyn enclosures now carry the UKCA mark, which stands for UK Conformance Assessment. This mark indicates that the product meets or exceeds GB-designated standards. The UKCA mark is now the standard labelling for products sold in Great Britain (England & Wales & Scotland).

Quick Release Rollers

Some shower door runners have a quick-release mechanism on the runners for fast release of the doors or panels for easy cleaning of the enclosure.

Magnetic Closing

Universal magnetic seals equipped with powerful magnets, used in shower doors and drawers, allow the door to be closed with a watertight and airtight seal and are easy to open. This feature is available in furniture, shower enclosures and more. Typically made with magnets and strong metal, these come with adhesive backing or can be applied with glue, contact adhesive, silicone glue or double-stick tape, depending on your selected product.

Reviews & Ratings

By: Philip From : Liverpool Overall Rating: Date: January 30, 2022 Poor construction sheet

The shower enclosure is good, but the instructions for construction are very poor and limited, a few sketches with little written advice. This made the construction long, difficult and needing guess work. Hoped there would be an online support but no, instead was able to get other companies guides to help out. Not good enough Hudson Reed.

Helpful?

Quality:

Style

Value for Money

By: Lesley From : EXETER Overall Rating: Date: March 21, 2016 Shower enclosure

My Lauren Apex Shower enclosure has just been fitted, it looks fantastic and of very good quality and value. The only fault was that the instructions were now very clear, which made it hard for an inexperienced person to fit. I have no hesitation on giving it a five star.

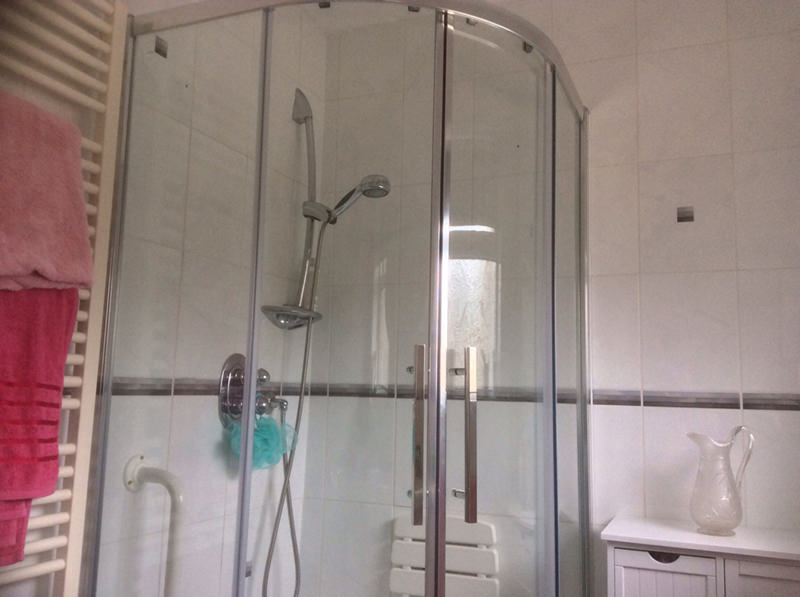

Images Uploaded by the users:
