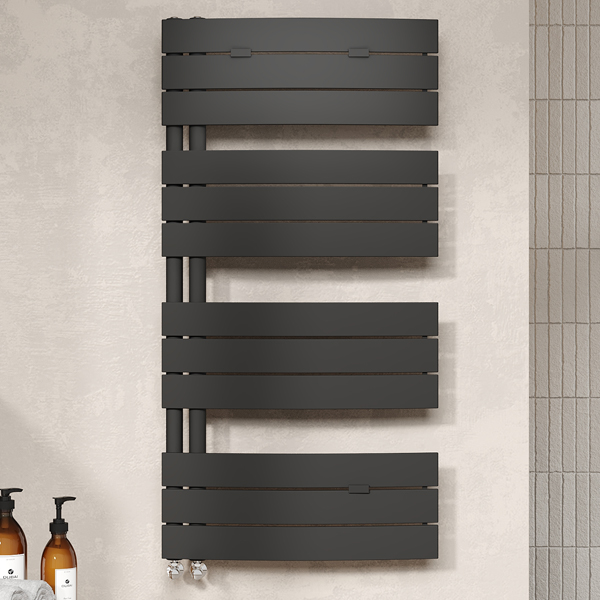

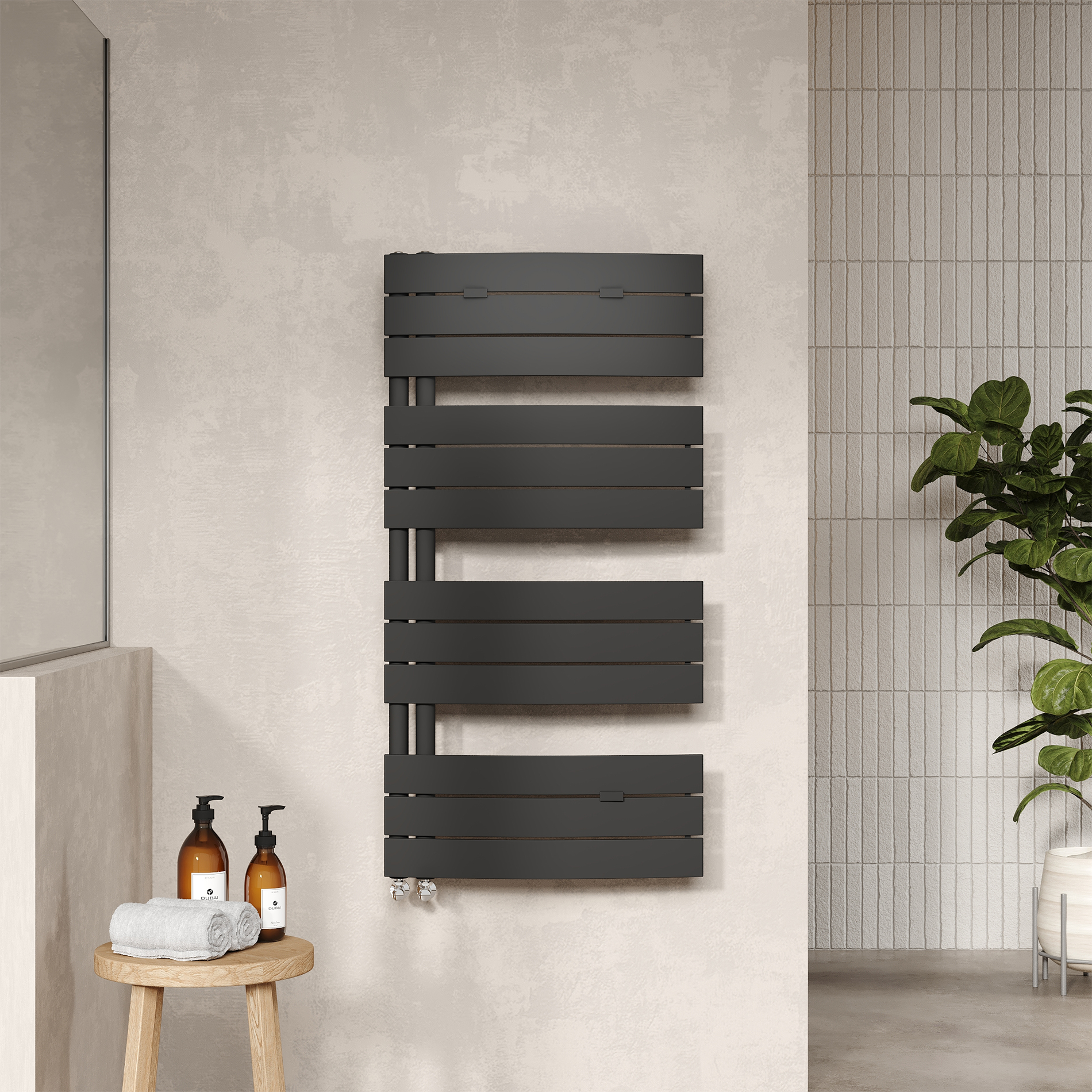

Hudson Reed Elgin 550 x 1080mm Designer Radiator

Hudson Reed Elgin HLA36 Details

This unique Elgin Designer Radiator is brought to you by Hudson Reed for outstanding performance in your home. The radiator is constructed from high-grade material for sturdy and efficient performance for years together.

With an impressive heat output of 500 Watts, this looks elegant in its anthracite and chrome finish. Sure to warm up your hearths and homes, it also elevates the style quotient of any room. The manufacturer gives a convenient guarantee of 5 years on this designer radiator.

Size [mm]: 550mm x 1080mm [Width x Height].
Size [cm]: 55cm x 108cm [Width x Height].
Suitable for wall-mounted installation.
Pipe centre for valves: 50mm (5cm).
Number Of Sections/Panels: 12.
Number of Heat settings: 1.
Type of heat: water.
It comes with a 1/2-inch BSP.
It is recommended that the newly installed radiator is refiled with a suitable inhibitor.
Valves and Heating elements are sold separately.
Suitable valve available in Compatible Valves tab below [Optional].
Optional Heating element [Optional].
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.

Refer to the technical image for detailed technical dimensions.
Details For Anthracite Finish:.
RAL NO: 7016.
Heat Output at 30°C: BTU/hr 864 and Watts 253.
Heat Output at 50°C: BTU/hr 1706 and Watts 500.
Heat Output at 60°C: BTU/hr 2122 and Watts 622.
Projection from the wall: 50mm (5cm).
Details For Chrome Finish:.
Heat Output at 30°C: BTU/hr 581 and Watts 170.
Heat Output at 50°C: BTU/hr 1147 and Watts 336.
Heat Output at 60°C: BTU/hr 1453 and Watts 410.
Projection from the wall: 110mm (11cm).

Note: Hudson Reed recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.

Radiator Calculator

Info / Size (mm)

Radiator
Width: 550 mm
Height: 1080 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Elgin
⤷ Colour
: Anthracite
⤷ Weight in kg
: 15
⤷ Shape
: Curved
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 85
⤷ Width
: 550
⤷ Height
: 1080

⤷ Orientation
: Vertical
⤷ Barcode
: 5057199228970
⤷ BTU Output
: 30°C - 864 | 50°C - 1706 | 60°C - 2122
⤷ Watts
: 30°C - 253 | 50°C - 500 | 60°C - 622
⤷ Tapping / Pipe Centres
: 50
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard
⤷ Brackets Included
: Yes

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Customise Your Product

Heating Element

Excellent Heat output heating element with an attractive Chrome finish and comes with 12 months of guarantee. Please Note: The image shown is for illustration purposes only.

None
OP-30258 - 150 Watt Heating Element + £46.40
OP-30259 - 300 Watt Heating Element + £49.03
OP-101777 - 600 Watt Heating Element + £55.44
OP-123995 - 300 Watts Thermostatic Heating Element With Booster Function + £109.67
OP-123996 - 600 Watts Thermostatic Heating Element With Booster Function + £109.67

Total: £208.94 5-7 Working Days Approx QS Supplies

2 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
Read more...

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...
