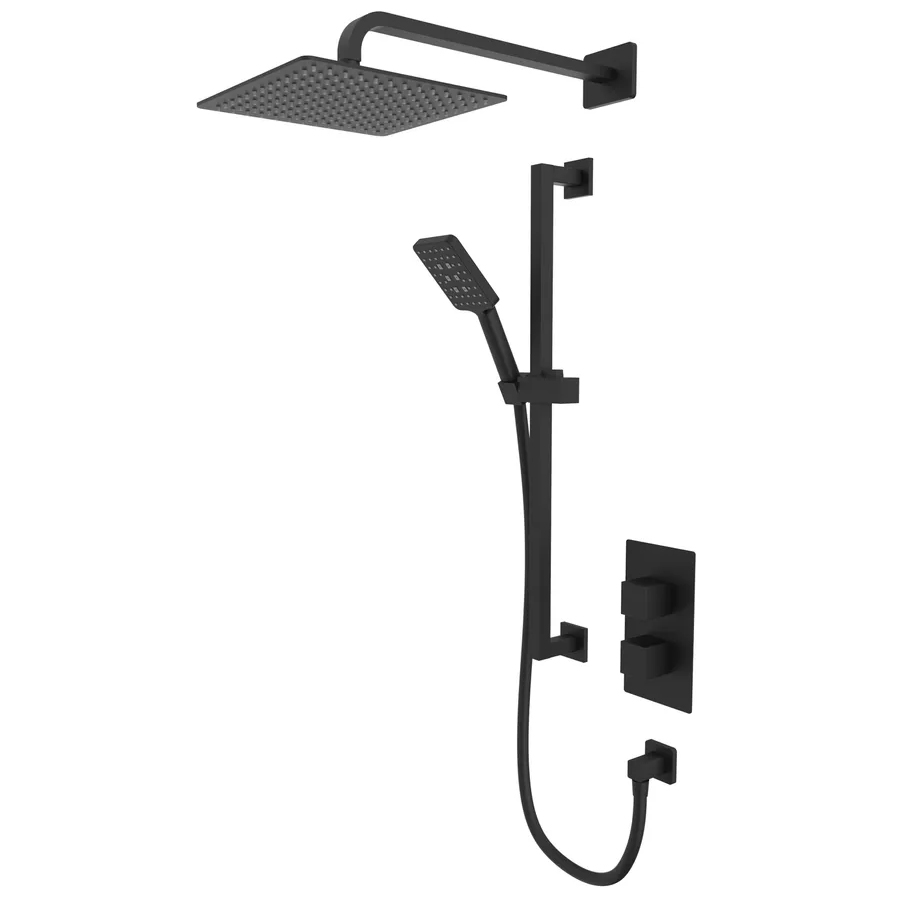

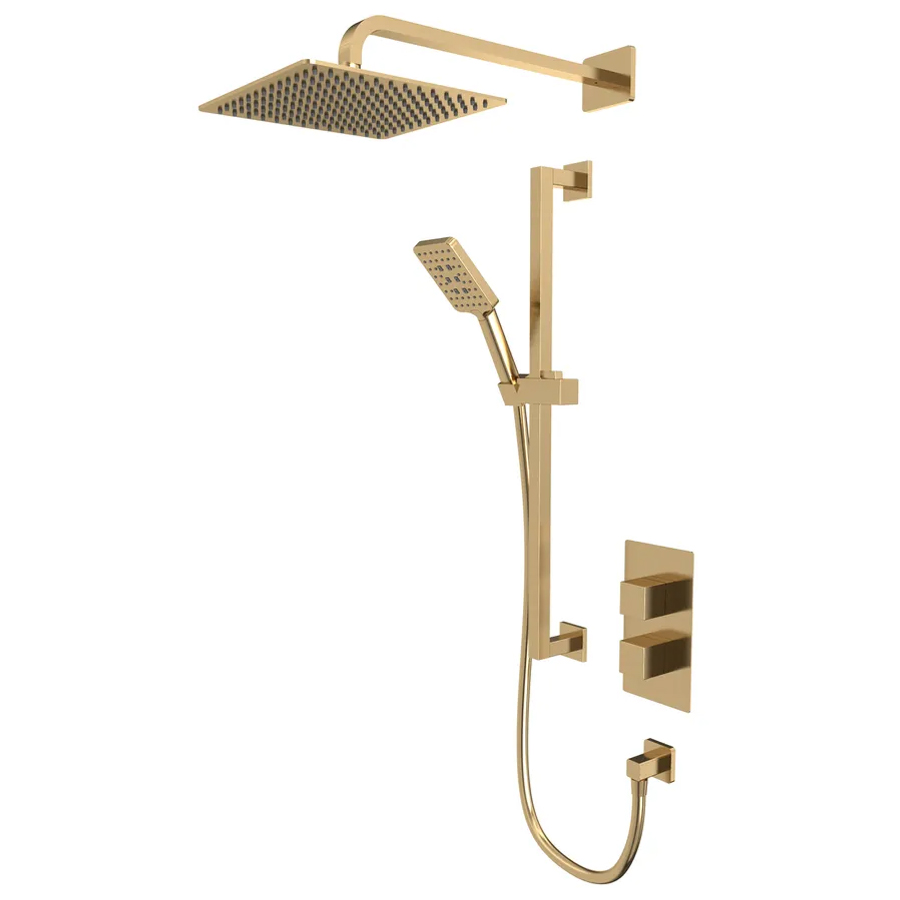

Tavistock Index Concealed Dual Function Shower Set

Tavistock Index SND1610 Details

This provocatively glamorous and stylishly dignified Tavistock Index Concealed Dual Function Shower Set will embed itself as the lead design element of your bathroom and reflect your elegantly refined aqua design sense. Made from high-quality material and finished in exquisite chrome, this designer bathroom adornment is guaranteed to empower you with pleasurable bathing moments. The set comes with a stainless steel head and arm, height adjustable riser rail, single function handset and an easy clean PVC hose.

The manufacturing code of this product is SND1610.
Stylish and contemporary angular design.
The product consists of the following:.
218mm (21.8cm) square stainless steel head with arm.
The projection of the arm from the wall is 433mm (43.3cm).
585mm (58.5cm) Height adjustable riser rail with single function handset and easy clean PVC hose.
Valve Inlet and Outlet Dimension: 1/2-inch BSP.
Adjustment Range of Riser Rail (once fixed to the wall): 550mm (55cm).
Hose Length: 1500mm (150cm).

Height of Shower Handset (in holder): 250mm (25cm).
Recess depth of valve 85-100mm (8.5cm - 10cm).
Size Of Valve [mm]: 120mm x 215mm [Length x Width].
Size Of Valve [cm]: 12cm x 21.5cm [Length x Width].
Suitable for low water pressure system.
Requires a minimum of 0.5 bar and above water pressure.
The diverter valve allows controlling two separate accessories.
Download the Installation Instruction PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: 10 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Hose Included
: Yes
⤷ Spray Setting
: 1
⤷ Configuration
: Valve, Riser Rail And Shower Head
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes

⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable for low water pressure system
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: W 120 x H 215
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 220 x 220
⤷ Rail Length
: 585

Additional Info & Downloads

Download the Installation / Aftercare Instructions Pdf File Download the Installation Guide Pdf File Download the Technical Data Sheet Pdf File

Total: £359.74 2-3 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
