Bristan Zing Safe-Touch Thermostatic Cool Shower Valve With Riser Kit

Bristan Zing ZI SHXSMCTFF C Details

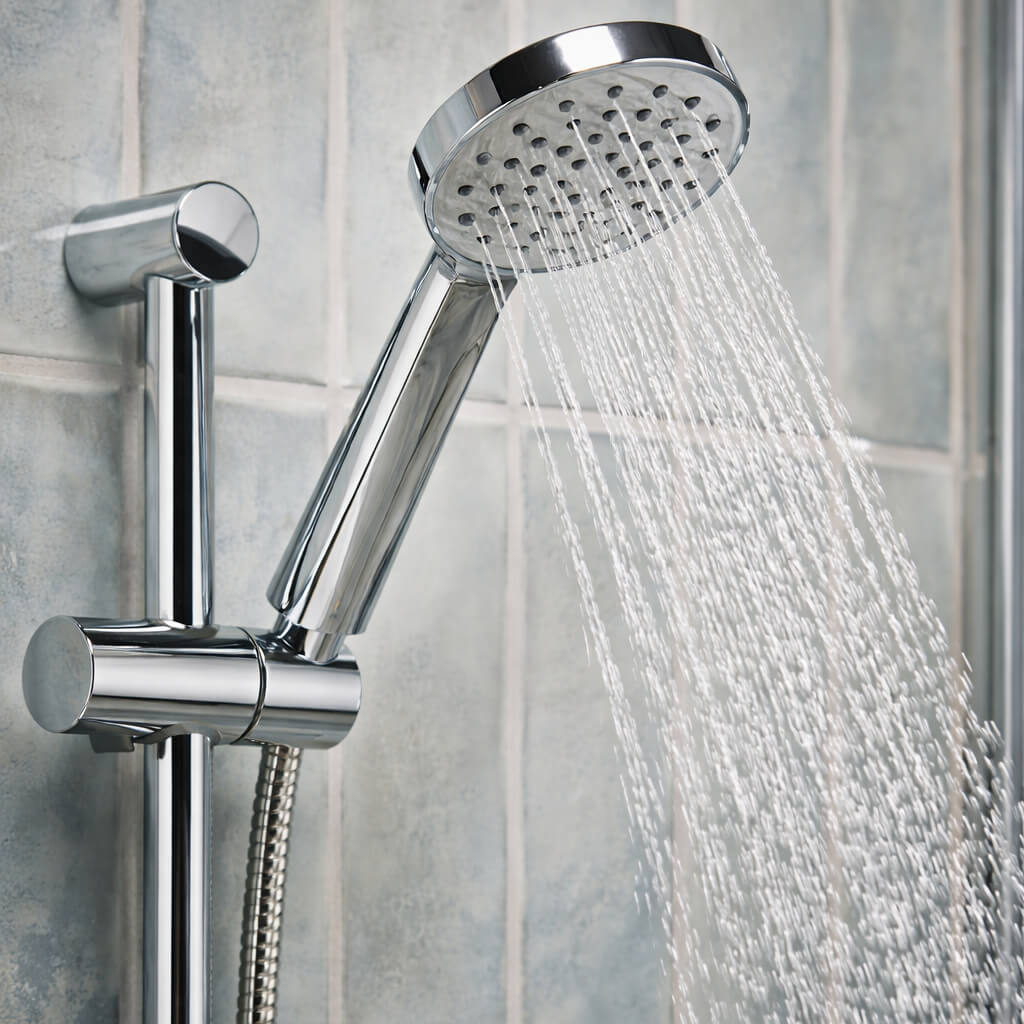

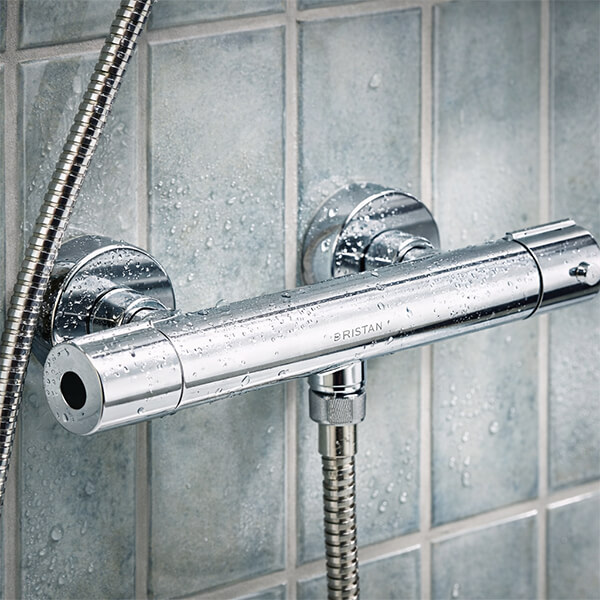

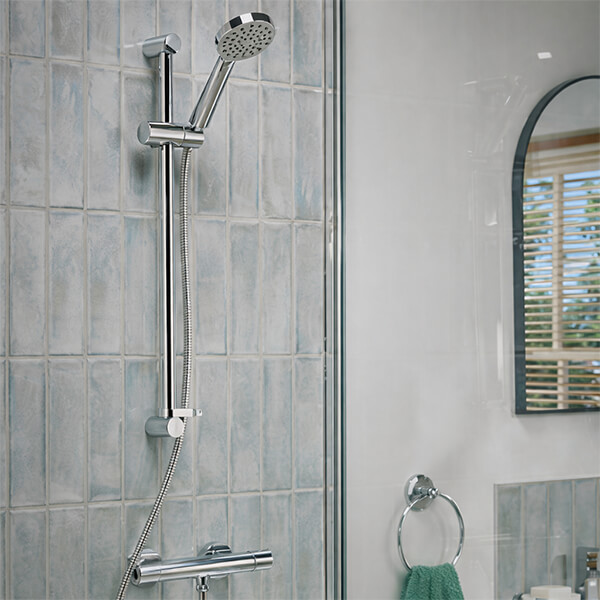

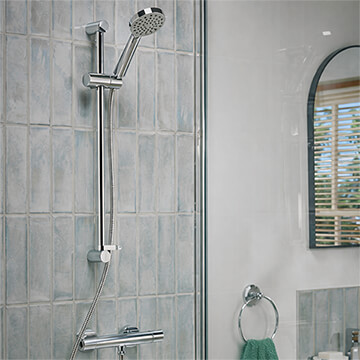

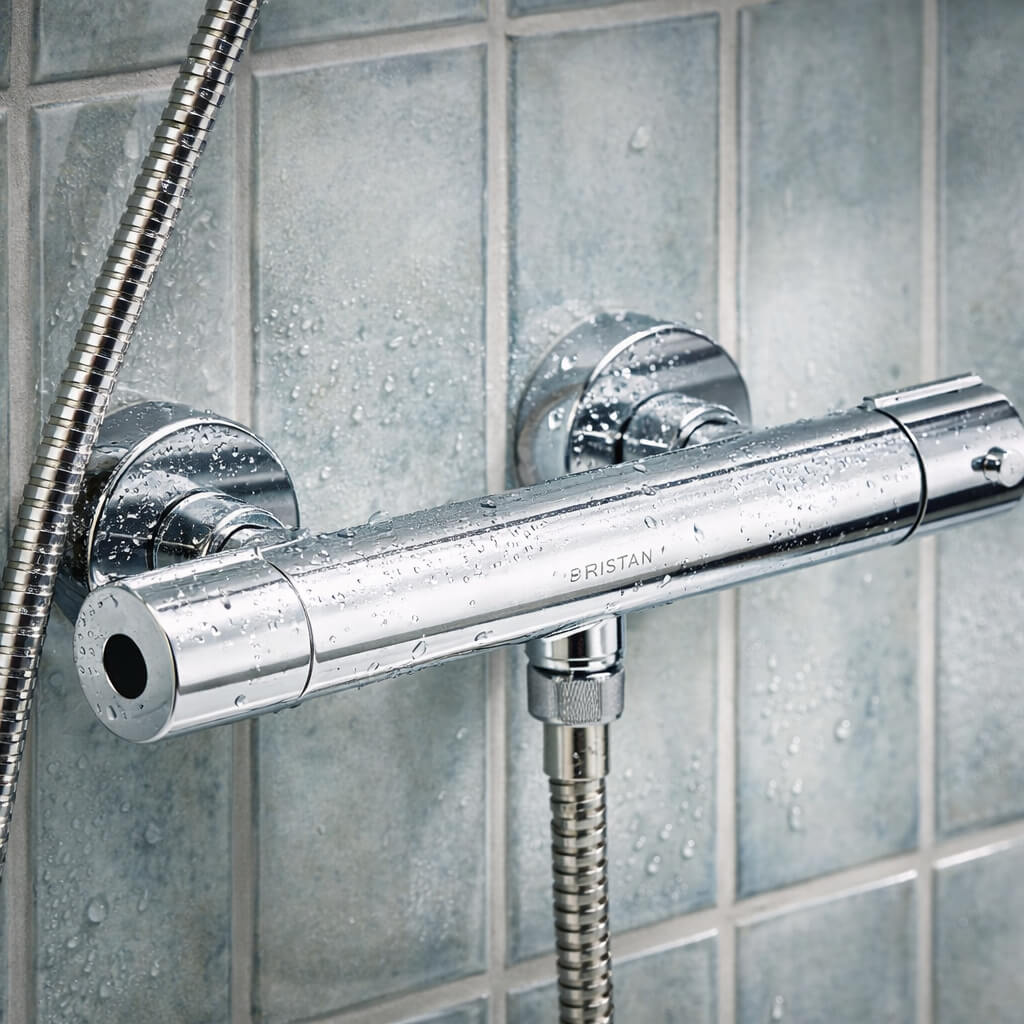

Put a little zing in your washroom and enjoy your showers like never before. The Thermostatic Cool Touch Bar Mixer Valve from Bristan Zing with a unique Cool Chrome technology keeps the bar valve cool throughout use. A neat accompanying kit includes an adjustable riser rail, a hose with a retainer and a single-function handset with a rub-clean nozzle.

Every element in the assortment has a tubular, slim design, updated by a dazzling chrome polish to create a one of a kind setting that is pure luxury. Temperature and water flow are monitored separately. A pre-set temperature of 38 degrees is maintained steady within +/- 1 Degree C by a thermostatic cartridge. Built for flawless functioning, guaranteed for five years by the manufacturer.

Manufacturing code of this product - ZI SHXSMCTFF C.
It comes in a chrome finish.
Contemporary and stylish design.
15mm inlet connections.
Thermostatic cartridge with preset temperature stop at 38°C can be over-ridden to a maximum of 46°C.
Cold water feed surrounds the hot water to ensure the valve is safe to touch by all the family.
Maximum static pressure is 10.0 bar.

Thermostatic cartridge system.
Dual control - Flow and temperature are controlled separately, giving accurate control of both.
The thermostatic cartridge maintains the showering temperature to +/- 1º C by compensating for changes in the incoming water temperature and pressure, giving the stable outlet temperature.
Factory set to a maximum of 38º C to eliminate the ability to select an unsafe temperature - this is adjustable to suit user preference and up to a maximum of 46º C.
Chrome plated to BS EN 248.
Required minimum 0.2 bar to maximum 5.0 bar water pressure.
Refer to the technical image for the technical dimension.

Info / Size (mm)

Shower Kit
Height: 650 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Exposed
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes

⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: BS EN 248
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Valve Size
: W 227 x D 89
⤷ Rail Length
: 685

Additional Info & Downloads

Download the Installation Guide Pdf File

Total: £67.12 2 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V41624	-	Basic Cool Touch Bar Mixer Valve	ZI SHXSMCT C

Back to QS-V79213 / MFC Code: ZI SHXSMCTFF C

7 Features Included In This Product Explained

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Eco-Friendly

This feature saves you more on water consumption and bills. These showers save as much water as possible while showering without feeling low water pressure.

Safe Touch

The unit's exterior stays cool to the touch, even when hot water runs through the unit, keeping scalding accidents down to zero.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Norman Asked :
Can the raiser pole be cut to fit some existing holes 610cm, or are the ends fixed to the pole?

Answered By QS Team

Unfortunately, the riser rail cannot be cut down due to the holes on either end of the riser where the brackets will screw in. We have attached our shower fitting instructions, showing this more clearly in the riser installation section.
