Bristan Regency Thermostatic Dual Control Shower Valve With Rigid Riser Kit

Bristan Regency R2 SHXRR C Details

Once you are sure of the exact location you choose to install the Regency Thermostatic Shower Valve, you do get the benefit of installing the Rigid Riser Kit along with it. The entire set is made of brass and covered with the durable finish of chrome to last a long period. It is suitable for all kinds of the plumbing system that makes it very reliable for any household. It is covered under a 5 years guarantee from Bristan against any manufacturing defects.

The manufacturing code of this product is: R2 SHXRR C.
It comes in a chrome finish.
Shower type: Exposed thermostatic.
Shower head type: Fixed head.
Valve cartridge type: Thermostatic.
Maximum hot water supply temperature: 65°C.
Maximum static pressure: 10 bar.
Suitable for all plumbing systems.
Minimum dynamic pressure: 0.1 bar.
Maximum dynamic pressure: 5.0 bar.
Connection inlet: 15mm compression elbows.

Connection outlet: G 1/2 inch.
Rail height: 975mm - (97.5cm).
Valve size in [mm]: 155mm x 135mm x 138mm [Width x Depth x Height].
Valve size in [cm]: 15.5cm x 13.5cm x 13.8cm [Width x Depth x Height].

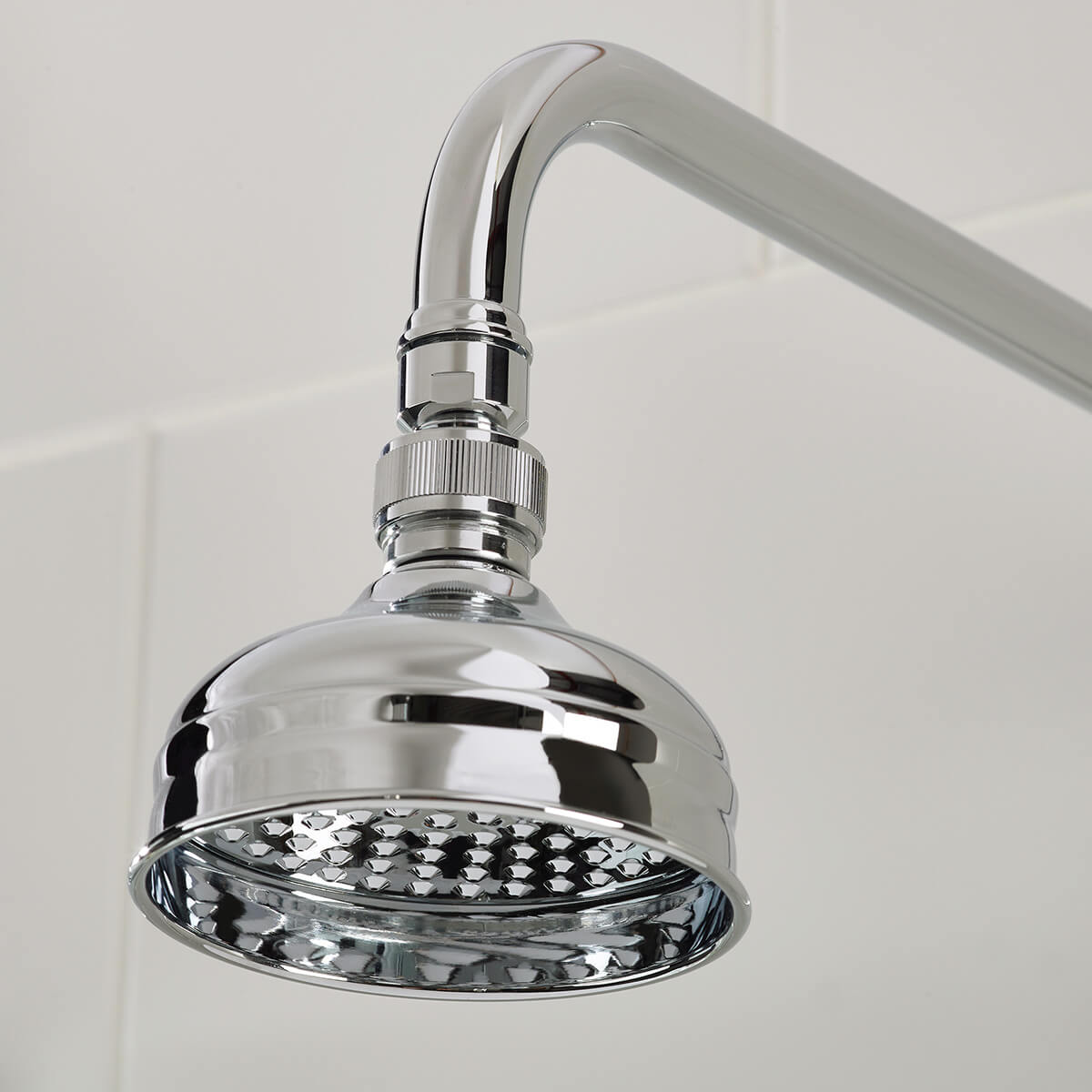

Shower head: Ø 115mm - (11.5cm).
15mm inlet connections.
Easy replacement with adjustable inlets so you can use on existing pipework centres between 110mm and 155mm.
Thermostatic cartridge with preset temperature stop at 42°C.
Supplied with 1 x 7L/min and 1 x 5L/min flow regulators.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Shower Set
Height: 975 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 155

⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø115
⤷ Rail Length
: 975

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £272.64 2 Working Days Approx QS Supplies

8 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Reviews & Ratings

By: Chris From : Oxford Overall Rating: Date: March 12, 2021 Looks good, but not great build quality

Really nice looking shower and a pleasure to use. However, I am not very impressed with the build quality of the valve unit itself. There is a significant degree of wobble to the lever (back and forth), which doesn't make it feel particularly high quality. I think something from Heritage may feel significantly better made.

Helpful?

Quality:

Style

Value for Money

By: Jordan From : ELY Overall Rating: Date: October 5, 2022 Great looking shower

Really nice-looking shower that works well. The only downsides are that the handles are a bit wobbly, and the shower head could be bigger, so you get better coverage. All in all a really good shower for the price.
