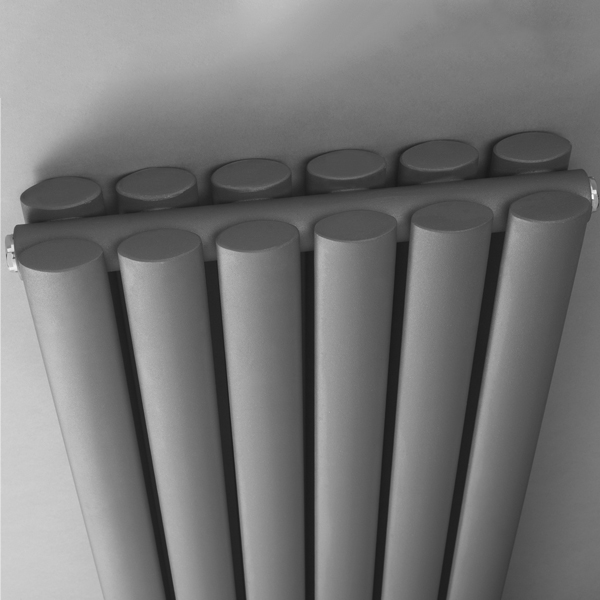

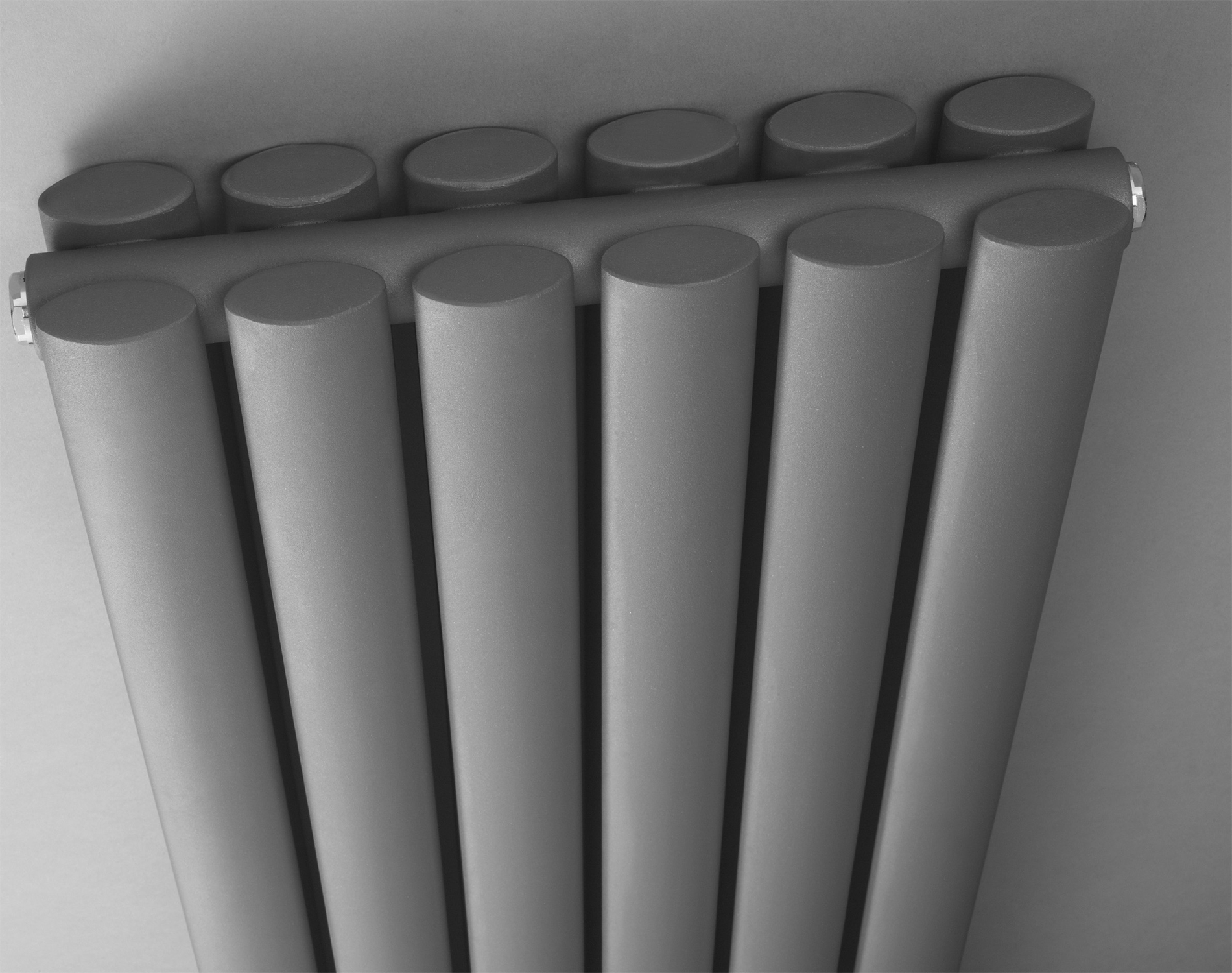

Hudson Reed Revive 236 x 1800mm Vertical Designer Radiator

Hudson Reed Revive HRE007 Details

Hudson Reed introduces this Double Panel Radiators that adds charm to your living space and magnificently heats the surrounding. Its high-grade construction makes this adorable creation withstand the test of time and adds a calming feel in your living area. This radiator produces excellent heat output and turns the room into a warm haven where you can unwind and relax during the coolest of days.

Available in white or anthracite finish [Optional].
RAL No.: White: 9016 and Anthracite 7016.
Double Panel radiator.
Size [mm]: 236mm x 78mm x 1800mm [Width x Depth x Height].
Size [cm]: 23.6cm x 7.8cm x 180cm [Width x Depth x Height].
The maximum projection from the wall: 110mm (11cm).
Ideal for a place where space is at a premium.
Suitable for wall mount installation.
It comes with a Rounded edges design.
Wall to Centre of Tapping: 70mm (7cm).
Pipe centre: 59mm (5.9cm).
Type of Heat: Water.

BTU/Hr: @30°C - 1232, @50°C - 2461, @60°C - 3118.
Watts: @30°C - 361, @50°C - 721, @60°C - 900.
No. of Heat setting: 1.
Number of Sections/Panels: 8.
Orientation: Vertical.
After installing new radiators, a suitable inhibitor is to be used when refilling the system.
All tapping is 1/2" British Standard Pipe.
Valves shown in the image are not included - sold separately.
Suitable valve available in Compatible Valves tab below [Optional].
Towel rail and Robe hook - [Optional].
Refer to the technical image for detailed technical dimensions.
Download Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.

Radiator Calculator

Info / Size (mm)

Radiator
Width: 236 mm
Height: 1800 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Revive
⤷ Colour
: White High Gloss
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 236
⤷ Projection (Depth)
: 110
⤷ Height
: 1800

⤷ Orientation
: Vertical
⤷ Barcode
: 5055369027705
⤷ BTU Output
: 30°C - 1232 | 50°C - 2461 | 60°C - 3118
⤷ Watts
: 30°C - 361 | 50°C - 721 | 60°C - 900
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 70
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Customise Your Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

OP-101782 - Magnetic Robe Hook + £26.06
OP-101783 - Radiator Hook + £17.03
OP-101785 - Robe Hook for Radiator + £11.75
OP-101784 - Magnetic Towel Rail + £60.71
OP-101786 - Towel Rail for Radiator + £41.50

Total: £117.60 3-4 Working Days Approx QS Supplies

2 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
Read more...

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
