Bristan Artisan Chrome Thermostatic Bar Shower Valve And Fast Fit Connections

Bristan Artisan AR2 SHXVOFF C Details

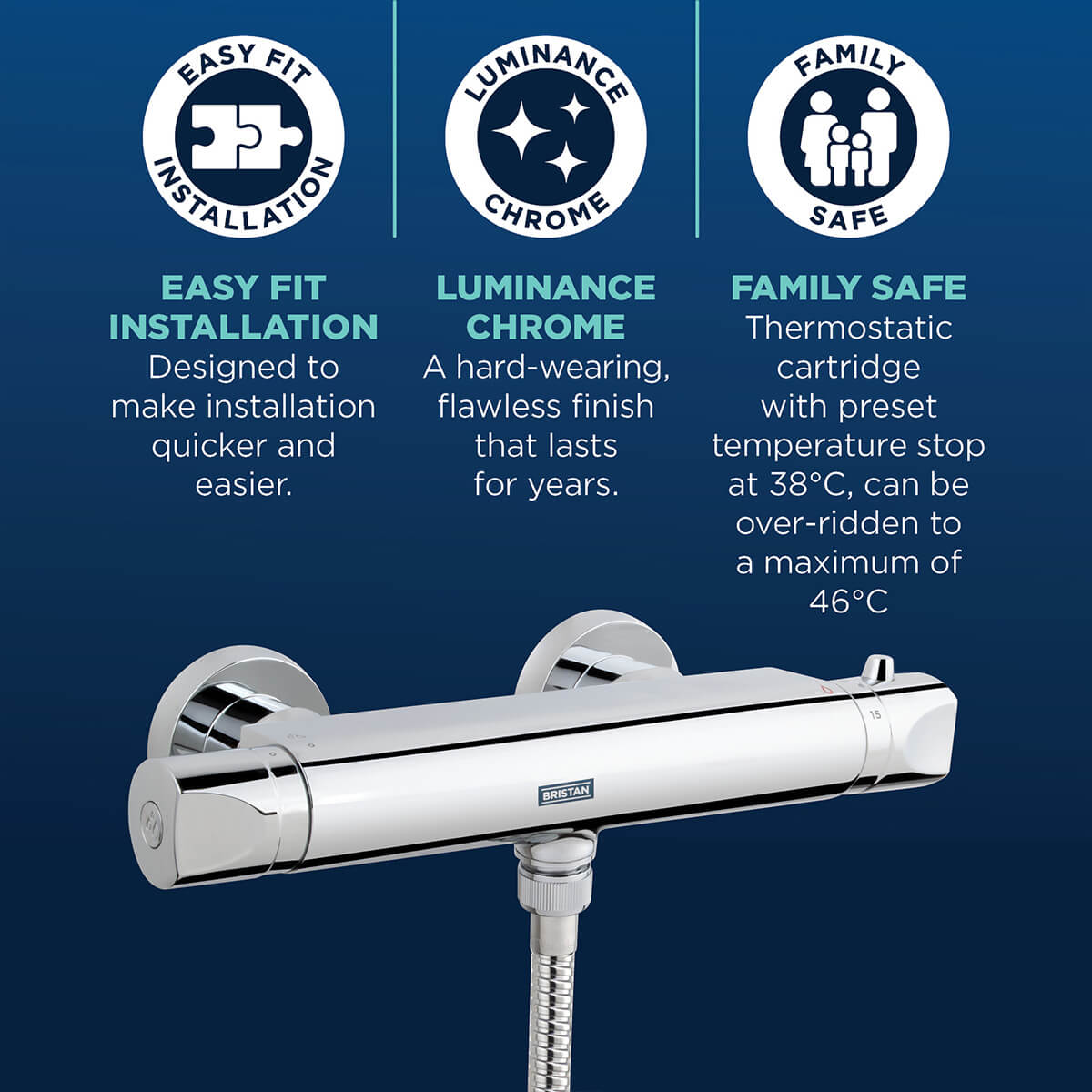

Aligning with the brisk tempo of life, Bristan Artisan brings you the Thermostatic Bar Shower valve with Fast Fit connection, so fast and easy to install. Just follow easy downloadable instructions and relax; the valve is covered with a 5-year guarantee by Bristan against any manufacturing defect. This artistic master-piece finished in bright chrome, exudes a sophisticated charm with its alluring tubular profile designed for handy placement within quadrant of offset quadrant shower enclosures.

The dual-control valve comes with a thermostatic cartridge and Quarter Turn 1/2 Inch ceramic disc valve. Eco-smart and safety features such as flow control, a couple of flow regulators, a pre-set safe temperature and automatic shut-down during water failure make this valve a winner. This bar valve easily blends with a shower-head.

Manufacturing code of this product: AR2 SHXVOFF C.
It comes in a fabulous chrome finish.
Maximum hot water supply temperature: 80ºC.
Maximum Static Pressure: 10 bar.
A thermostatic cartridge with a preset temperature stop at 38°C can be overridden to a maximum of 46°C.
The flow control handle incorporates an Eco button to save water; the user can override this.
Supplied with a wall mount ten fixing kit for easier retro installation.
TMV2 thermostatic control for a higher level of performance and protection.
Size in [mm]: 300mm x 70mm [Width x Height].
Size in [cm]: 30cm x 7cm [Width x Height].
Inlet centre: 150mm - (15cm).
Inlet connection: 15mm compression.

Outlet connection: G1/2 inch.
Suitable for all types of plumbing installation.
Family safe.
Drenching.
Easy fit installation.
Matching taps and showers.
Decor smart.
Suitable for low water pressure system.
Required minimum 0.1 bar or above 5.0 bar water pressure.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 150
⤷ Overall Height
: 63
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Water Saving
: Yes
⤷ Flow Rates (l/min)
: 0.2 bar - 5.8
⤷ Handle Style
: Knob

⤷ WRAS Approved
: Yes
⤷ Depth
: 95
⤷ Temperature Control
: Thermostatic
⤷ TMV2 Approved
: Yes
⤷ Number of Handles
: 2
⤷ Outlet Connection
: 1/2"
⤷ Plumbing System Compatibility
: All Systems
⤷ Plumbing Option
: Exposed
⤷ Overall Width
: 260
⤷ Maximum Operating Pressure (Bar)
: 5

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £127.20 2 Working Days Approx QS Supplies

9 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
