Bristan Zing Basic Cool Touch Chrome Bar Mixer Valve With Kit

Bristan Zing ZI SHXSMCT C Details

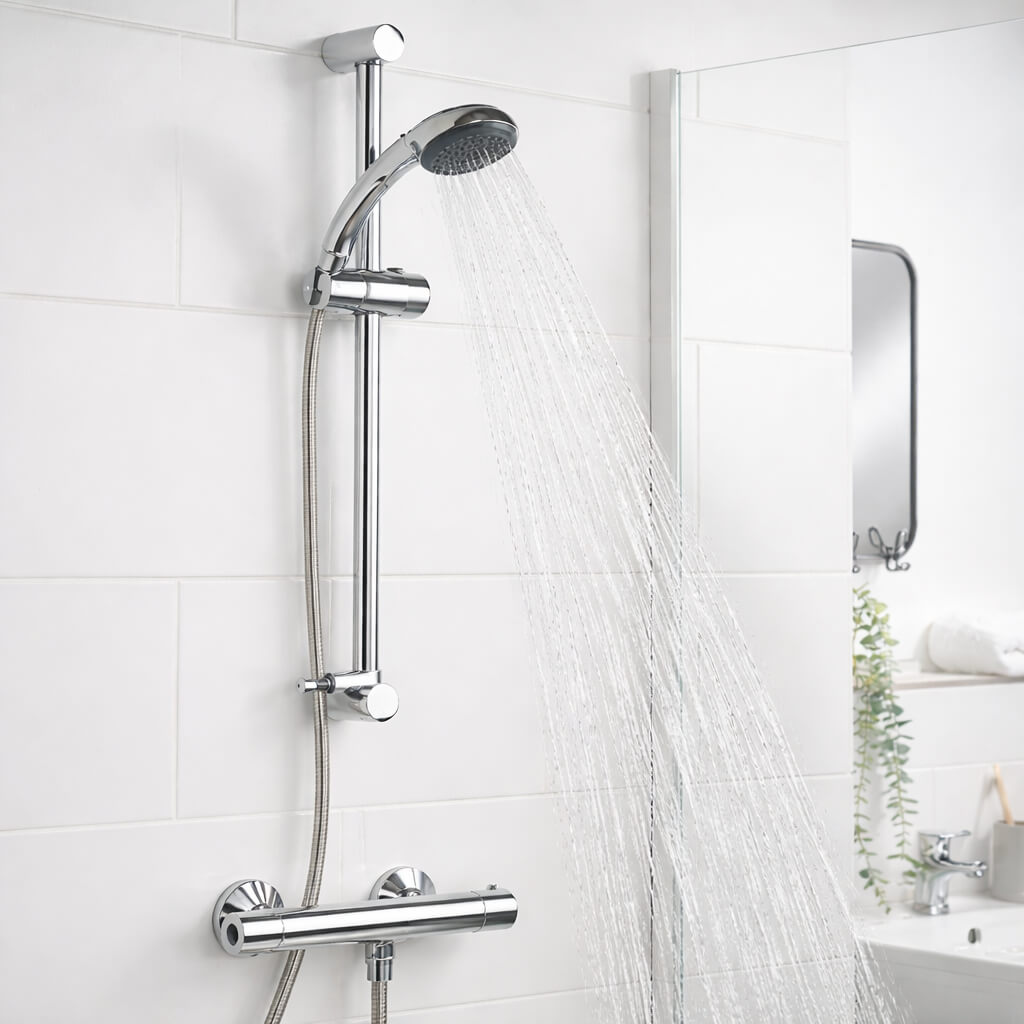

Put a little zing in your washroom and enjoy your showers like never before. The Basic Cool Touch Bar Mixer Valve from Bristan Zing with a unique Cool Chrome technology keeps the bar valve cool throughout use. A neat accompanying kit includes an adjustable riser rail, a hose with a retainer and a single-function handset with a rub-clean nozzle.

Every element in the assortment has a tubular, slim design, updated by a dazzling chrome polish to create a one-of-a-kind setting that is pure luxury. Temperature and water flow are monitored separately. A pre-set temperature of 38 degrees is maintained steady within +/- 1 Degree C by a thermostatic cartridge. Built for flawless functioning, the WRAS-approved product is guaranteed for five years by the manufacturer.

The manufacturing code of this product is ZI SHXSMCT C.
It comes in a chrome finish.
G 1/2 inch inlet connections.

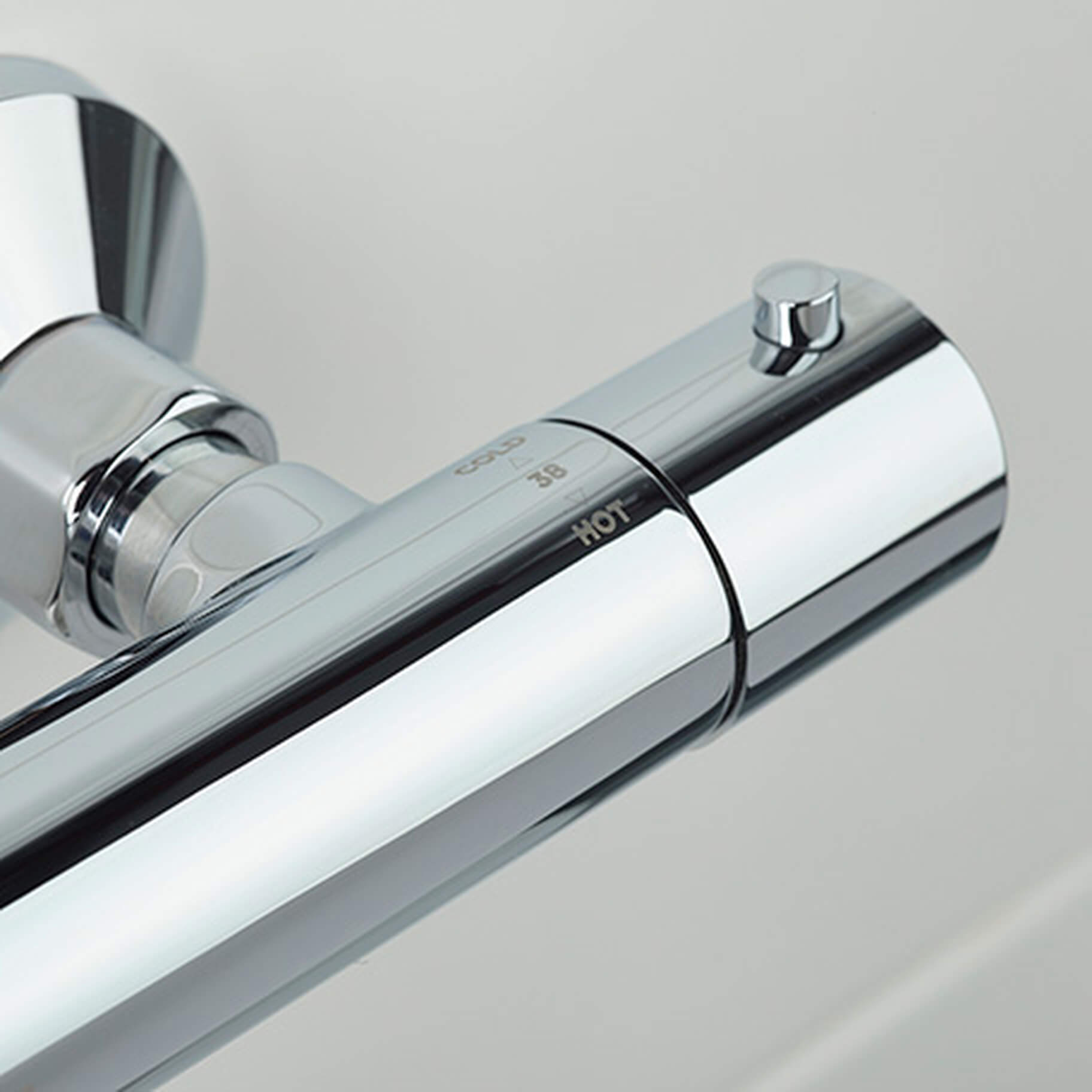

Thermostatic cartridge with preset temperature stop at 38°C can be over-ridden to a maximum of 46°C.

Cold water feed surrounds the hot water to ensure the valve is safe to touch by all the family.
Maximum hot water supply temperature °C: 65.
Required minimum 0.2 bar to maximum 5.0 bar water pressure.
Refer to the technical image for the technical dimension.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Bar
⤷ Inlet Centres
: 135-165
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Spray Setting
: 1
⤷ Flow Rates (l/min)
: 0.5

⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: BS EN 248
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable for all plumbing systems
⤷ Handset Included
: Yes
⤷ Valve Size
: W 280 x D 90
⤷ Shower Head Included
: Yes
⤷ Rail Length
: 685

Additional Info & Downloads

Download the Installation Guide Pdf File

Total: £56.40 2 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V79213	-	Thermostatic Cool Shower Valve	ZI SHXSMCTFF C

Back to QS-V41624 / MFC Code: ZI SHXSMCT C

7 Features Included In This Product Explained

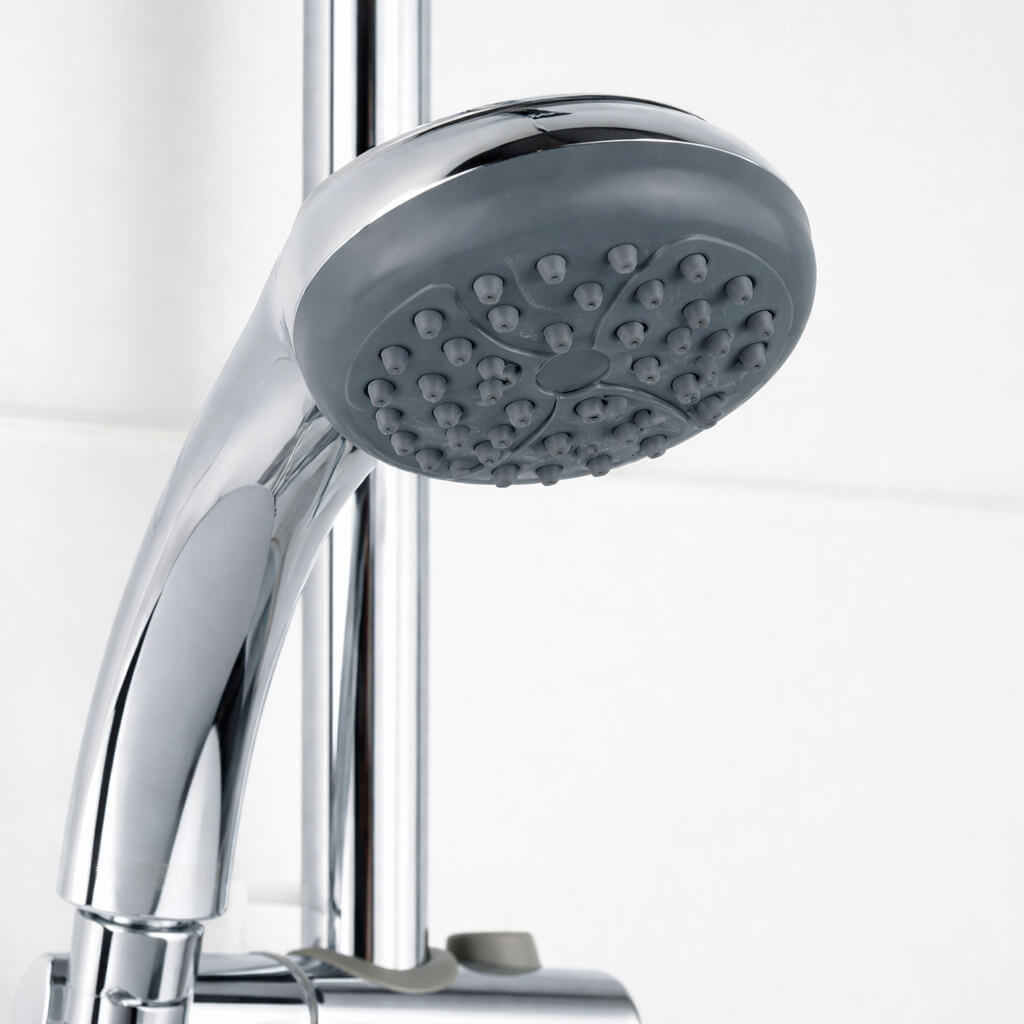

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Safe Touch

The unit's exterior stays cool to the touch, even when hot water runs through the unit, keeping scalding accidents down to zero.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Eco-Friendly

This feature saves you more on water consumption and bills. These showers save as much water as possible while showering without feeling low water pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Reviews & Ratings

By: Spencer From : Nottingham Overall Rating: Date: September 7, 2015 Bristan

Basic shower unit without adjustable spay head. The fixed spray pattern is a bit narrow so consider buying a variable one. Nice compact mixer, temperature control is good. I bought 2 of these and they have never caused me any problems. Family never comments on them so they must be OK.

Helpful?

Quality:

Style

Value for Money

By: Alexandra From : LONDON Overall Rating: Date: February 20, 2023 Perfect shower bar

Excellent shower bar from Bristan; very easy to fit and looks good, and does the job perfectly. The item arrived very quickly and was very well packaged. Very happy with my purchase.

Helpful?

Quality:

Style

Value for Money
