Bristan Frenzy Contemporary Cool Touch Bar Mixer Shower And Kit

Technical drawing QS-V41622 / FZ SHXMMCTFF C

Additional image of Bristan Frenzy Contemporary Cool Touch Bar Mixer Shower And Kit

£82.80

STOCK AVAILABILITY

2 Working Days Approx

4.0 out of 5

Based on 3 Ratings.

Shipping: £7.95

Key Features

✔The body is of brass construction
✔Cartridge Type: Thermostatic cartridge
✔Supplied with WMNT10 C fast-fit connections
✔WRAS approved
✔Five-year guarantee covering manufacturing faults from the manufacturer.

QTY

SKU Code: QS-V41622

Bristan Frenzy FZ SHXMMCTFF C Details

The surface-mounted Contemporary Cool Touch Bar Mixer and Kit from Frenzy range ensure efficiency and safety with a panorama of features. The unique Cool Chrome technology ensures the bar valve stays cool throughout use and prevents scalding. With a nifty single-function handset with a rub-clean nozzle, a hose with a retainer and an adjustable riser rail, all made of brass with fine chrome plating.

It also features a ceramic disc valve and thermostatic cartridge for durability. Requiring operating pressure between 0.2 bar and 5.0 bar, it comes with WMNT10 C fast-fit connections. The manufacturer vouches for its flawless construction with a 5-year guarantee.

The manufacturing code of this product is FZ SHXSMCTFF C.
It comes in a chrome finish.

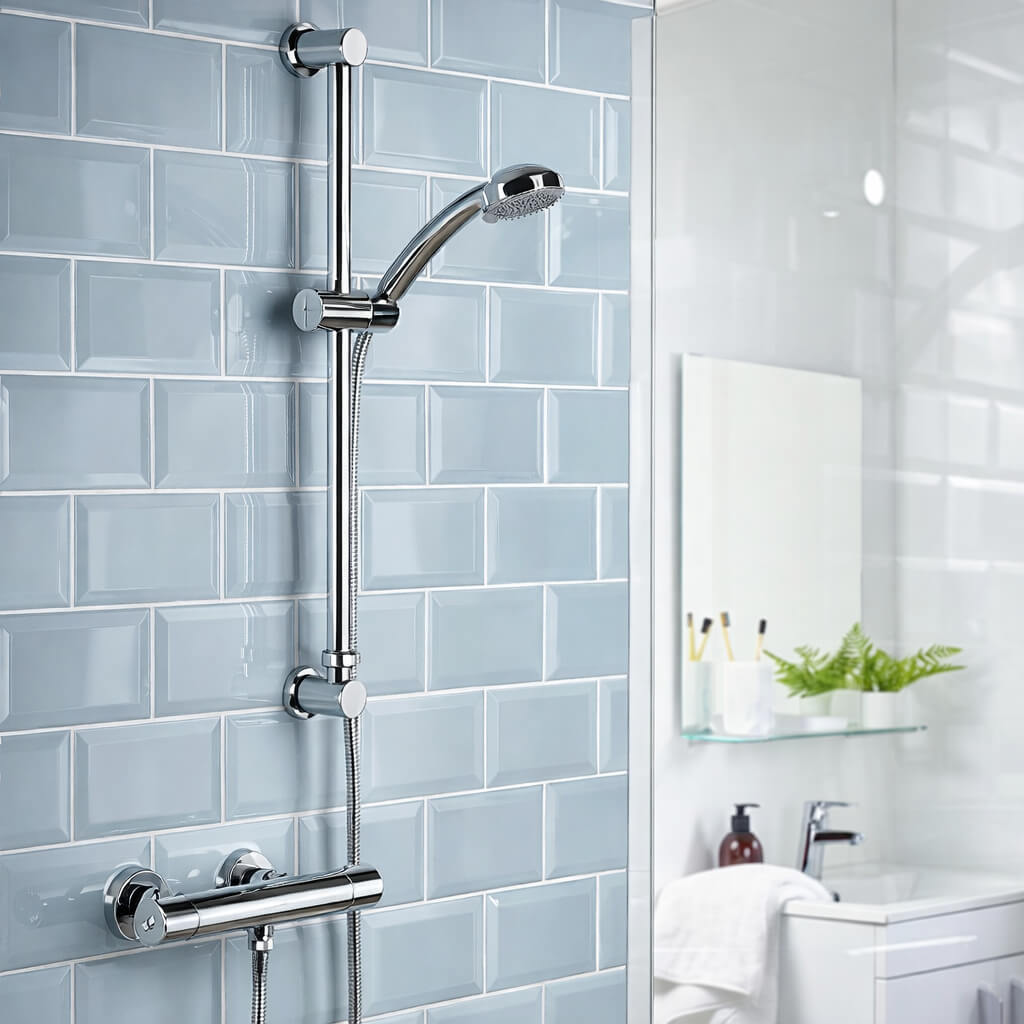

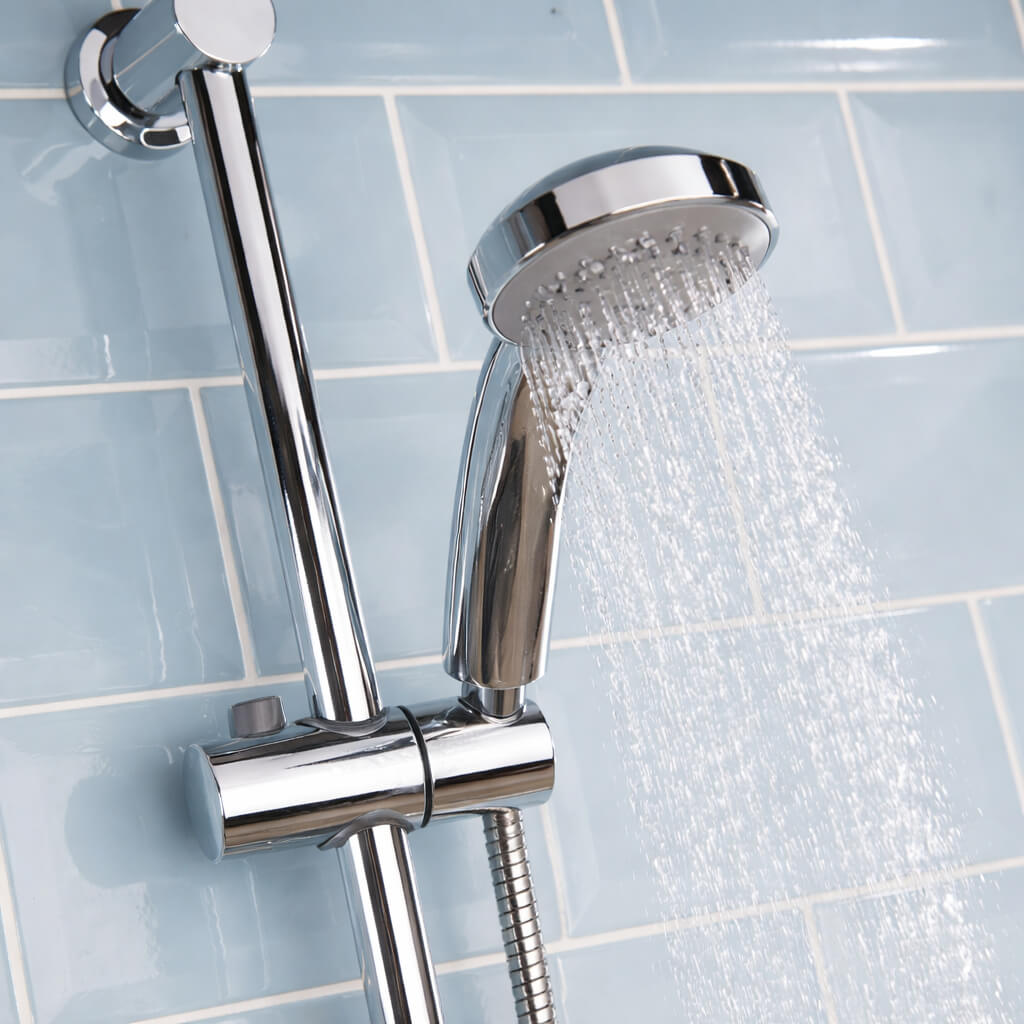

Supplied with 1.5m hose, riser rail, hose retainer and single function handset with clean rub nozzles.
Chrome plated to BS EN 248.
Suitable for all plumbing systems.

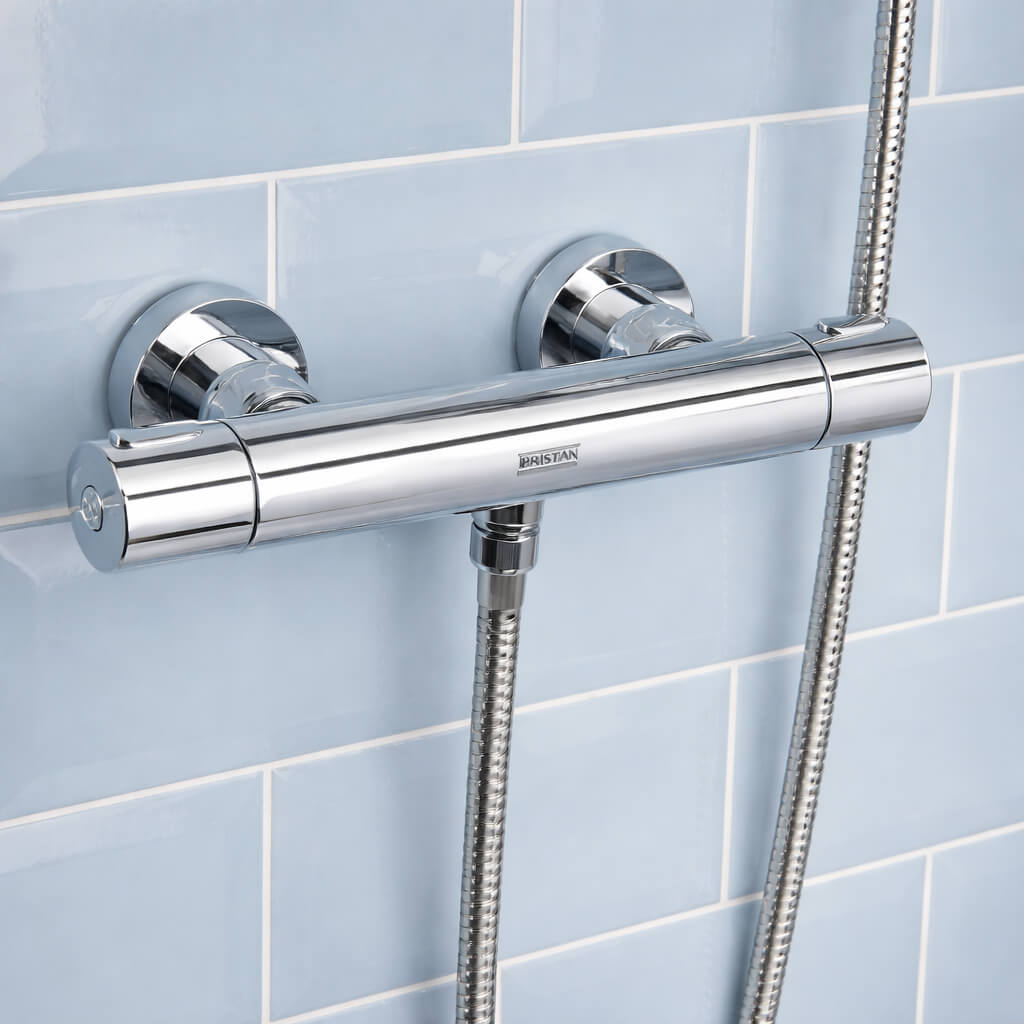

Thermostatic surface-mounted bar shower valve.
Adjustable riser kit.
Valve Type: 1/4 Turn 1/2 inch ceramic disc valve.
Inlet connections: 15mm compression connections.
Outlet connection: G 1/2 inch.

Working Pressures: minimum 0.2 bar, maximum 5.0 bar.
Maximum static pressure 10.0 bar.
Dimensions for fitting: 150mm inlet centres.
Unique cool chrome technology ensures the bar valve stays cool to the touch while in use.
Dual control - Flow and temperature are controlled separately.
The thermostatic cartridge maintains the showering temperature to +/- 1º C by compensating for changes in the incoming water temperature and pressure, giving the stable outlet temperature.
Factory set to a maximum of 38º C to eliminate the ability to select an unsafe temperature - this is adjustable to suit user preference and up to a maximum of 46º C.
The flow control handle incorporates an eco button to save water; the user can override this.
Download the Installation Instruction PDF File From The Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Bar
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: BS EN 248
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Valve Size
: W 300 x D 105 x H 65
⤷ Shower Head Included
: Yes
⤷ Rail Length
: 650

Additional Info & Downloads

Download the Installation Guide Pdf File

Total: £82.80 2 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Safe Touch

The unit's exterior stays cool to the touch, even when hot water runs through the unit, keeping scalding accidents down to zero.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Eco-Friendly

This feature saves you more on water consumption and bills. These showers save as much water as possible while showering without feeling low water pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews

By: Malcolm From : Ventnor Overall Rating: Date: August 15, 2019 Mixer Shower Kit

Very good quality product. Like the different shower jets. Read the instructions carefully, pipes protruded slightly too much so shower bar wouldn’t sit flush against wall and needed to be trimmed but not a serious problem. Would recommend this product.

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

By: Graham From : Sandwich Overall Rating: Date: September 7, 2015 QS-V41622 TMV shower

This has been a good shower. Used almost daily since new since no bathtub is installed. We had this installed by the plumber several years ago and has not given any trouble. I would recommend this item to others.

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

By: Steven From : Witney Overall Rating: Date: August 16, 2017 Great value great shower

Bought this product as we had a similar one previously. Wonderful value, easy to fit and great service.

Helpful?

Quality:

Style

Value for Money

By: Sara From : LANCING Overall Rating: Date: December 3, 2017 Wonderful

Nice variation in spray pattern. Good quality. Wonderful to have a decent shower in the mornings.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 5 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

katie Asked :
Can you tell me the diameter of the showerhead? Thank you

Answered By QS Team

The diameter of the shower handset face is 80mm.

Was this answer helpful?

jane Asked :
I have a gravity-fed water system and an immersion cylinder. The cold water pressure is much higher than the hot water. I want to have a shower fitted, but don't want to go to the expense and mess of having a pump installed or new electrics run the house's length to get to the fuse board for an electric shower. Would a thermostatic mixer shower be the easiest and less messy option?

Answered By QS Team

The Frenzy shower requires 0.2 Bar of pressure to operate correctly; this means 2 metres of distance between the bottom of the hot water tank, and the product will be required for the hot water to run. Should the pressure be significantly more on the cold feed, you will need to fit a pressure reducing valve to balance the water supplies to get a decent mix of water. The balance of pressure will be required on all Bristan showers, including our mixer showers, not only on the Frenzy.

Was this answer helpful?

Marlene Asked :
I want to replace an Iflow Architect thermostatic bar and shower riser. The width of the thermostatic bar is 300mm with the hot feed on the right-hand side. Is there a replacement round design (current is square) with the same width (to accommodate the water feed) with both bath and basin taps to match? Thanks for your help.

Answered By QS Team

The Iflow Architect uses pipe centres between 135-165mm as the inlets are adjustable. Please, could you confirm the pipe centres you have currently in place, so we can advise on a suitable replacement using the correct pipe centres?
